Ceiling Grid Systems
The carrier, main runner and cross member set that a metal ceiling hangs from.
Overview
The carrier, main runner and cross member set that a metal ceiling hangs from. Grid module and suspension centres follow the panel size and the services above, not the other way round.
Materials
1 availableFinish options
Applied after fabricationSign finishes off on physical metal — request samples.
How it is manufactured
Technical information
| Material | Aluminium |
|---|---|
| Product code | MCS-CEI-009 |
| Environment | Interior |
| Supply | Made to project requirement |
| Sheet thickness | 0.25 - 4 mm (project-specific) |
| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed, Powder Coating |
| Manufacturing | CNC Fibre Laser Cutting → CNC Bending → Surface Finishing |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes for made-to-order sections, because the section is set by the substrate, the glass make-up or the panel module it has to suit. Contact MCS for project-specific technical data →
Applications
What MCS needs in order to quote
Geometry
Section drawing or dimensioned sketch, leg lengths, overall length and quantity.
Material
Metal, grade and sheet thickness — or the performance the detail has to meet, and MCS will suggest one.
Finish
Finish and colour, whether a sample is required, and the visible faces.
Downloads
Watch how it is made
-
Metal Ceiling Systems Metal Grid Ceiling Solution | Open-Cell Ceiling Design | MCS

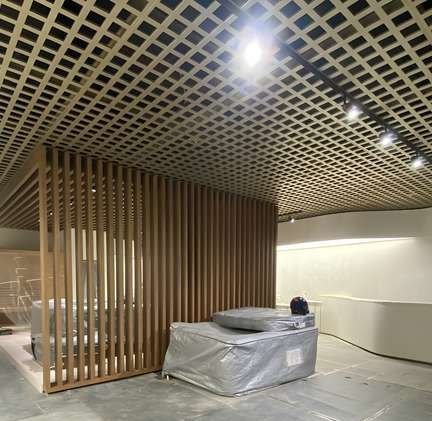

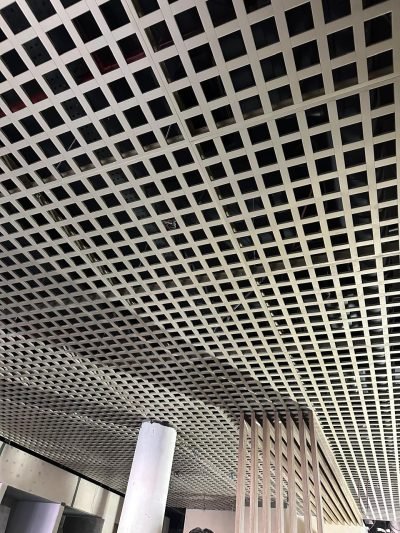

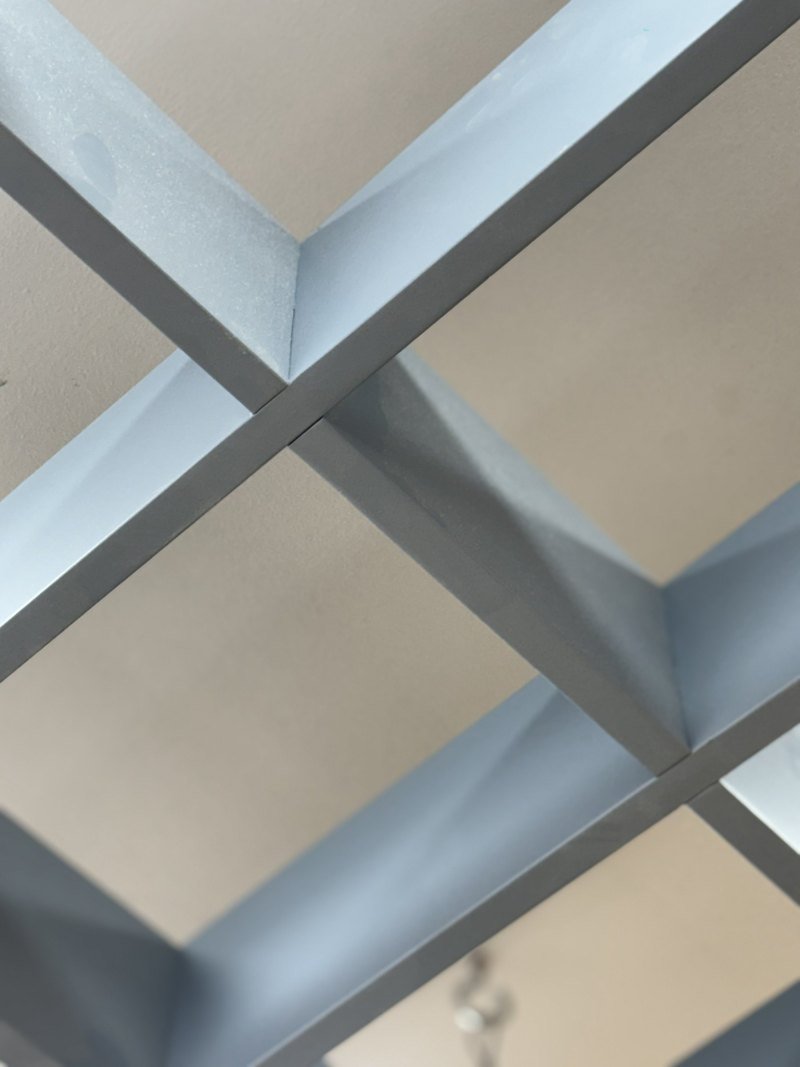

An open-grid metal ceiling interior with close-up views of the intersecting metal members.
-
Metal Ceiling Systems Metal Ceiling Solutions - Parametric, Origami, Honeycomb, Grid & Baffle Ceilings
The range of metal ceiling systems, from parametric to baffle.
-
Metal Ceiling Systems Parametric, Origami & Baffle Ceilings | Custom Metal Ceiling Designs by MCS
Signature ceiling systems - parametric, origami, grid and baffle - installed.
Related products
All Metal Ceiling Systems
Start a project
Specifying Ceiling Grid Systems?
Send the drawing, dimensions and finish requirement. MCS returns a fabrication review before a price.
