Finish

Bead Blast

An even, fine-textured matte surface, made by blasting the metal with glass bead. It is the same in every direction, so there is no grain to line up.

Request a sample of Bead BlastAll finishes
Bead blast finish sample in gold
Bead blast finish sample in goldSS · Aluminium

Specification

Using Bead Blast

Suitable metalsSS · Aluminium
Typical applicationsSurfaces with heavy traffic, washroom and institutional work, exterior panels.
Specification noteHides handling marks better than any polished or grained finish.
AppliedAfter fabrication, on the finished and buffed piece

Metal finishes do not photograph honestly. Colour and reflection in the photograph above change with the light and the camera. Ask MCS for physical samples in the intended metal and thickness before you specify.

In MCS work

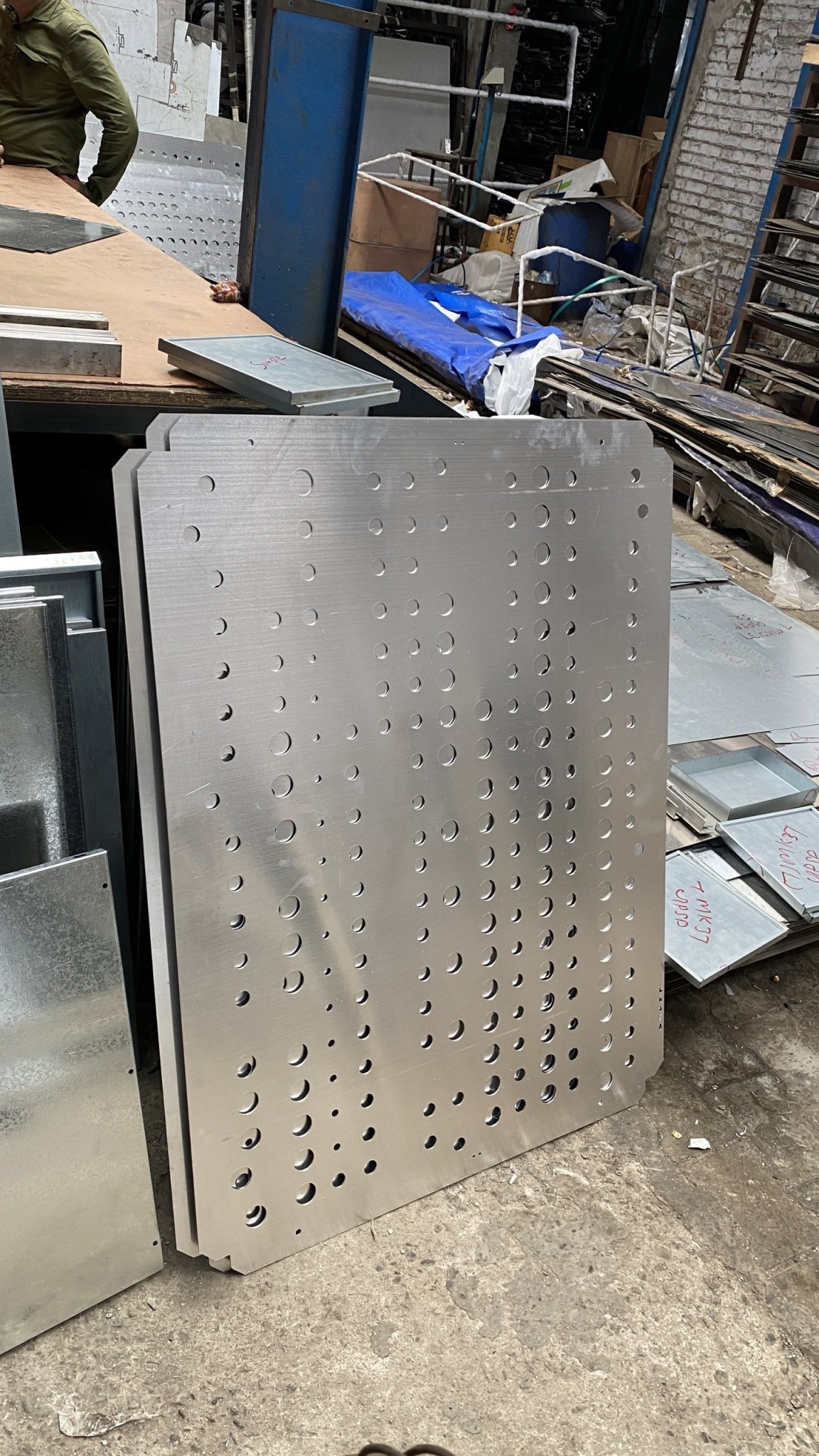

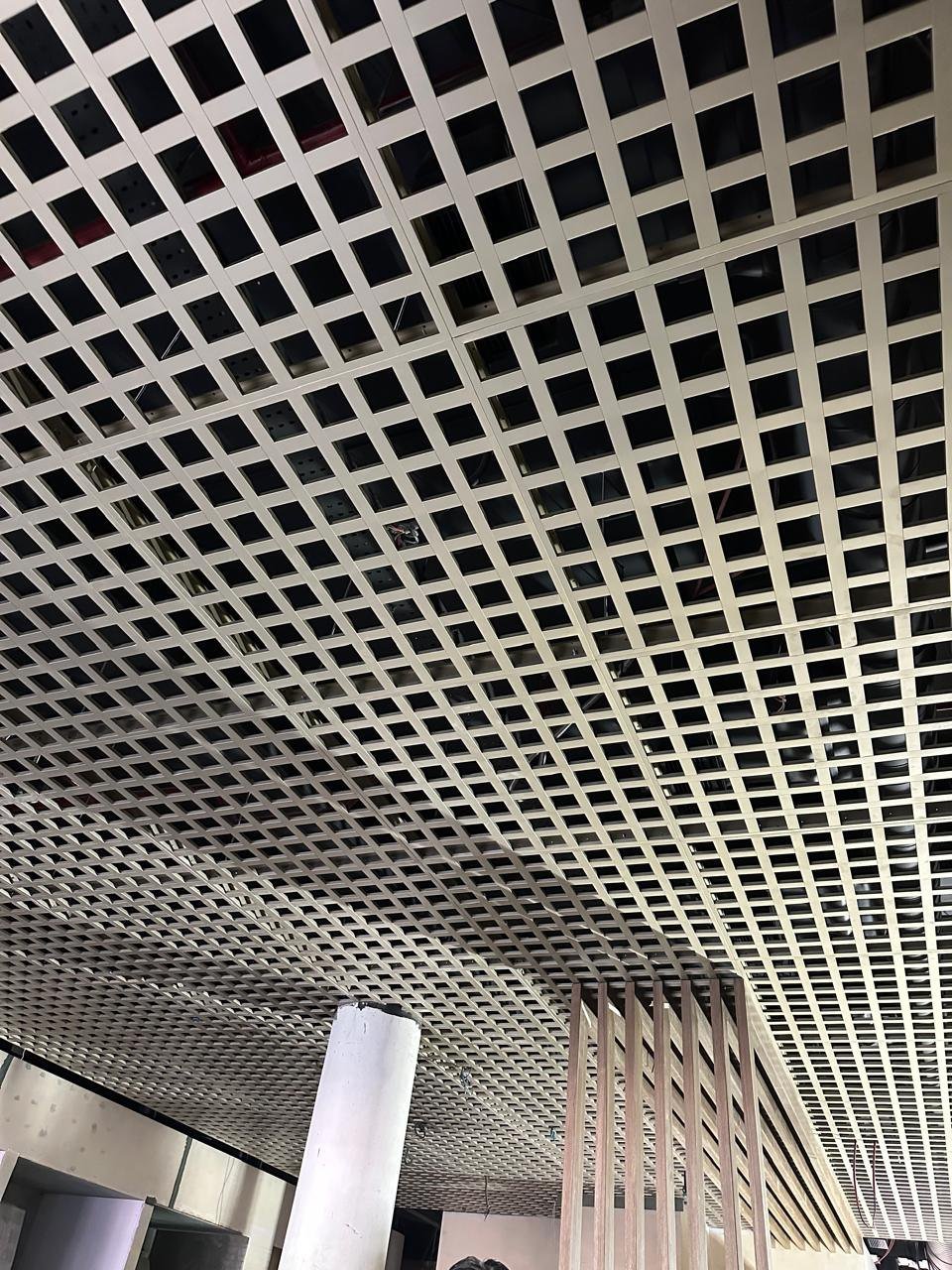

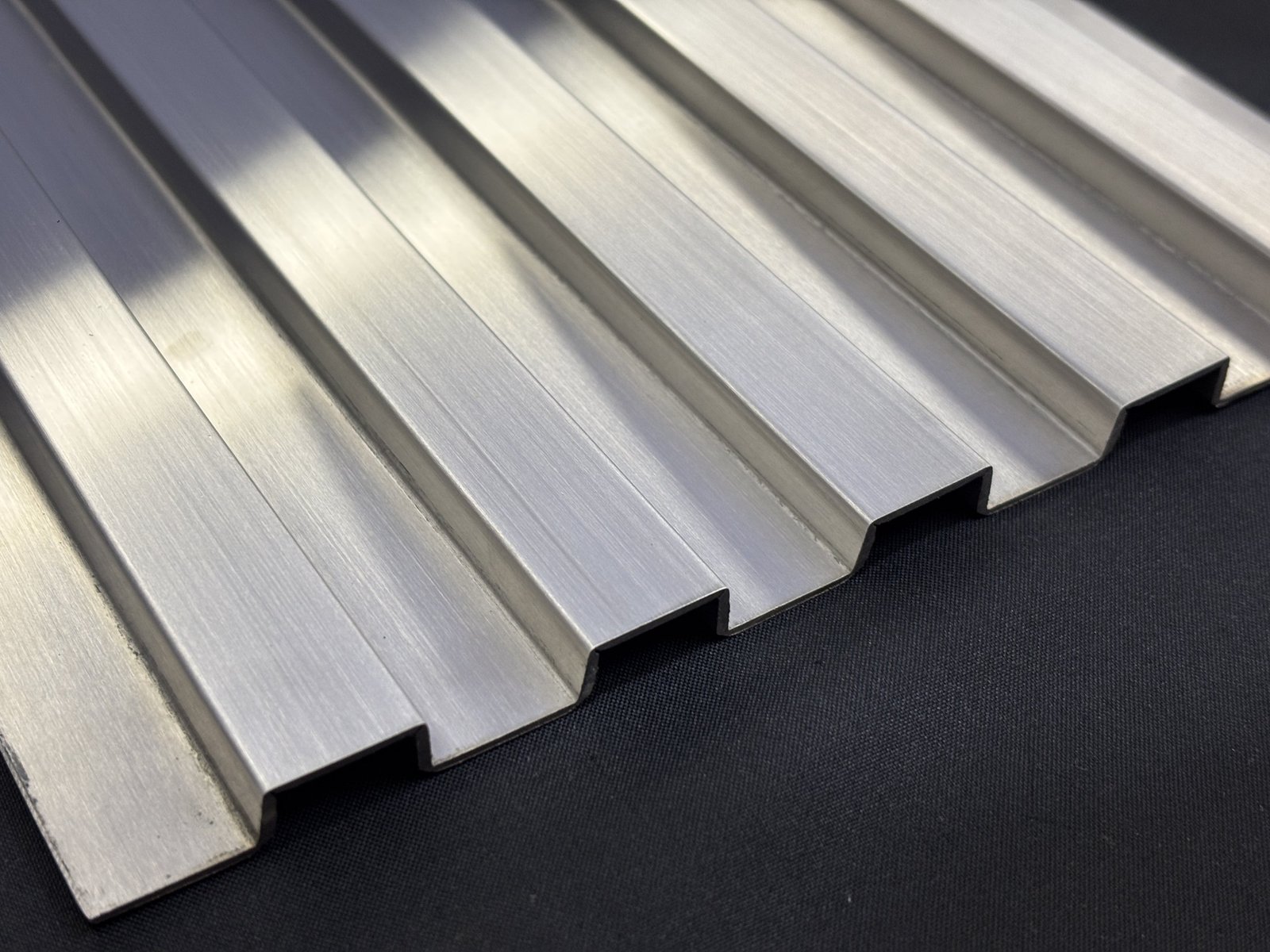

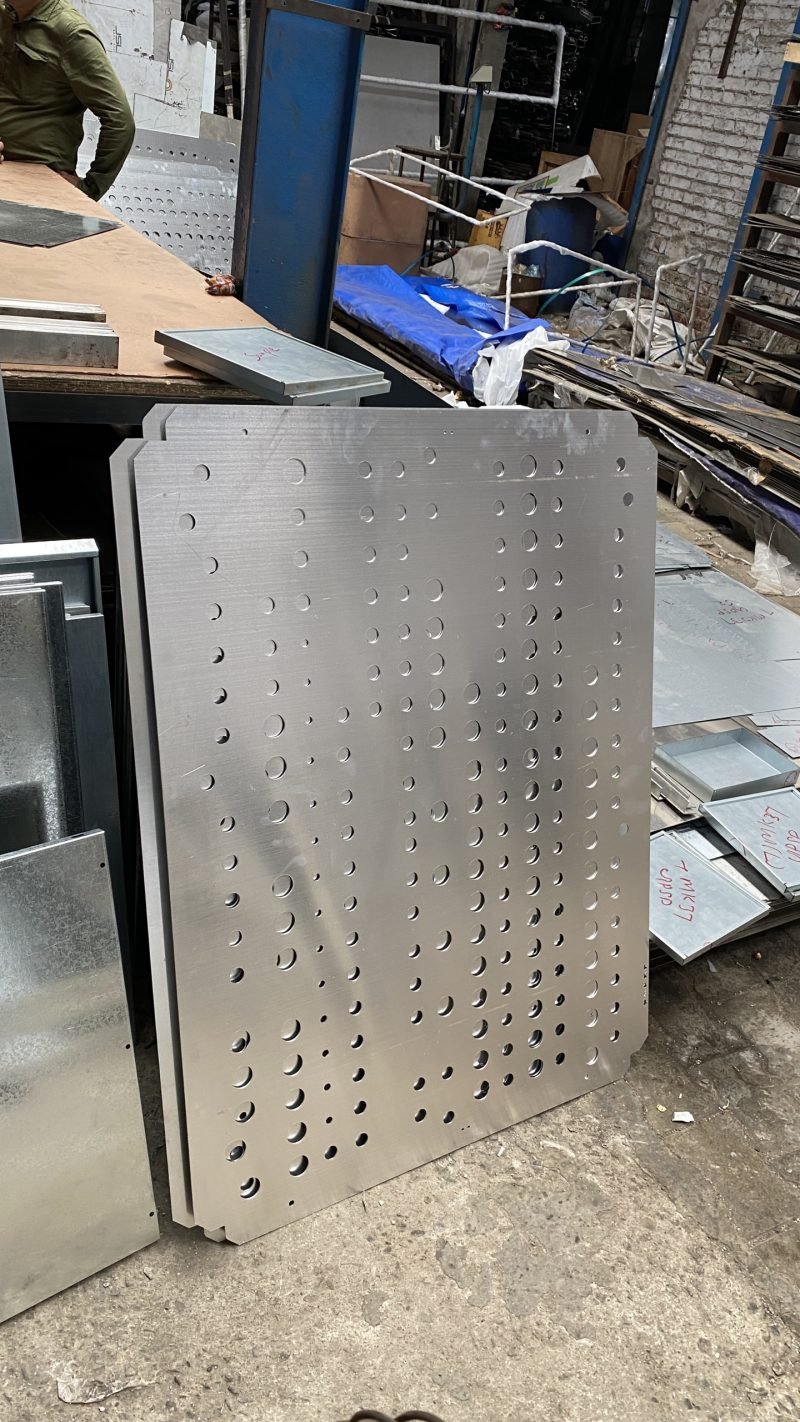

Products commonly specified in this finish

Some of these pictures are illustrations. They are here to show the kind of work the finish is used on — the finish on any individual piece was specified by that project, so request a physical sample rather than matching to a photograph.

Bead blast finish sample in champagne gold
Bead blast finish sample in champagne gold
Bead blast finish sample in rose gold
Bead blast finish sample in rose gold
Bead blast finish sample in bronze
Bead blast finish sample in bronze
Bead blast finish sample in silver
Bead blast finish sample in silver

Finish library

The other finishes

Mirror swatch plate with the MCS mark laser cut through its bottom right cornerMirrorSS · Brass · CopperHairline swatch plate with the MCS mark laser cut through its bottom right cornerHairlineSS · AluminiumMatte swatch plate with the MCS mark laser cut through its bottom right cornerMatteAll metalsAntique / Brushed swatch plate with the MCS mark laser cut through its bottom right cornerAntique / BrushedBrass · Bronze · CopperPVD Gold swatch plate with the MCS mark laser cut through its bottom right cornerPVD GoldSS 304 · SS 316Rose Gold PVD swatch plate with the MCS mark laser cut through its bottom right cornerRose Gold PVDSS 304 · SS 316Champagne Gold PVD swatch plate with the MCS mark laser cut through its bottom right cornerChampagne Gold PVDSS 304 · SS 316Bronze PVD swatch plate with the MCS mark laser cut through its bottom right cornerBronze PVDSS 304 · SS 316Powder Coating swatch plate with the MCS mark laser cut through its bottom right cornerPowder CoatingMS · Aluminium · GIVibrationSSHammeredSS
Every finish as a swatch plate

Start a project

Specifying Bead Blast?

Request physical samples before you commit the detail.

Upload a drawingRequest a quoteWhatsApp MCS
