Capabilities
Made step by step,
in one workshop.
Cutting, grooving, bending, welding, buffing and finishing follow one another in one workshop in Narela, Delhi. Nothing that affects the corner or the finish leaves the building between steps.
One process or the whole part
Send only the step you need, a laser cut, a V-groove or a bend, or the complete part: cut, grooved, bent, welded and finished in one workshop. Our design team plans the route through the machines before anything is cut.
The steps
Six processes, speciality first
Each product page names the steps that product goes through. Every step links back to its page here.
One part, start to finish
Eight steps,
one workshop
01Design desk
Your drawing is checked, the flat sizes, grooves and bend order are worked out, and the cut file is made.

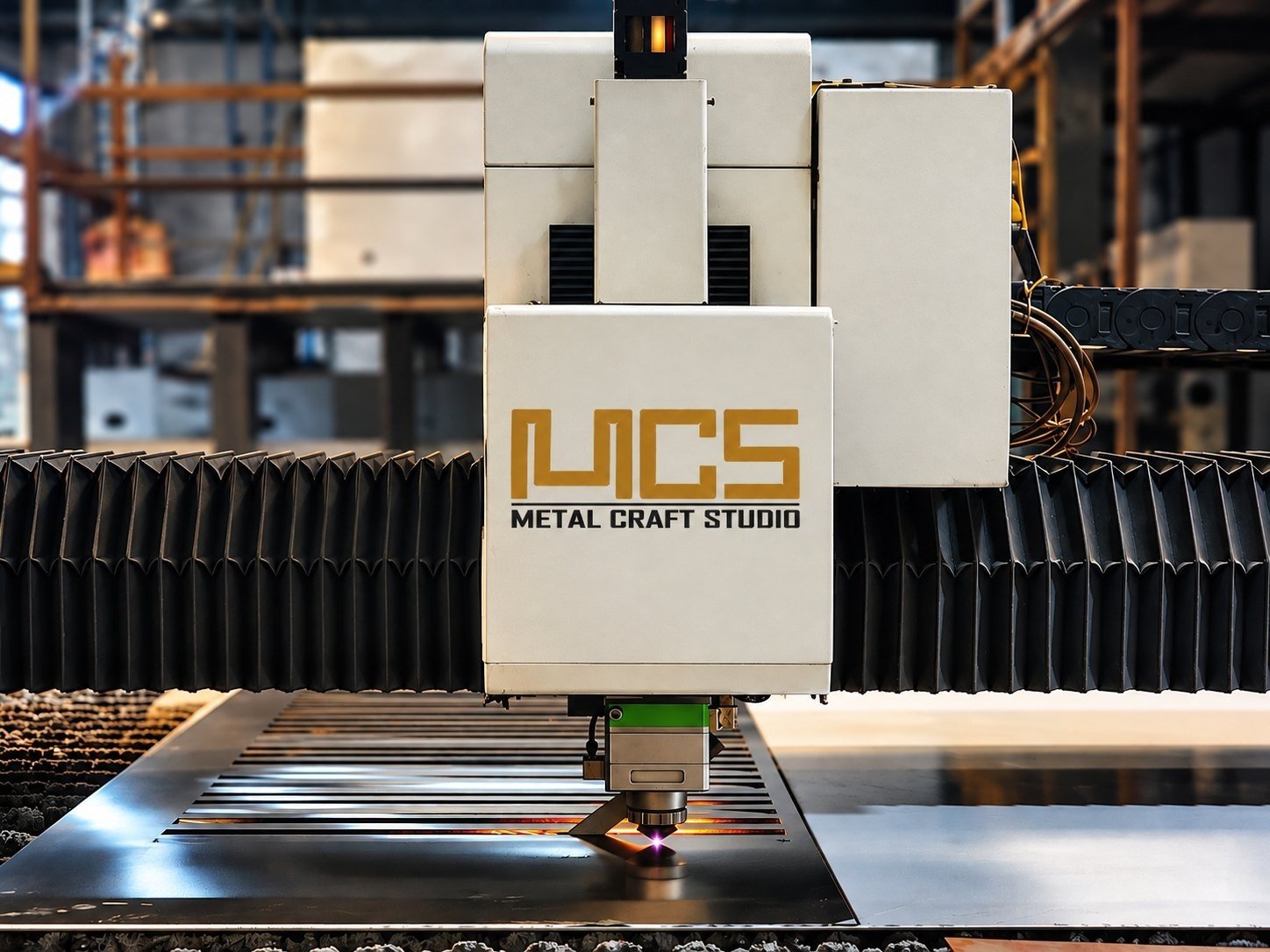

02Laser cutting
The flat blank, its holes and any pattern are cut from the sheet.

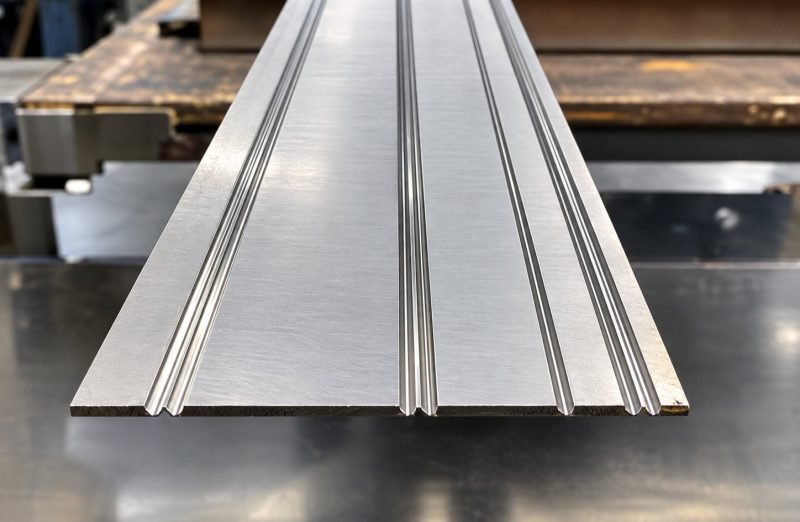

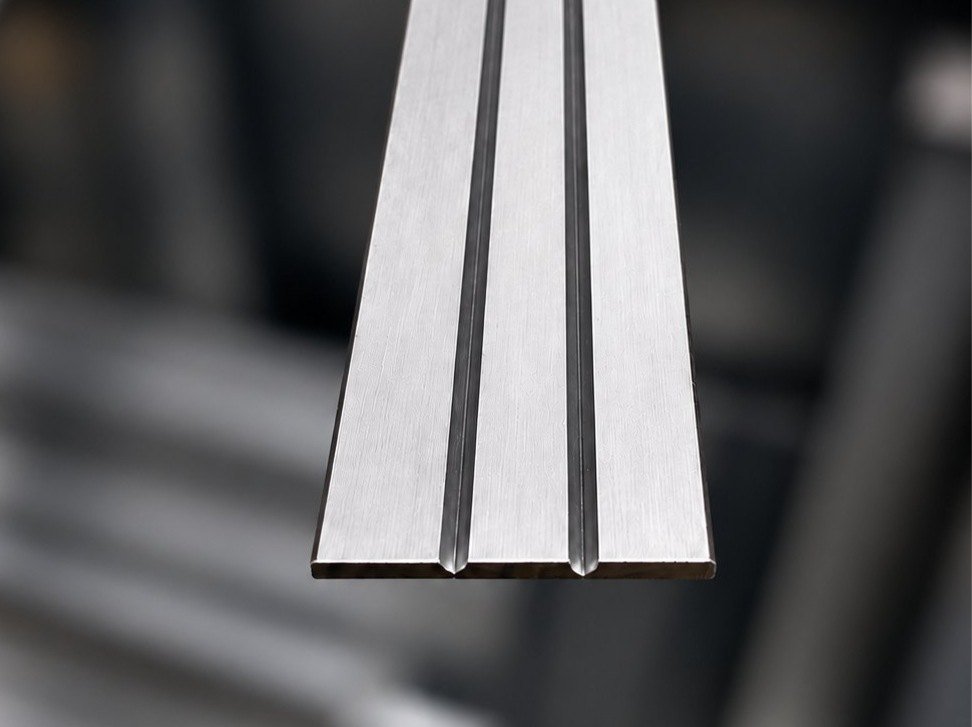

03V-grooving
A groove along each bend line that must end in a sharp corner.
04Bending
The blank is folded into its section, bend by bend, in the planned order.

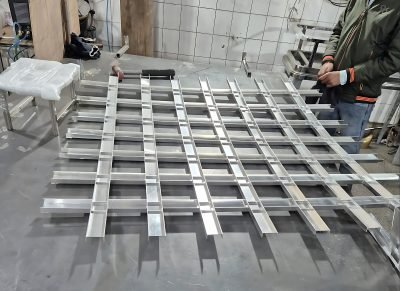

05Welding
Pieces are joined, ground flush and assembled where the part needs it.
06Finishing
Mirror, hairline, matte or bead blast, done after the fold so corners match.
07Colour
PVD or powder coating, arranged by MCS through approved coating vendors.
08Inspection
Sizes, corners and finish checked against the drawing and your approved sample.
Which process?
What your part needs,
and the process for it
| A flat part, holes or a pattern | CNC fibre laser cutting |
|---|---|

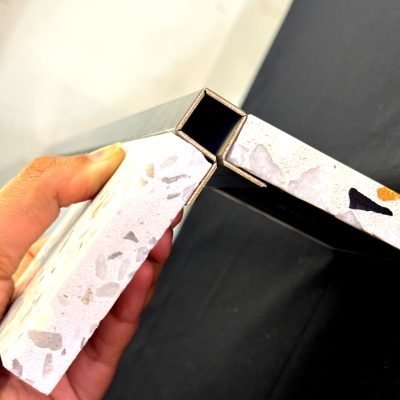

| A sharp outside corner | CNC V-grooving, then bending |
| A channel, angle, tray or box | CNC bending on the press brake |
| Several pieces joined into one | Welding and assembly |
| A brushed, mirror or satin look | Surface finishing |
| A metallic colour on stainless steel | PVD, arranged by MCS |
| A solid RAL colour on aluminium, mild steel or GI | Powder coating, arranged by MCS |
Not sure? Send the drawing: our design team chooses the route and tells you why.
Products and processes
What MCS makes, and how MCS makes it
These are two different things, and this website keeps them apart. A glass housing profile is a product. Laser cutting, V-grooving and bending are the processes that make it.
Glass Housing Profile
A product has its own page, with a code, its metals, its finishes and the places it is used.
Laser → V-groove → bend
The processes that make the product. The other products in the range go through the same ones.
Finding the right page
An architect searches for the product. A fabricator searches for the process. Each of them should land on the right page.
In pictures
Three of the steps
Cutting, grooving and assembly, in the order they happen.
Start a project
Send us your drawing
MCS will tell you which of these processes the detail needs.
