Interlocking Wall Panels

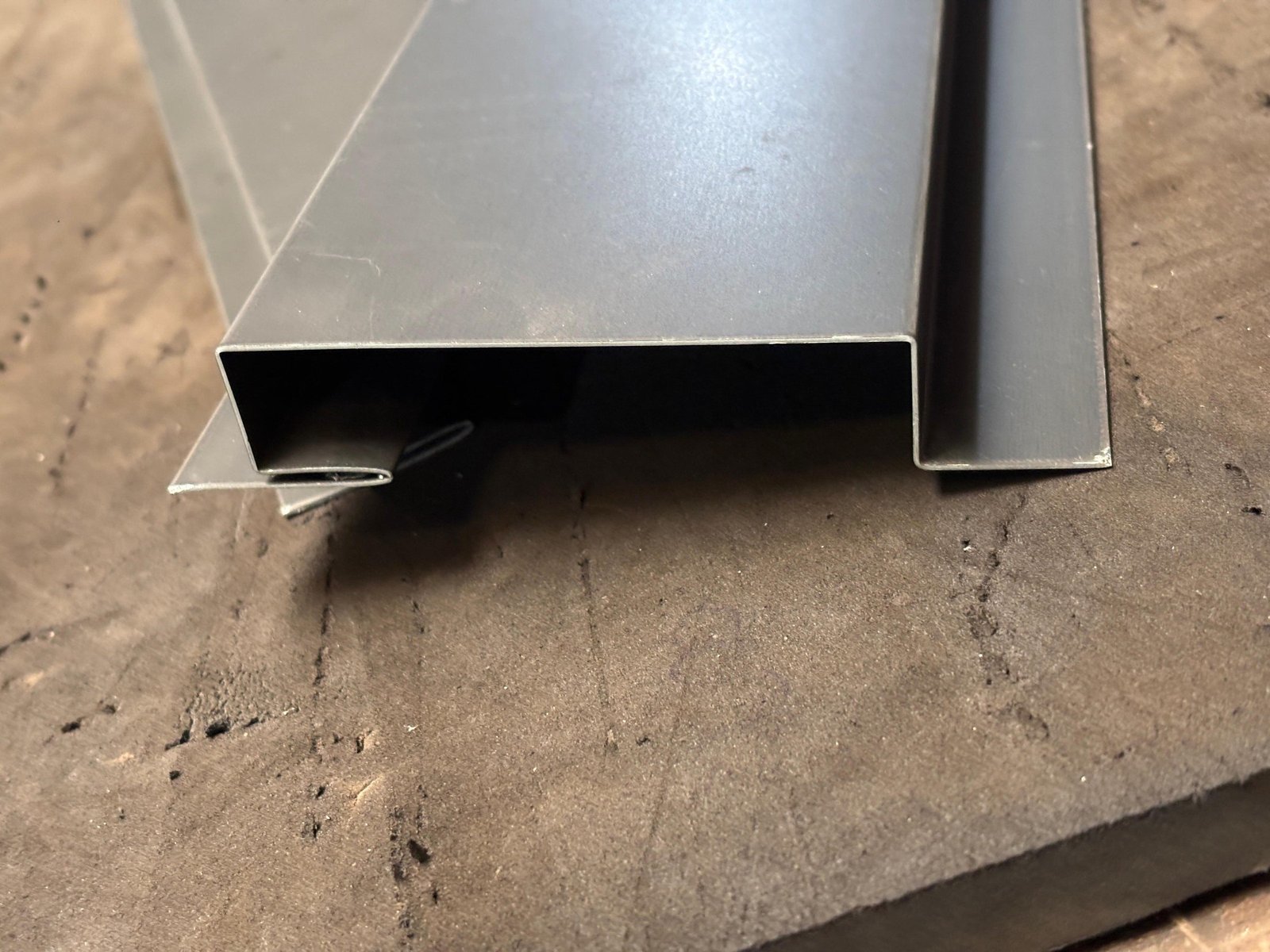

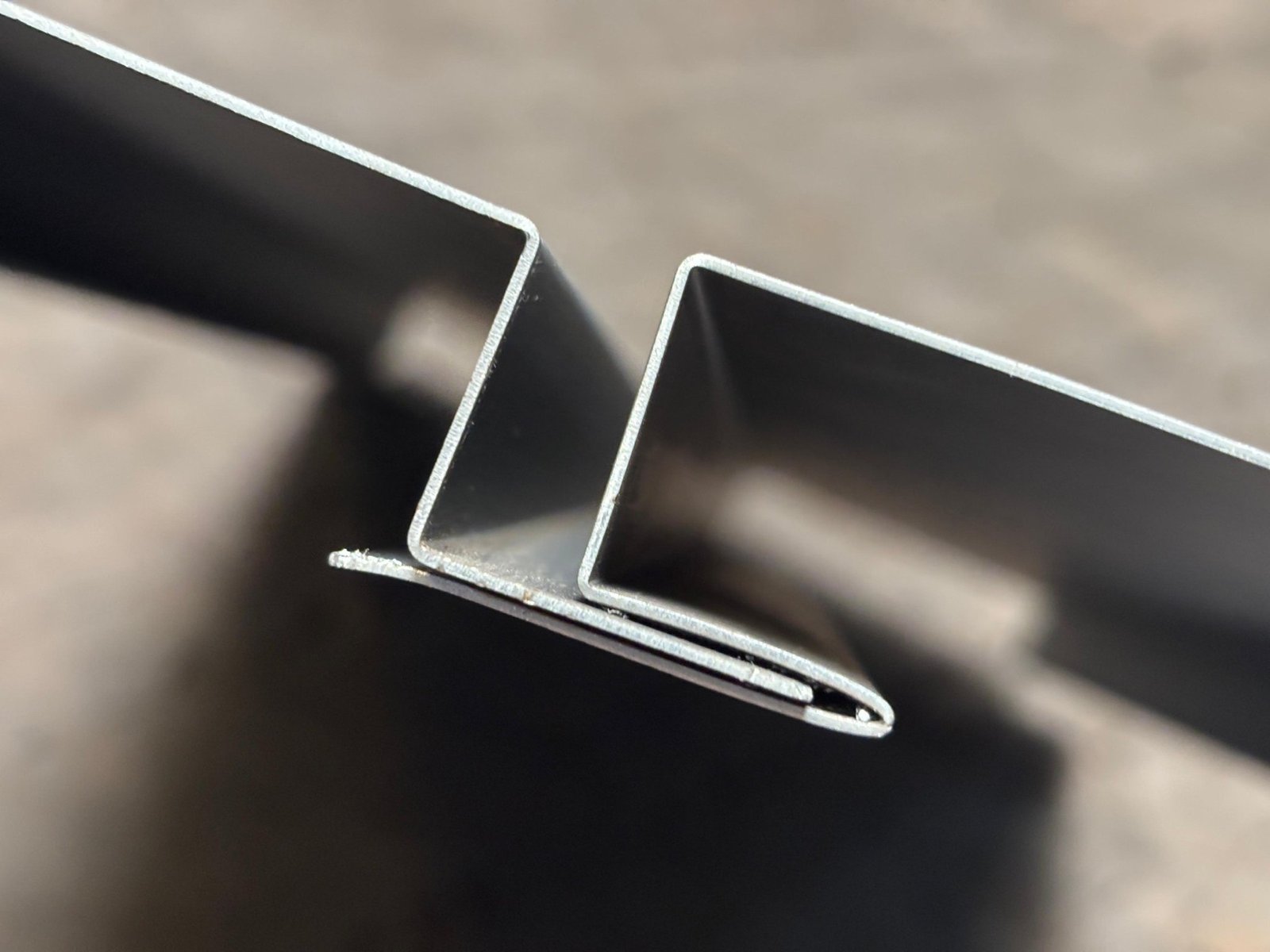

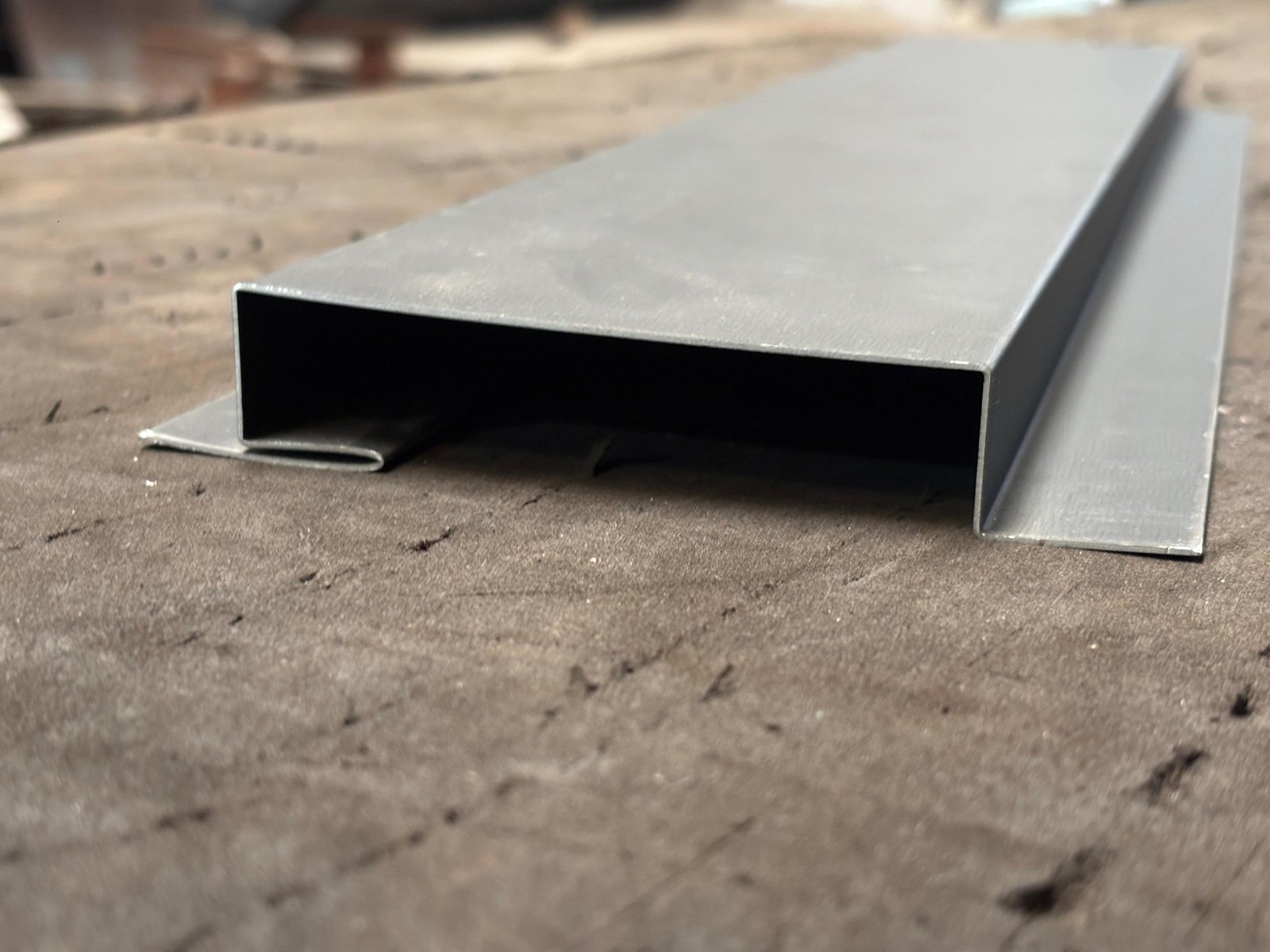

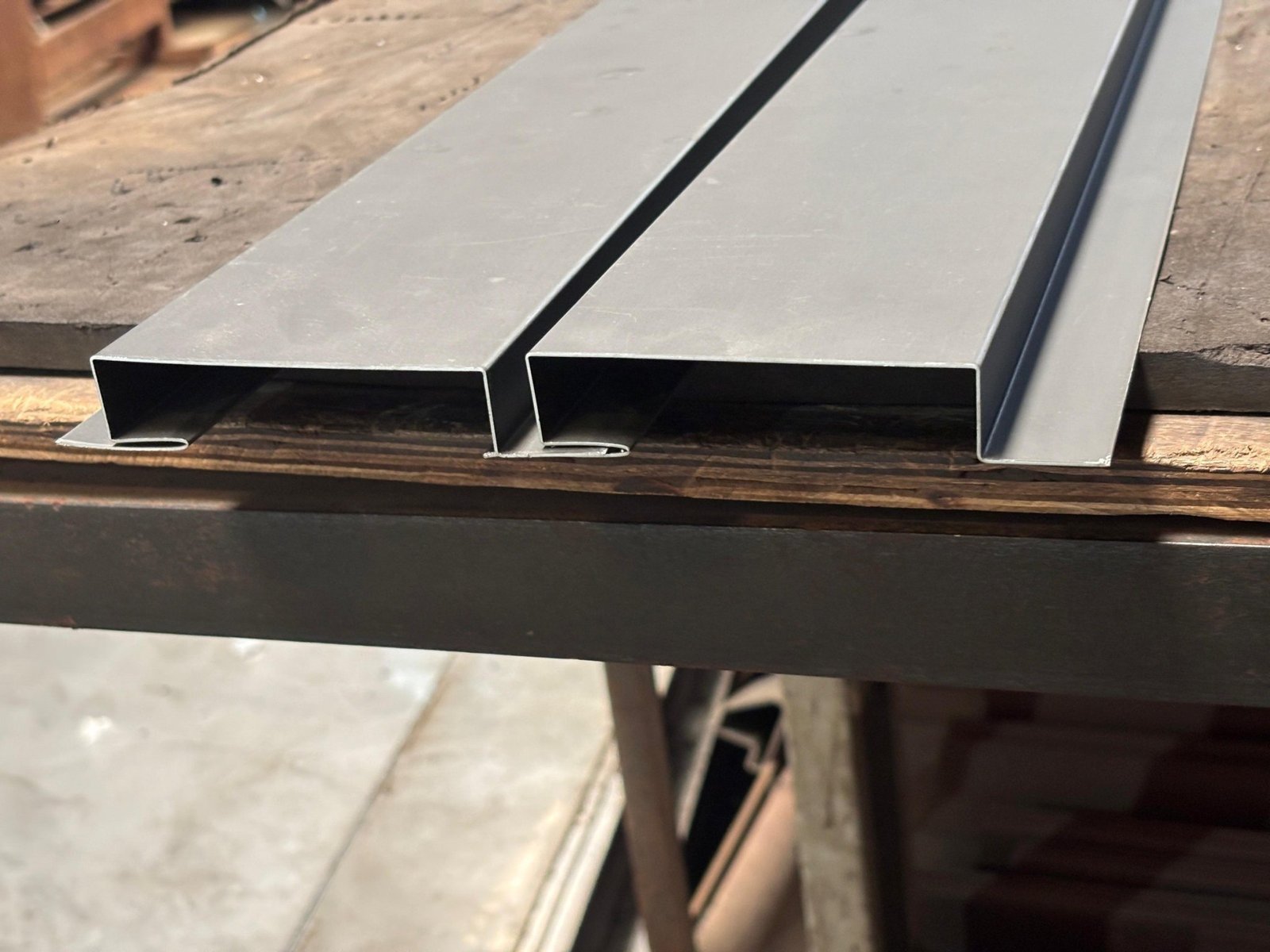

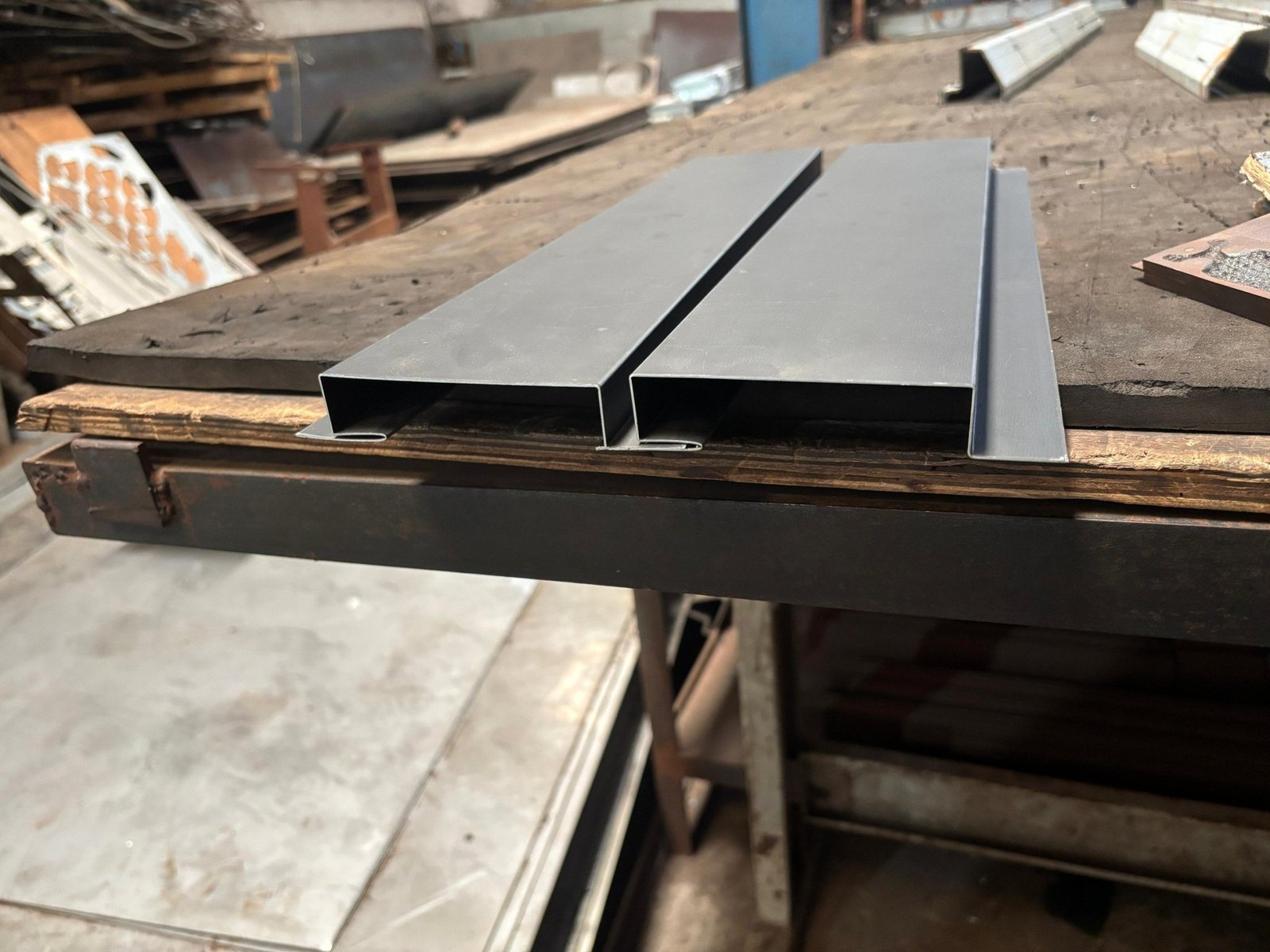

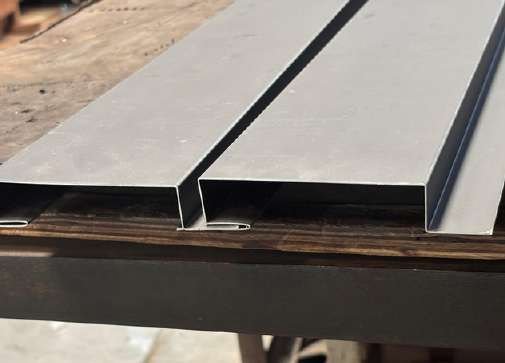

Panels that engage into each other on a concealed return, so no fixing shows on the face.
Overview
Panels that engage into each other on a concealed return, so no fixing shows on the face. Because each panel locks to the one before it, the setting-out and the start point decide where the last cut panel lands — worth agreeing before fabrication.
Materials
2 availableFinish options
Applied after fabricationSign finishes off on physical metal — request samples.
How it is manufactured
V-grooved for sharp edgesTechnical information
| Material | Stainless Steel 304, Aluminium |
|---|---|
| Product code | MCS-WAL-001 |
| Environment | Interior |
| Supply | Made to project requirement |
| Sheet thickness | 0.25 - 4 mm (project-specific) |
| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Black PVD, Bronze PVD, Powder Coating |
| Manufacturing | CNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing → PVD & Powder Coating |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes for made-to-order sections, because the section is set by the substrate, the glass make-up or the panel module it has to suit. Contact MCS for project-specific technical data →
Applications
What MCS needs in order to quote
Geometry
Section drawing or dimensioned sketch, leg lengths, overall length and quantity.
Material
Metal, grade and sheet thickness — or the performance the detail has to meet, and MCS will suggest one.
Finish
Finish and colour, whether a sample is required, and the visible faces.
Downloads
Watch how it is made
Related products
All Wall Panels & Cladding
Start a project
Specifying Interlocking Wall Panels?
Send the drawing, dimensions and finish requirement. MCS returns a fabrication review before a price.
