Expansion Joint Profile

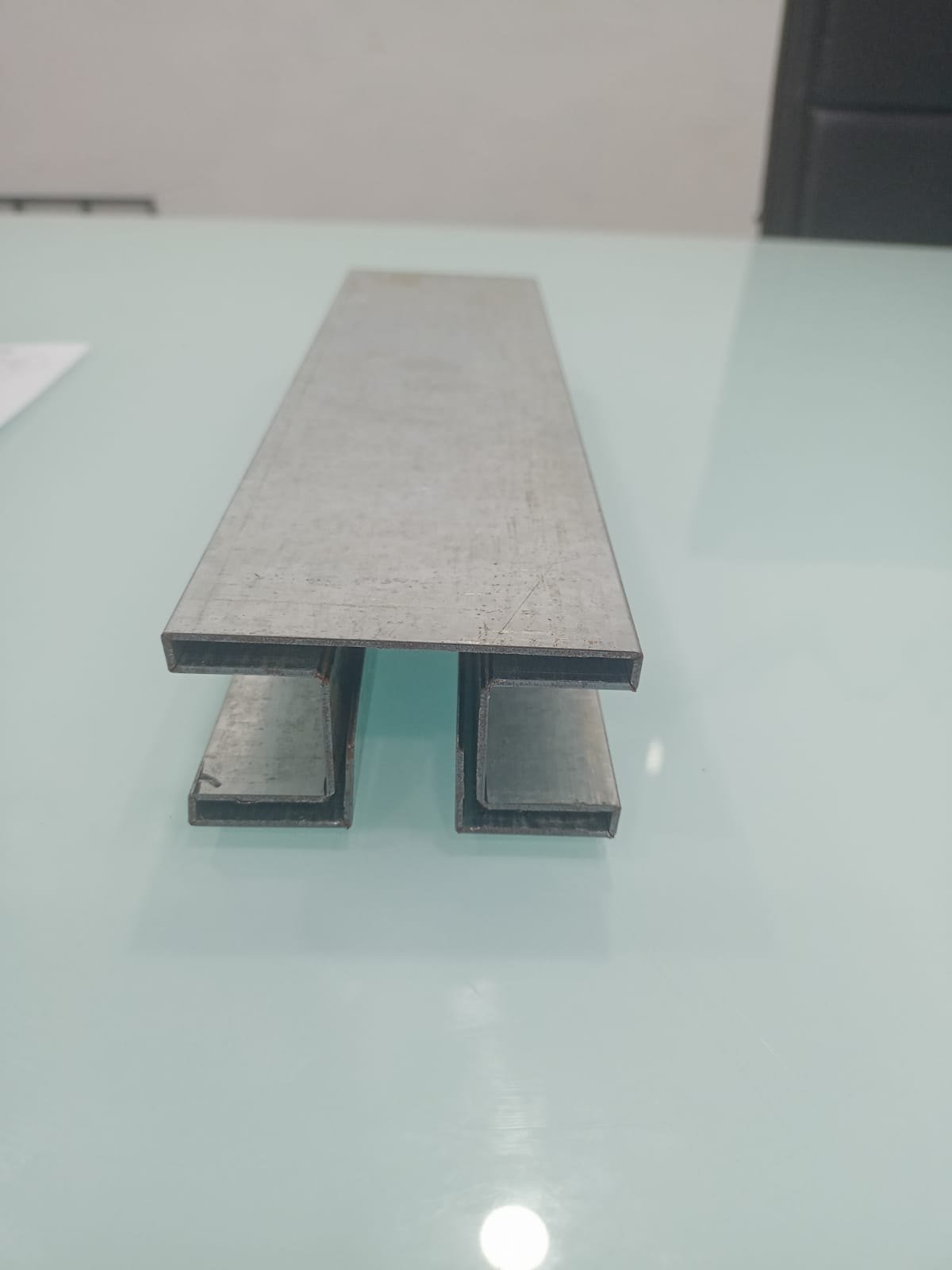

A two-part profile that spans a movement joint between floor or wall sections.
Overview
A two-part profile that spans a movement joint between floor or wall sections. The cover plate sits over the gap and is fixed to one side only, so the structure can move without the surface finish cracking. Made to the joint width on the drawing in aluminium or stainless steel.
Materials
2 availableFinish options
Applied after fabricationSign finishes off on physical metal — request samples.
How it is manufactured
V-grooved for sharp edgesTechnical information
| Material | Stainless Steel 304, Aluminium |
|---|---|
| Product code | MCS-PRF-014 |
| Environment | Interior and exterior |
| Supply | Made to project requirement |
| Sheet thickness | 0.25 - 4 mm (project-specific) |
| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed, Powder Coating |
| Manufacturing | CNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes for made-to-order sections, because the section is set by the substrate, the glass make-up or the panel module it has to suit. Contact MCS for project-specific technical data →
Applications
What MCS needs in order to quote
Geometry
Section drawing or dimensioned sketch, leg lengths, overall length and quantity.
Material
Metal, grade and sheet thickness — or the performance the detail has to meet, and MCS will suggest one.
Finish
Finish and colour, whether a sample is required, and the visible faces.
