U Profile — Architectural Profiles & Trims

Architectural Profiles & Trims · Metal Profiles & Trims

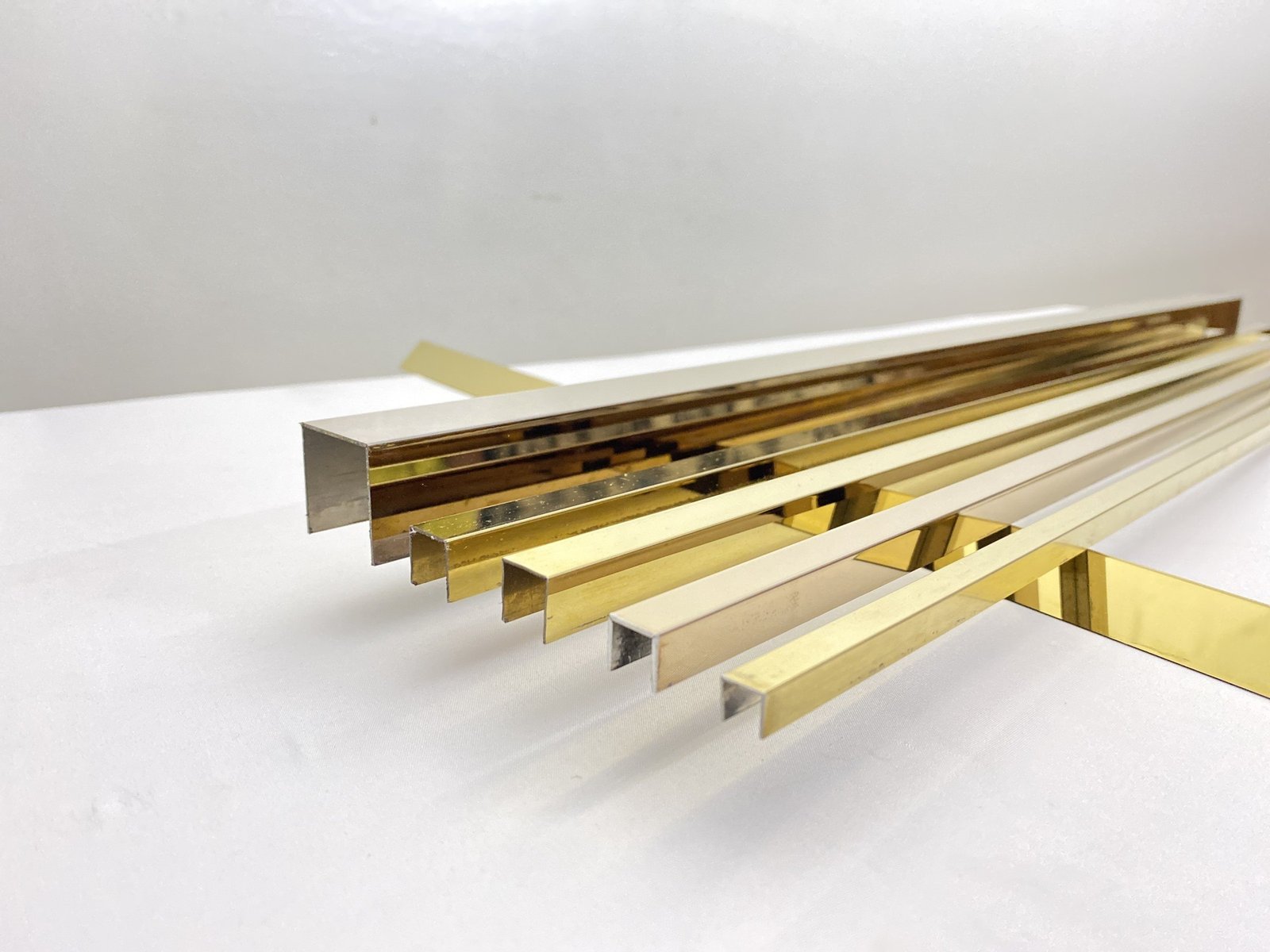

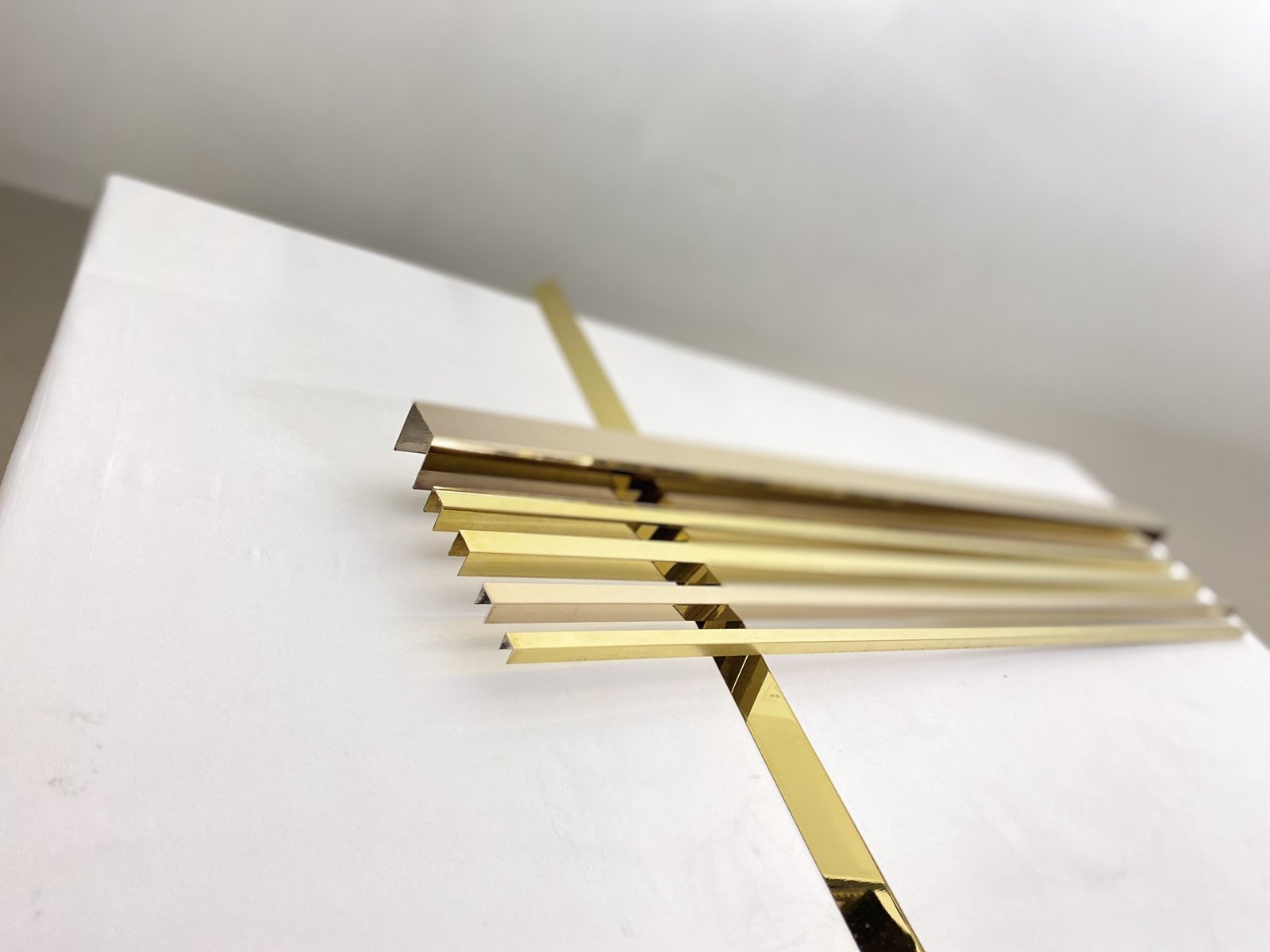

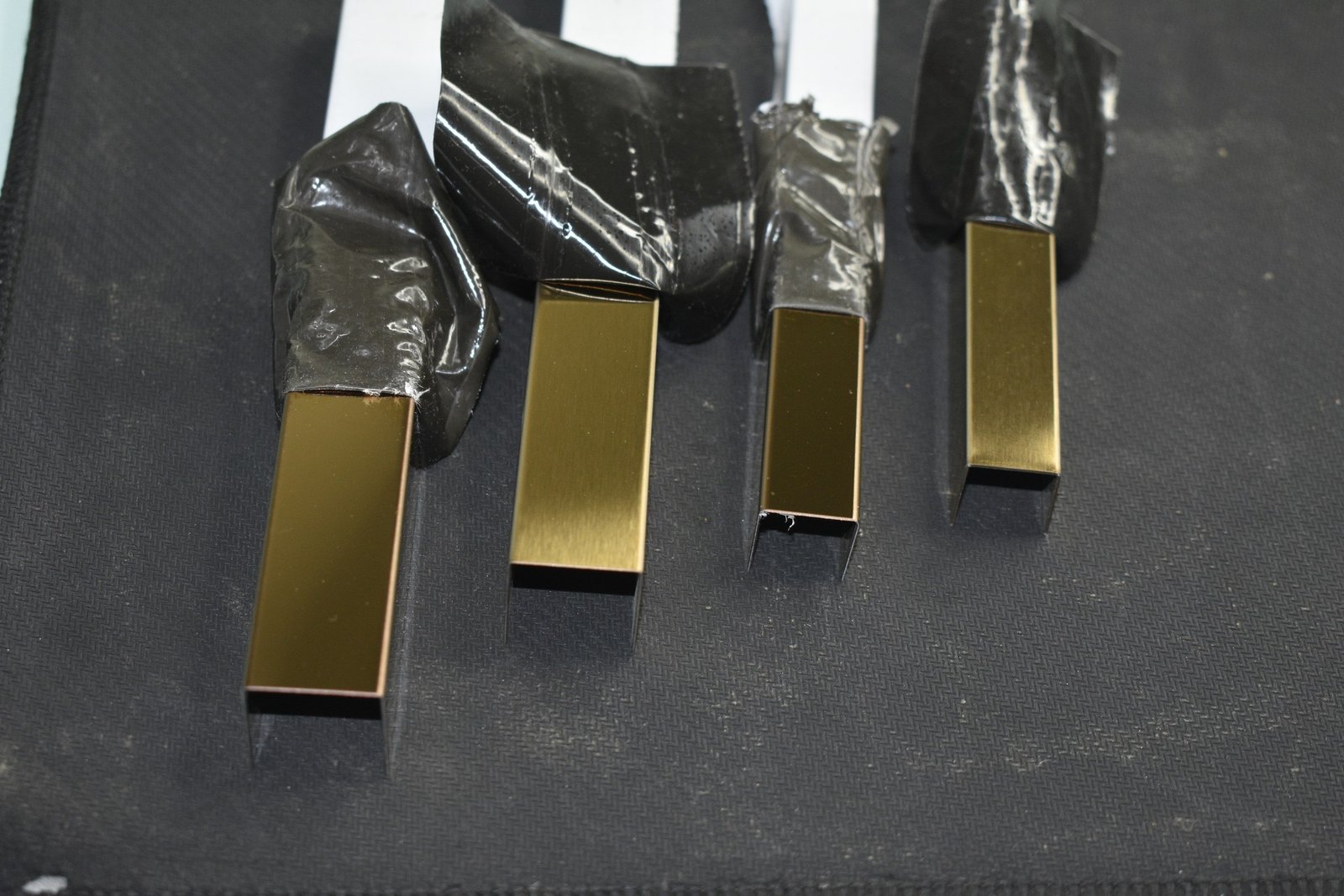

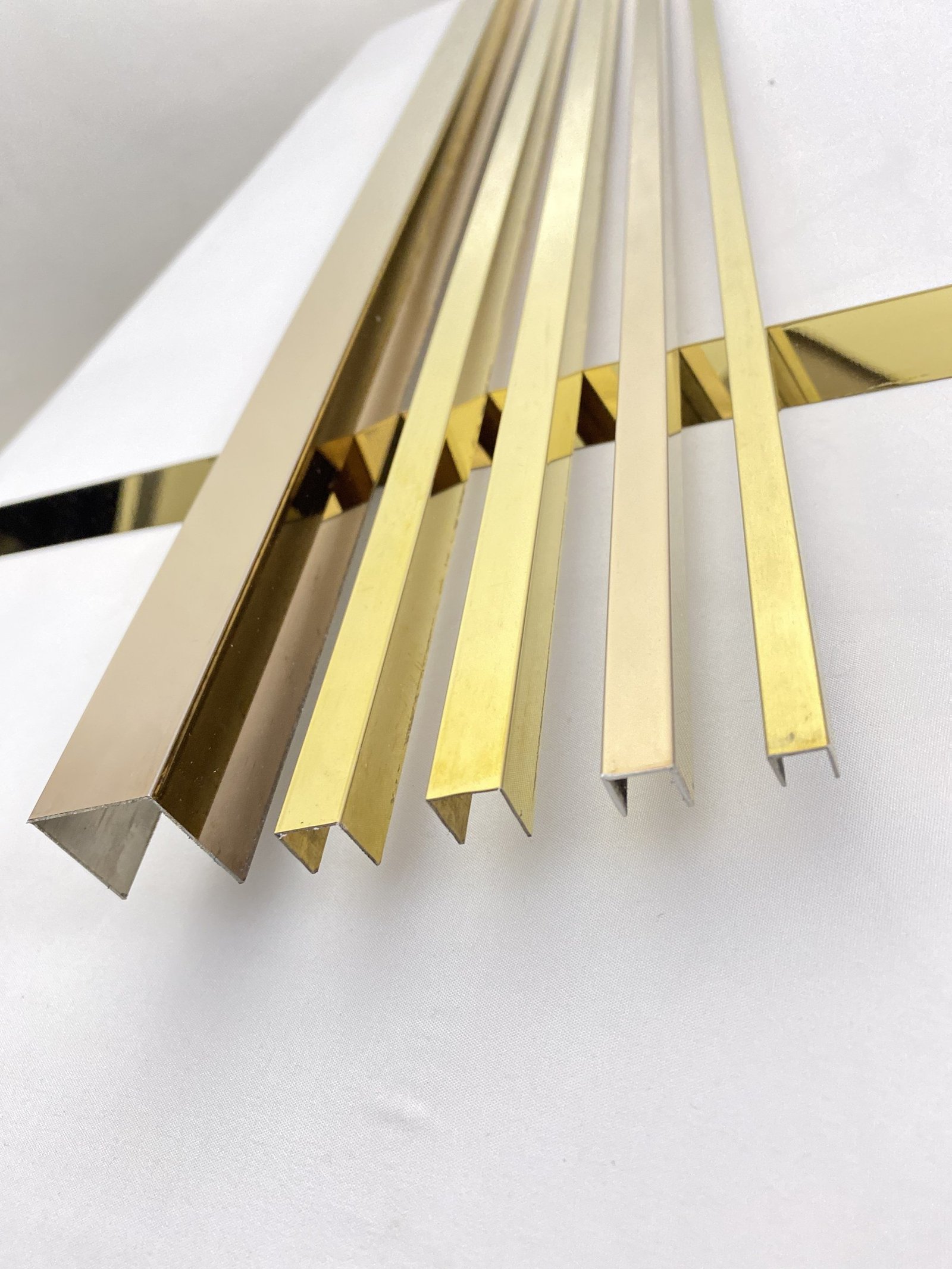

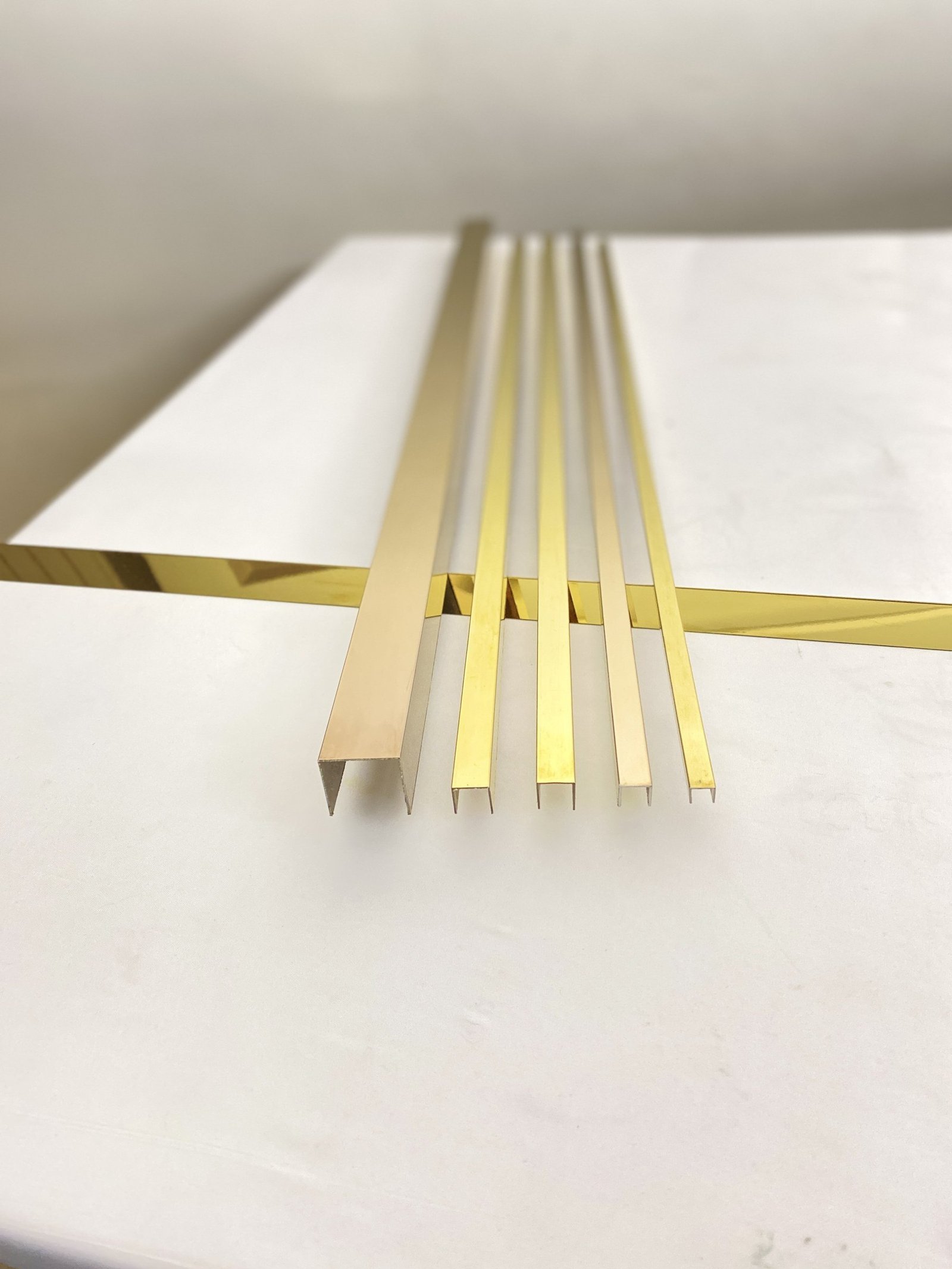

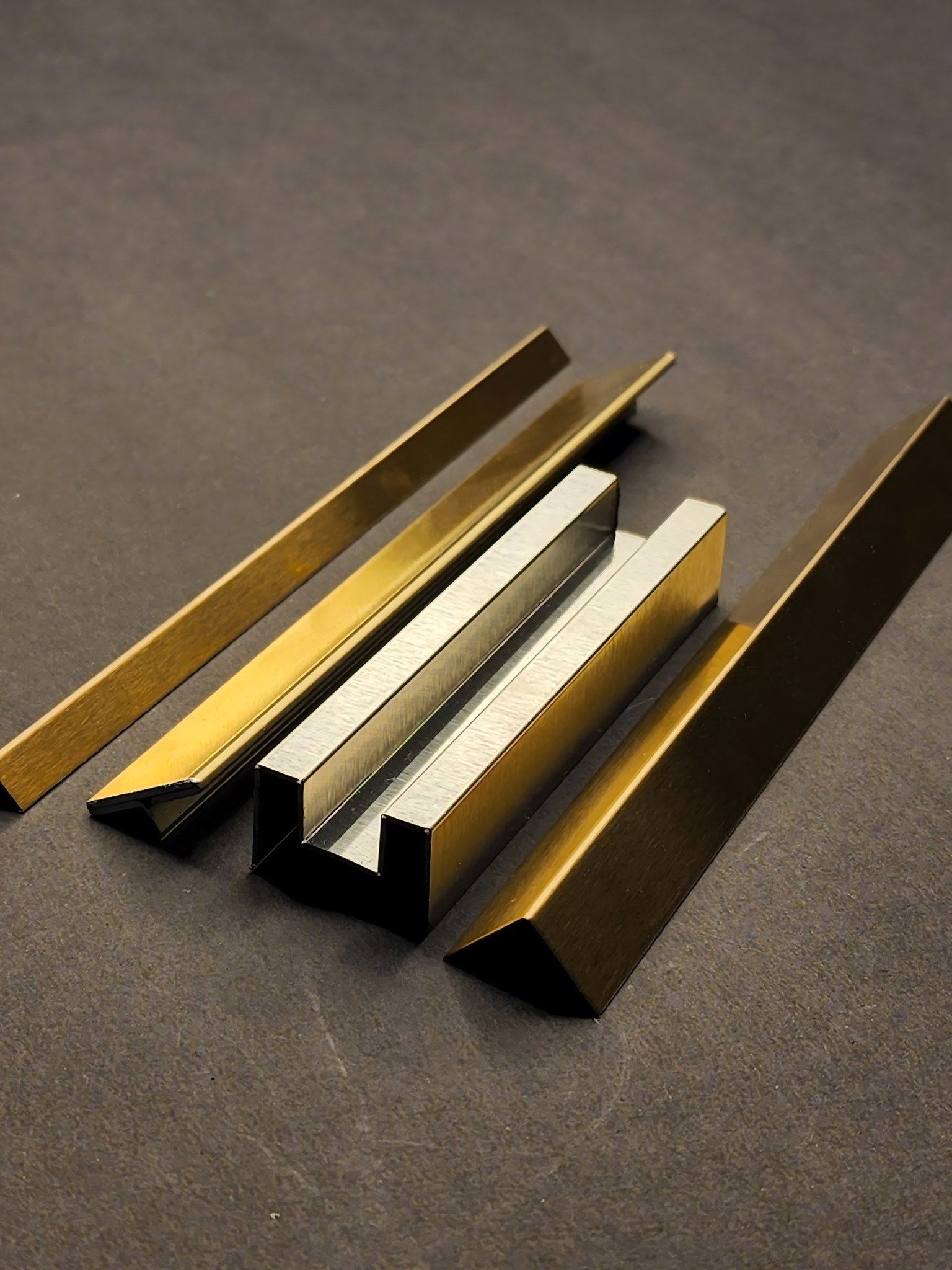

U Profile

Available Interior and exterior MCS-PRF-003 V-grooved

A three-sided channel that caps an exposed edge or houses a panel.

Request quote
↓ Datasheet ↑ Send a drawing WhatsApp

Overview

A three-sided channel that caps an exposed edge or houses a panel. Both bends are V-grooved, so the two external corners are sharp and the legs stay parallel down the full length of the run.

Materials

4 available
SS 304

Stainless Steel 304

 Aluminium

Aluminium

 Brass

Brass

 MS

Mild Steel

Finish options

Applied after fabrication
MirrorSS · Brass · Copper HairlineSS · Aluminium MatteAll metals Bead BlastSS · Aluminium Antique / BrushedBrass · Bronze · Copper Powder CoatingMS · Aluminium · GI

Sign finishes off on physical metal — request samples.

How it is manufactured

V-grooved for sharp edges
01CNC Fibre Laser Cutting02CNC V-Grooving03CNC Bending04Surface Finishing

Technical information

MaterialStainless Steel 304, Aluminium, Brass, Mild Steel
Product codeMCS-PRF-003
EnvironmentInterior and exterior
SupplyStandard section, cut to length
Sheet thickness0.25 - 4 mm (project-specific)
FinishesMirror, Hairline, Matte, Bead Blast, Antique / Brushed, Powder Coating
ManufacturingCNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing

Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes for made-to-order sections, because the section is set by the substrate, the glass make-up or the panel module it has to suit. Contact MCS for project-specific technical data →

Applications

CommercialHospitalityResidential

What MCS needs in order to quote

Geometry

Section drawing or dimensioned sketch, leg lengths, overall length and quantity.

Material

Metal, grade and sheet thickness — or the performance the detail has to meet, and MCS will suggest one.

Finish

Finish and colour, whether a sample is required, and the visible faces.

Downloads

PDFArchitectural Profiles & Trims — datasheet275 KB · Available now
