Pipe Profile (Square & Rectangular)

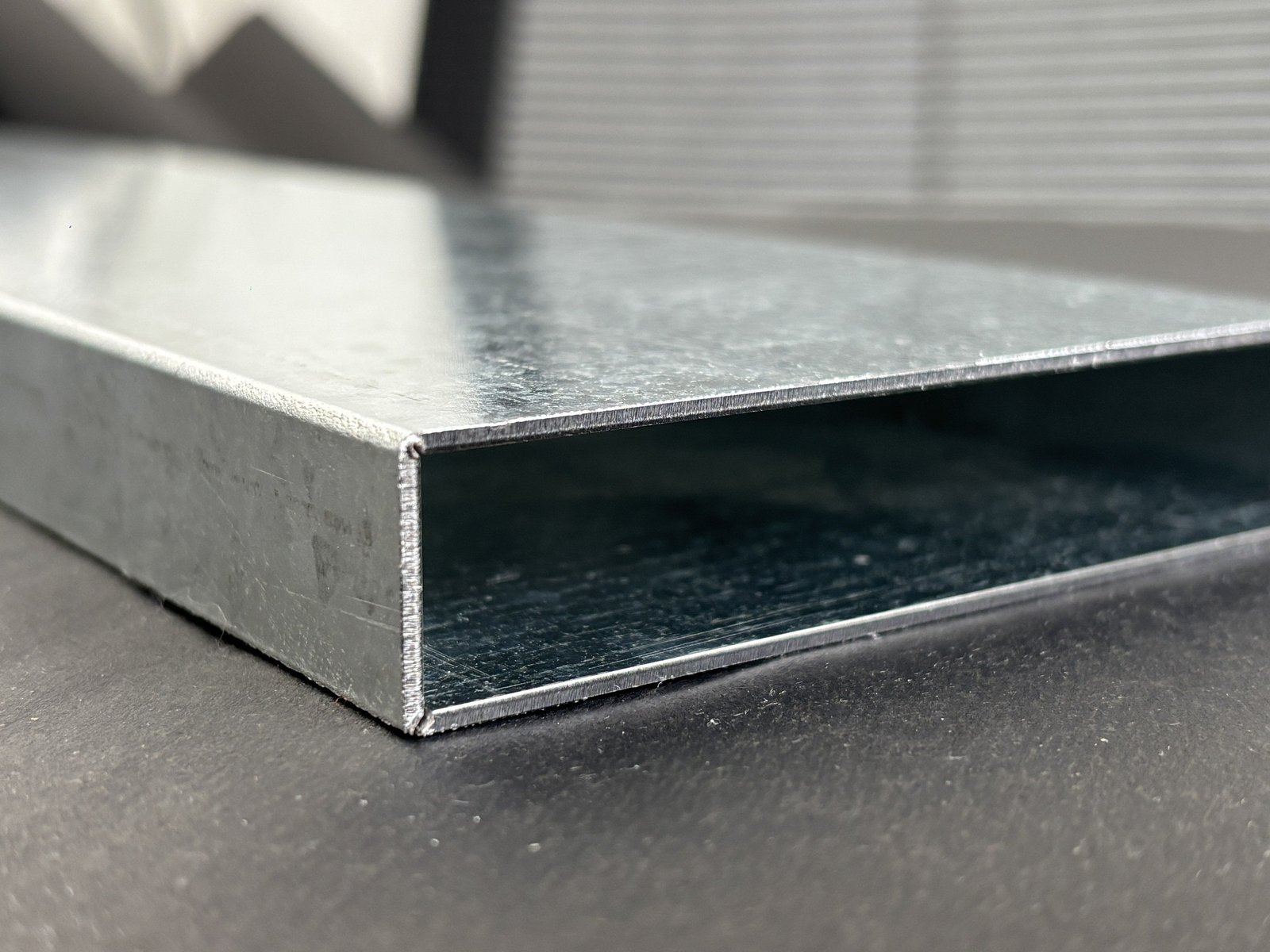

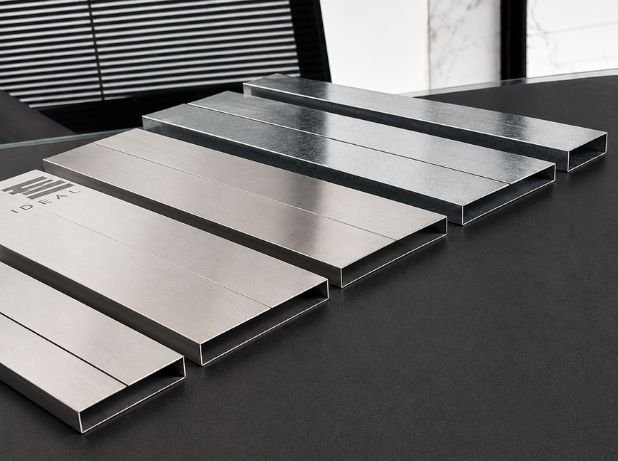

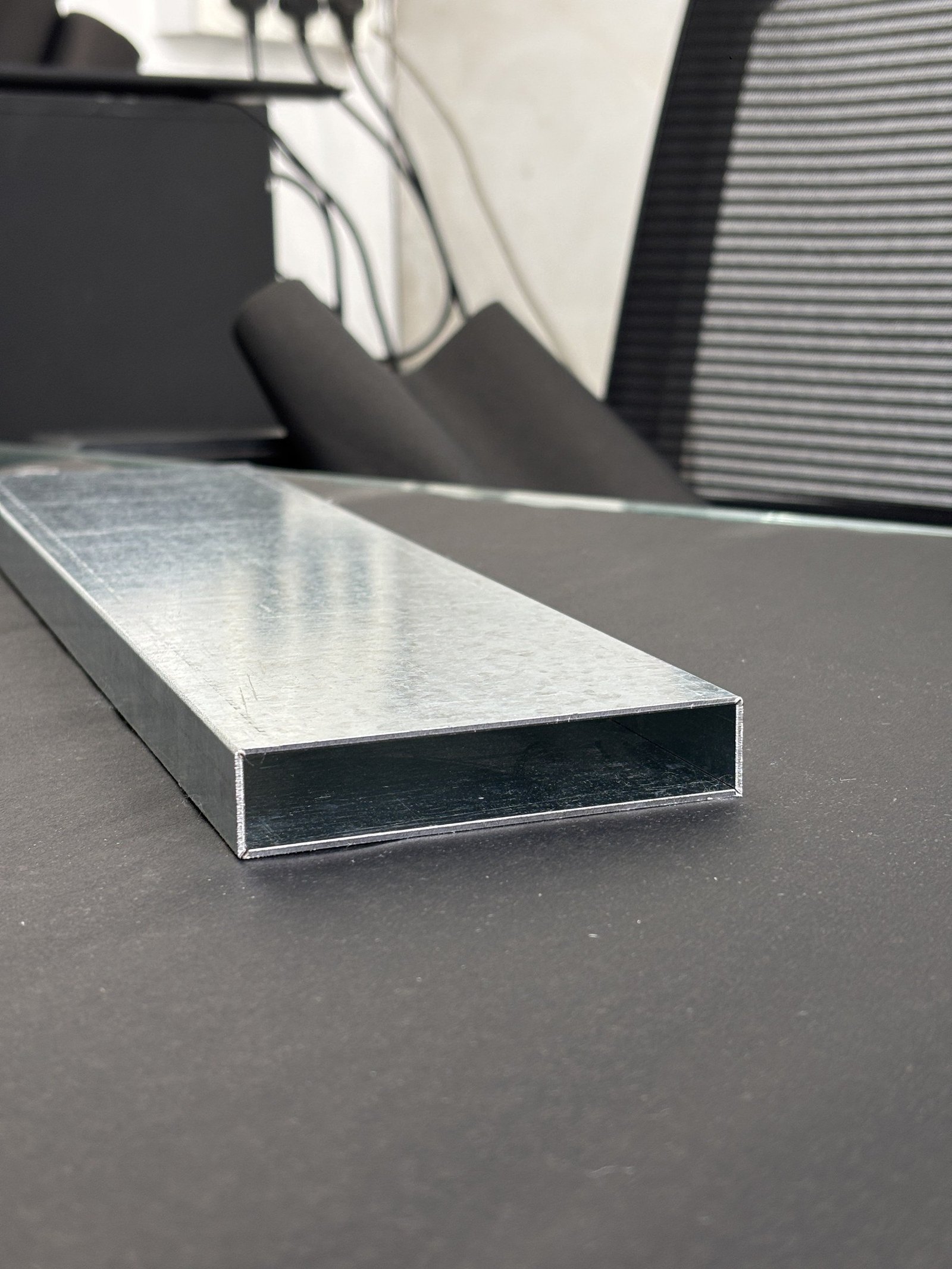

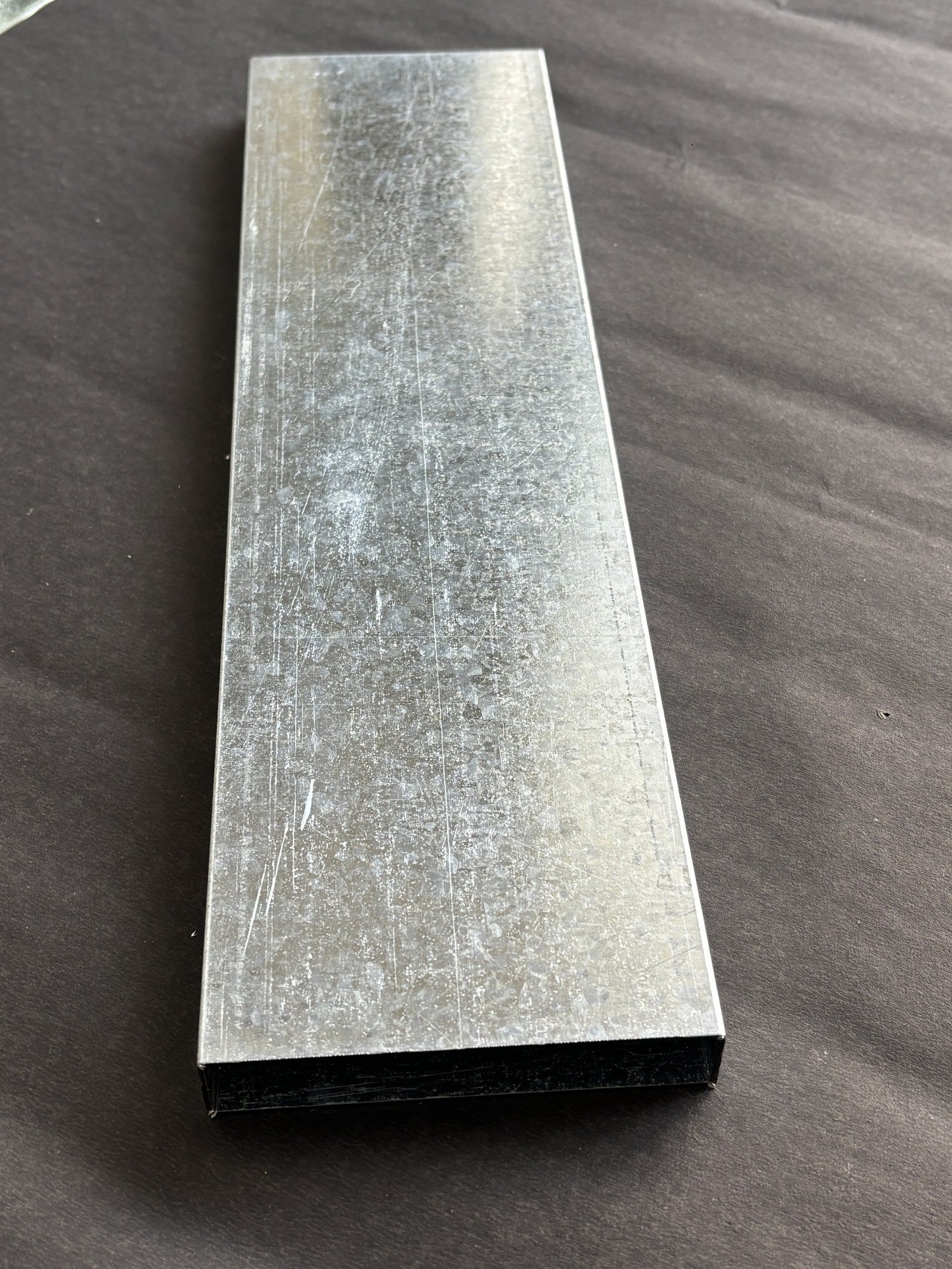

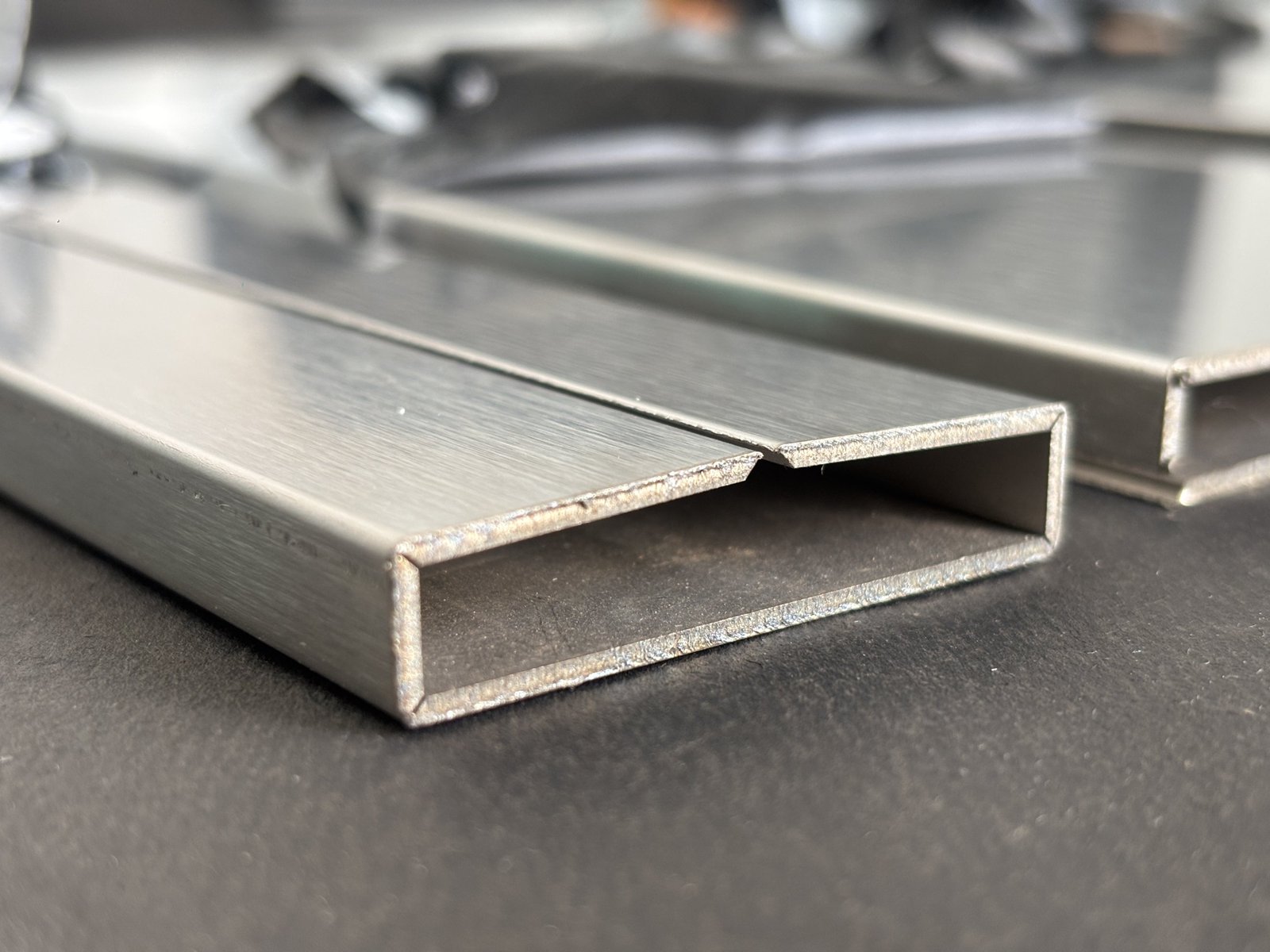

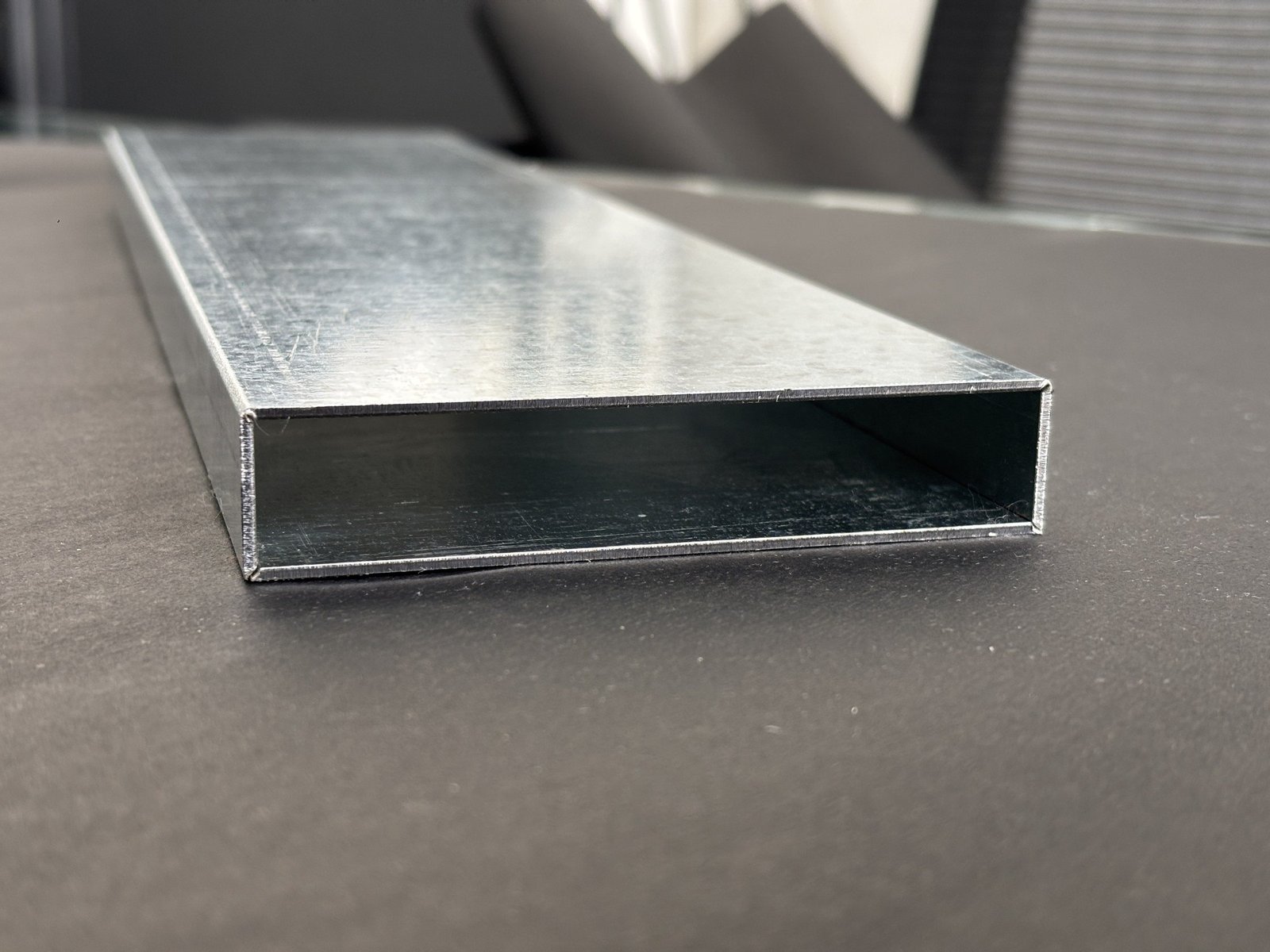

Square and rectangular pipe sections folded from sheet — V-grooved at every corner, closed with one welded seam — in stainless steel, brass, copper or mild steel, cut to length.
Overview
MCS makes square and rectangular pipe the way it makes every profile: from flat sheet. The blank is laser-cut, V-grooved along each bend line, folded on the press brake and closed with a single seam weld that is ground back, so all four corners are sharp instead of the rounded corners of a drawn tube. Sizes follow the drawing rather than a stock list, wall thickness is any sheet from 0.25 to 4 mm, and the same section can be made in stainless steel, brass, copper, aluminium or mild steel and finished after fabrication. Round pipe is not offered — MCS works only in sheet.
Materials
3 availableFinish options
Applied after fabricationSign finishes off on physical metal — request samples.
How it is manufactured
V-grooved for sharp edgesTechnical information
| Material | Stainless Steel 304, Brass, Mild Steel |
|---|---|
| Product code | MCS-CPR-006 |
| Environment | Interior and exterior |
| Supply | Made to project requirement |
| Sheet thickness | 0.25 - 4 mm (project-specific) |
| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Black PVD, Bronze PVD, Powder Coating |
| Manufacturing | CNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Welding & Fabrication → Surface Finishing → PVD & Powder Coating |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes for made-to-order sections, because the section is set by the substrate, the glass make-up or the panel module it has to suit. Contact MCS for project-specific technical data →
Applications
What MCS needs in order to quote
Geometry
Section drawing or dimensioned sketch, leg lengths, overall length and quantity.
Material
Metal, grade and sheet thickness — or the performance the detail has to meet, and MCS will suggest one.
Finish
Finish and colour, whether a sample is required, and the visible faces.
