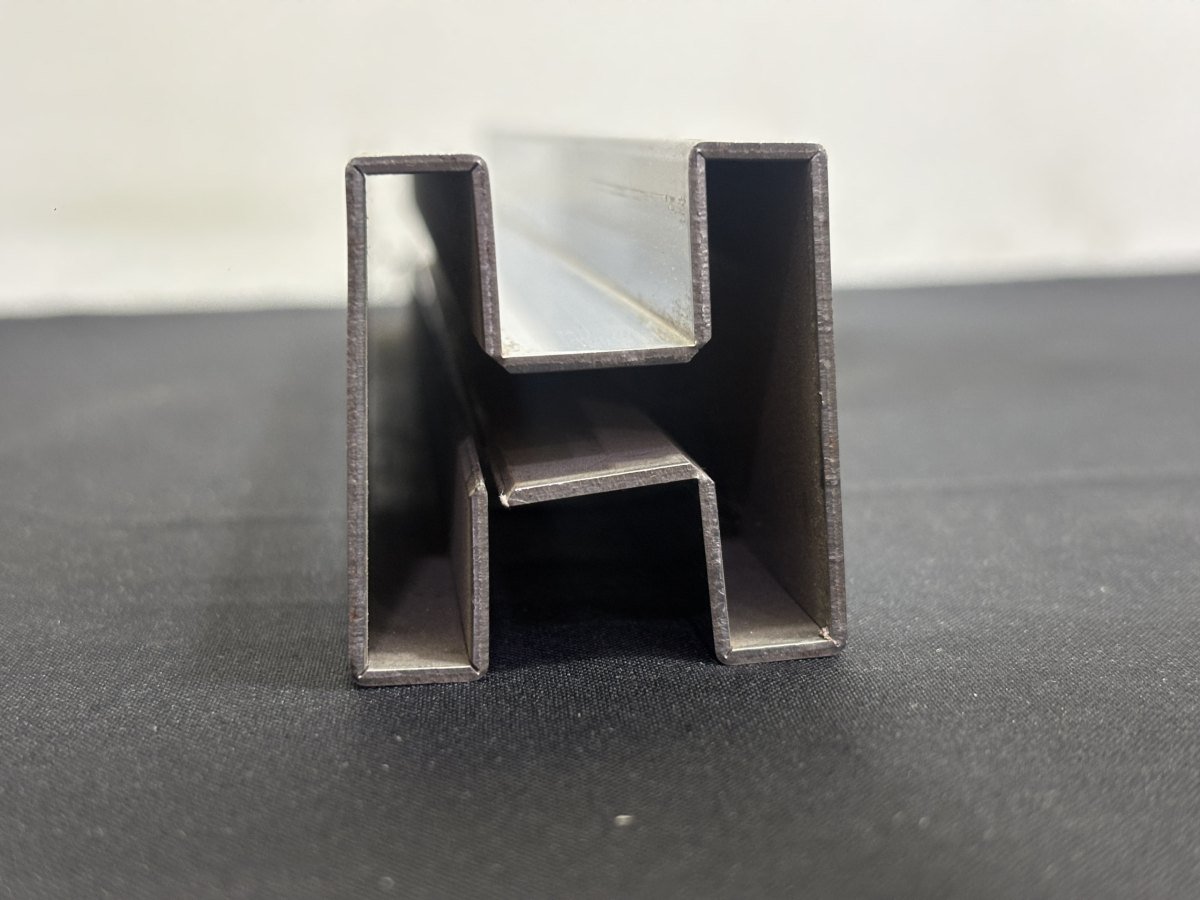

H Partition Profile — Glass Housing & Support

Glass Housing & Support

H Partition Profile

Available Interior MCS-GLS-004 V-grooved

An H-section that joins two glass panels edge to edge, with a leg either side of each pane and a web between them.

Request quote
↓ Datasheet ↑ Send a drawing WhatsApp

Overview

An H-section that joins two glass panels edge to edge, with a leg either side of each pane and a web between them. The standard joint for a glazed partition run. Formed from sheet so it can be made in brass or stainless steel to match adjacent trims, and PVD coated for colour if the scheme calls for it.

Materials

3 available
SS 304

Stainless Steel 304

 Aluminium

Aluminium

 Brass

Brass

Finish options

Applied after fabrication
MirrorSS · Brass · Copper HairlineSS · Aluminium MatteAll metals Bead BlastSS · Aluminium Antique / BrushedBrass · Bronze · Copper PVD GoldSS 304 · SS 316 Rose Gold PVDSS 304 · SS 316 Champagne Gold PVDSS 304 · SS 316 Black PVDSS 304 · SS 316 Bronze PVDSS 304 · SS 316 Powder CoatingMS · Aluminium · GI

Sign finishes off on physical metal — request samples.

How it is manufactured

V-grooved for sharp edges
01CNC Fibre Laser Cutting02CNC V-Grooving03CNC Bending04Surface Finishing05PVD & Powder Coating

Technical information

MaterialStainless Steel 304, Aluminium, Brass
Product codeMCS-GLS-004
EnvironmentInterior
SupplyMade to project requirement
Sheet thickness0.25 - 4 mm (project-specific)
FinishesMirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Black PVD, Bronze PVD, Powder Coating
ManufacturingCNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing → PVD & Powder Coating

Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes for made-to-order sections, because the section is set by the substrate, the glass make-up or the panel module it has to suit. Contact MCS for project-specific technical data →

Applications

CommercialHospitality

What MCS needs in order to quote

Geometry

Section drawing or dimensioned sketch, leg lengths, overall length and quantity.

Material

Metal, grade and sheet thickness — or the performance the detail has to meet, and MCS will suggest one.

Finish

Finish and colour, whether a sample is required, and the visible faces.

Downloads

PDFGlass Housing & Support — datasheet117 KB · Available now
