Sharp corners, our USP

Every range here is folded from flat sheet to a drawing. Where a corner is seen, we V-groove it first, so the edge closes sharp instead of round.

V-grooving vs normal bendingAll 85 job-work examplesComplete Catalogue (PDF)

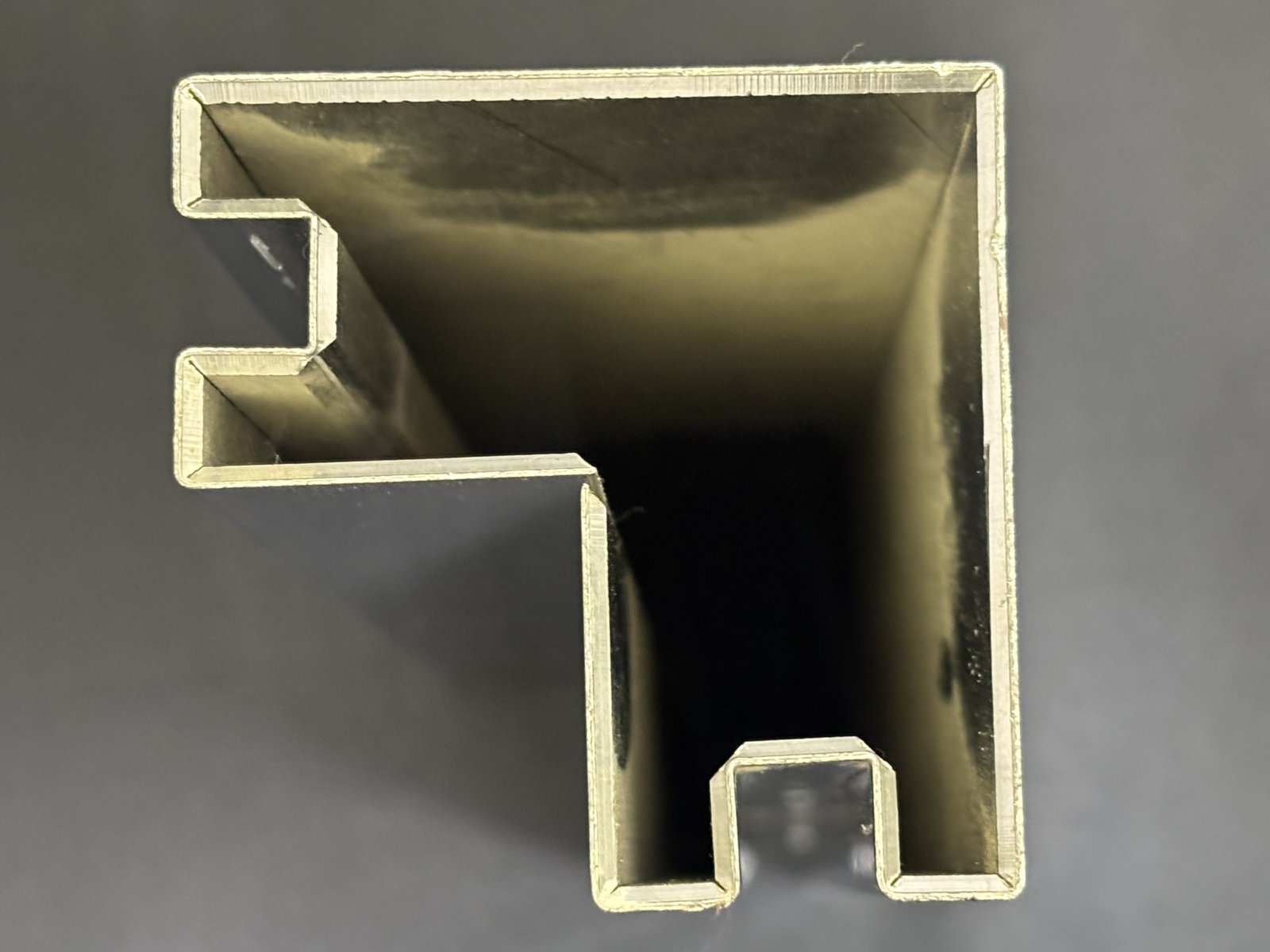

Stainless steel L-corner glass profile with stepped folds, seen end-on

Stainless steel L-corner glass profile with stepped folds, seen end-on

Stainless steel L-corner glass profile with stepped folds, seen end-onL corner glass profile held in hand, end viewStainless steel glass profiles with stepped channels, laid side by sideStainless steel corner glass post holding two laminated mesh glass panels at 90 degreesGold mirror corner glass profile seen from the end, two glass slots at right anglesStainless steel corner glass profile with glass panes set in both slots, view from above

Glass Housing & Support

L Corner Glass Profile

AvailableInteriorMCS-GLS-002V-grooved

An L-shaped metal profile for the corner where two glass panels meet, giving the glass edges a sharp, square metal corner.

An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →

Request quote
↓ Datasheet (PDF)↑ Send a drawingWhatsApp

Overview

An L-shaped profile for glass corners. It stands where two glass panels meet at a right angle, covers both glass edges and leaves one square metal corner in view.

MCS folds the profile from a single sheet. V-grooving before bending keeps the outside corner sharp and the two legs square to each other. Leg sizes, slot width and length are made to the project, in stainless steel or brass.

Used for: corners of glass partitions and glass enclosures, edge framing of glass panels in offices, hotels and homes.

To quote we need: the glass thickness, both leg sizes, length, quantity, metal and finish.

Materials

2 available
SS 304

Stainless Steel 304

Brass

Brass

Finish options

Applied after fabrication
Mirror swatch plate with the MCS mark laser cut through its bottom right cornerMirrorSS · Brass · CopperHairline swatch plate with the MCS mark laser cut through its bottom right cornerHairlineSS · AluminiumMatte swatch plate with the MCS mark laser cut through its bottom right cornerMatteAll metalsBead Blast swatch plate with the MCS mark laser cut through its bottom right cornerBead BlastSS · AluminiumAntique / Brushed swatch plate with the MCS mark laser cut through its bottom right cornerAntique / BrushedBrass · Bronze · CopperPVD Gold swatch plate with the MCS mark laser cut through its bottom right cornerPVD GoldSS 304 · SS 316Rose Gold PVD swatch plate with the MCS mark laser cut through its bottom right cornerRose Gold PVDSS 304 · SS 316Champagne Gold PVD swatch plate with the MCS mark laser cut through its bottom right cornerChampagne Gold PVDSS 304 · SS 316Bronze PVD swatch plate with the MCS mark laser cut through its bottom right cornerBronze PVDSS 304 · SS 316Powder Coating swatch plate with the MCS mark laser cut through its bottom right cornerPowder CoatingMS · Aluminium · GI

Sign finishes off on physical metal — request samples.

How it is manufactured

V-grooved for sharp edges
01CNC Fibre Laser Cutting02CNC V-Grooving03CNC Bending04Surface Finishing05PVD & Powder Coating

See the edge

V-grooved, then bent
L Corner Glass Profile: bent edge close-up 1

Enhanced close-up of our photograph: cropped, light and sharpness adjusted. The bend is not changed.

Technical information

MaterialStainless Steel 304, Brass
Product codeMCS-GLS-002
EnvironmentInterior
SupplyMade to project requirement
Sheet thickness0.25 - 4 mm (project-specific)
FinishesMirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Bronze PVD, Powder Coating
ManufacturingCNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing → PVD & Powder Coating

Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →

Applications

CommercialHospitalityResidential

Downloads

PDFL Corner Glass Profile datasheet2 pages · 426 KB · Available nowPDFGlass Housing & Support datasheet2.2 MB · Available now
