Box Profile

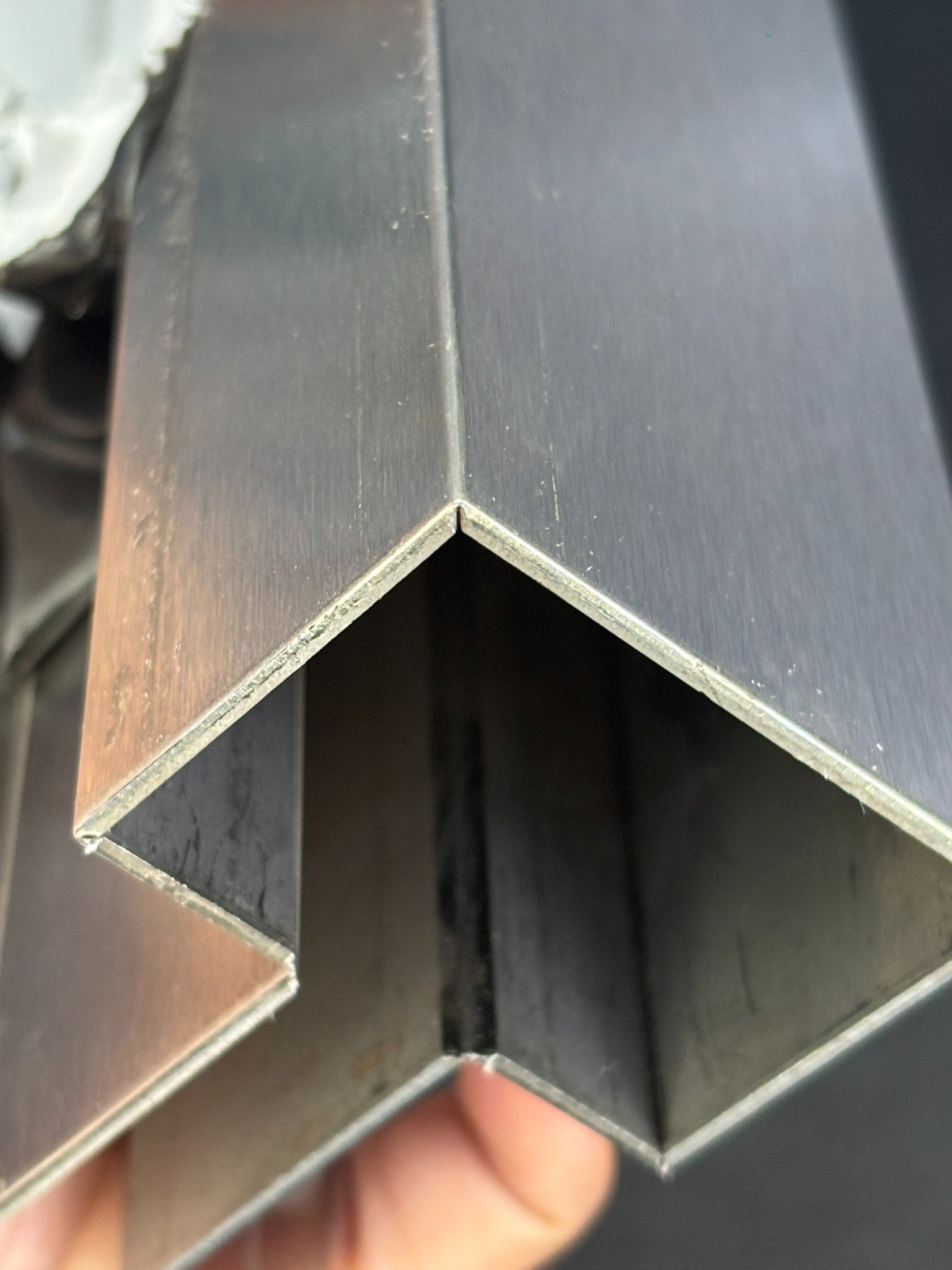

A closed rectangular or square tube formed from sheet, V-grooved at each corner and welded shut along one seam.
Overview
A closed rectangular or square tube formed from sheet, V-grooved at each corner and welded shut along one seam. It reads as solid section but is made from the same sheet as the trims around it, so finish and colour match exactly. Used as a frame, a divider or a false beam.
Materials
3 availableFinish options
Applied after fabricationSign finishes off on physical metal — request samples.
How it is manufactured
V-grooved for sharp edgesTechnical information
| Material | Stainless Steel 304, Aluminium, Mild Steel |
|---|---|
| Product code | MCS-PRF-012 |
| Environment | Interior and exterior |
| Supply | Standard section, cut to length |
| Sheet thickness | 0.25 - 4 mm (project-specific) |
| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed, Powder Coating |
| Manufacturing | CNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Welding & Fabrication → Surface Finishing |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes for made-to-order sections, because the section is set by the substrate, the glass make-up or the panel module it has to suit. Contact MCS for project-specific technical data →
Applications
What MCS needs in order to quote
Geometry
Section drawing or dimensioned sketch, leg lengths, overall length and quantity.
Material
Metal, grade and sheet thickness — or the performance the detail has to meet, and MCS will suggest one.
Finish
Finish and colour, whether a sample is required, and the visible faces.
