Corner Guard Profile — Architectural Profiles & Trims

Architectural Profiles & Trims · Metal Profiles & Trims

Corner Guard Profile

Available Interior and exterior MCS-PRF-015 V-grooved

An angle profile fixed over an external wall corner to take knocks that would otherwise chip plaster or panelling.

Request quote
↓ Datasheet ↑ Send a drawing WhatsApp

Overview

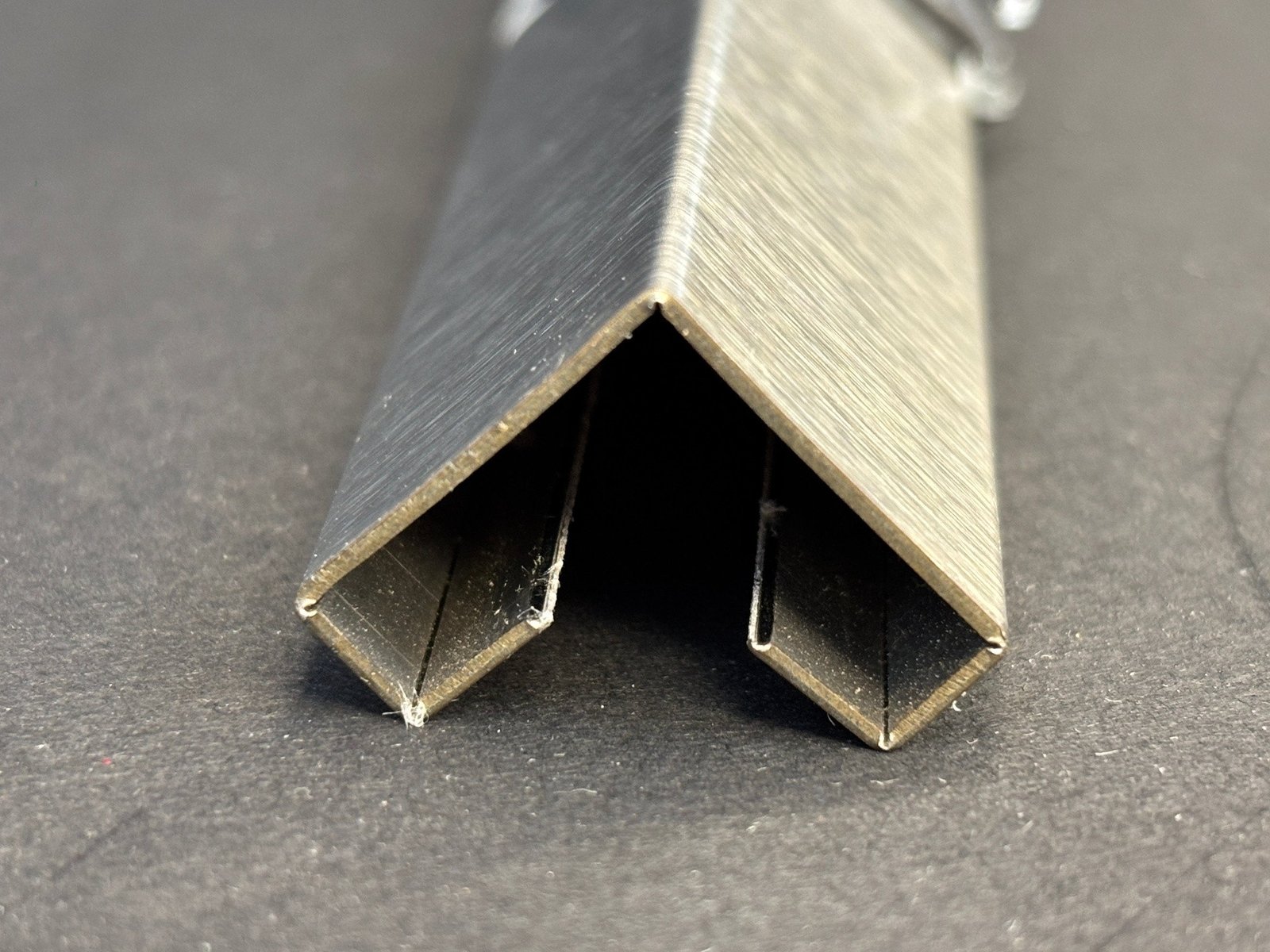

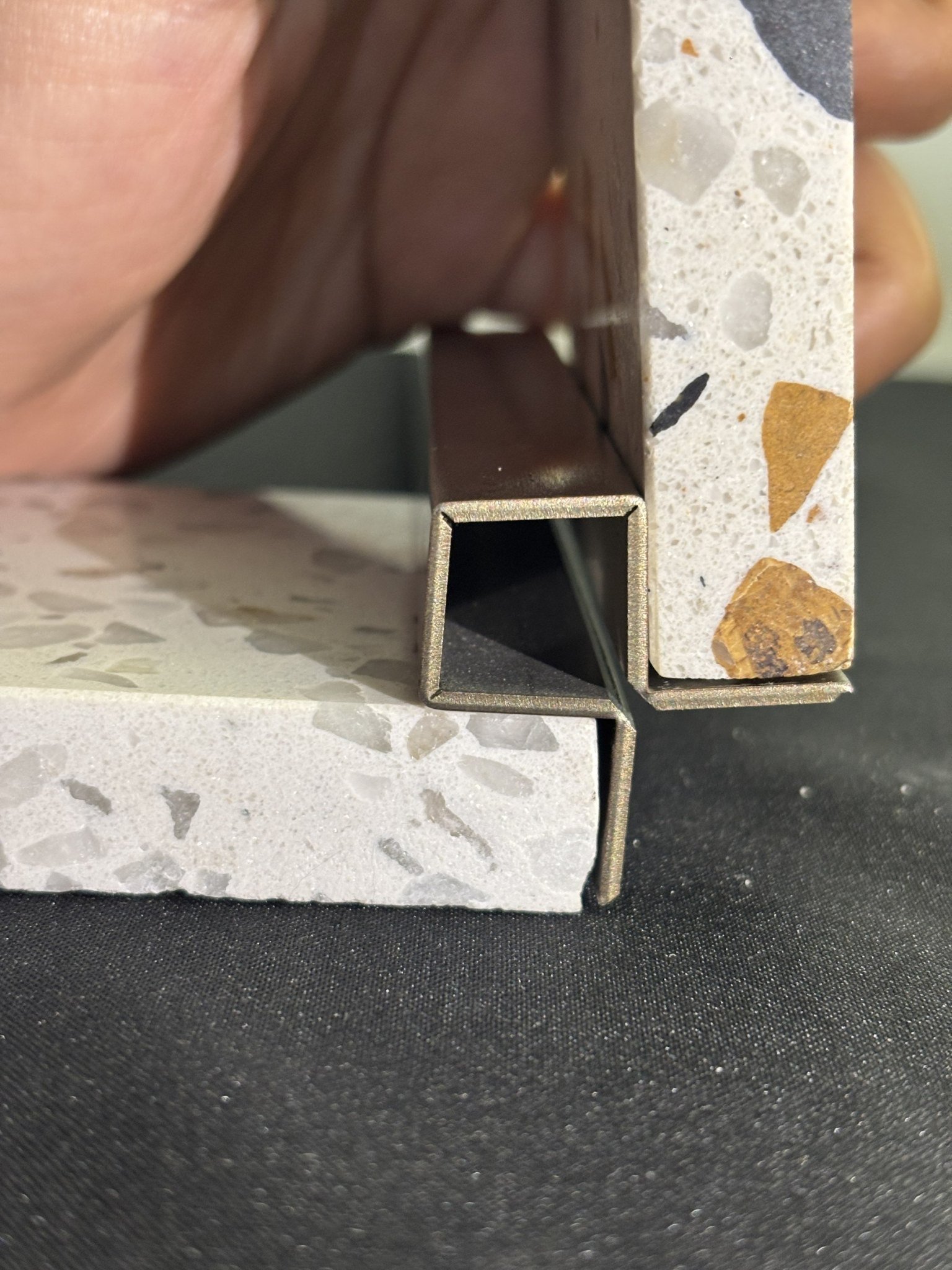

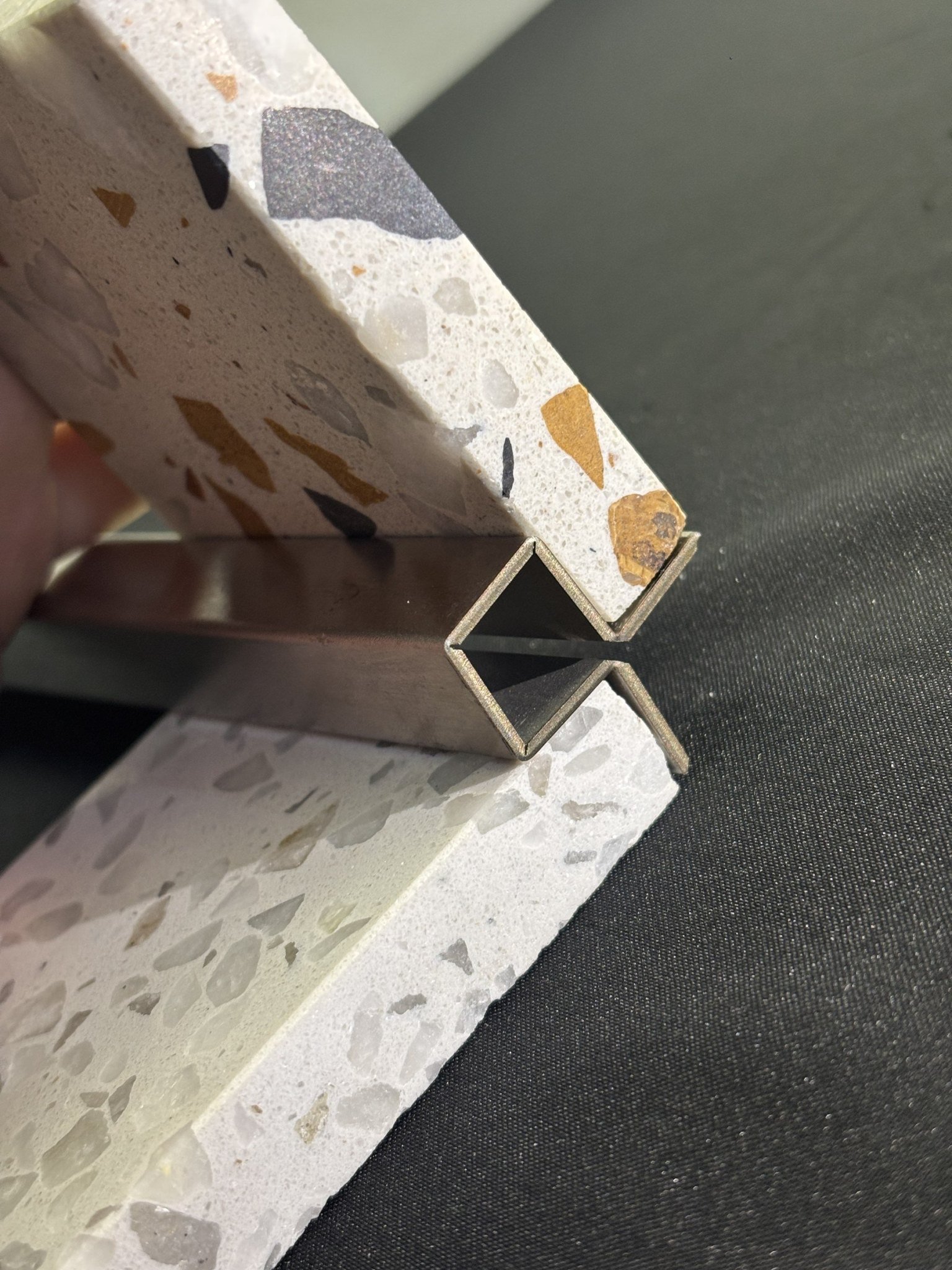

An angle profile fixed over an external wall corner to take knocks that would otherwise chip plaster or panelling. Specified in corridors, car parks, back-of-house areas and retail floors. Available with equal legs, V-grooved to a sharp apex, or with a rounded apex where a softer edge is wanted.

Materials

3 available
SS 304

Stainless Steel 304

 Aluminium

Aluminium

 MS

Mild Steel

Finish options

Applied after fabrication
MirrorSS · Brass · Copper HairlineSS · Aluminium MatteAll metals Bead BlastSS · Aluminium Antique / BrushedBrass · Bronze · Copper Powder CoatingMS · Aluminium · GI

Sign finishes off on physical metal — request samples.

How it is manufactured

V-grooved for sharp edges
01CNC Fibre Laser Cutting02CNC V-Grooving03CNC Bending04Surface Finishing

Technical information

MaterialStainless Steel 304, Aluminium, Mild Steel
Product codeMCS-PRF-015
EnvironmentInterior and exterior
SupplyStandard section, cut to length
Sheet thickness0.25 - 4 mm (project-specific)
FinishesMirror, Hairline, Matte, Bead Blast, Antique / Brushed, Powder Coating
ManufacturingCNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing

Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes for made-to-order sections, because the section is set by the substrate, the glass make-up or the panel module it has to suit. Contact MCS for project-specific technical data →

Applications

CommercialRetailInfrastructure

What MCS needs in order to quote

Geometry

Section drawing or dimensioned sketch, leg lengths, overall length and quantity.

Material

Metal, grade and sheet thickness — or the performance the detail has to meet, and MCS will suggest one.

Finish

Finish and colour, whether a sample is required, and the visible faces.

Downloads

PDFArchitectural Profiles & Trims — datasheet275 KB · Available now
