Custom Architectural Profiles — Architectural Profiles & Trims

Architectural Profiles & Trims · Custom Profiles

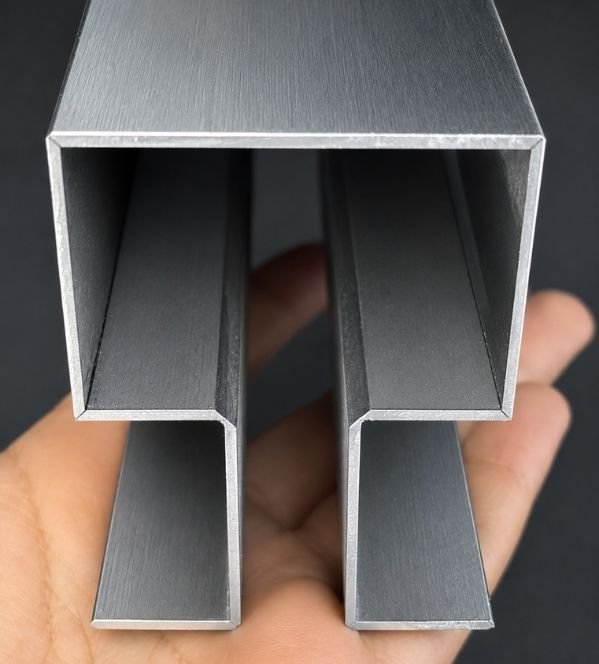

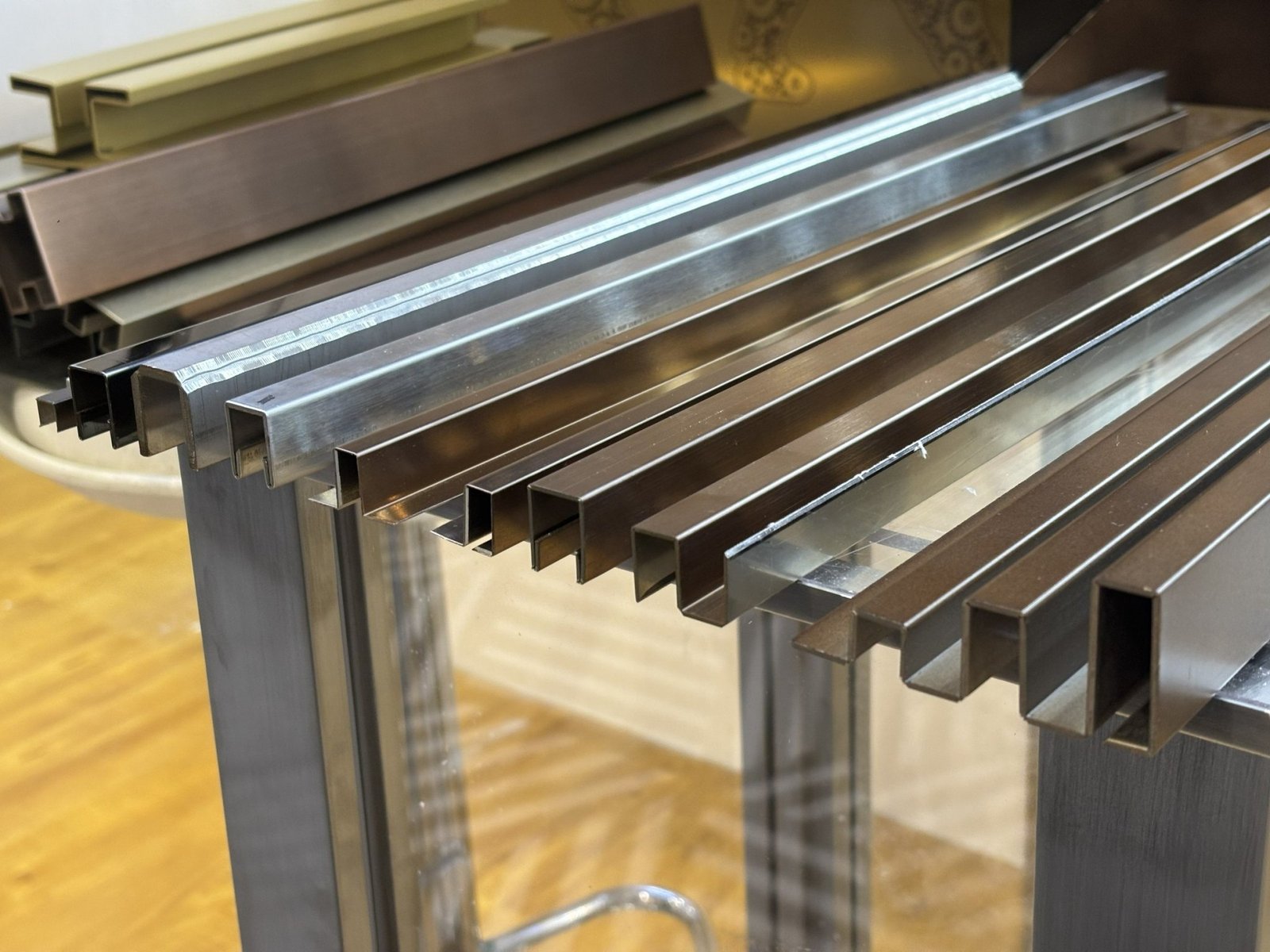

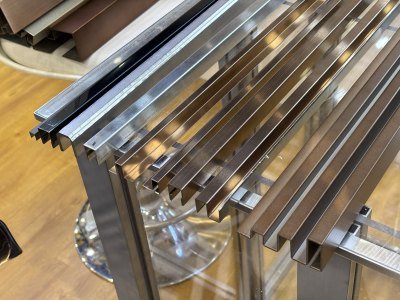

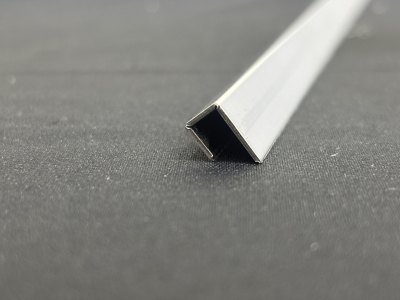

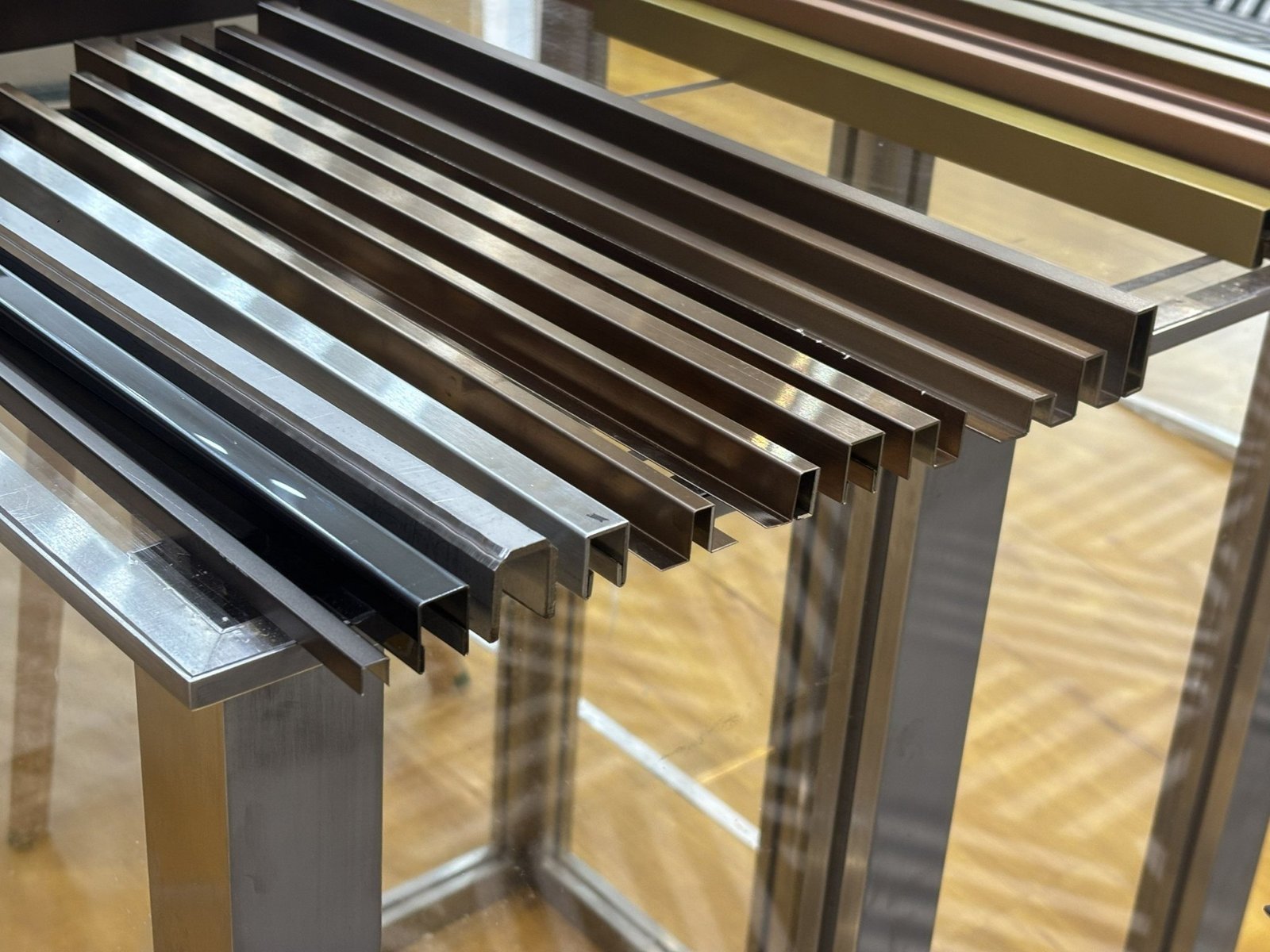

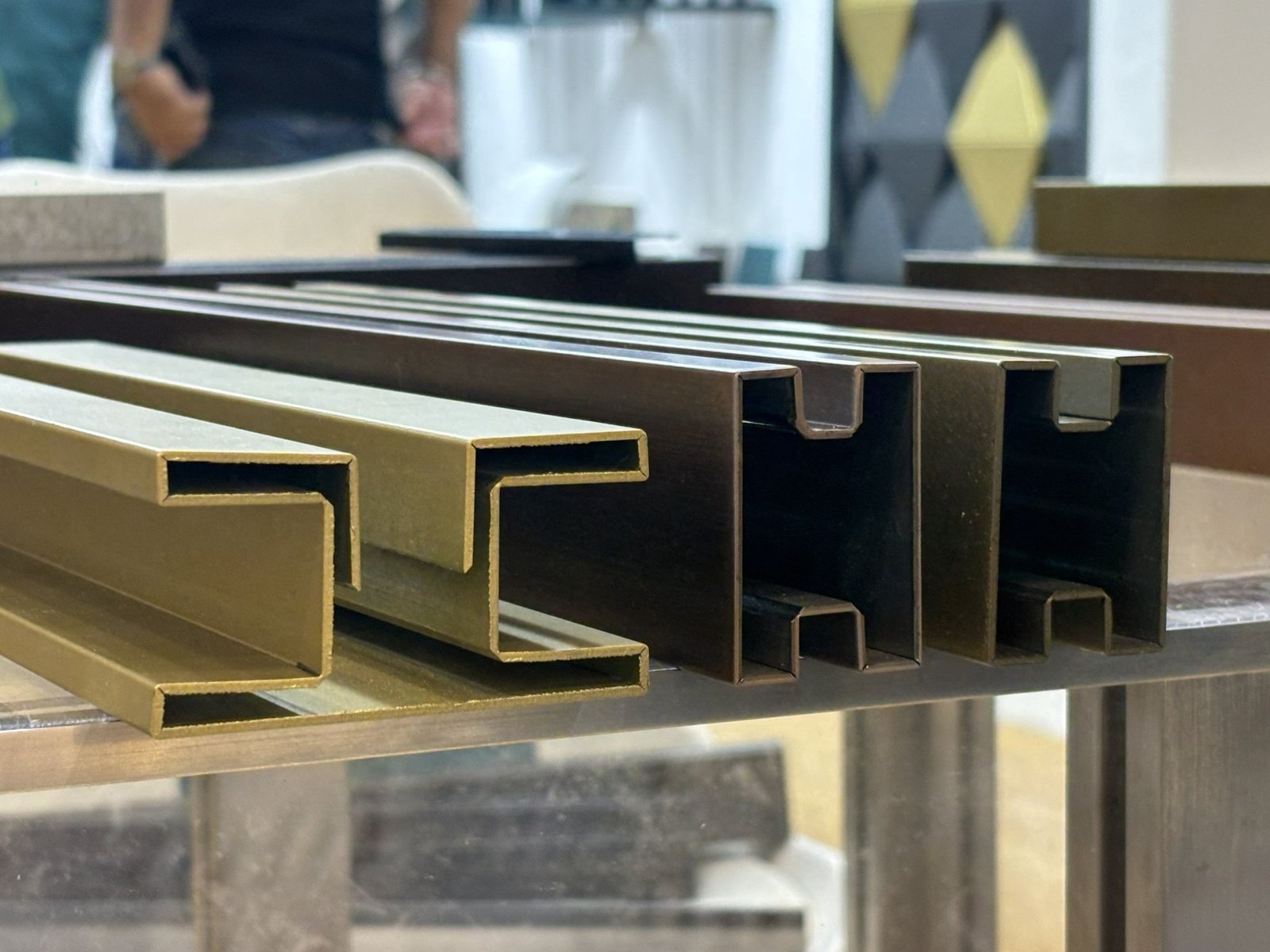

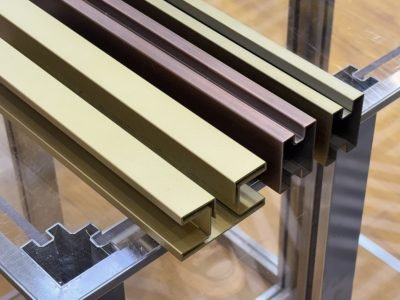

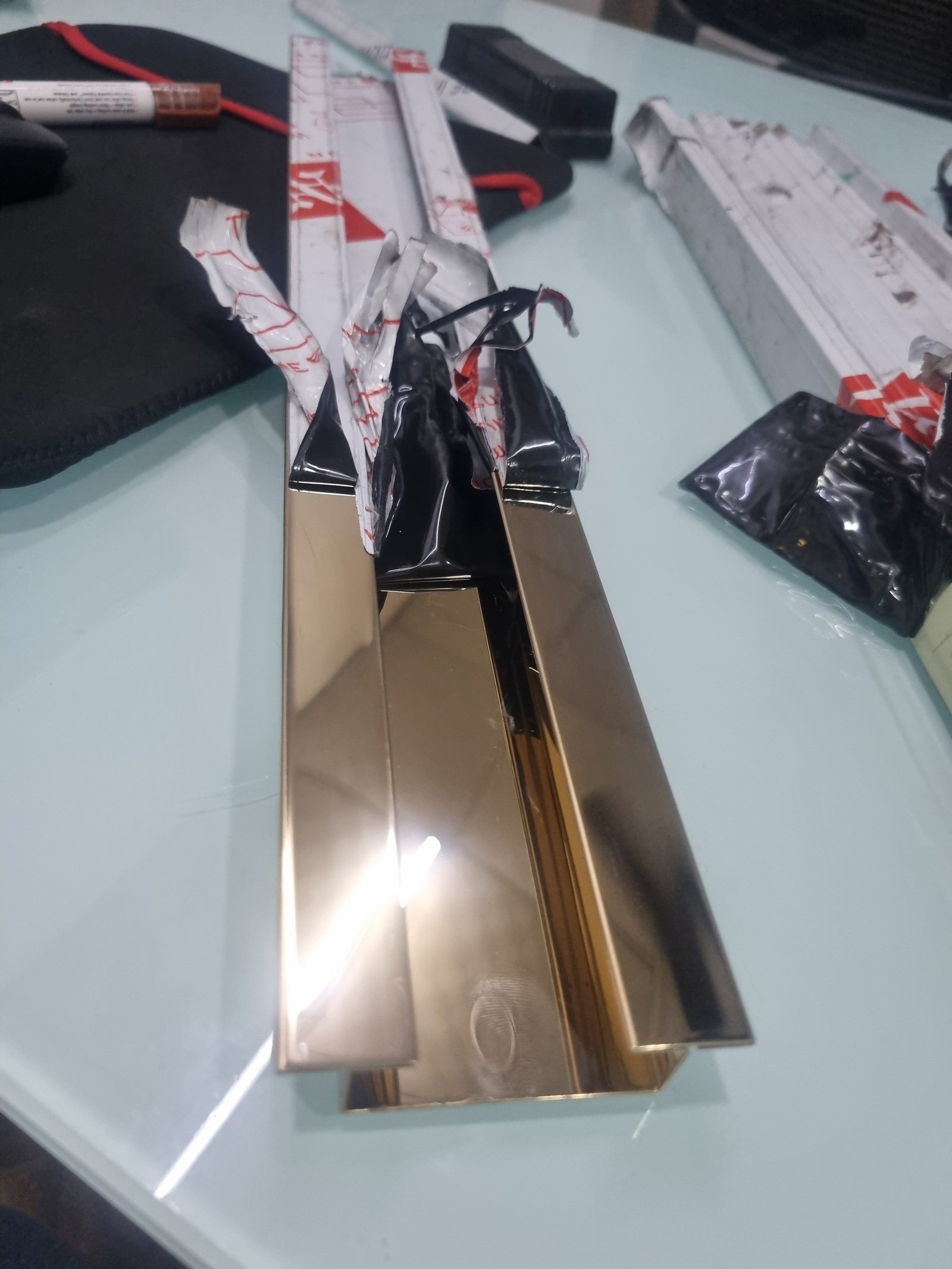

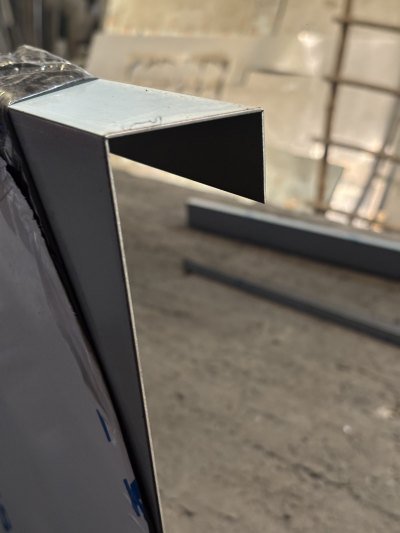

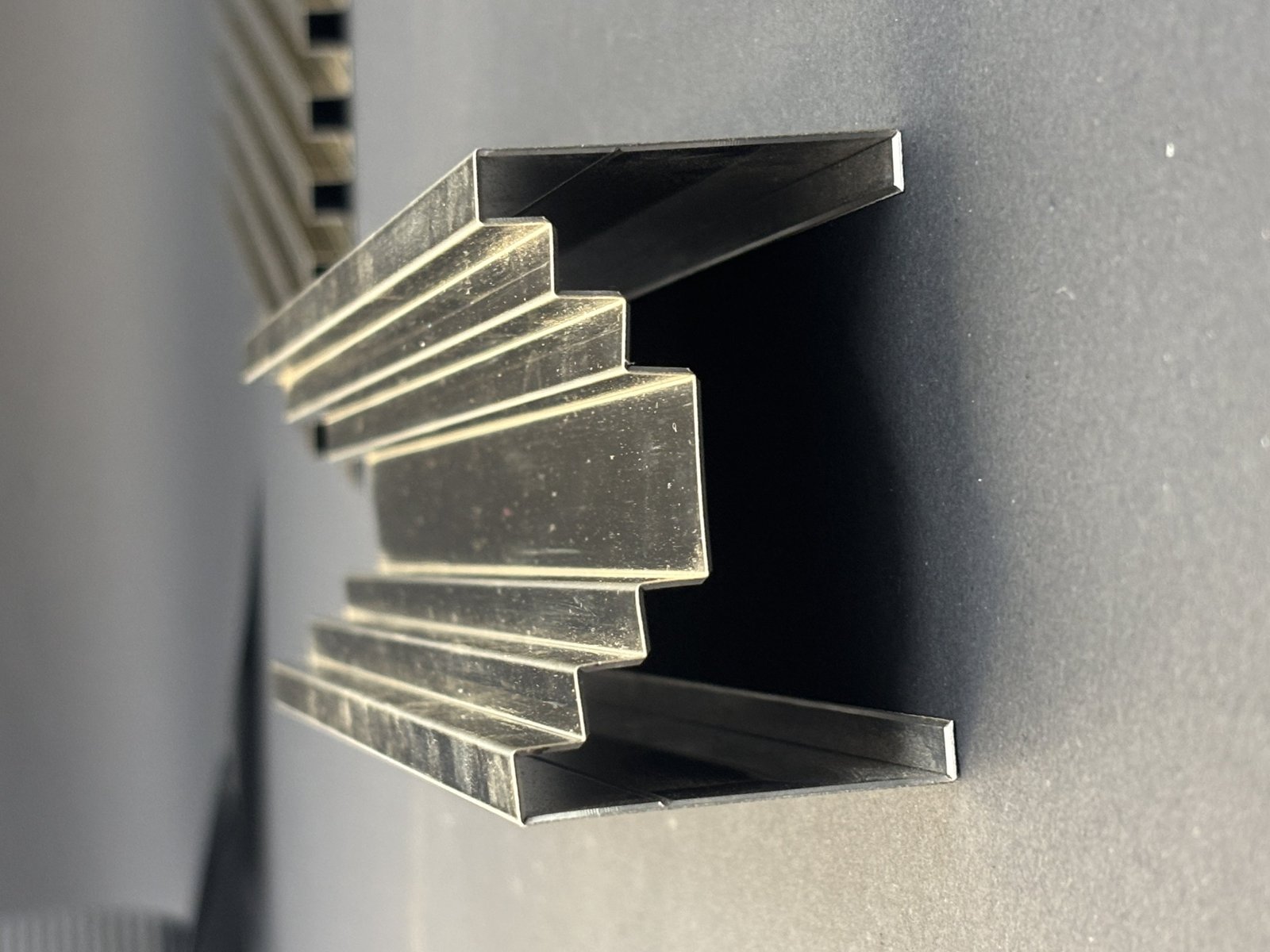

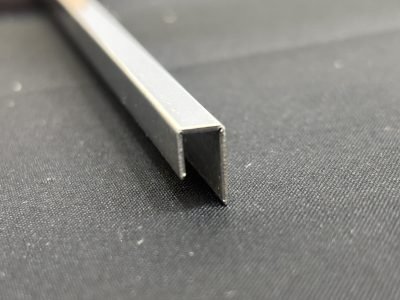

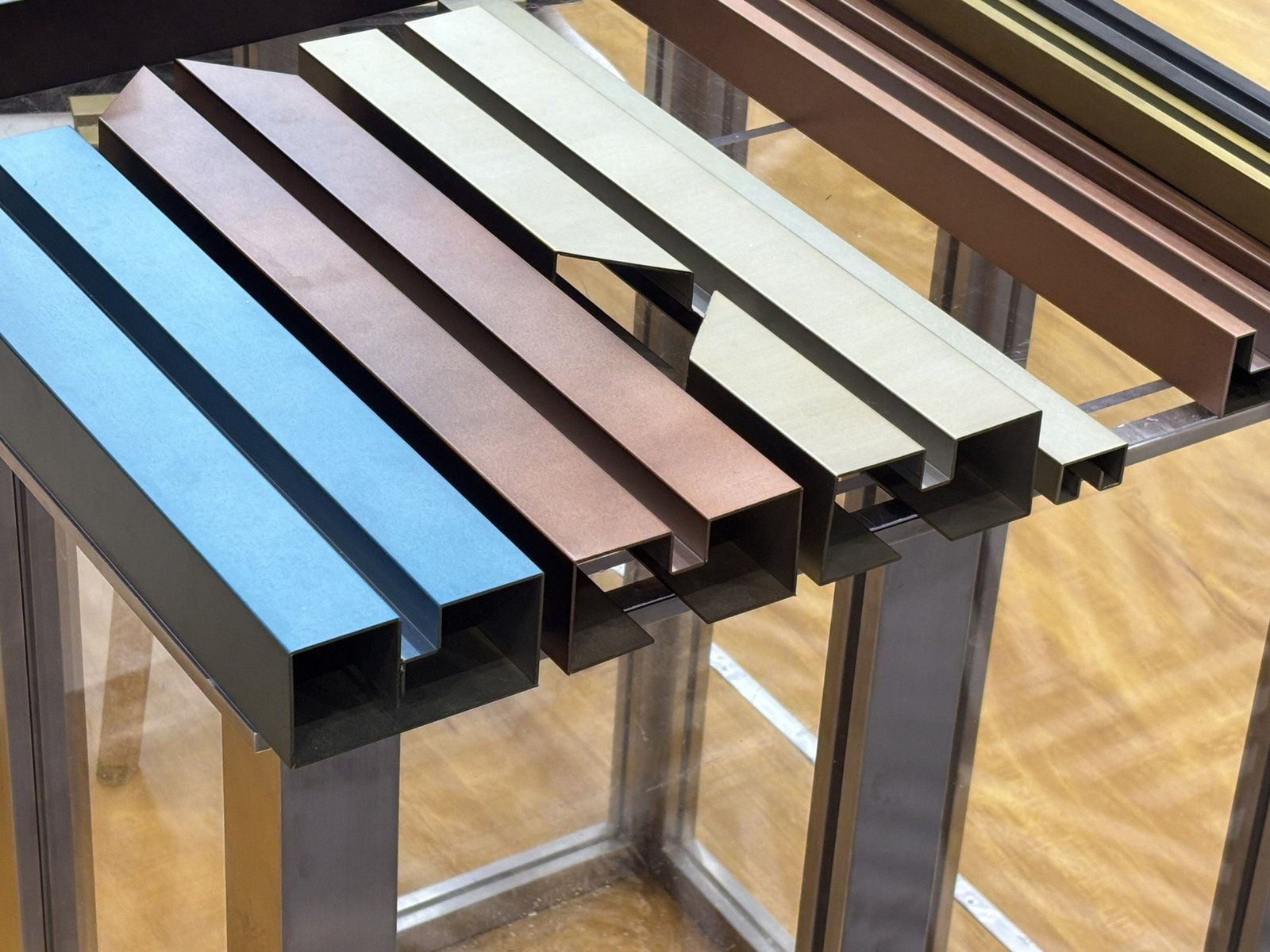

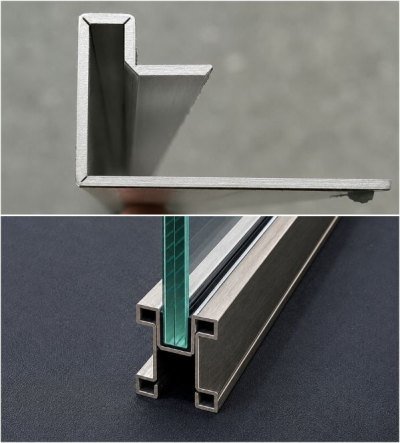

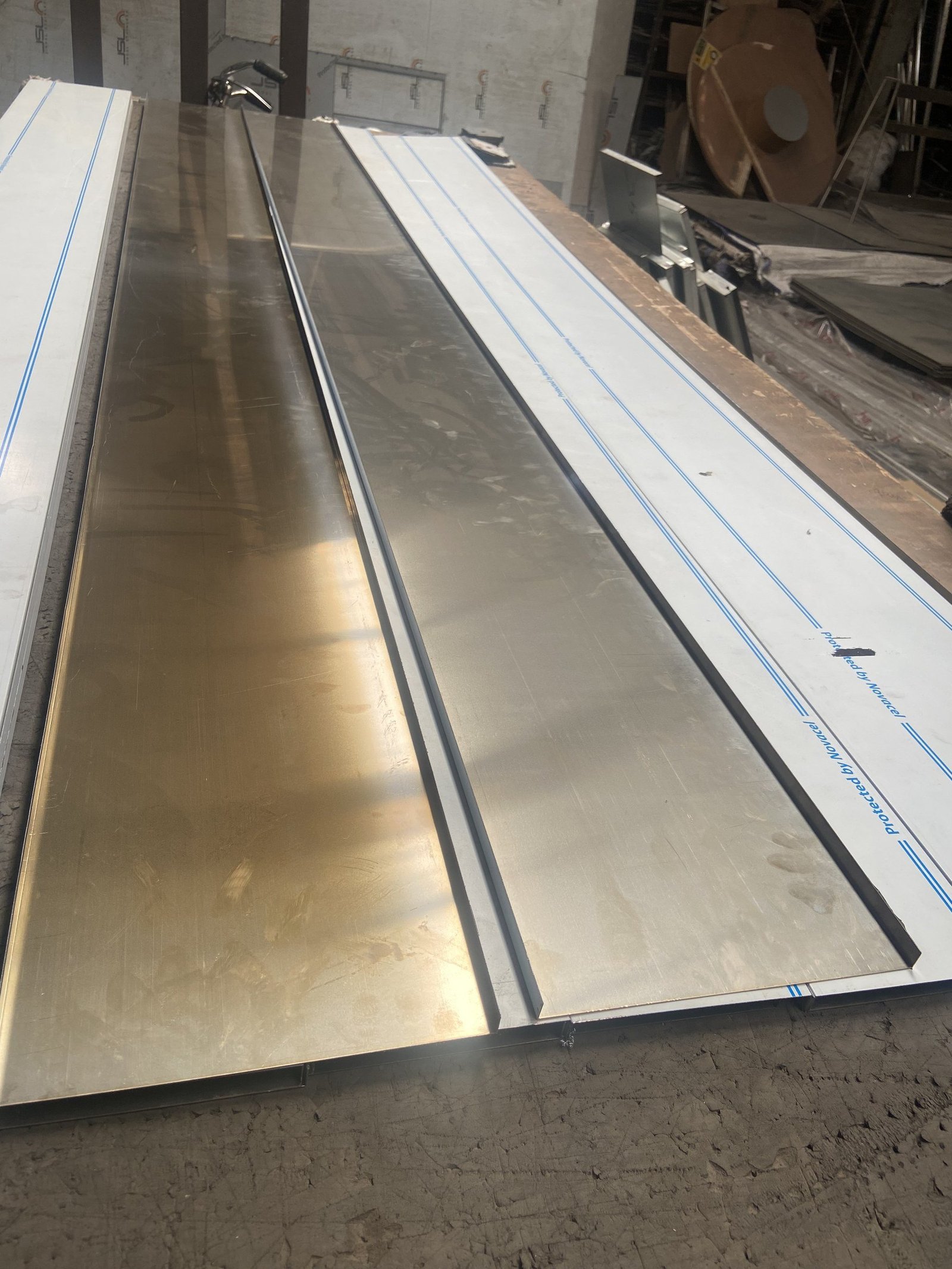

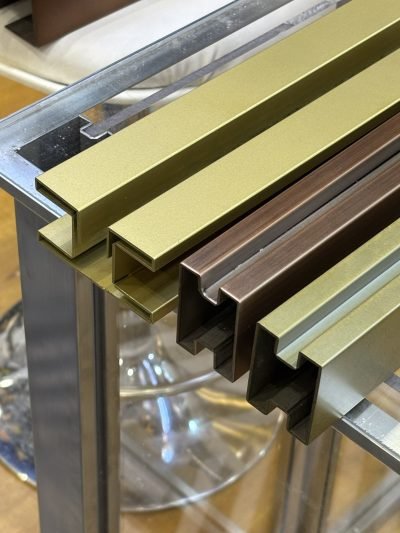

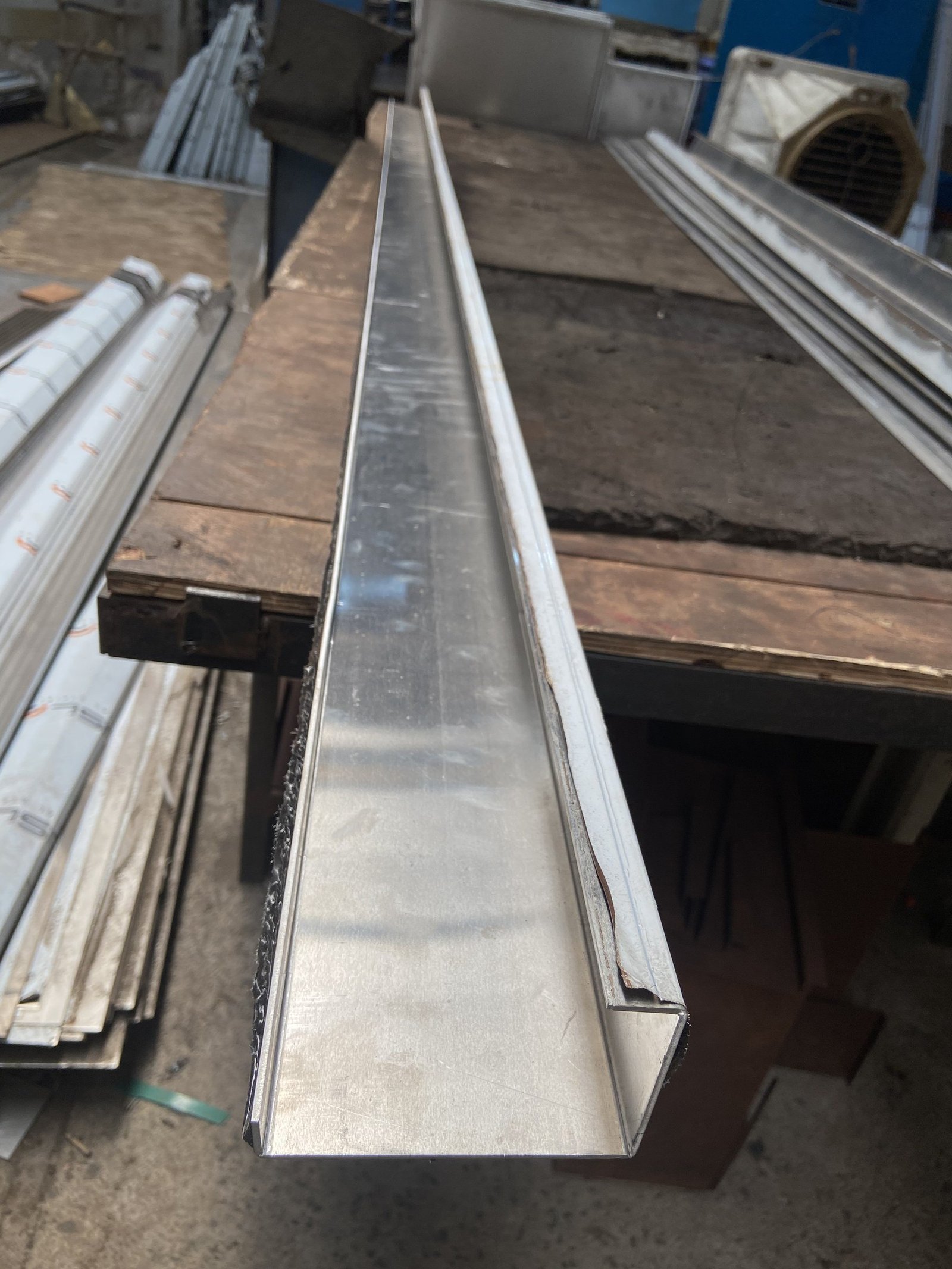

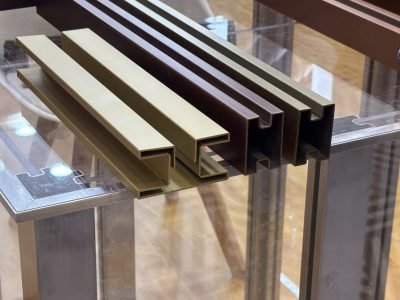

Custom Architectural Profiles

Custom Interior and exterior MCS-CPR-009 V-grooved

Sections developed entirely from your drawing.

Request quote
↓ Datasheet ↑ Send a drawing WhatsApp

Overview

Sections developed entirely from your drawing. Send a DWG, DXF or a dimensioned sketch and MCS returns a fabrication review covering material, thickness, bend sequence, groove positions and the minimum leg length the geometry allows.

Materials

6 available
SS 304

Stainless Steel 304

 SS 316

Stainless Steel 316

 Aluminium

Aluminium

 Brass

Brass

 Copper

Copper

 MS

Mild Steel

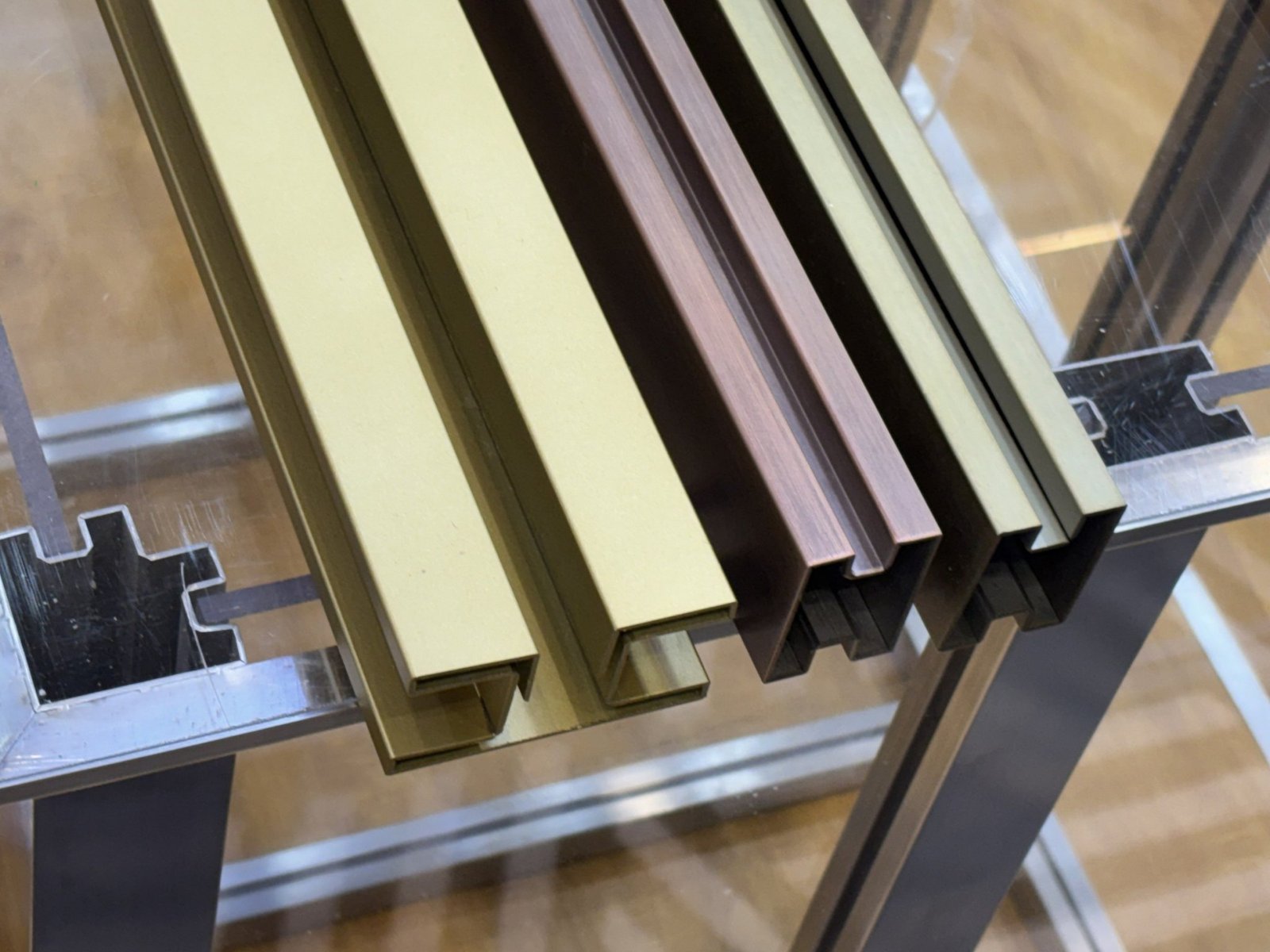

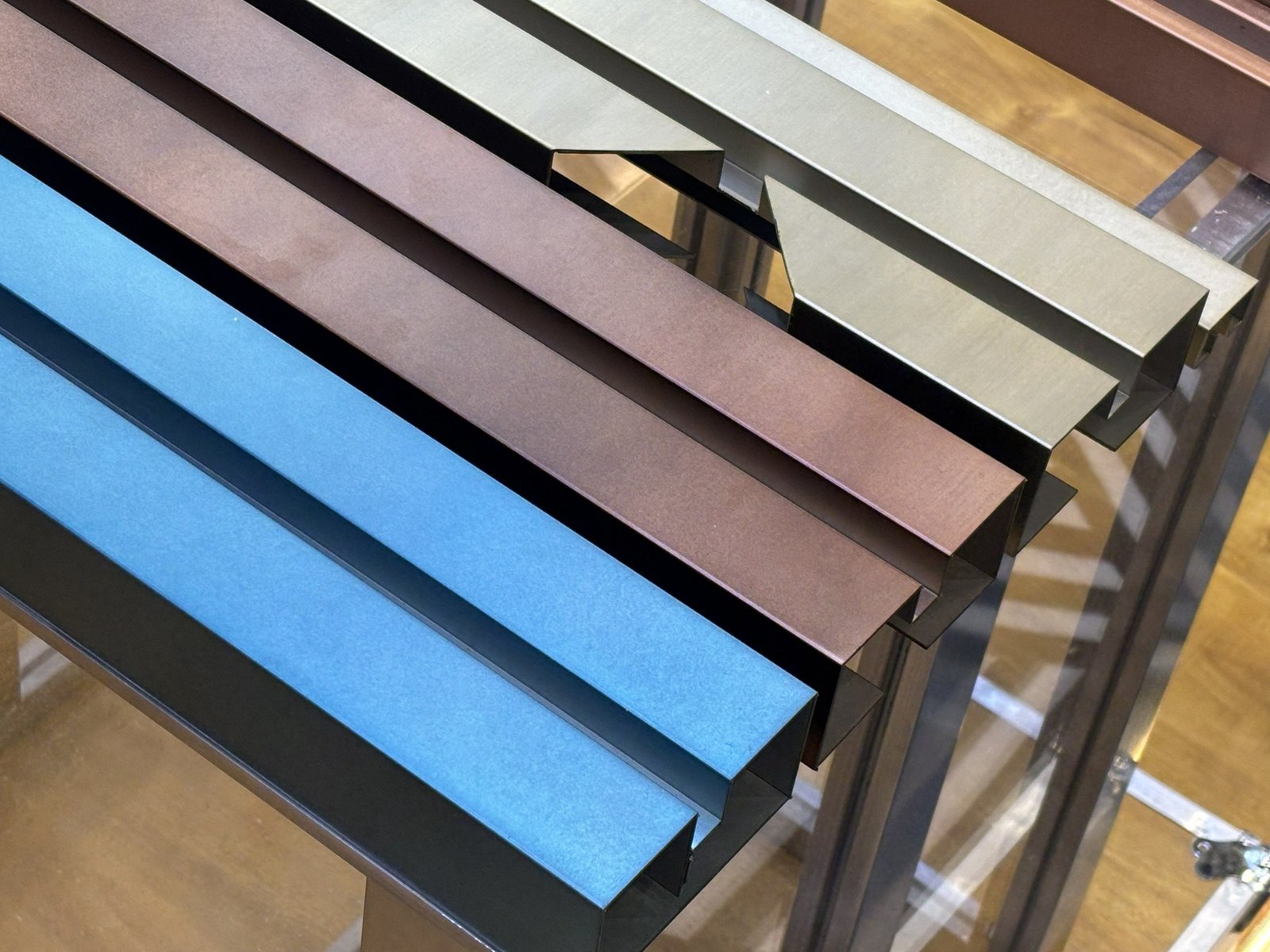

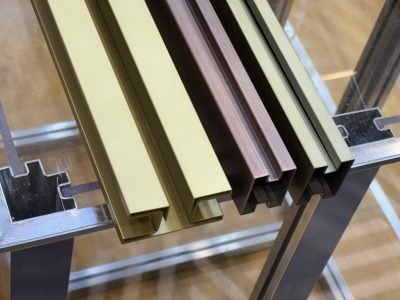

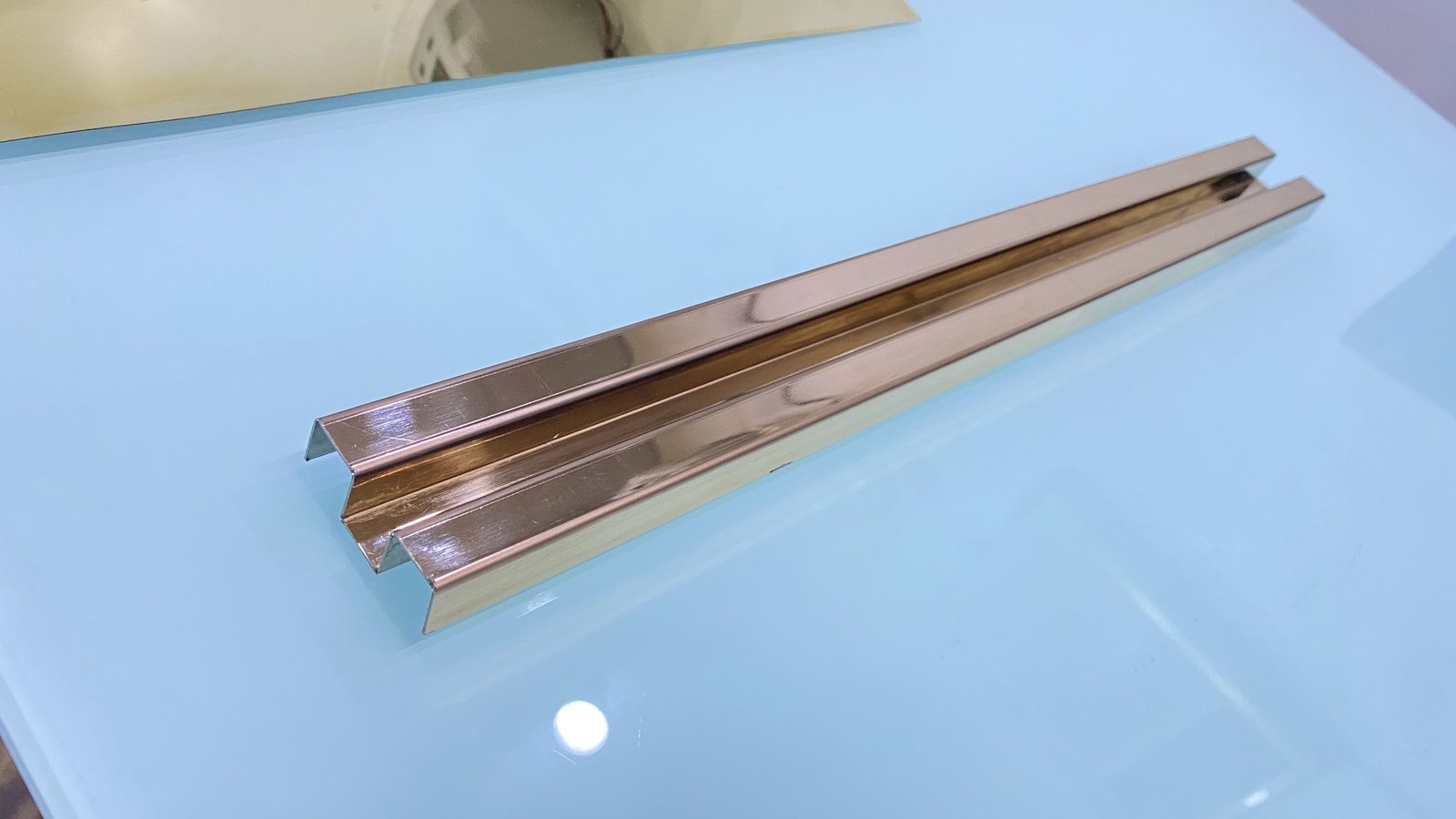

Finish options

Applied after fabrication

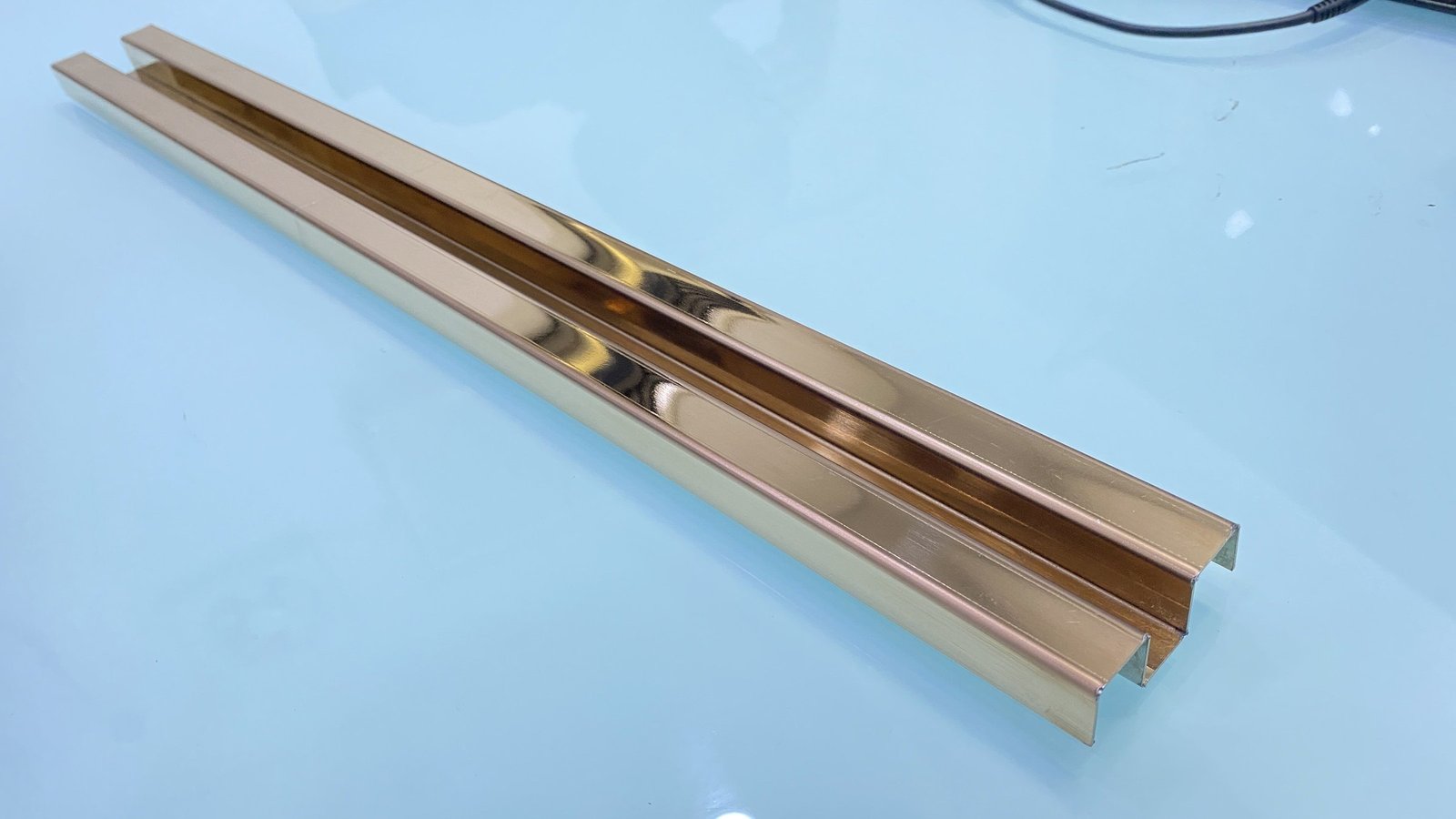

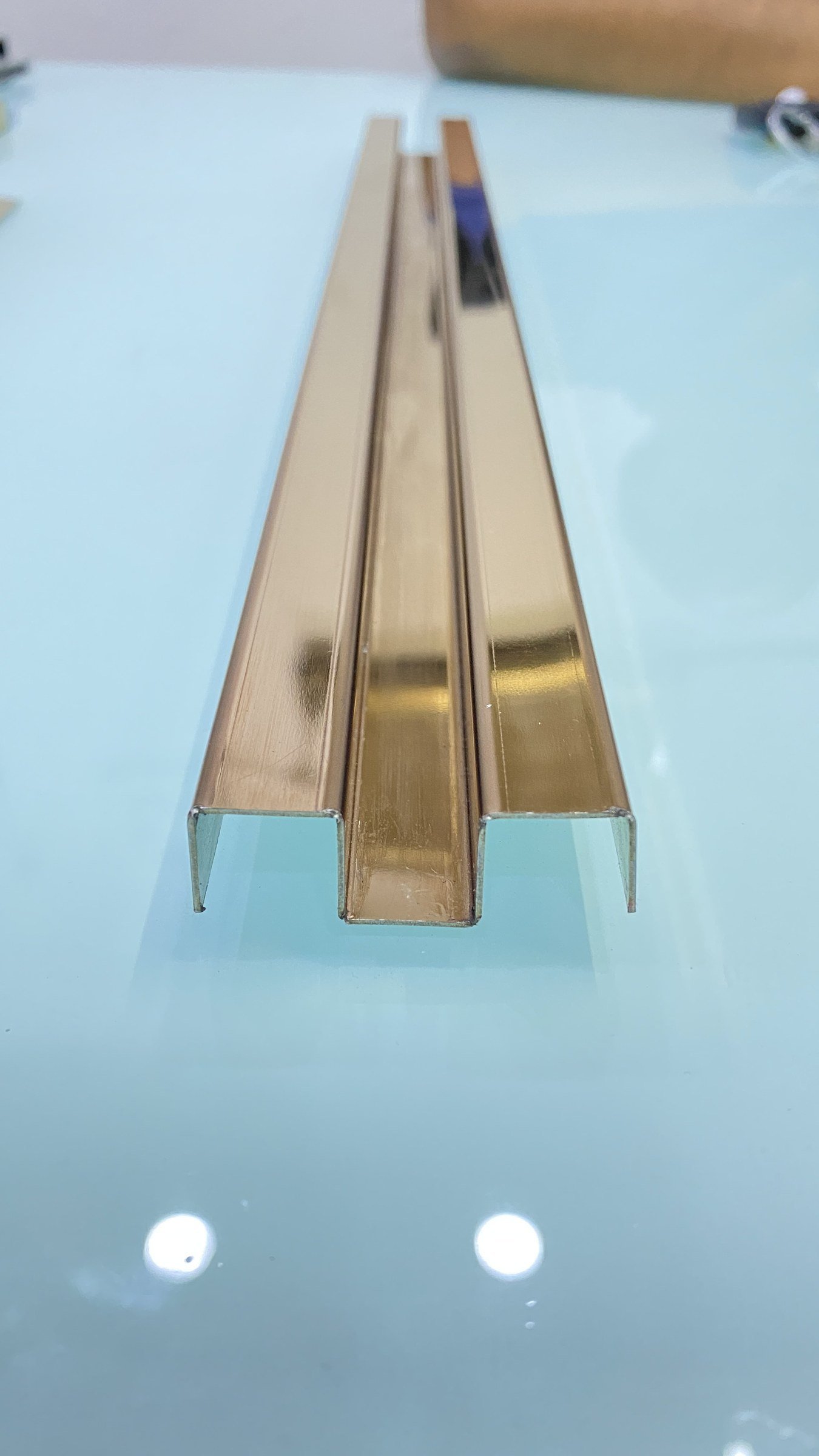

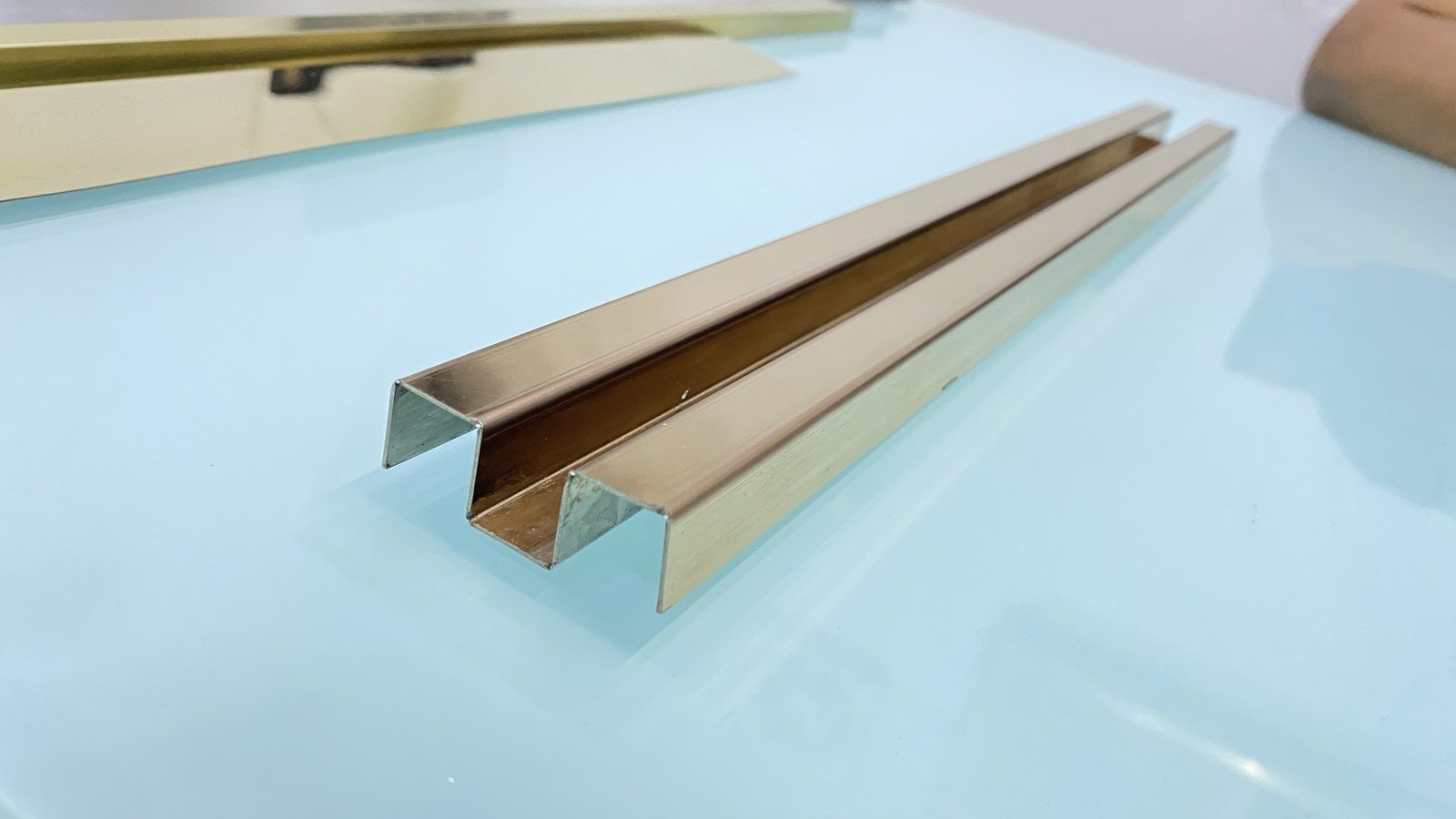

MirrorSS · Brass · Copper HairlineSS · Aluminium MatteAll metals Bead BlastSS · Aluminium Antique / BrushedBrass · Bronze · Copper PVD GoldSS 304 · SS 316 Rose Gold PVDSS 304 · SS 316 Champagne Gold PVDSS 304 · SS 316 Black PVDSS 304 · SS 316 Bronze PVDSS 304 · SS 316 Powder CoatingMS · Aluminium · GI

Sign finishes off on physical metal — request samples.

How it is manufactured

V-grooved for sharp edges
01CNC Fibre Laser Cutting02CNC V-Grooving03CNC Bending04Welding & Fabrication05Surface Finishing06PVD & Powder Coating

Technical information

MaterialStainless Steel 304, Stainless Steel 316, Aluminium, Brass, Copper, Mild Steel
Product codeMCS-CPR-009
EnvironmentInterior and exterior
SupplyMade to supplied drawing
Sheet thickness0.25 - 4 mm (project-specific)
FinishesMirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Black PVD, Bronze PVD, Powder Coating
ManufacturingCNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Welding & Fabrication → Surface Finishing → PVD & Powder Coating

Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes for made-to-order sections, because the section is set by the substrate, the glass make-up or the panel module it has to suit. Contact MCS for project-specific technical data →

Applications

CommercialHospitalityResidentialRetailInfrastructure

What MCS needs in order to quote

Geometry

Section drawing or dimensioned sketch, leg lengths, overall length and quantity.

Material

Metal, grade and sheet thickness — or the performance the detail has to meet, and MCS will suggest one.

Finish

Finish and colour, whether a sample is required, and the visible faces.

Downloads

PDFArchitectural Profiles & Trims — datasheet275 KB · Available now
