How we work
From drawing
to dispatch
Every job, from one prototype to a full project, runs through the same procedure. You know at each step what we need from you, what we do, and what you get back.

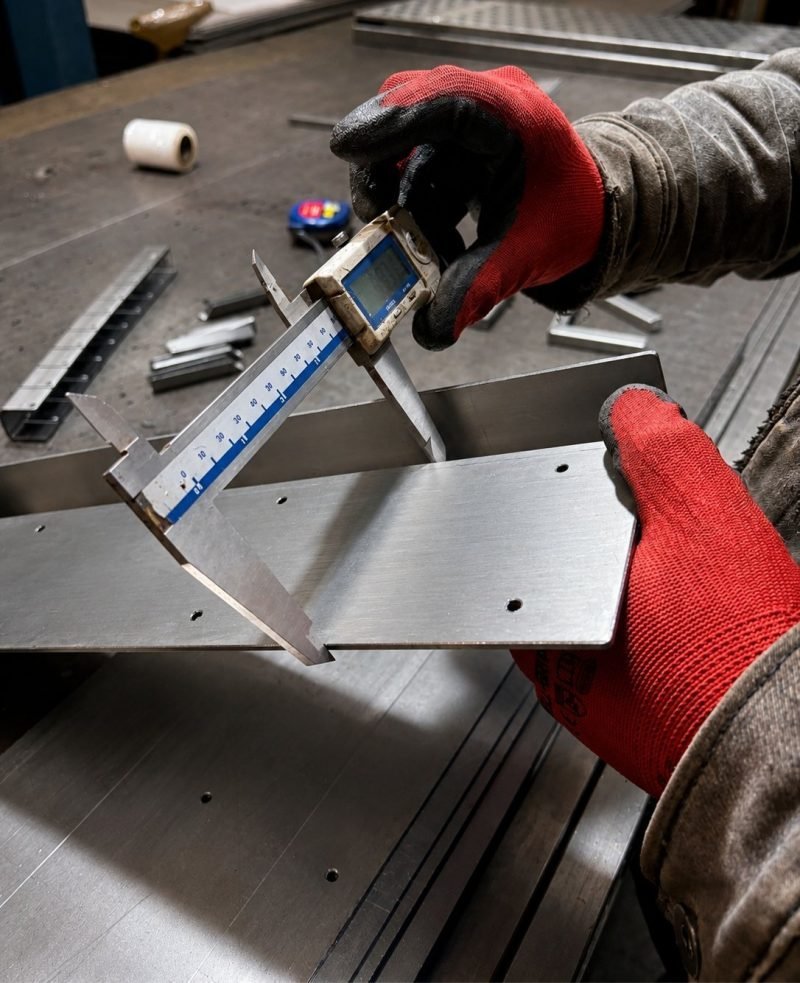

Checking a folded part against the drawingInspection
The procedure
Every job,
the same steps
01EnquiryYou: Send the drawings (DWG, DXF or a dimensioned PDF), the metal, thickness, finish and quantity. A sketch is enough to start a new product. We: Register the enquiry and give it a number. You get: An enquiry number. Every drawing, revision, sample and dispatch is tracked against it.
02Drawing reviewYou: Answer the points we raise. We: Our design team checks the material, thickness, bend order, groove positions, flat lengths and finish, and any point where the shape cannot be made as drawn. You get: A review of your drawing: what works, what does not, and what would work better. If a detail cannot be made, you hear it first.
03QuotationYou: Confirm the scope. We: Price the job from material, thickness, dimensions, profile, quantity, bends, grooves, laser work and finish. You get: A written quotation. There is no price list, because a price without these would be a guess.
04Shop drawings and cut filesYou: Approve the drawings, where this is part of the scope. We: Prepare fabrication drawings and DXF cut files, nest the parts on the sheet and number every part. You get: Drawings to approve, and parts that are numbered for assembly.
05SampleYou: Approve the sample in the real metal and finish. We: Make a sample on the production machines. You get: An agreed corner, section and finish. Production repeats what you approve.
06Order and delivery dateYou: Place the order. We: Plan the job on our machines. You get: A delivery date, committed in writing with the order.
07ProductionYou: — We: Laser cut, V-groove, bend, weld and finish, in that order, on the same machines and programmes as the sample. You get: Parts that match the sample from the first piece to the last.
08PVD, if specifiedYou: Choose the colour on a real sample. We: Apply the PVD colour to the fabricated, buffed parts. You get: Colour over faces, edges and welds.
09InspectionYou: — We: Check dimensions, grooves, bend angles, surface, finish and packing before anything leaves. You get: Parts checked against the approved sample.
10Packing and dispatchYou: Tell us the site and the order you install in. We: Pack and number the parts and dispatch them from Narela, Delhi. You get: Delivery to your site anywhere in India.
11Repeat ordersYou: Quote the enquiry number. We: Run the kept programme again. You get: A repeat that matches the first order.
Scope
Who does
what
MCS
Drawing review and design for manufacture
MCS
Shop drawings, DXF cut files and nesting
MCS
Samples and prototypes
MCS
Laser cutting, V-grooving, bending, welding, finishing
MCS
PVD colours
MCS
Inspection, packing and dispatch
You
Site measurement
You
Installation on site
You
Powder coating, by your coater
You
Approving drawings and samples
Start a project
Ready for
step 1?
Send the drawing, the metal, the finish and the quantity.
