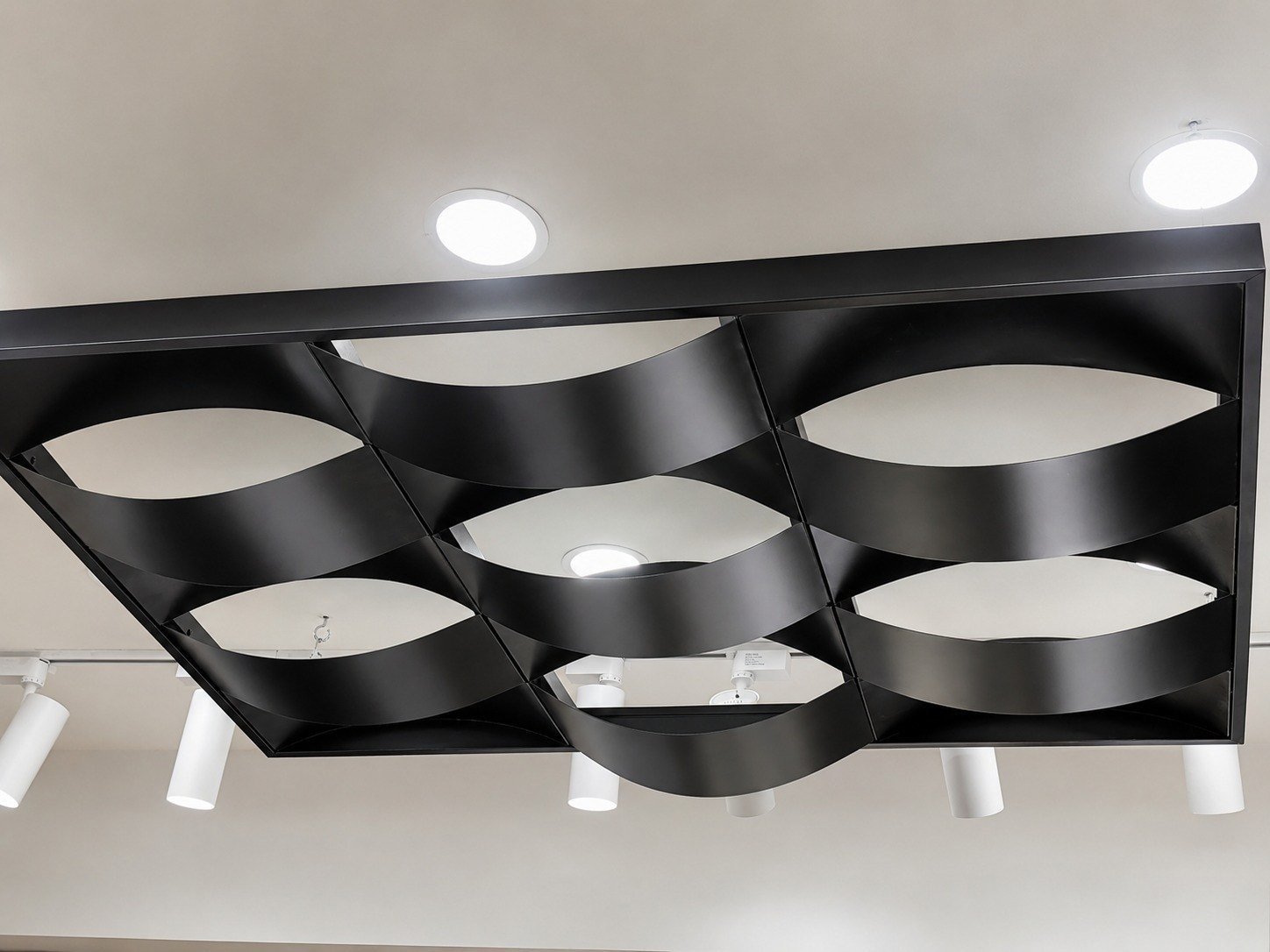

Black wave metal ceiling with curved strips in a grid frame
Wave Metal Ceiling
A ceiling of curved metal strips that rise and fall in waves, made to the curve and layout of your ceiling drawing.
An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →
Overview

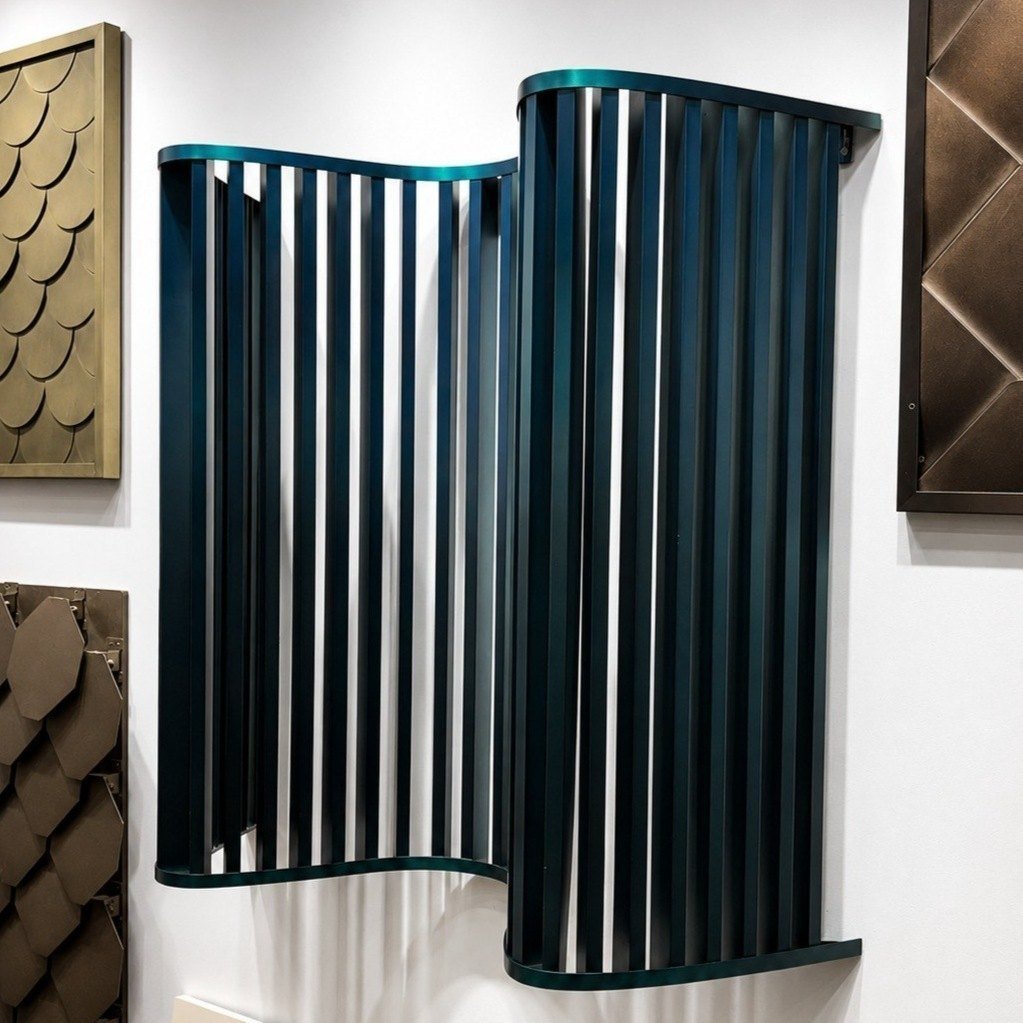

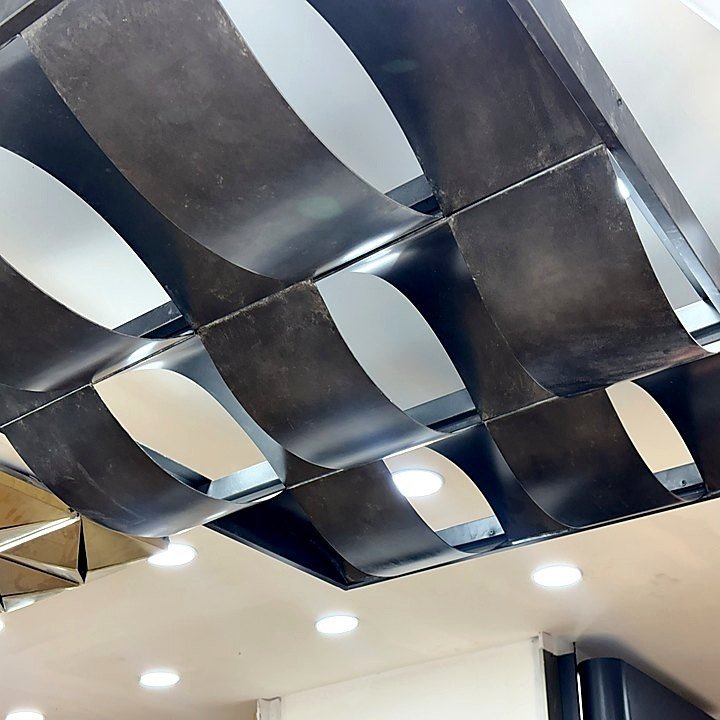

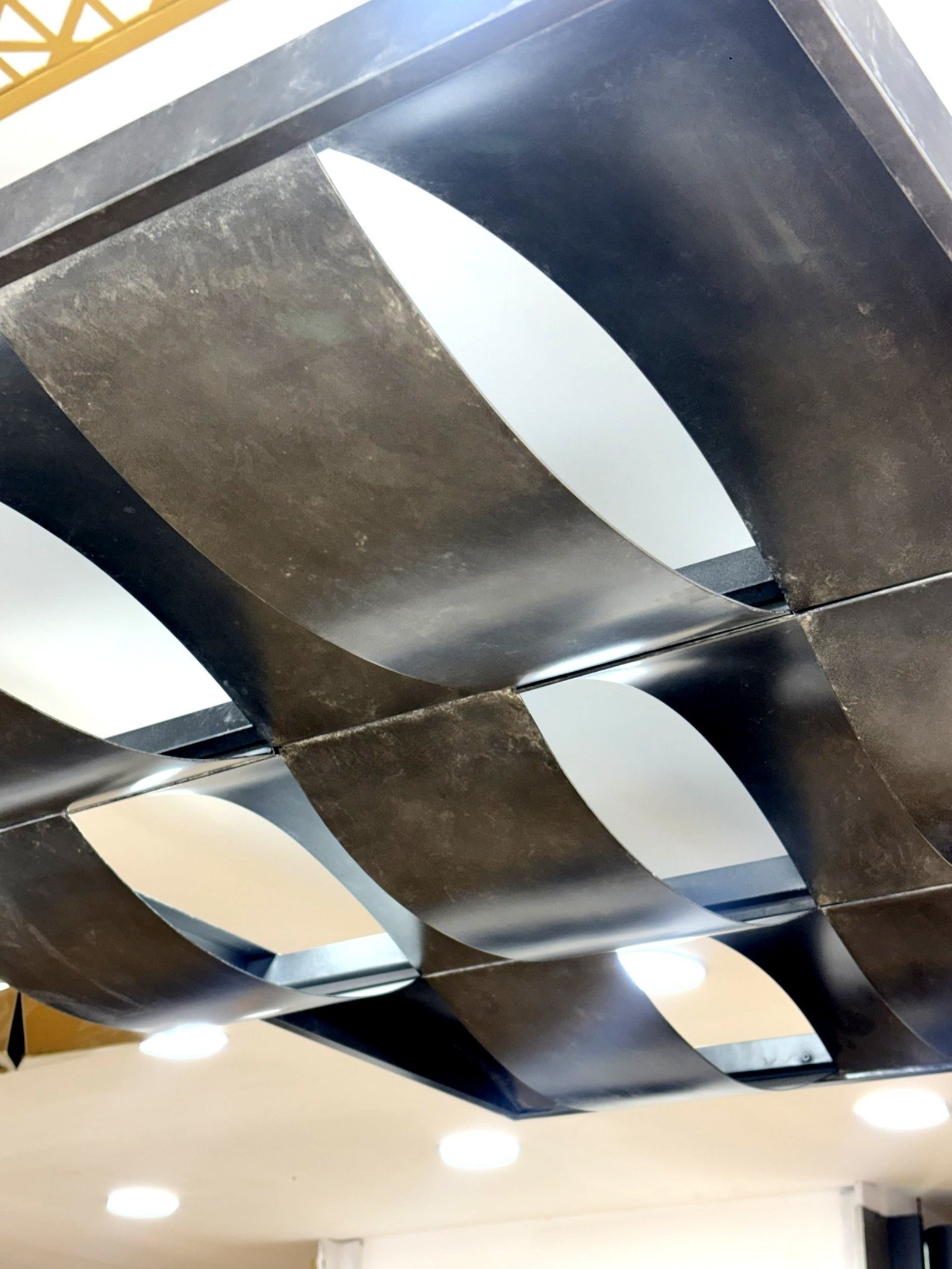

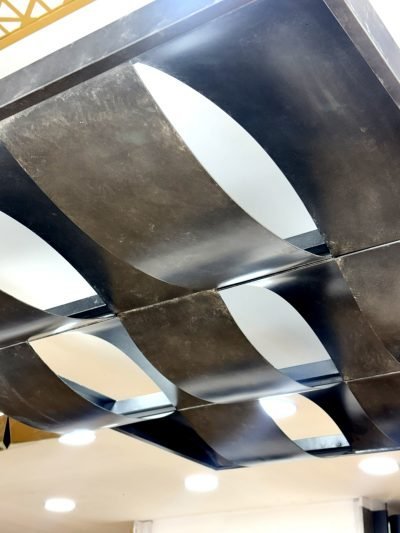

A ceiling built from curved metal strips. Each strip is bent into a wave, and the strips sit next to each other in a frame, so the ceiling rises and falls across the room.
MCS laser cuts the strips from sheet, bends them to the curve on your drawing and fabricates the frame that holds them. Strip width, curvature, panel size, metal and finish can all be chosen. The metal is stainless steel or aluminium.
Used for: hotels, restaurants, retail spaces and showrooms, offices, reception areas.
To quote we need: the ceiling layout, the wave shape as a drawing or 3D model, strip width, the ceiling area, metal and finish.
Materials
2 availableFinish options
Applied after fabrication
Sign finishes off on physical metal — request samples.
How it is manufactured
Technical information
| Material | Stainless Steel 304, Aluminium |
|---|---|
| Product code | MCS-CEI-011 |
| Environment | Interior |
| Supply | Made to supplied drawing |
| Sheet thickness | 0.25 - 3.8 mm (project-specific) |
| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed |
| Manufacturing | CNC Fibre Laser Cutting → CNC Bending → Welding & Fabrication → Surface Finishing |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →
