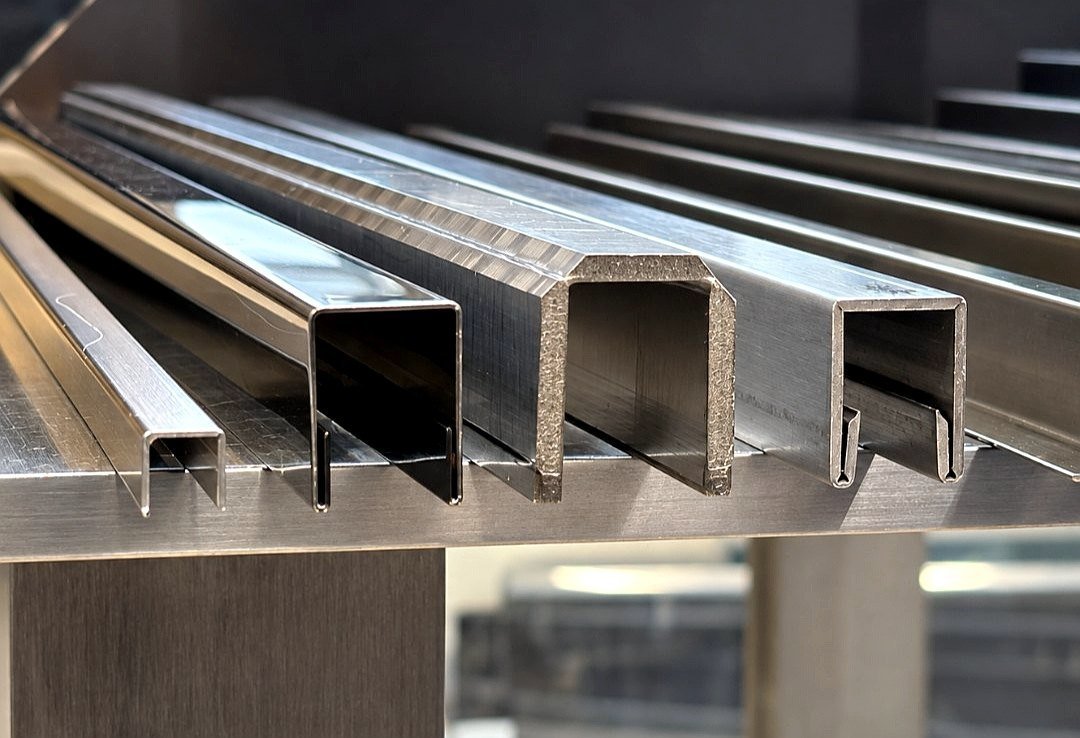

Stainless steel U and channel profiles with sharp V-grooved corners
Architectural Profiles & Trims · Custom Profiles
Custom U Profile
A U channel made to your own section: special widths, unequal legs, centre ribs or extra grooves, with sharp V-grooved corners.
An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →
Overview

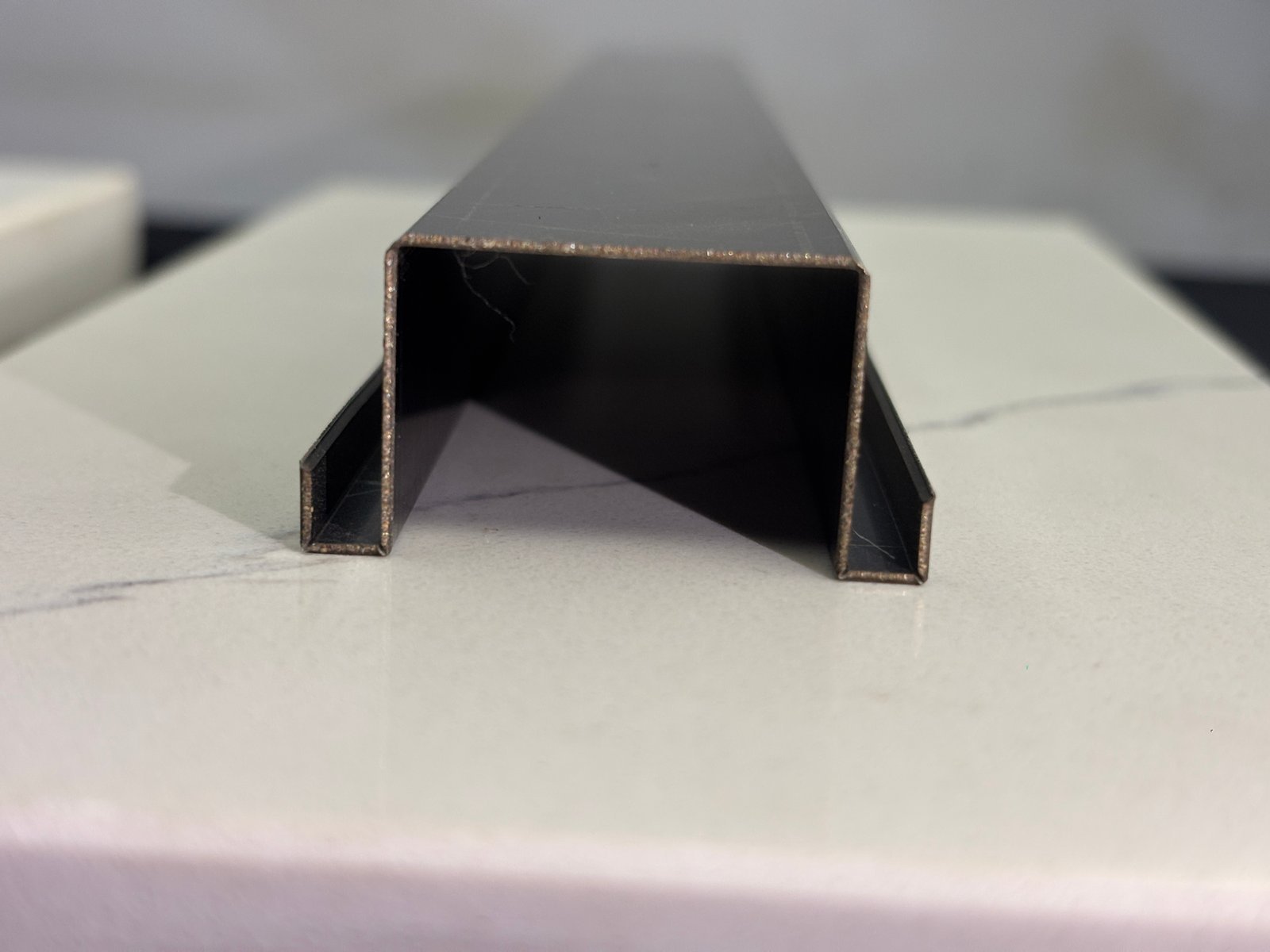

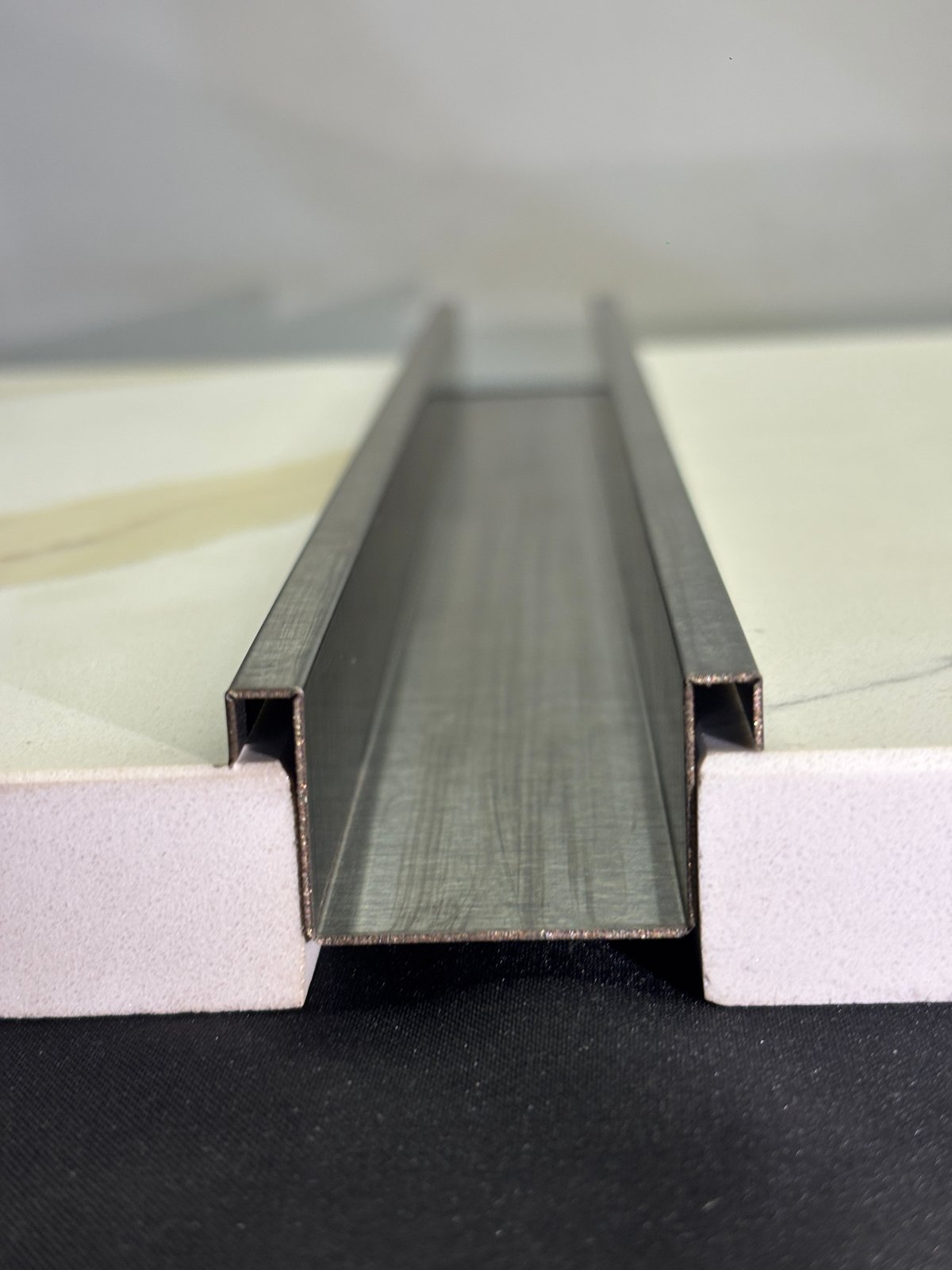

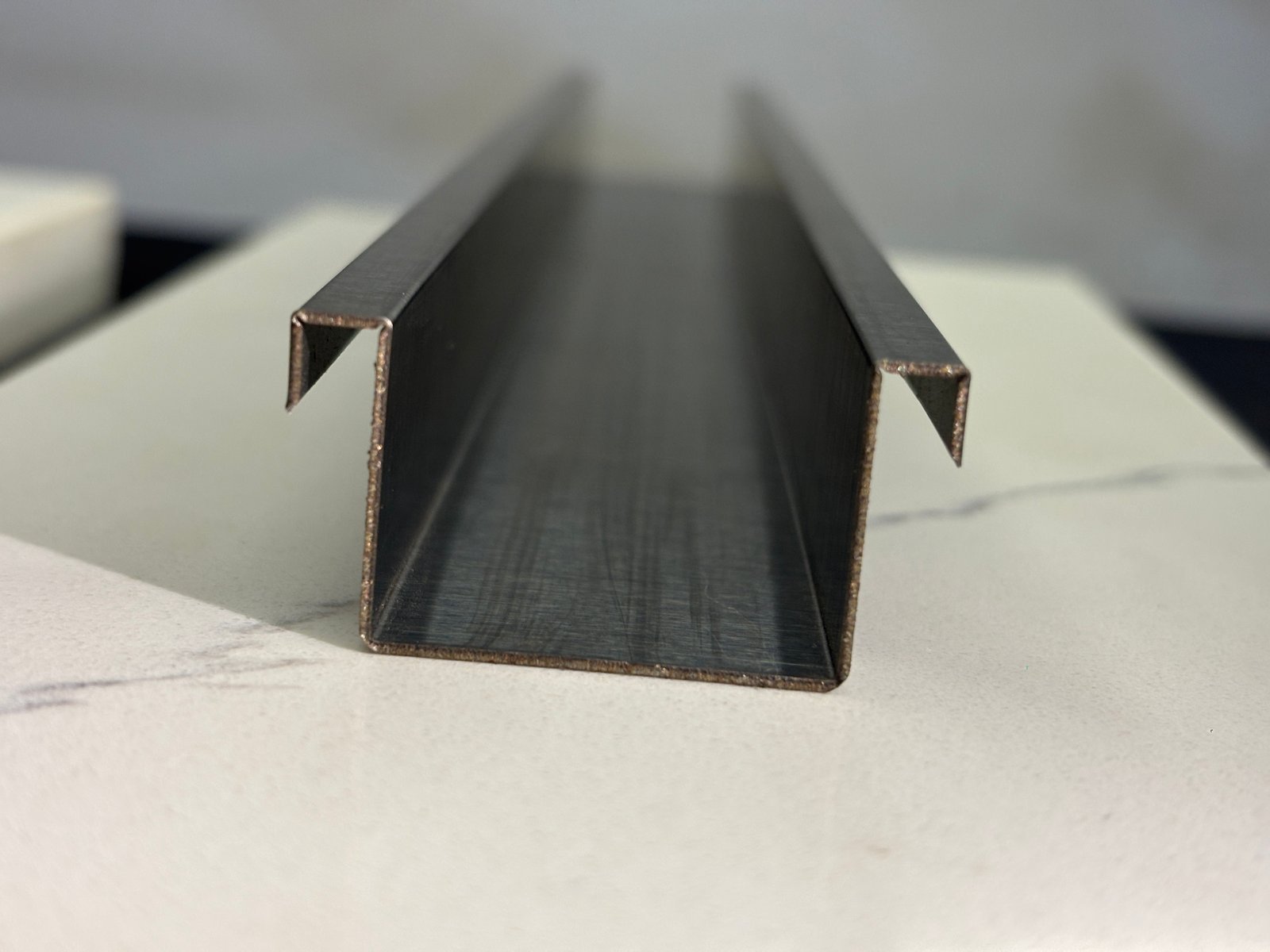

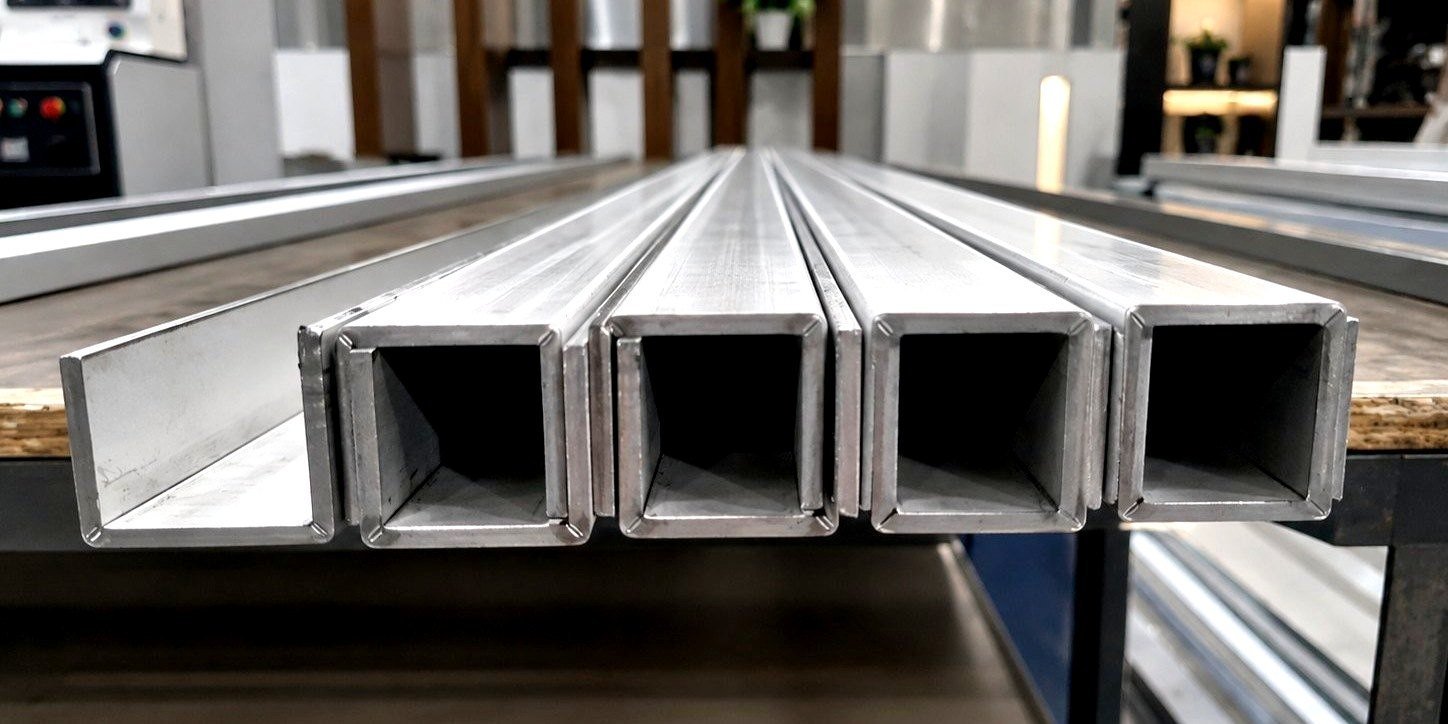

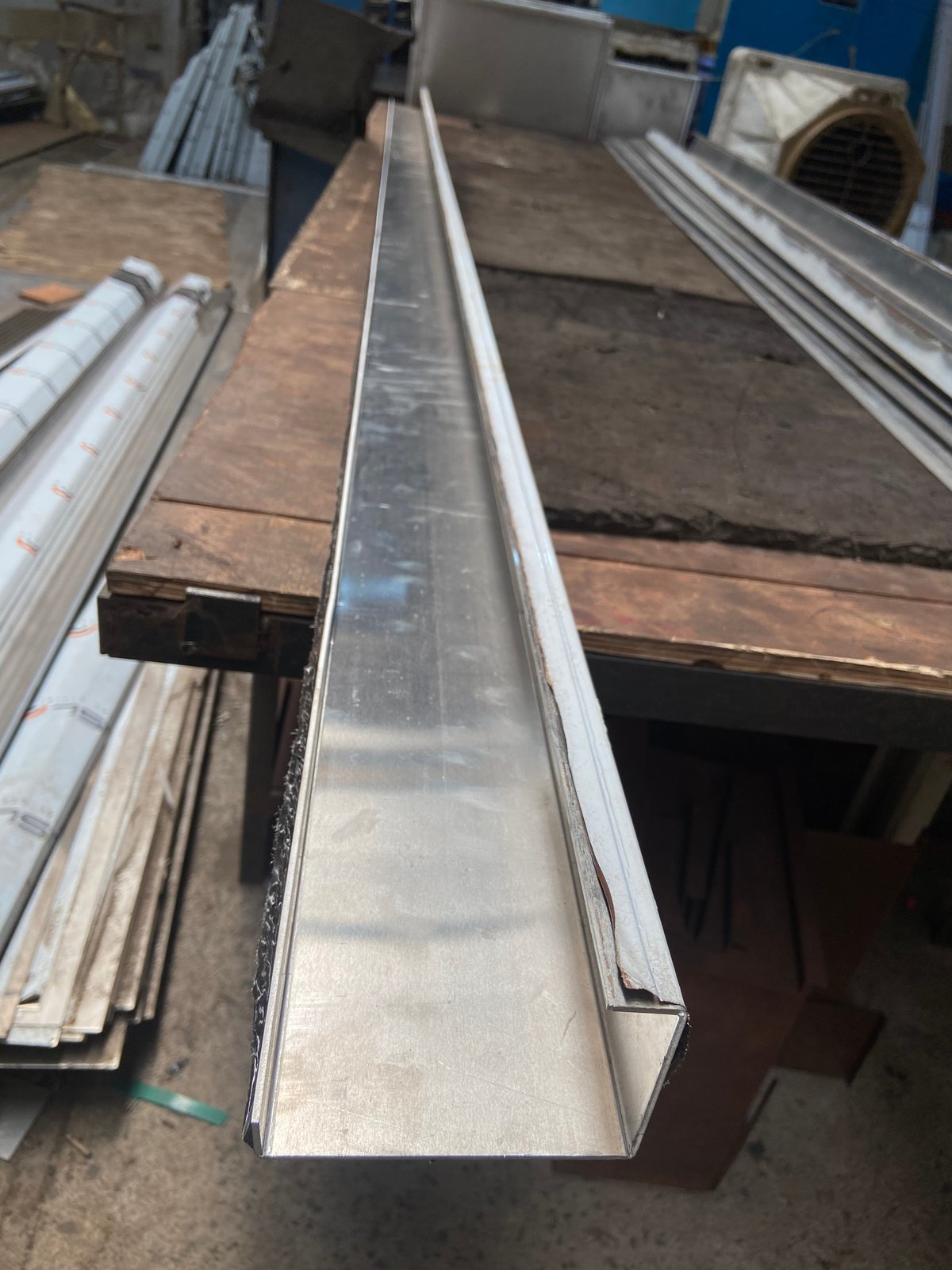

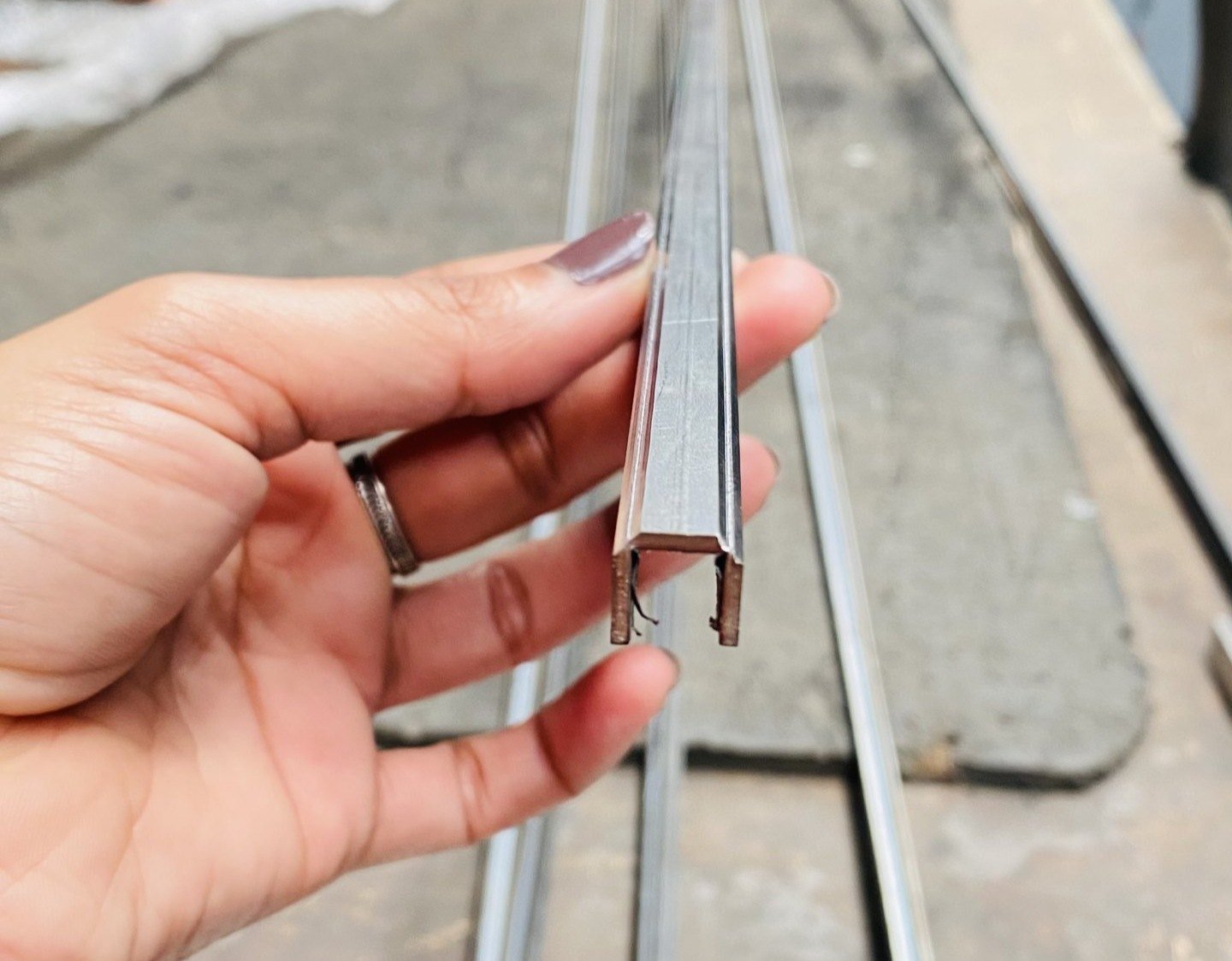

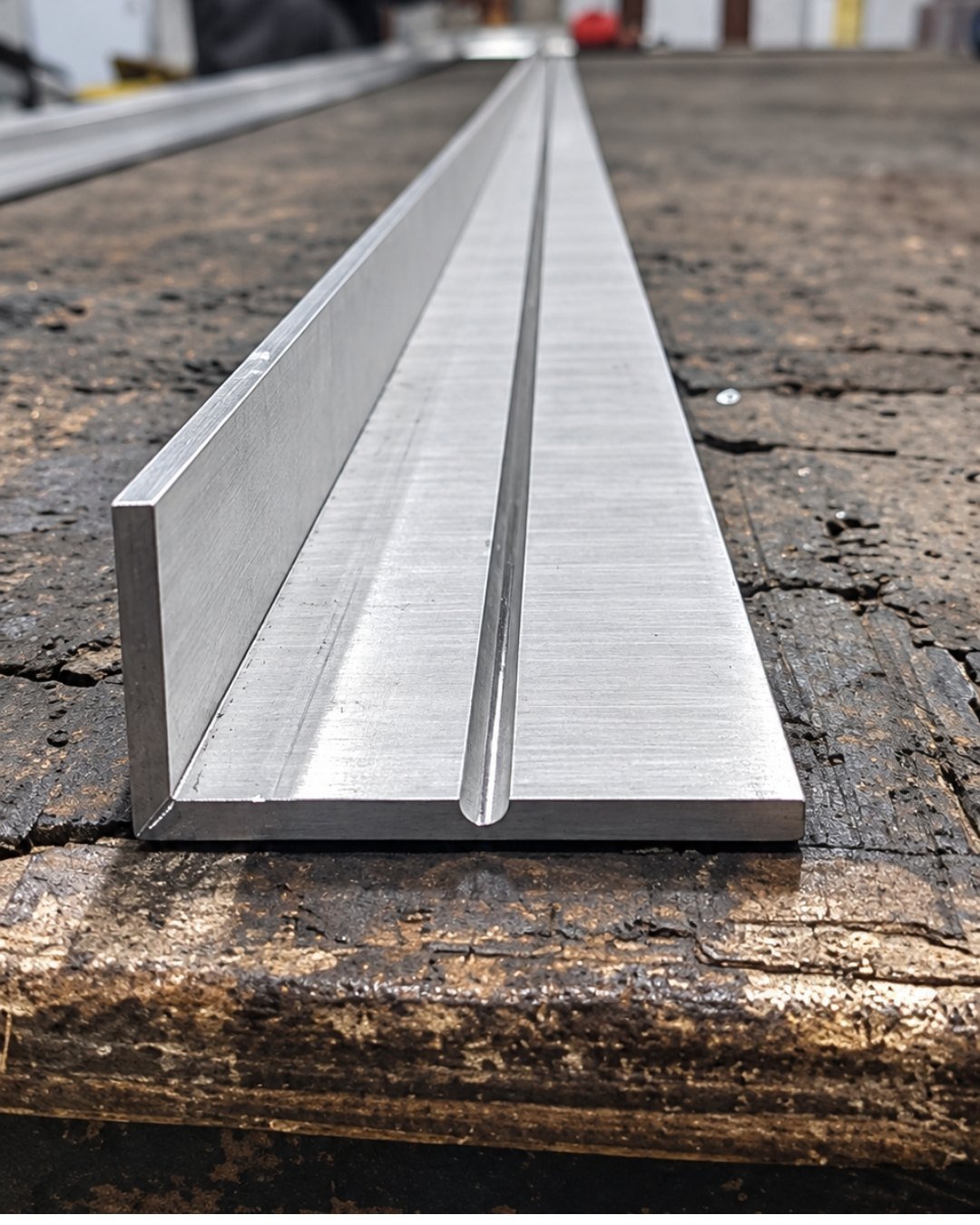

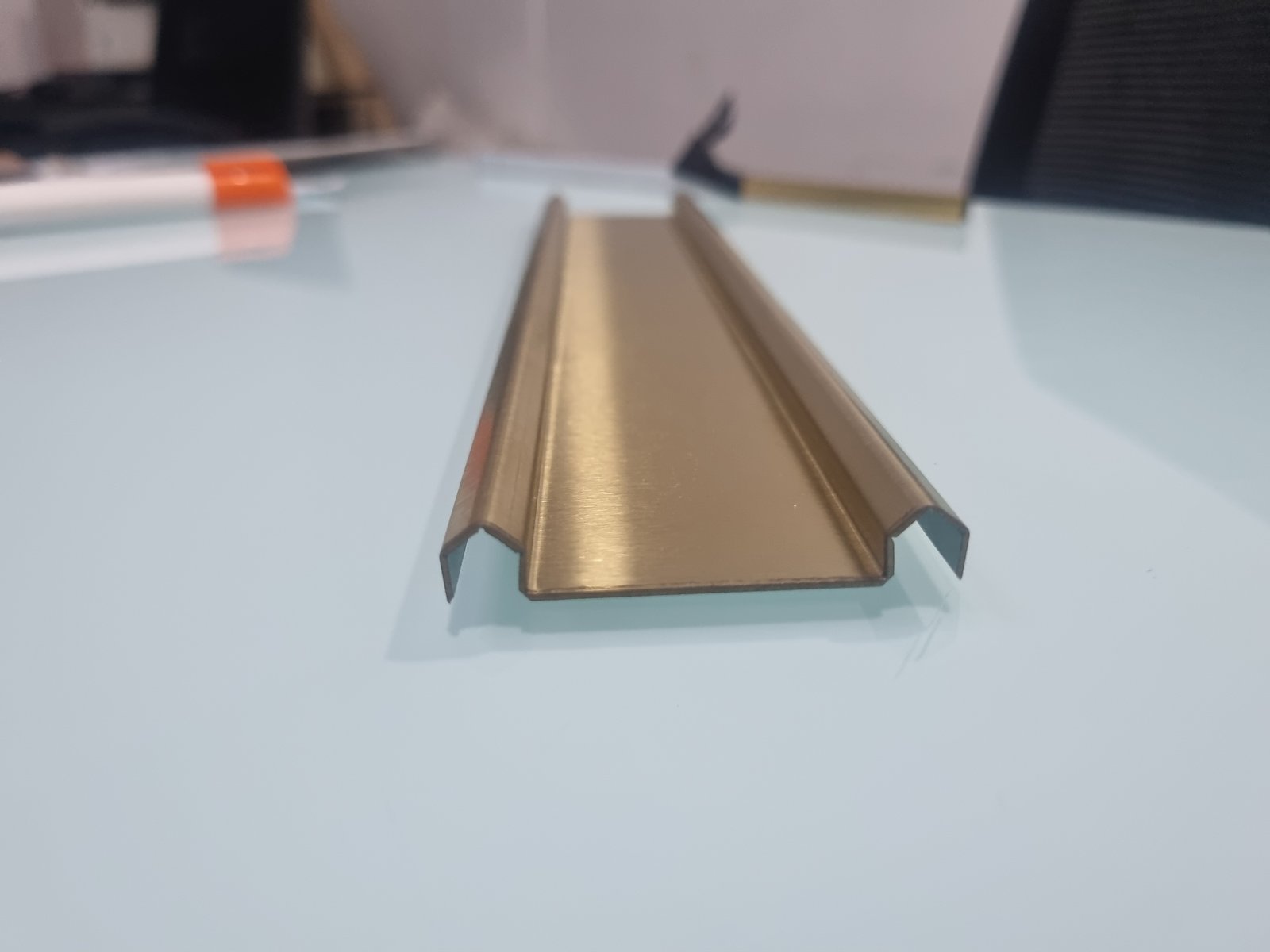

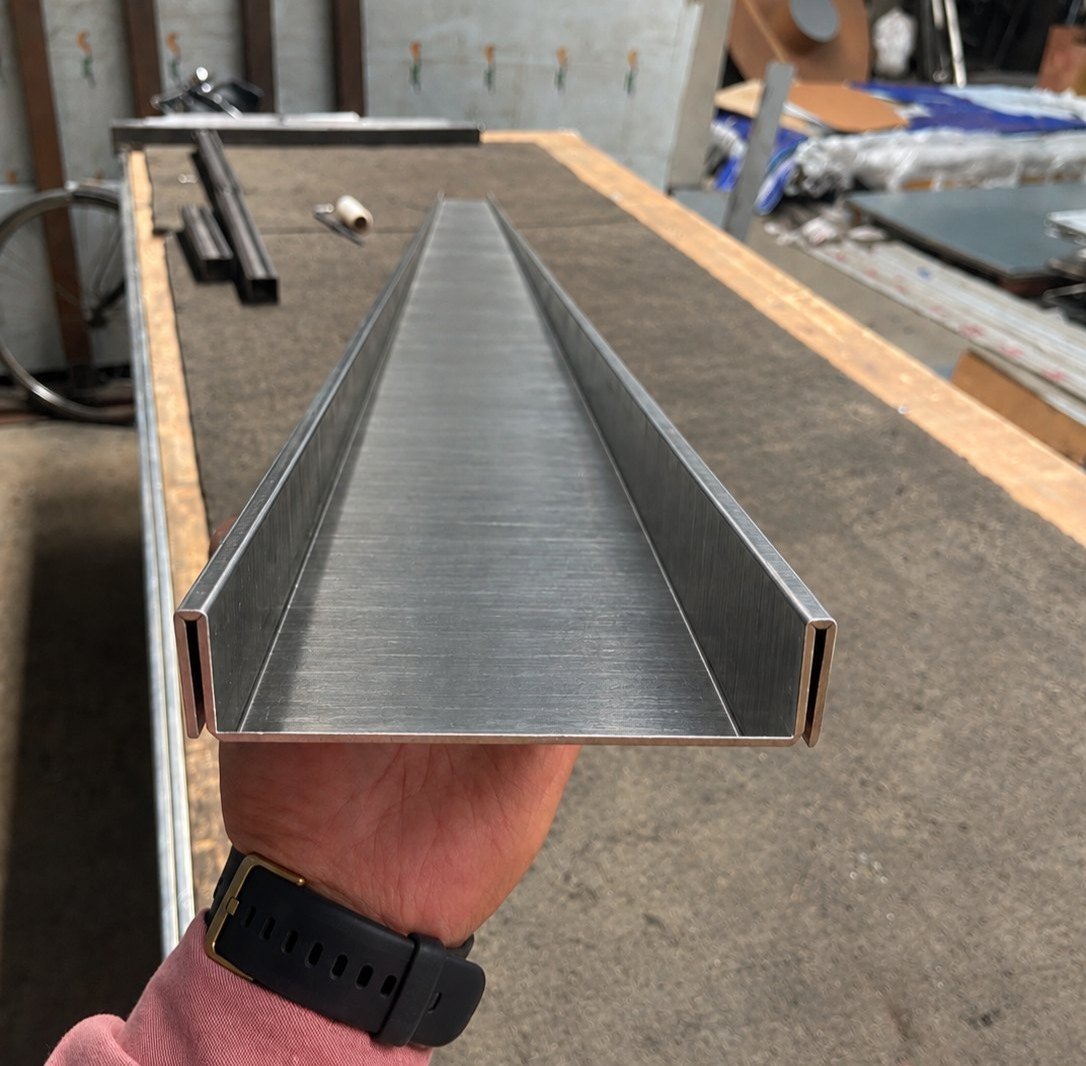

A U channel that is not a standard size. It can have unequal legs, a centre rib, twin grooves, a stepped base or a very narrow width. The section is drawn for the detail and made to match.
Every bend is V-grooved, so even small and complex sections keep sharp inside corners and an even width. MCS makes it in stainless steel 304 or 316 or in brass, in the length and finish the project needs.
Used for: recessed grooves and shadow lines in wall panels, housings for glass and boards, inlay channels in furniture and doors, sections that must match an existing detail.
To quote we need: a section drawing with all dimensions, length, quantity, metal and finish.
Materials
3 availableFinish options
Applied after fabrication
Mirror
Hairline
Matte
Bead Blast
Antique / Brushed
PVD Gold
Rose Gold PVD
Champagne Gold PVD
Black PVD
Bronze PVDSign finishes off on physical metal — request samples.
How it is manufactured

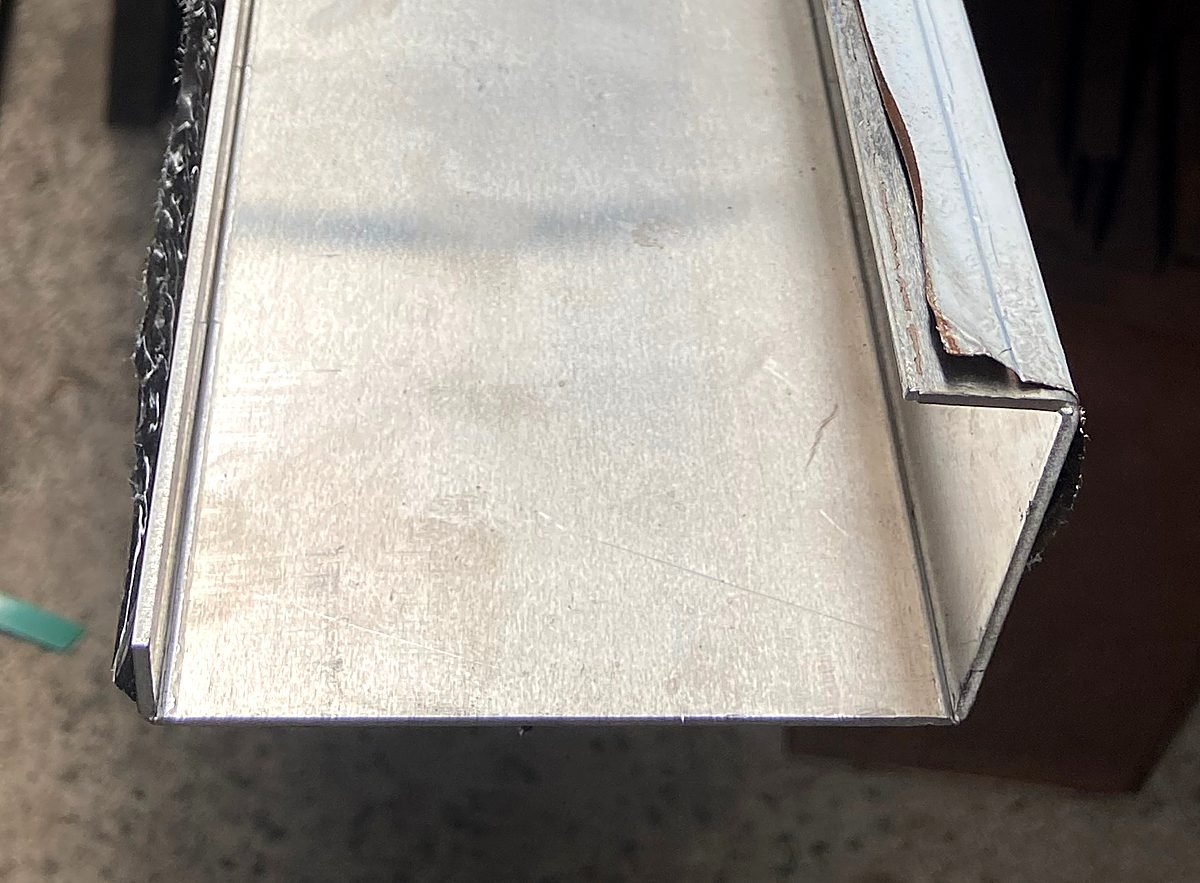

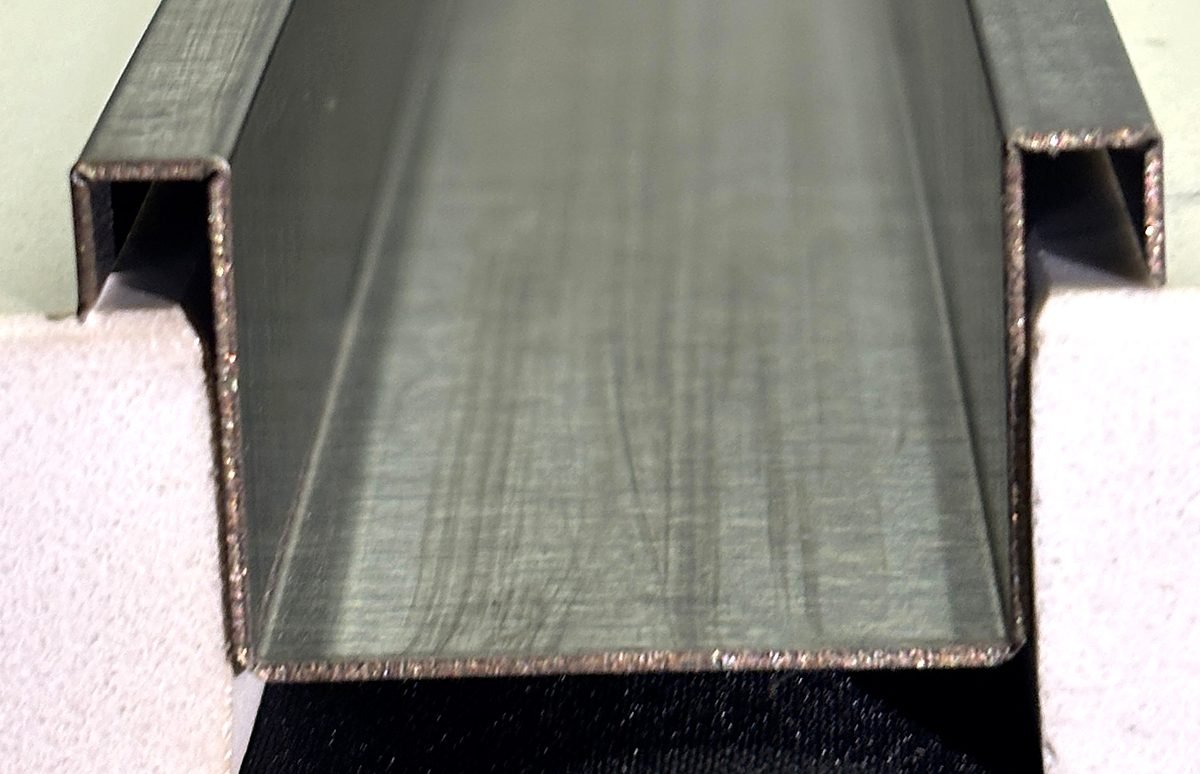

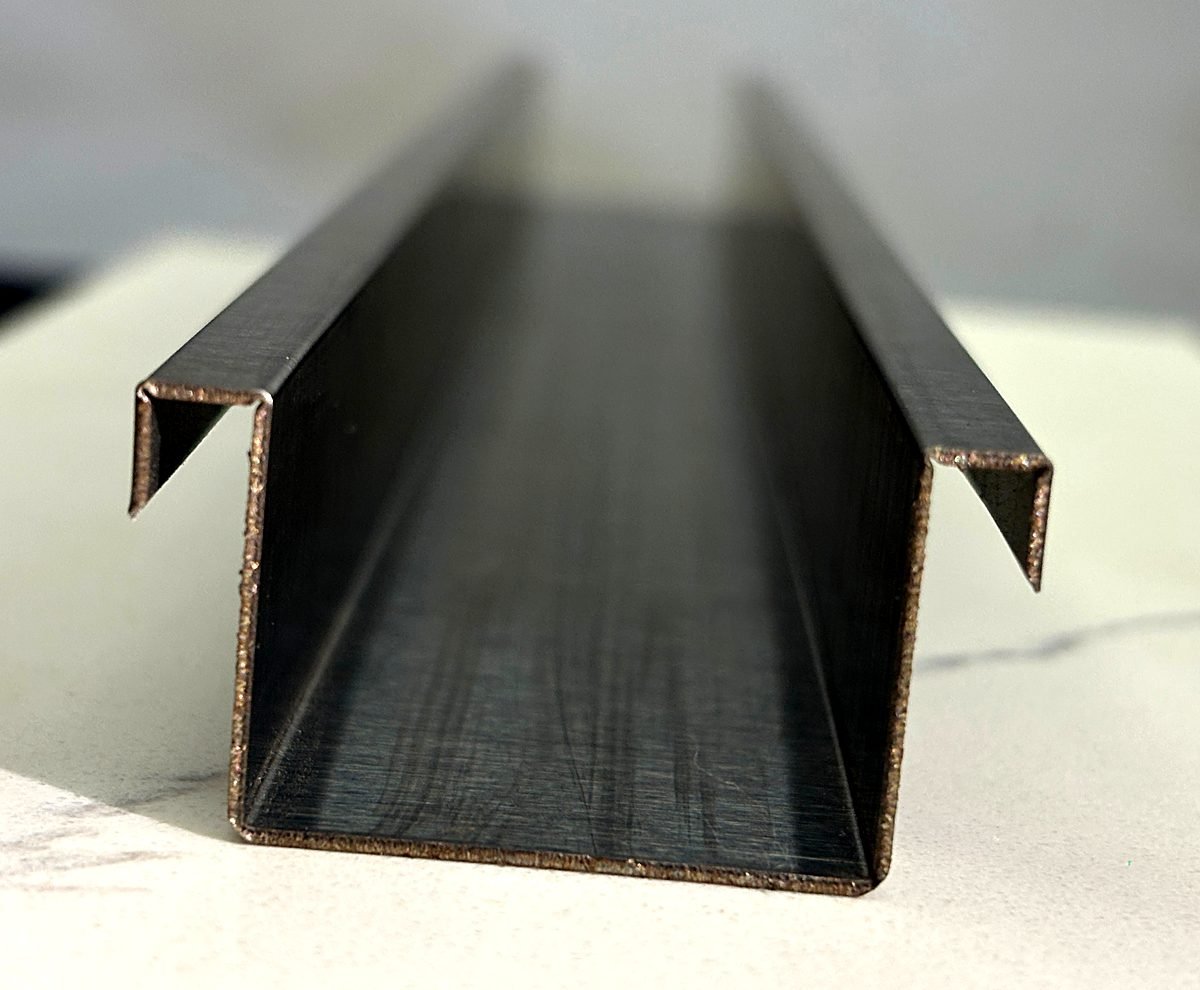

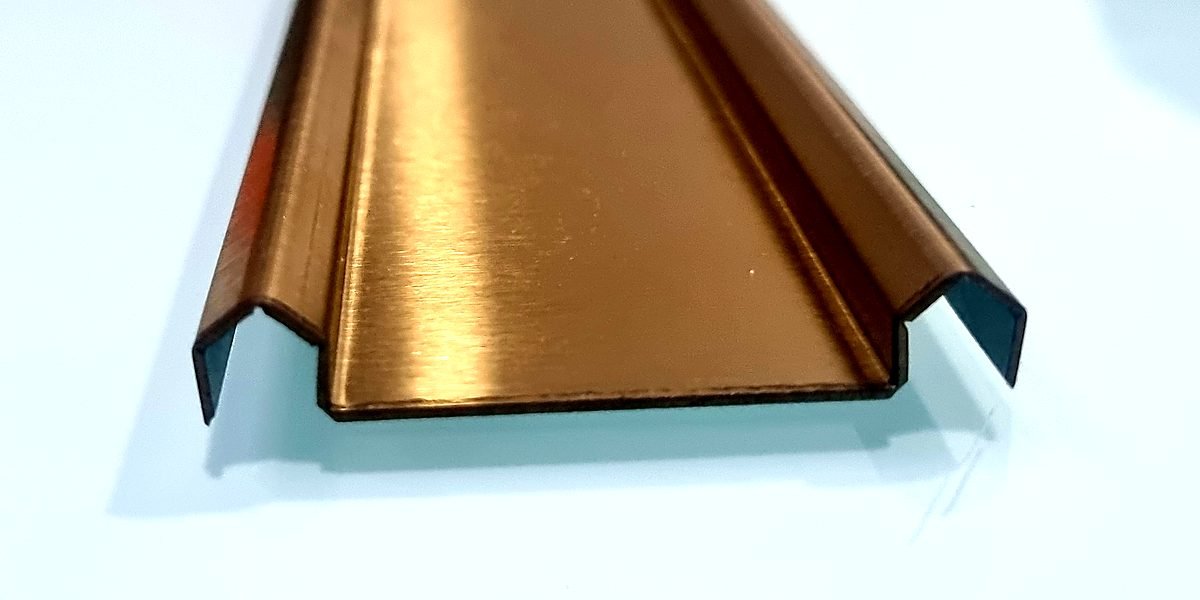

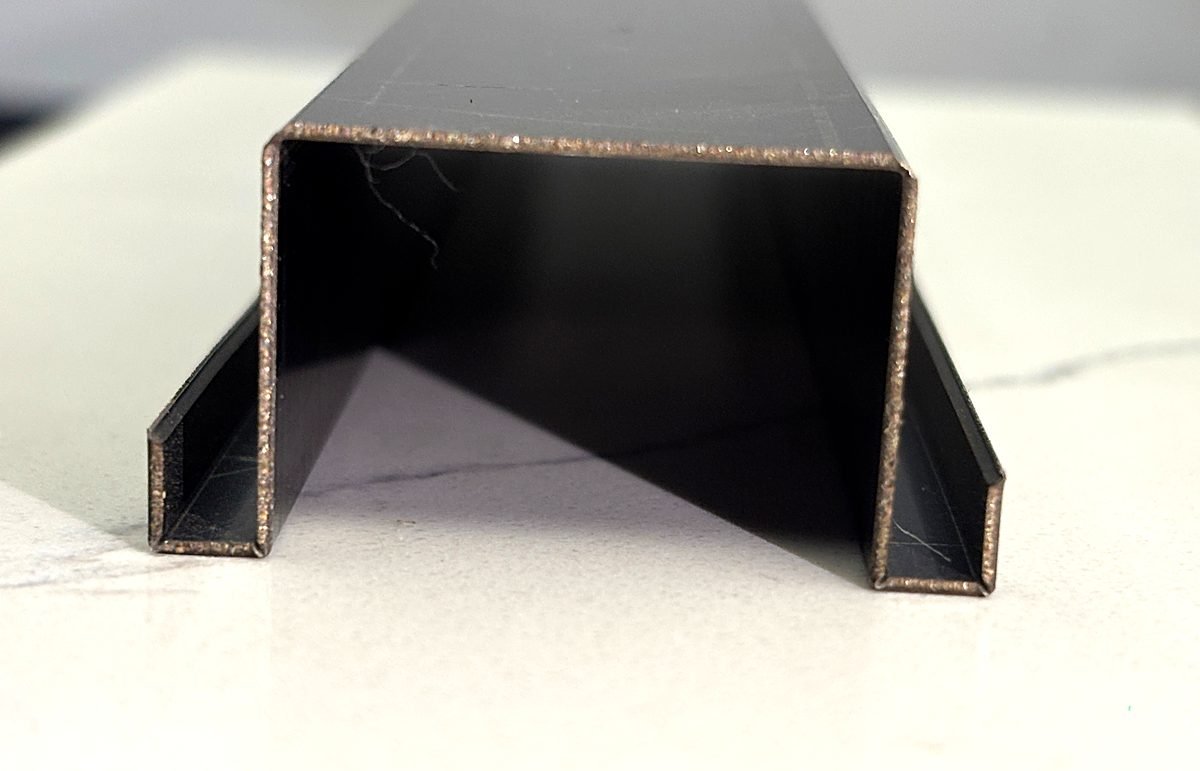

V-grooved for sharp edgesSee the edge

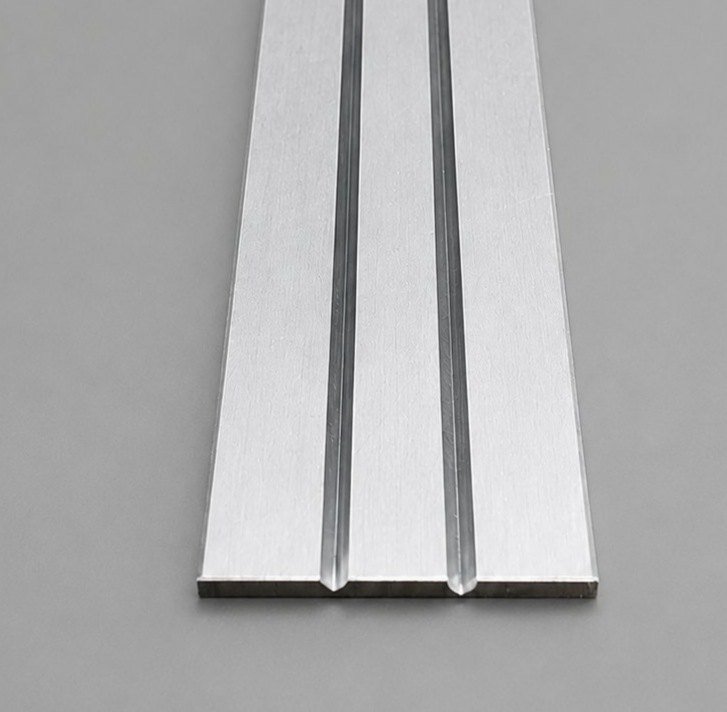

V-grooved, then bent
Enhanced close-up of our photograph: cropped, light and sharpness adjusted. The bend is not changed.
Technical information
| Material | Stainless Steel 304, Stainless Steel 316, Brass |
|---|---|
| Product code | MCS-CPR-001 |
| Environment | Interior |
| Supply | Made to project requirement |
| Sheet thickness | 0.25 - 3.8 mm (project-specific) |
| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Black PVD, Bronze PVD |
| Manufacturing | CNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing → PVD Colours |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →
