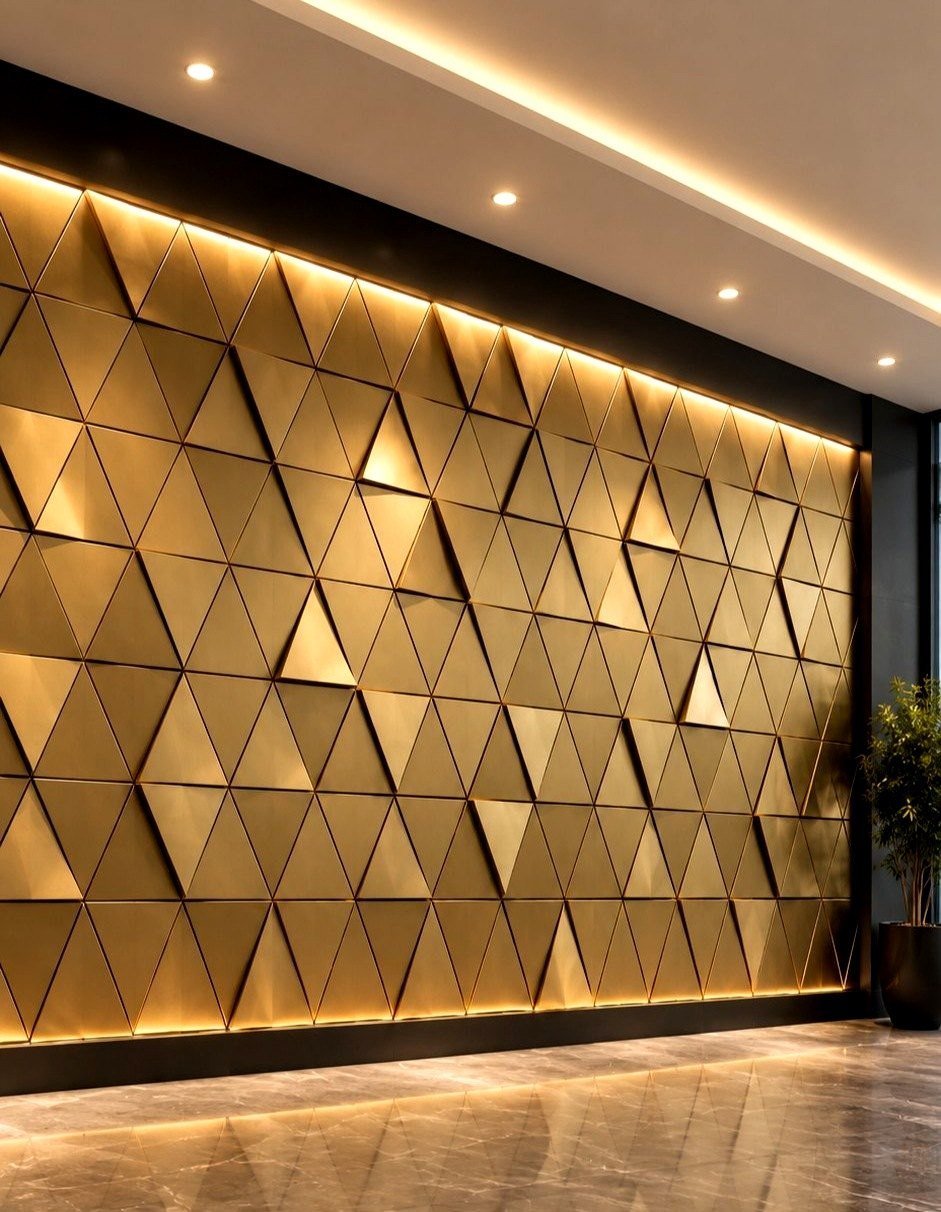

Triangular metal shingles in bronze finish, backlit wall
Triangular Metal Shingles
Folded triangular metal shingles that fit together into a faceted, three-dimensional surface on walls and façades.
An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →
Overview

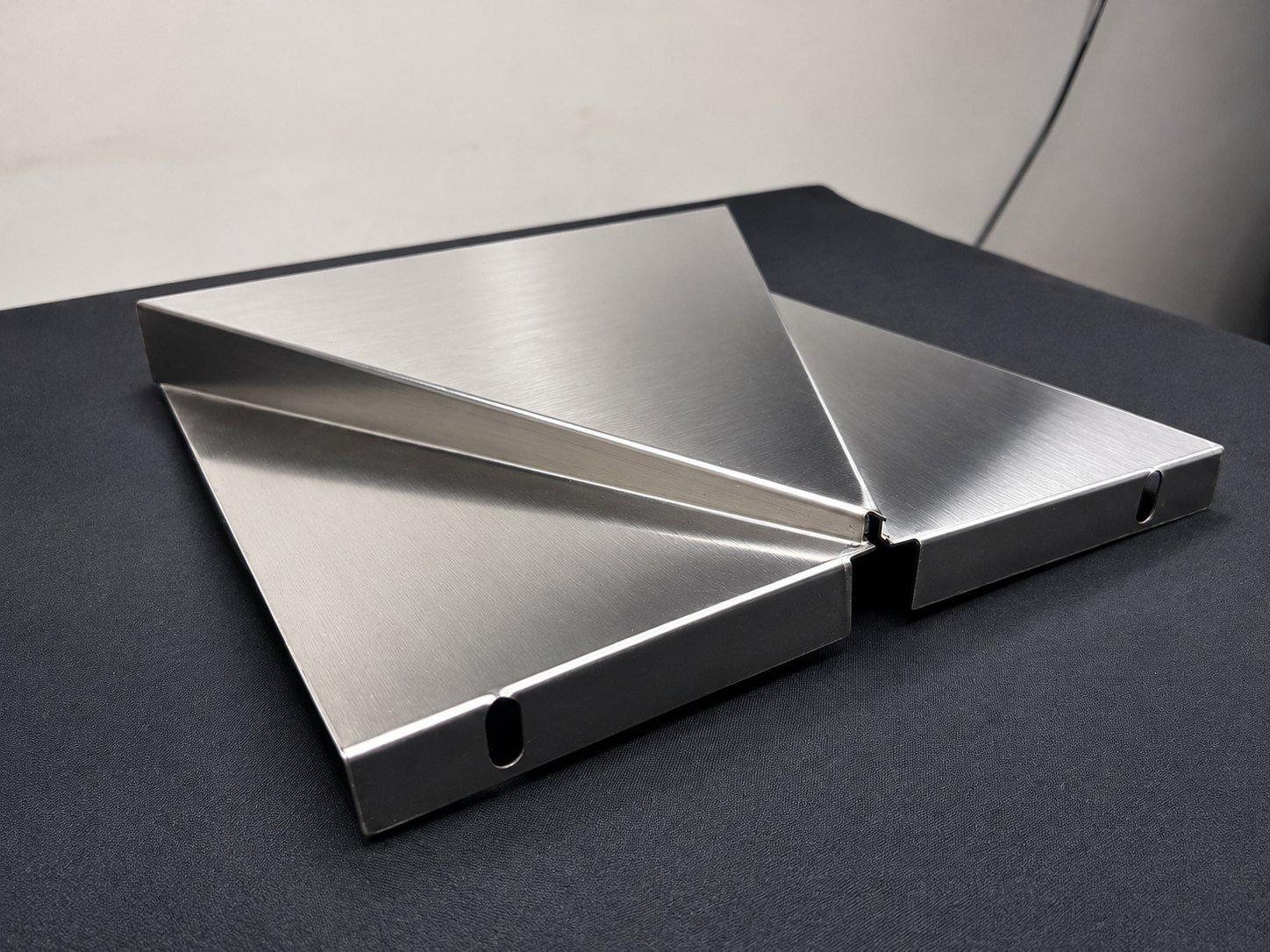

A triangular module folded from sheet. Placed side by side, the modules build a faceted, three-dimensional surface, and each facet catches the light from a different direction.
The sheet is V-grooved before bending. This keeps every fold sharp, so the facets meet in clean straight lines. Module size, fold depth, layout and colour combination are set for the project, in stainless steel or aluminium.
Used for: feature walls, façades, reception areas, lobbies, back-lit wall installations.
To quote we need: wall size and layout, module size and fold depth, quantity, metal, finish or colours, and whether the wall is back-lit.
Materials
2 availableFinish options
Applied after fabrication
Sign finishes off on physical metal — request samples.
How it is manufactured
V-grooved for sharp edgesTechnical information
| Material | Stainless Steel 304, Aluminium |
|---|---|
| Sheet thickness | 0.25 - 3.8 mm (project-specific) |
| Product code | MCS-SHG-010 |
| Environment | Interior and exterior |
| Supply | Made to project requirement |
| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Bronze PVD |
| Manufacturing | CNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Welding & Fabrication → Surface Finishing → PVD Colours |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →
