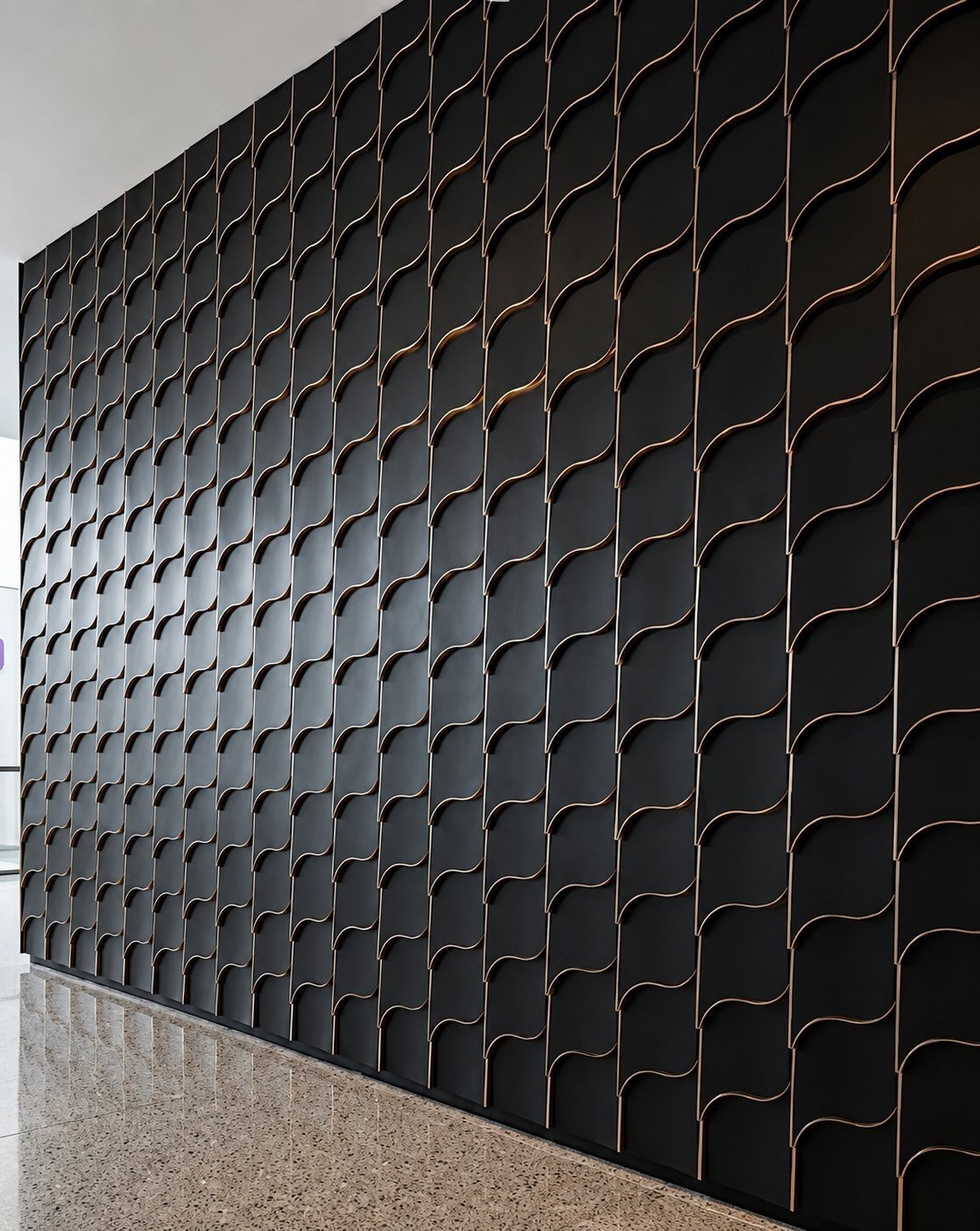

Wave pattern shingles in black, wall detail
Wave Pattern Shingles
Metal shingles with a wave-shaped edge, laid in overlapping rows so that the edges form one flowing line across a wall or façade.
An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →
Overview

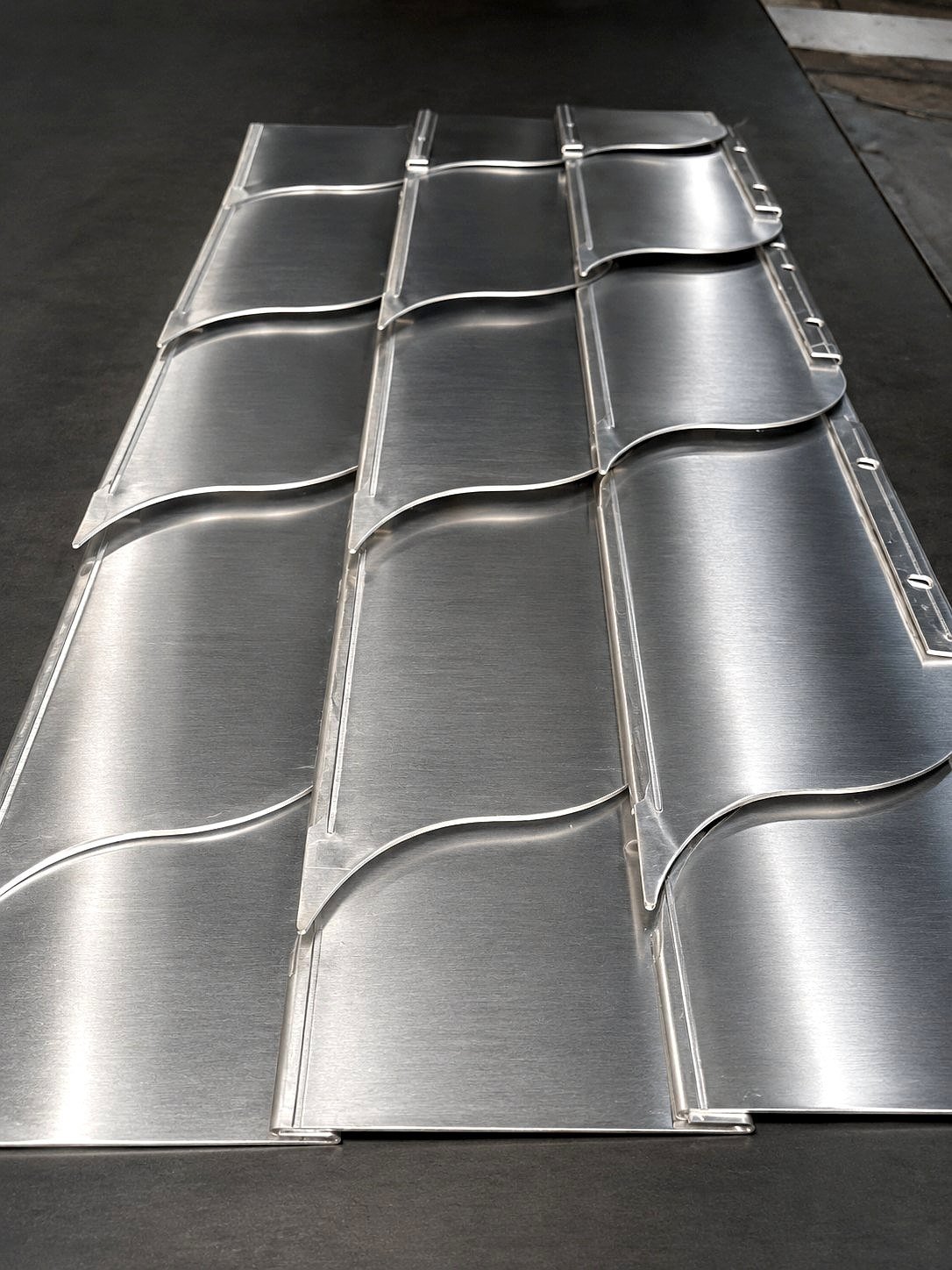

A metal shingle whose exposed edge is cut to a wave. The shingles are laid in overlapping rows, and the wavy edges join into one line that runs across the whole surface.
MCS cuts the curve by laser, so every shingle has the same edge and the rows line up. Shingle size, curve, overlap and layout are made to your design, in stainless steel or aluminium.
Used for: feature walls, façades, columns, reception areas, lobbies.
To quote we need: the area to cover, shingle size and the curve (a drawing or reference picture), the overlap, metal and finish.
Materials
2 availableFinish options
Applied after fabrication
Sign finishes off on physical metal — request samples.
How it is manufactured
V-grooved for sharp edgesTechnical information
| Material | Stainless Steel 304, Aluminium |
|---|---|
| Sheet thickness | 0.25 - 3.8 mm (project-specific) |
| Product code | MCS-SHG-004 |
| Environment | Interior and exterior |
| Supply | Made to project requirement |
| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Bronze PVD |
| Manufacturing | CNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing → PVD Colours |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →
Applications
Downloads
Watch the films

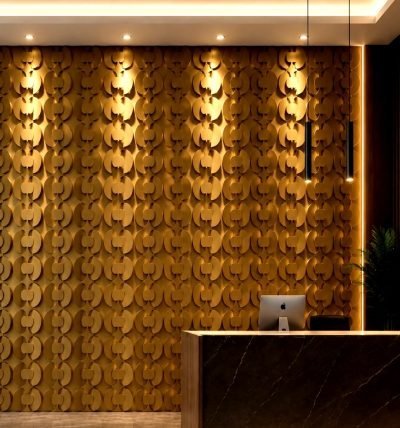

Metal Shingles3D Coin Shingles, Mosaic Shingles & Parametric Face Wall | Custom Metal Wall Cladding3D coin shingles, mosaic shingles and a parametric face wall as cladding for interiors and façades.
