Hexagonal shingles in mixed bronze and brass finishes, feature wall

Hexagonal shingles in mixed bronze and brass finishes, feature wall

Hexagonal shingles in mixed bronze and brass finishes, feature wallHexagonal shingle modules in brushed stainless steelHexagonal shingles in bronze finish, wall panelTwo hexagonal metal shingles with folded edges, held in handThree galvanised hexagonal shingle modules with folded fixing tabs on a dark table

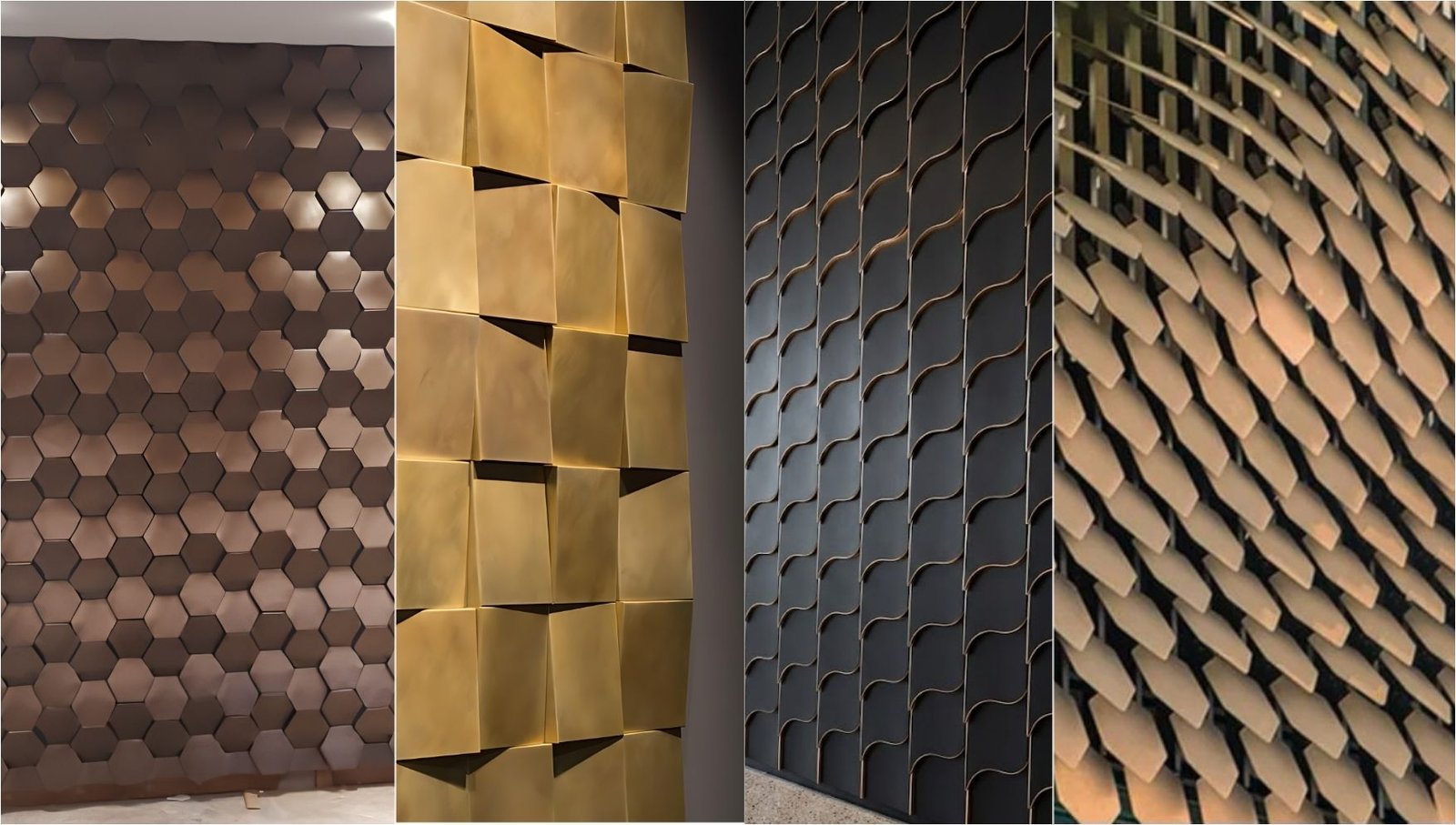

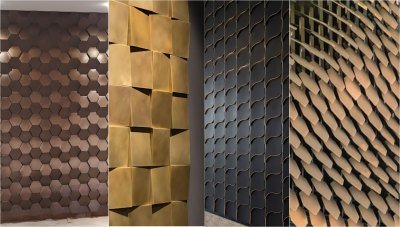

Metal Shingles

Hexagonal Shingles

AvailableInterior and exteriorMCS-SHG-003V-grooved

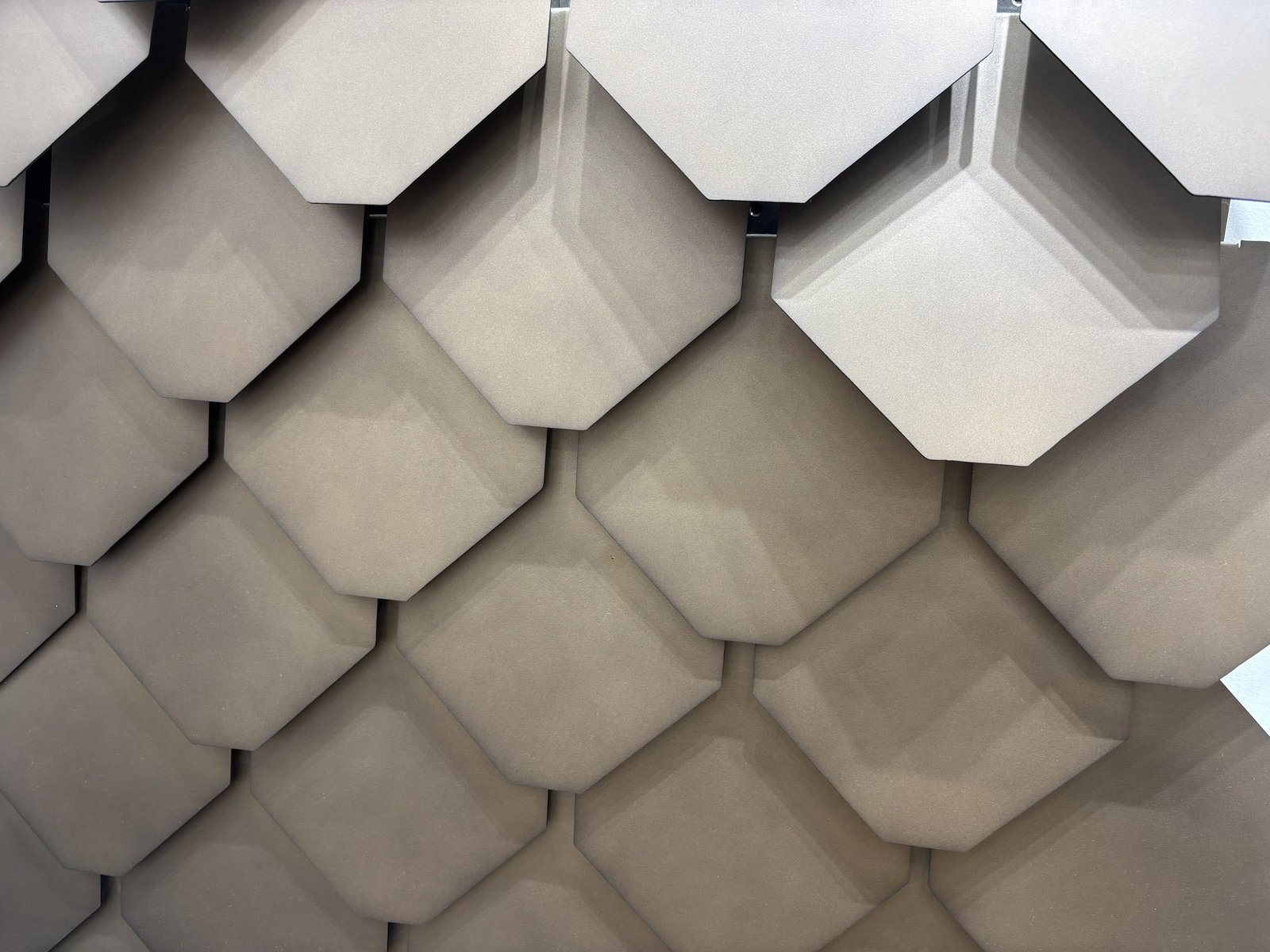

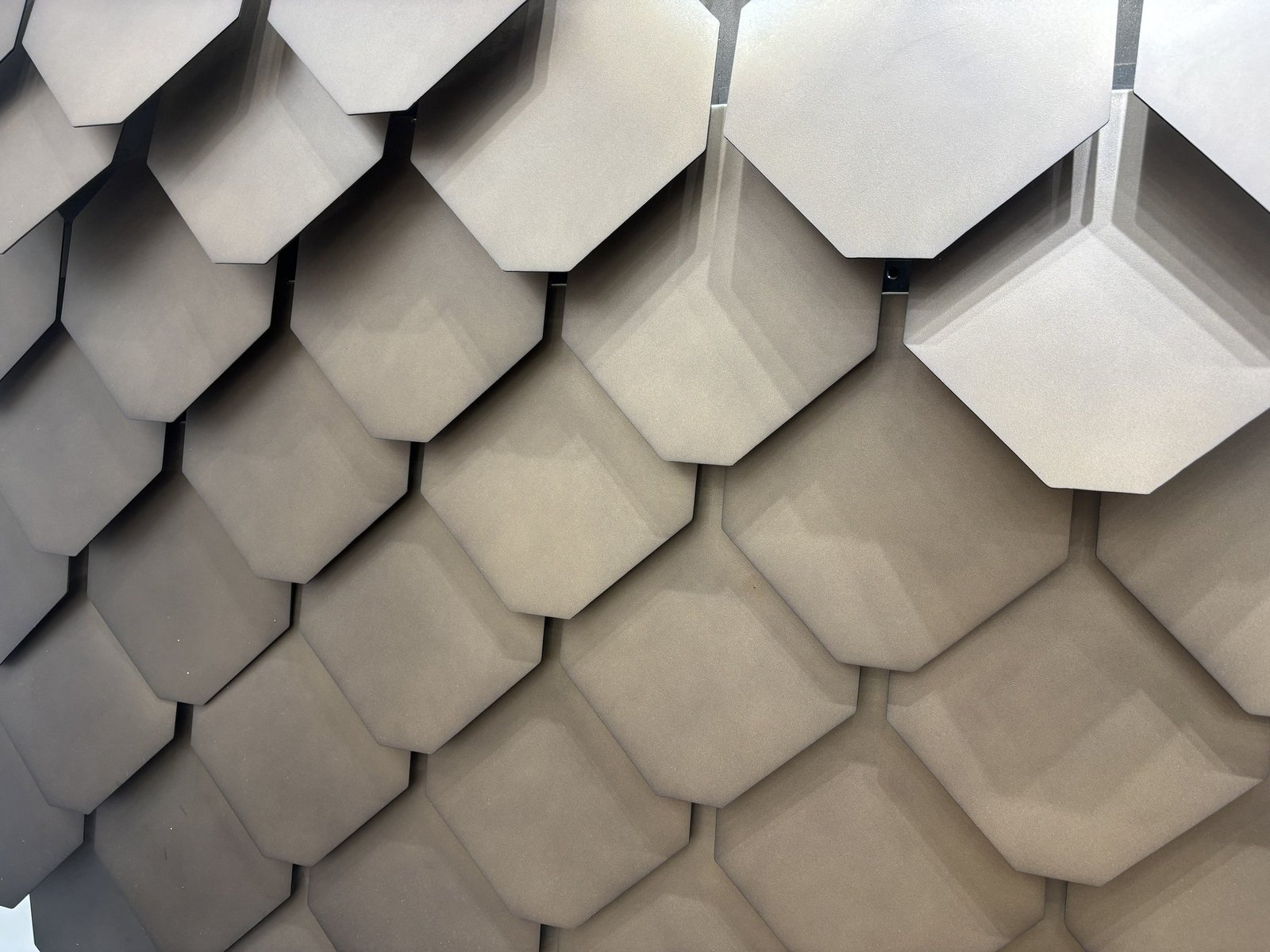

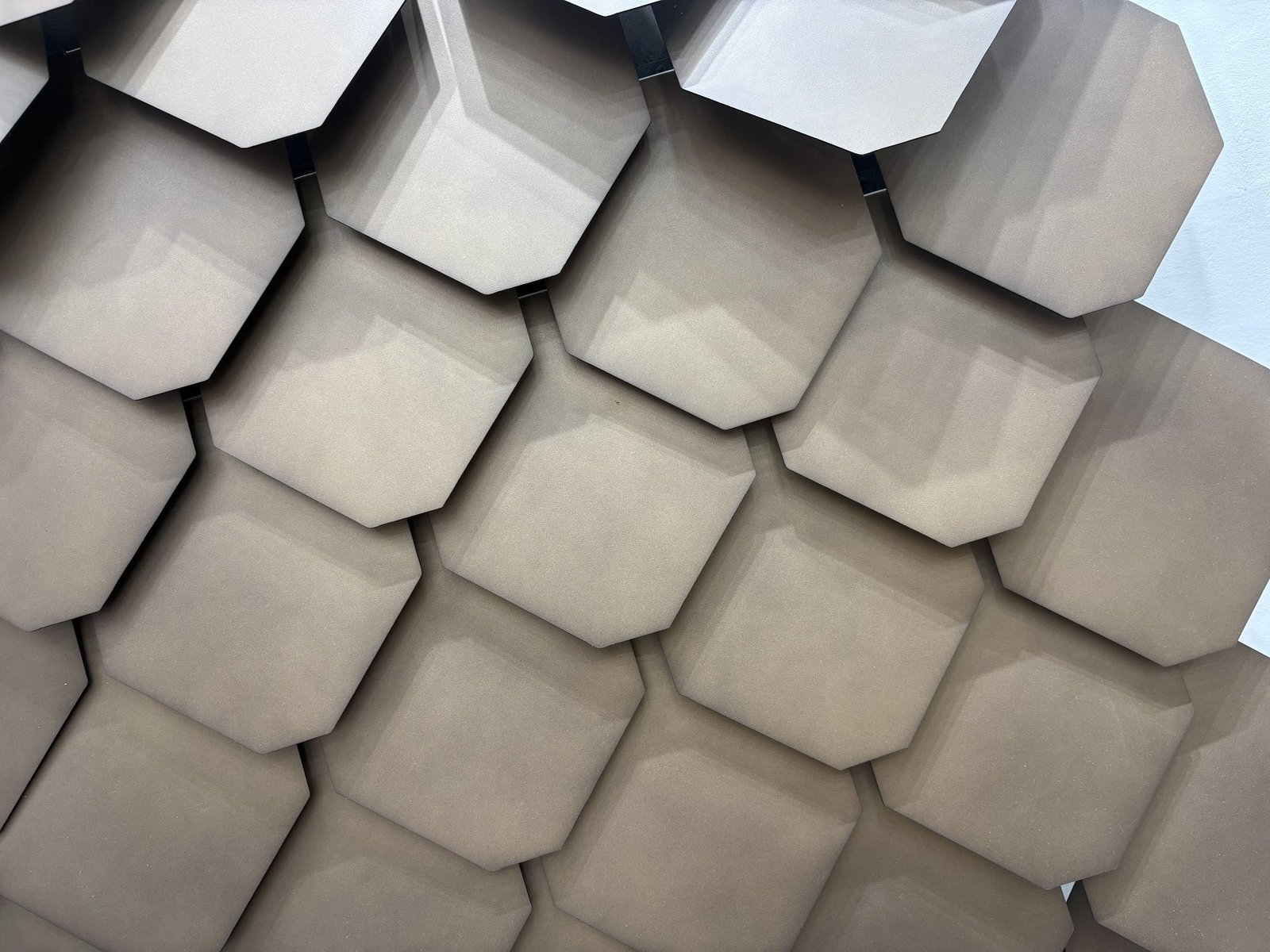

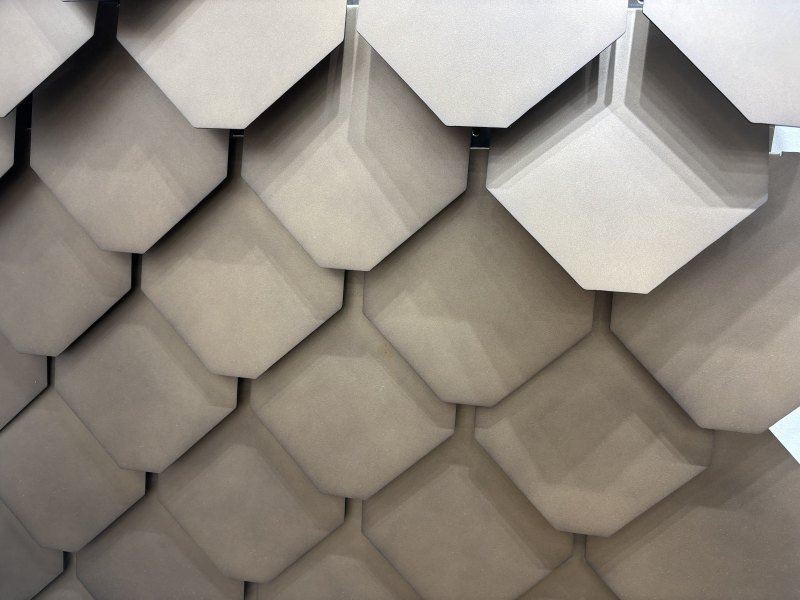

Six-sided metal shingles that fit together in a honeycomb pattern on feature walls, columns and façades.

An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →

Request quote
↓ Datasheet (PDF)↑ Send a drawingWhatsApp

Overview

Six-sided metal shingles that fit together like a honeycomb. In one size and one finish the pattern is even. With two or three finishes, the same modules make a pattern of your own.

Every hexagon is laser cut, so all six sides match and the modules fit closely. Folded edges are V-grooved to keep them sharp. MCS makes the shingles in stainless steel, aluminium or brass, in the size and layout the project needs.

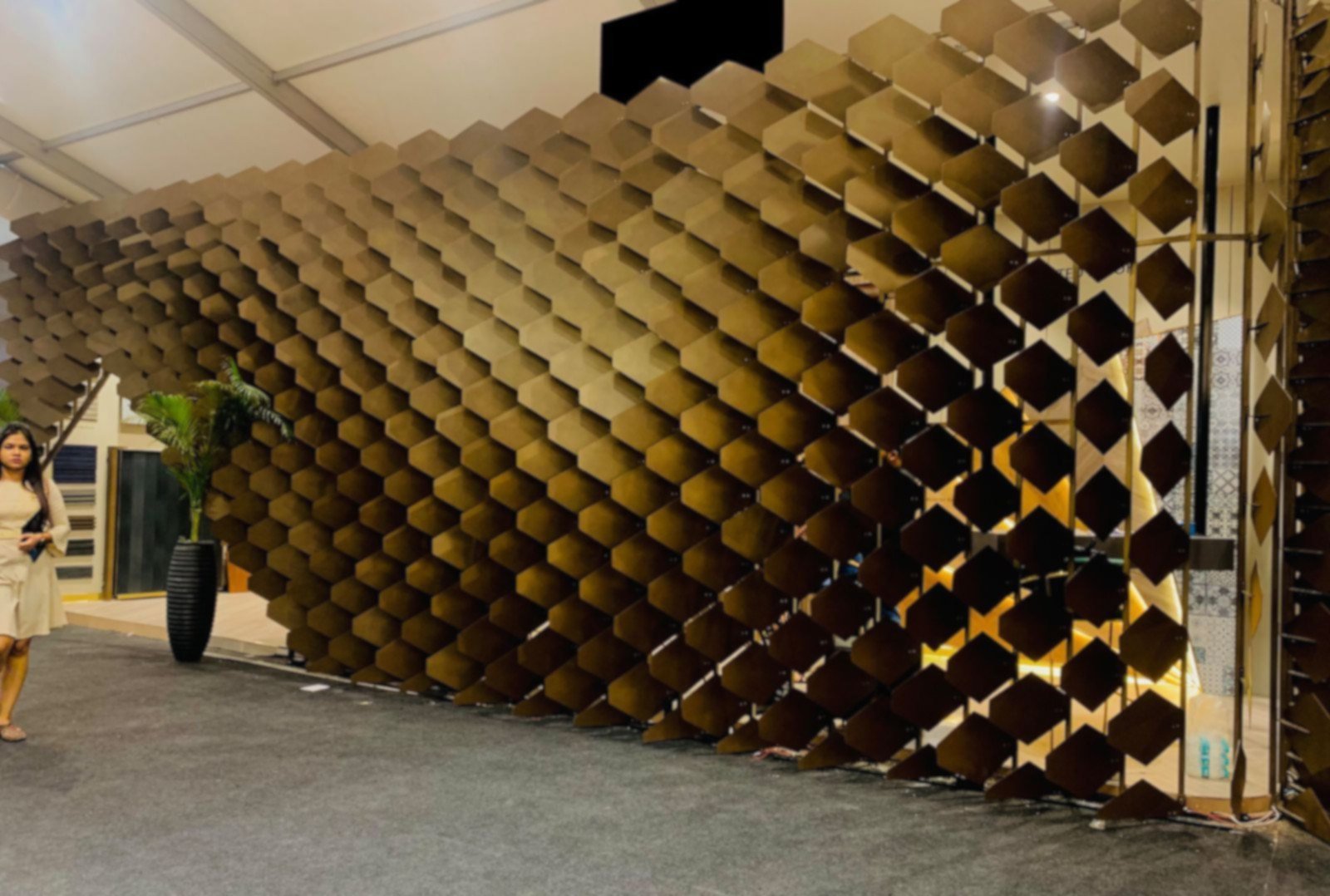

Used for: lobby and reception walls, columns, façades, feature walls in hotels, offices and shops.

To quote we need: wall size or an elevation, hexagon size, the layout (one finish or a mix), quantity, metal and finish.

Materials

3 available
SS 304

Stainless Steel 304

Aluminium

Aluminium

Brass

Brass

Finish options

Applied after fabrication
Mirror swatch plate with the MCS mark laser cut through its bottom right cornerMirrorSS · Brass · CopperHairline swatch plate with the MCS mark laser cut through its bottom right cornerHairlineSS · AluminiumMatte swatch plate with the MCS mark laser cut through its bottom right cornerMatteAll metalsBead Blast swatch plate with the MCS mark laser cut through its bottom right cornerBead BlastSS · AluminiumAntique / Brushed swatch plate with the MCS mark laser cut through its bottom right cornerAntique / BrushedBrass · Bronze · CopperPVD Gold swatch plate with the MCS mark laser cut through its bottom right cornerPVD GoldSS 304 · SS 316Rose Gold PVD swatch plate with the MCS mark laser cut through its bottom right cornerRose Gold PVDSS 304 · SS 316Champagne Gold PVD swatch plate with the MCS mark laser cut through its bottom right cornerChampagne Gold PVDSS 304 · SS 316Bronze PVD swatch plate with the MCS mark laser cut through its bottom right cornerBronze PVDSS 304 · SS 316Powder Coating swatch plate with the MCS mark laser cut through its bottom right cornerPowder CoatingMS · Aluminium · GI

Sign finishes off on physical metal — request samples.

How it is manufactured

V-grooved for sharp edges
01CNC Fibre Laser Cutting02CNC V-Grooving03CNC Bending04Surface Finishing05PVD & Powder Coating

See the edge

V-grooved, then bent
Hexagonal Shingles: bent edge close-up 1

Enhanced close-up of our photograph: cropped, light and sharpness adjusted. The bend is not changed.

Technical information

MaterialStainless Steel 304, Aluminium, Brass
Product codeMCS-SHG-003
EnvironmentInterior and exterior
SupplyMade to project requirement
Sheet thickness0.25 - 4 mm (project-specific)
FinishesMirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Bronze PVD, Powder Coating
ManufacturingCNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing → PVD & Powder Coating

Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →

Applications

CommercialHospitalityResidentialRetailInfrastructure

Downloads

PDFHexagonal Shingles datasheet2 pages · 610 KB · Available nowPDFMetal Shingles datasheet2.9 MB · Available now
