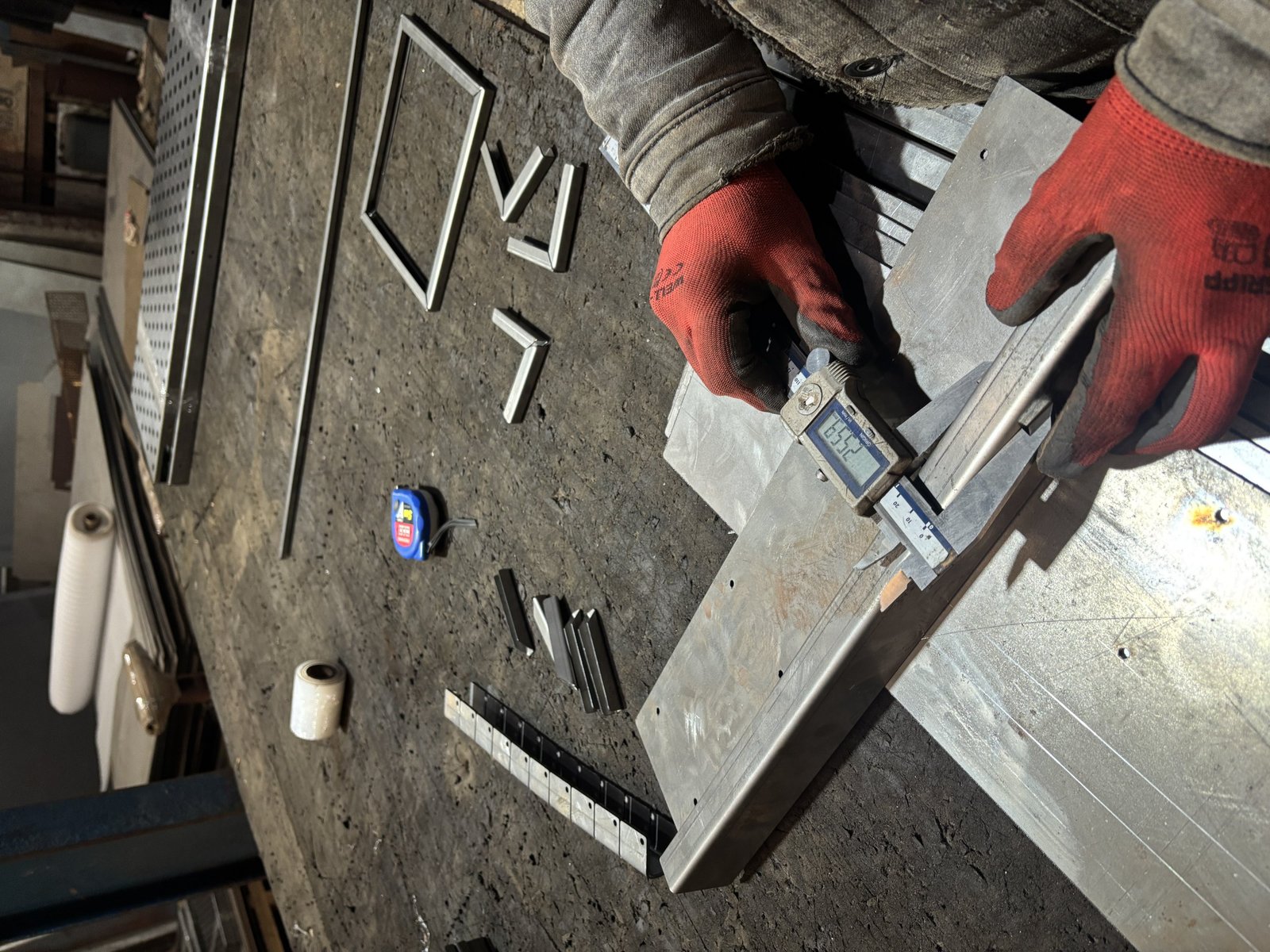

Measuring a prototype sheet metal part with a vernier caliper

Measuring a prototype sheet metal part with a vernier caliper

Measuring a prototype sheet metal part with a vernier caliperWelding a metal ceiling grid at the workshop, prototypeMarking a stainless steel profile on the workbench before cuttingPrototype part: sharp mitred corner in brushed stainless steelA 3D model of a folded part on the design desk screen

Custom Fabrication

Prototype Development

CustomInterior and exteriorMCS-CUS-008V-grooved

A sample or mock-up made from your drawing in real metal, to check fit, corners, joints and finish before production starts.

An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →

Request quote
↓ Downloads↑ Send a drawingWhatsApp

Overview

A prototype is the part made as a sample, before it is made in quantity. The design team can check the dimensions, corner detail, joints, fixing method and finish on real metal.

MCS makes the prototype with the same laser cutting, V-grooving, CNC bending and fabrication that the final order will use. Changes are made at this stage, and the approved prototype becomes the reference for the production run. It can be made in stainless steel, aluminium, brass, bronze, copper, mild steel or zinc.

Used for: custom profile sections, panel and cladding details, ceiling elements, screens, any detail that is drawn for one project.

To quote we need: the drawing (DWG, DXF or PDF), the metal and finish, what you want to check on the sample, and the quantity you expect in production.

Materials

7 available
SS 304

Stainless Steel 304

Aluminium

Aluminium

Brass

Brass

Bronze

Bronze

Copper

Copper

MS

Mild Steel

Zinc

Zinc

Finish options

Applied after fabrication
Mirror swatch plate with the MCS mark laser cut through its bottom right cornerMirrorSS · Brass · CopperHairline swatch plate with the MCS mark laser cut through its bottom right cornerHairlineSS · AluminiumMatte swatch plate with the MCS mark laser cut through its bottom right cornerMatteAll metalsBead Blast swatch plate with the MCS mark laser cut through its bottom right cornerBead BlastSS · AluminiumAntique / Brushed swatch plate with the MCS mark laser cut through its bottom right cornerAntique / BrushedBrass · Bronze · CopperPVD Gold swatch plate with the MCS mark laser cut through its bottom right cornerPVD GoldSS 304 · SS 316Rose Gold PVD swatch plate with the MCS mark laser cut through its bottom right cornerRose Gold PVDSS 304 · SS 316Champagne Gold PVD swatch plate with the MCS mark laser cut through its bottom right cornerChampagne Gold PVDSS 304 · SS 316Bronze PVD swatch plate with the MCS mark laser cut through its bottom right cornerBronze PVDSS 304 · SS 316Powder Coating swatch plate with the MCS mark laser cut through its bottom right cornerPowder CoatingMS · Aluminium · GI

Sign finishes off on physical metal — request samples.

How it is manufactured

V-grooved for sharp edges
01CNC Fibre Laser Cutting02CNC V-Grooving03CNC Bending04Surface Finishing05PVD & Powder Coating

Technical information

MaterialStainless Steel 304, Aluminium, Brass, Copper, Mild Steel
Product codeMCS-CUS-008
EnvironmentInterior and exterior
SupplyMade to supplied drawing
Sheet thickness0.25 - 4 mm (project-specific)
FinishesMirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Bronze PVD, Powder Coating
ManufacturingCNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing → PVD & Powder Coating

Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →
