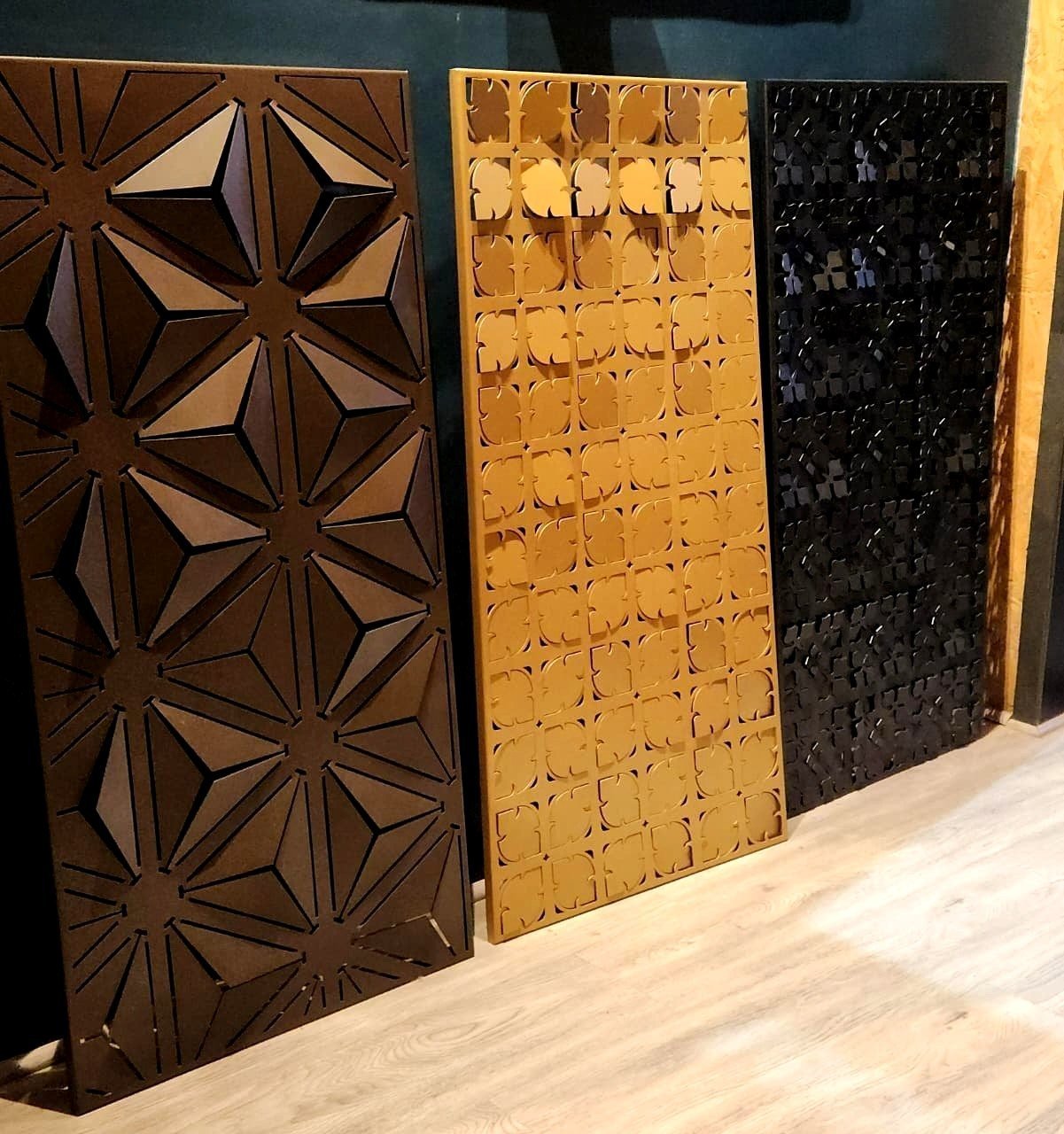

3D folded façade panels with star and dot patterns in brass and bronze

3D folded façade panels with star and dot patterns in brass and bronze

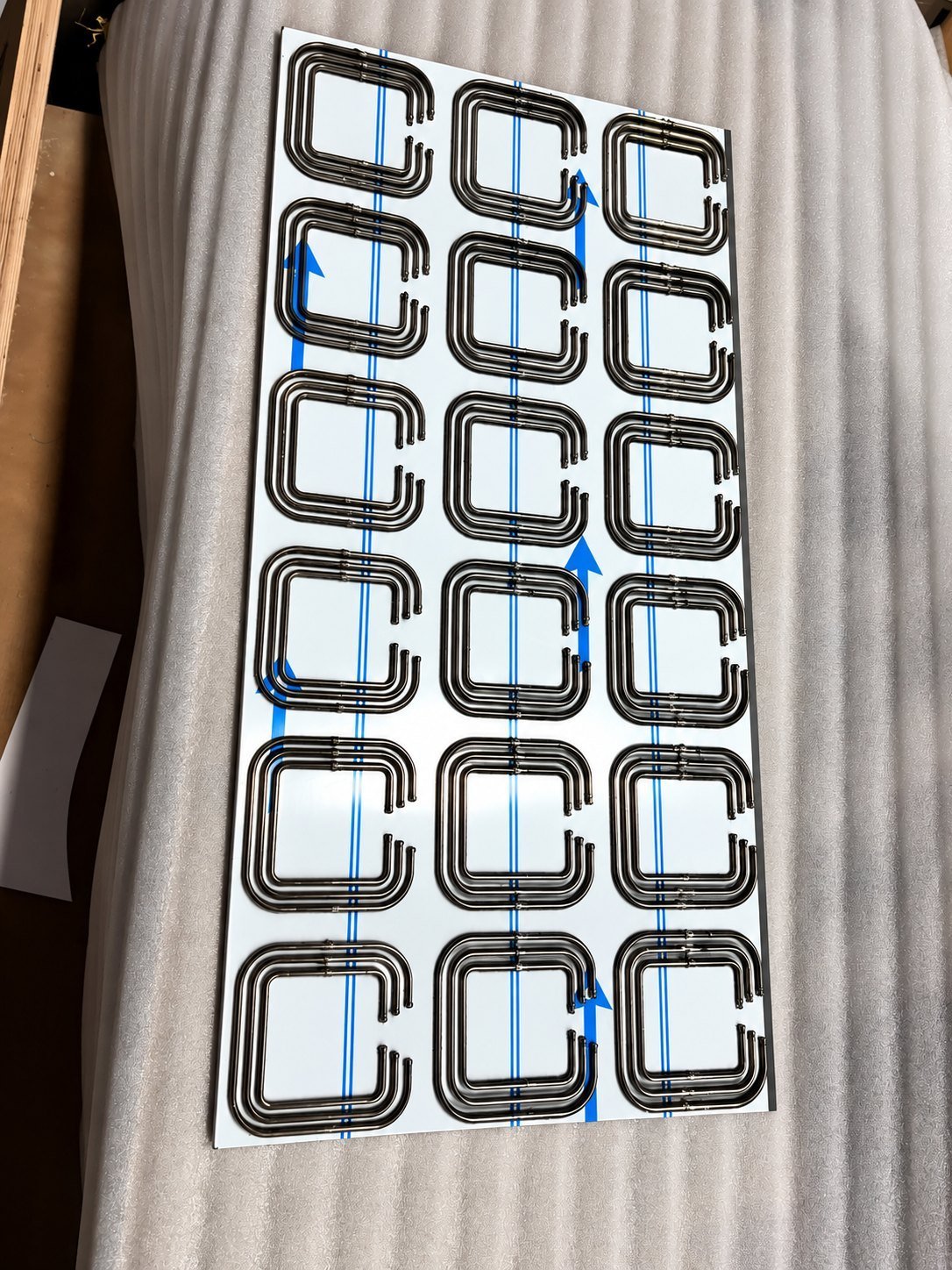

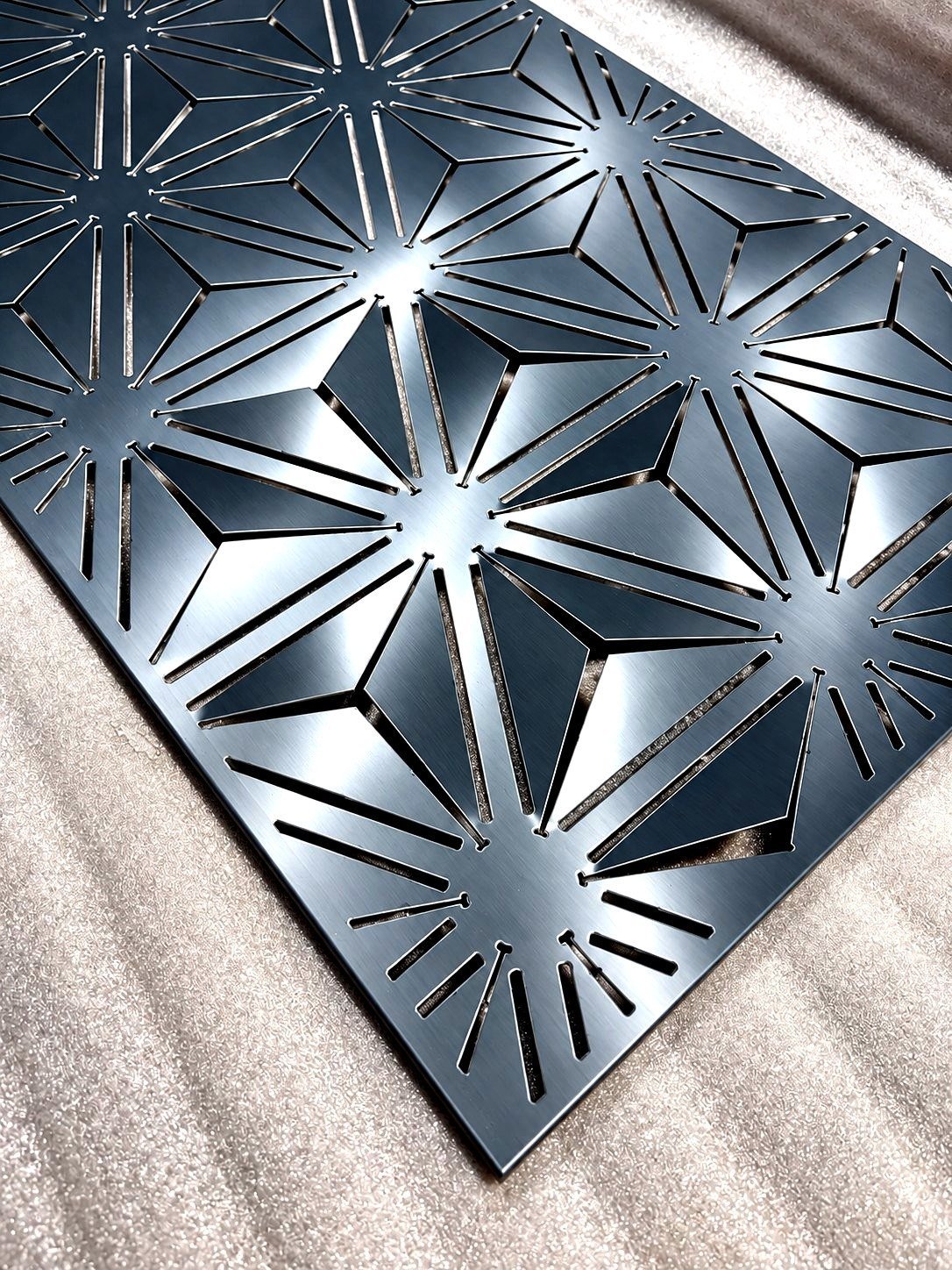

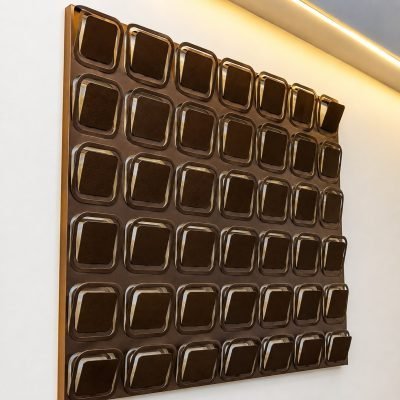

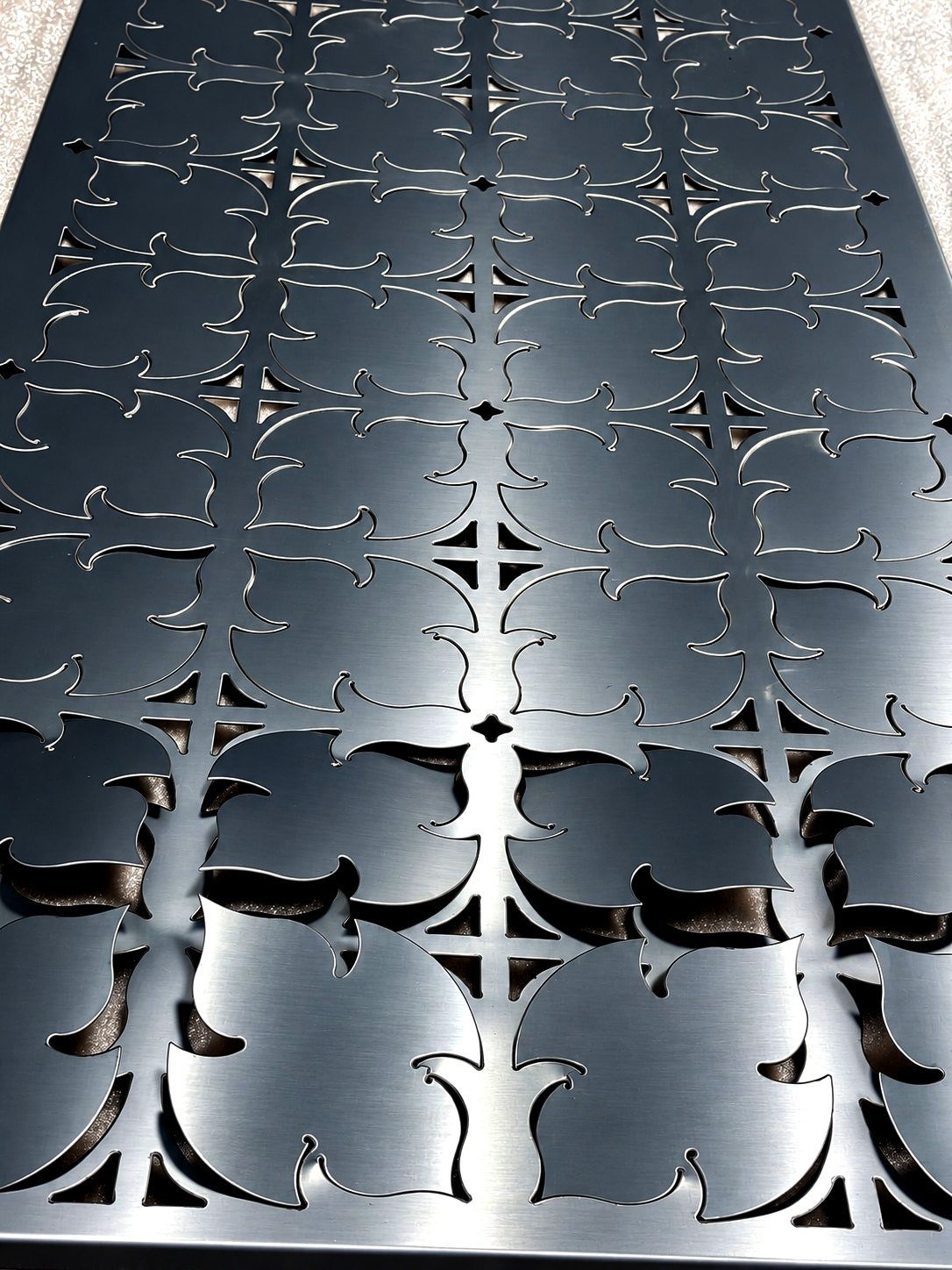

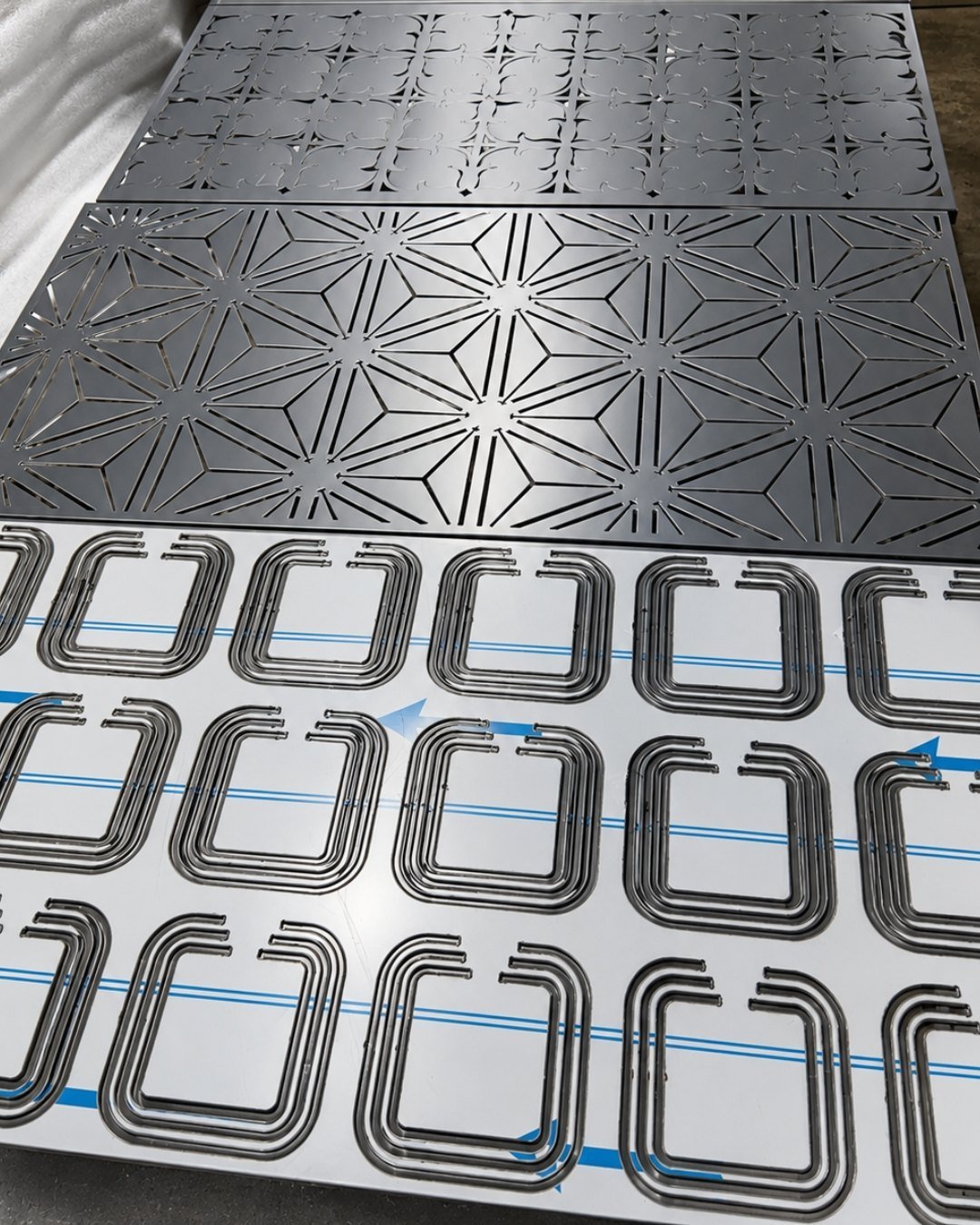

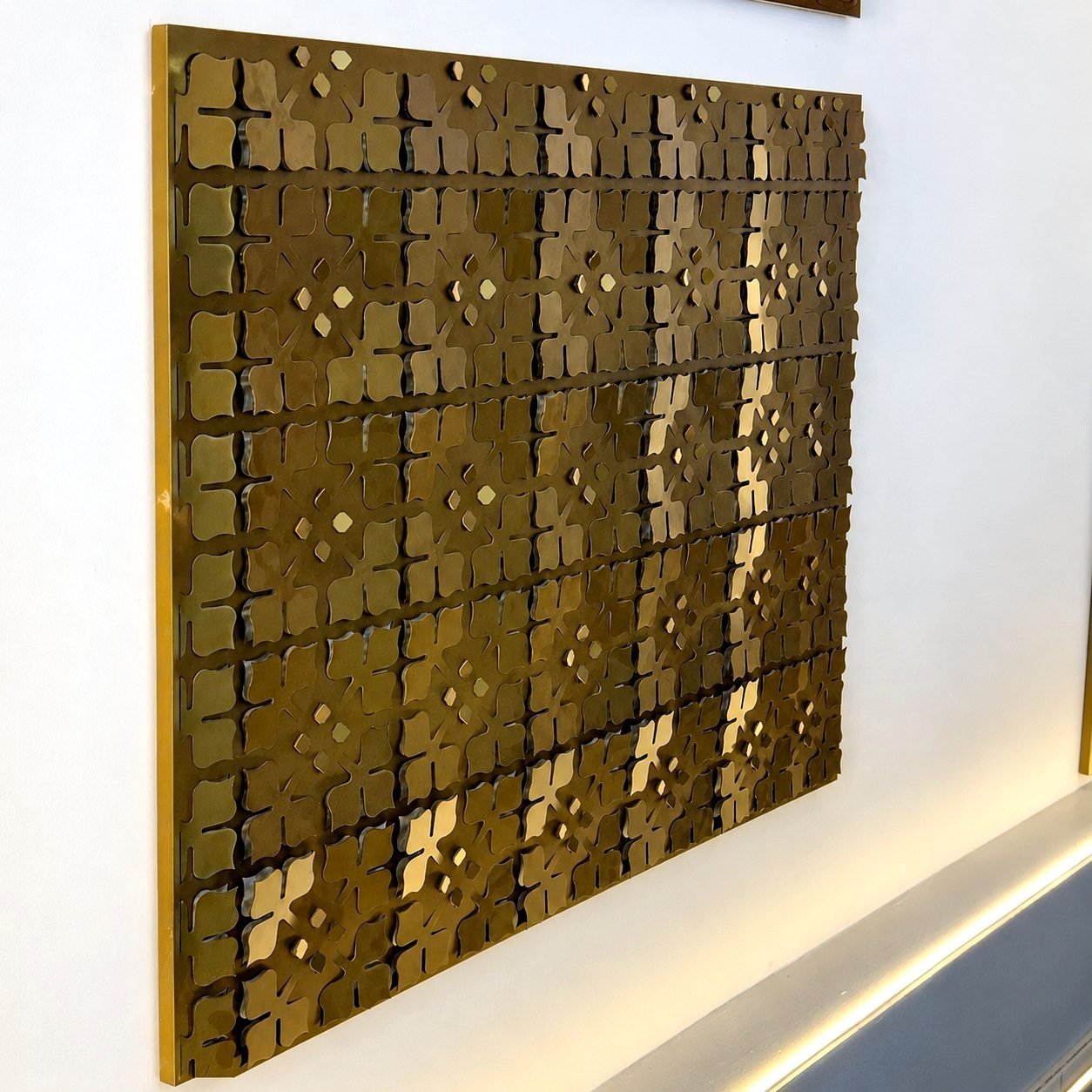

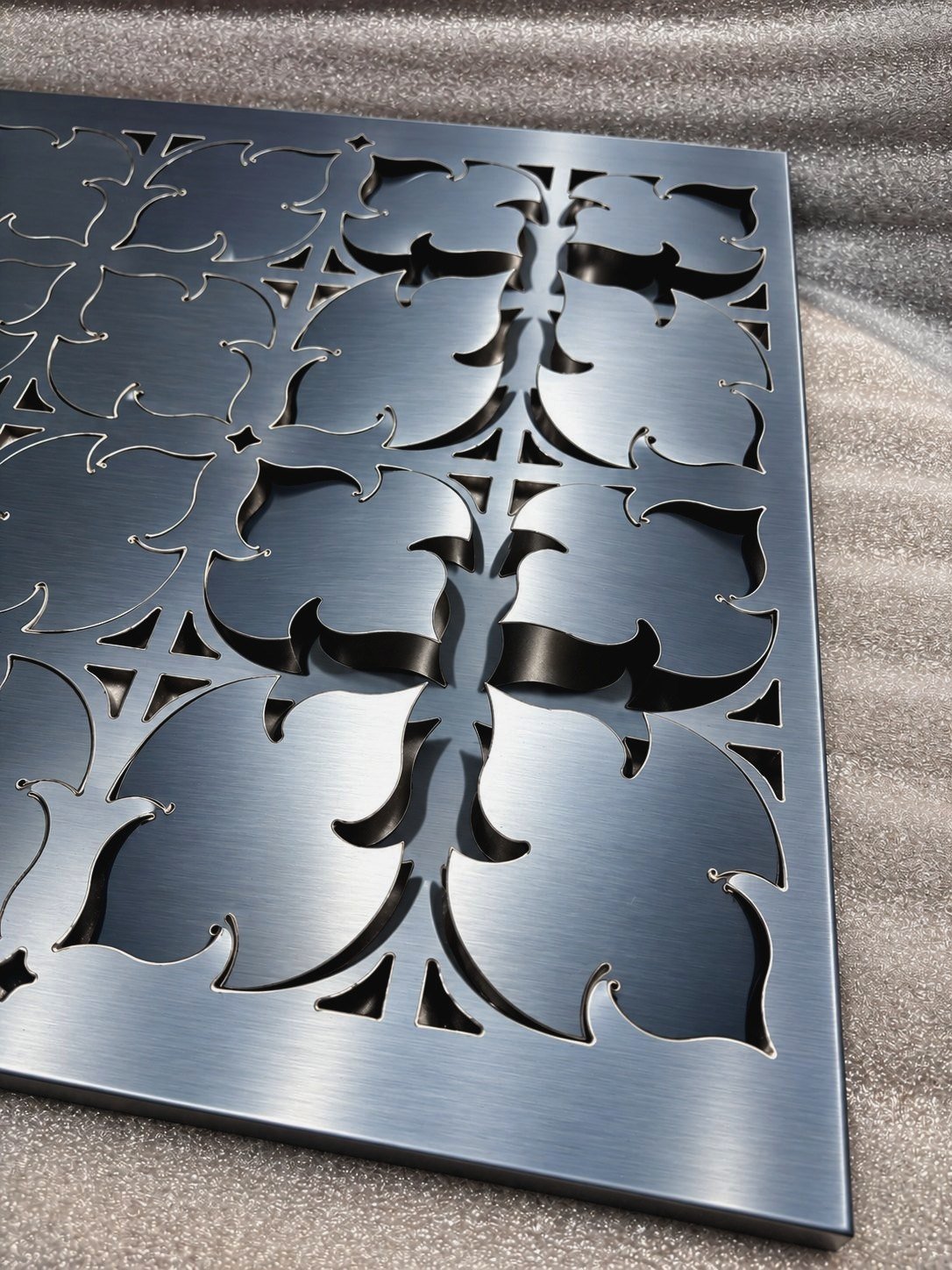

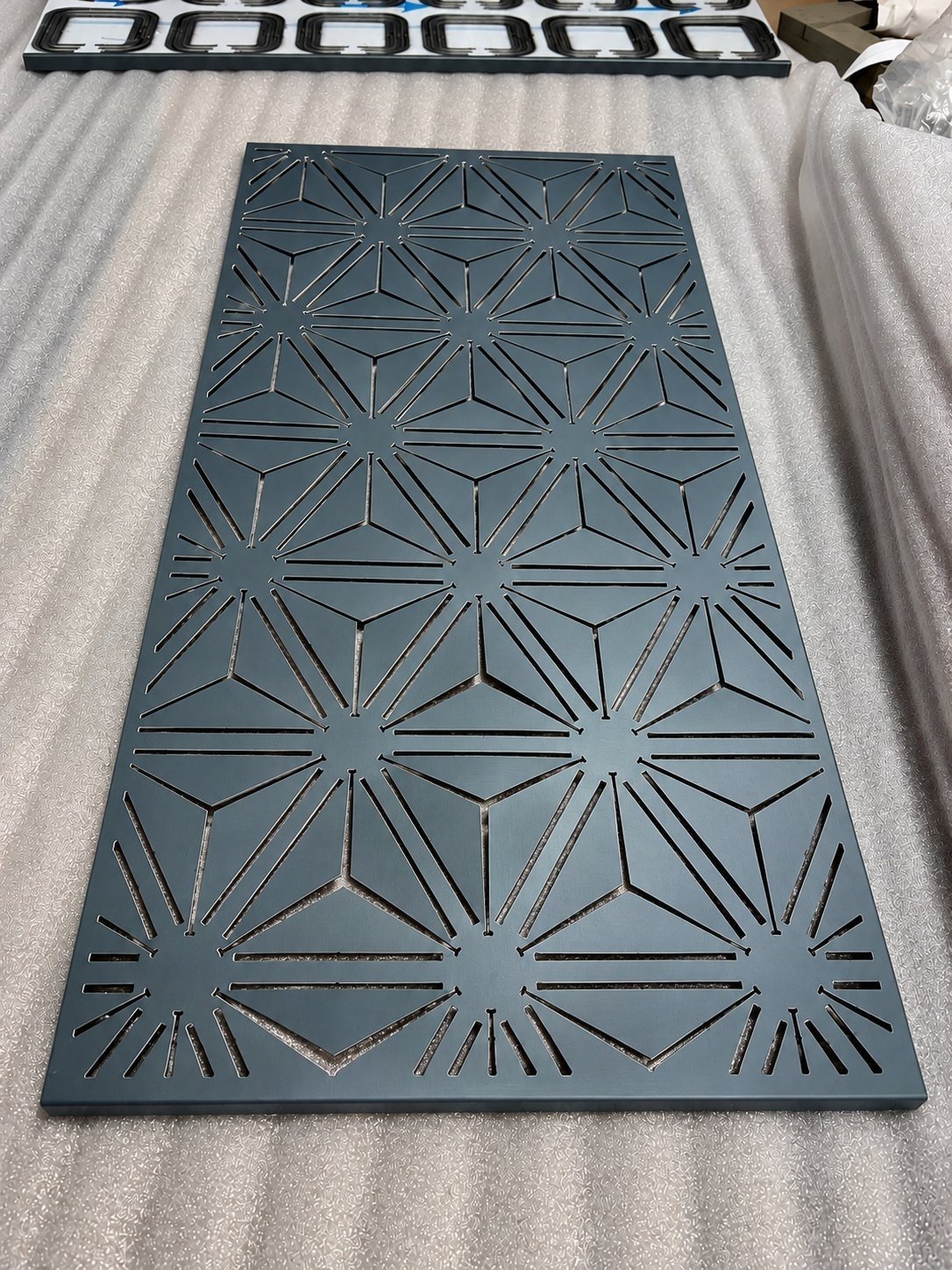

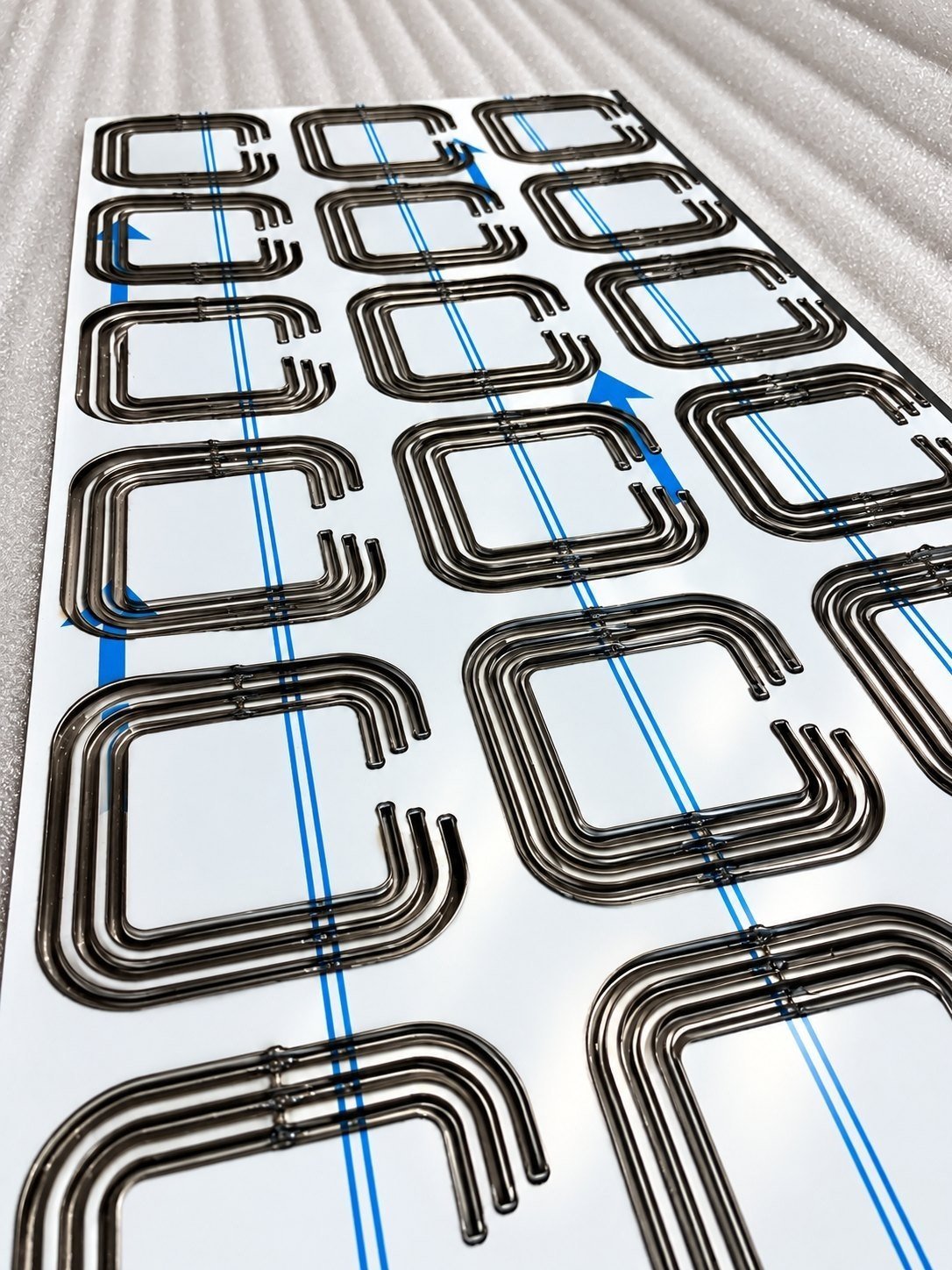

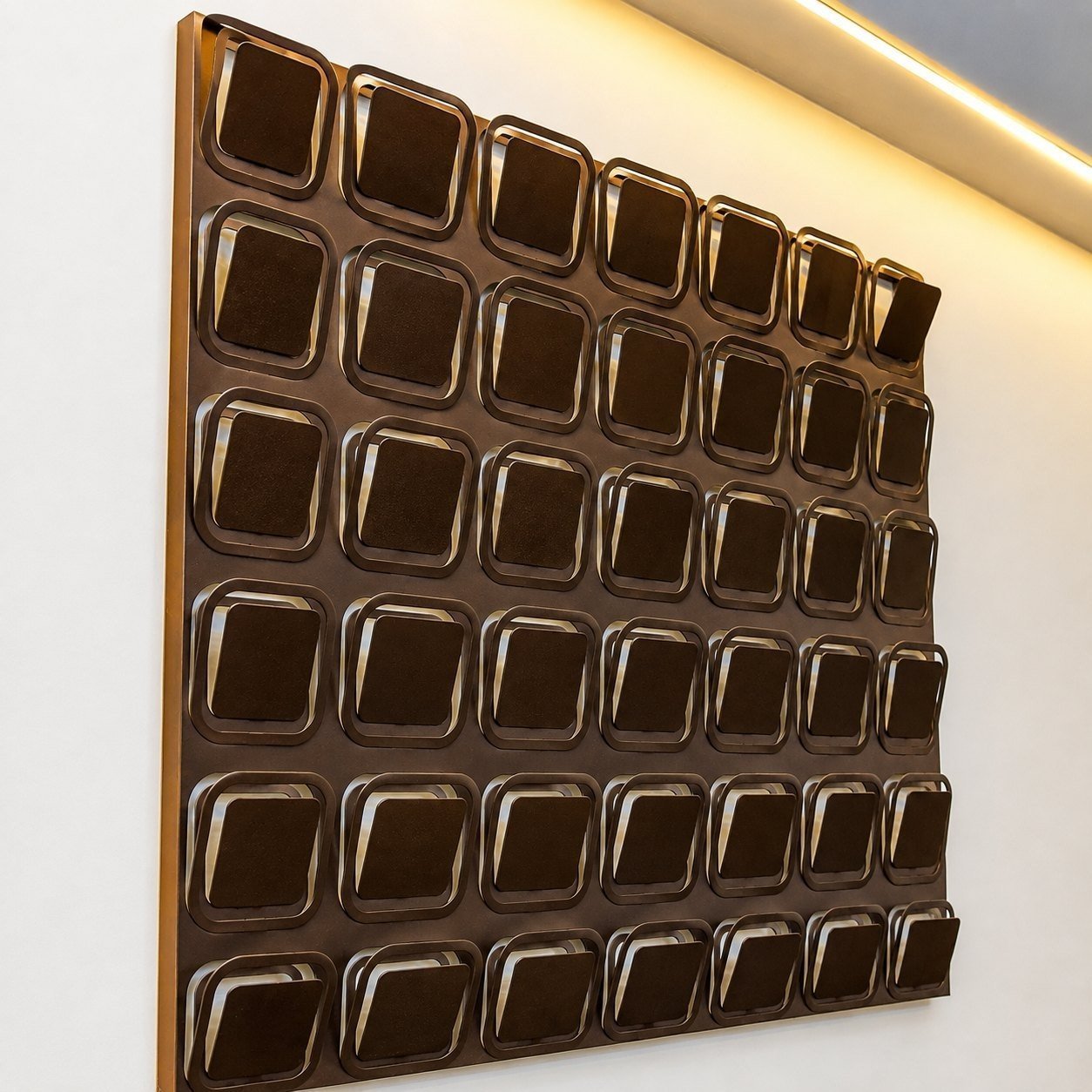

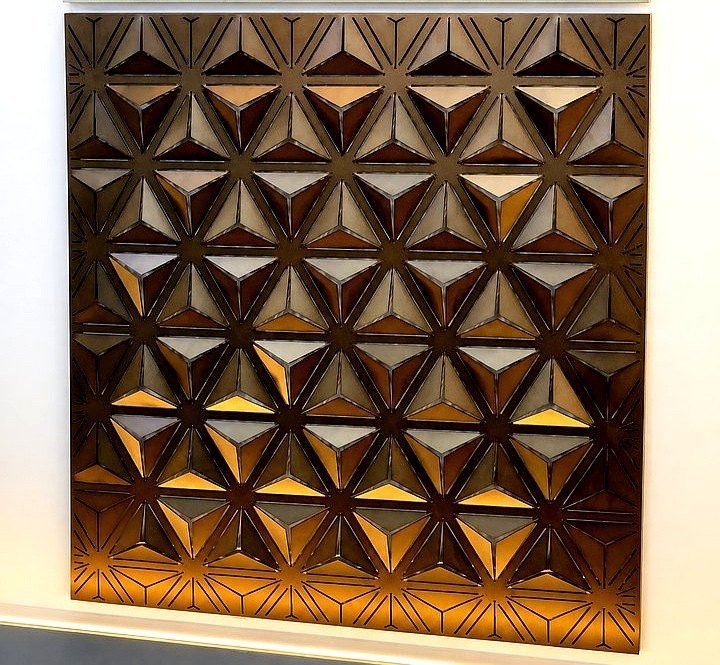

3D folded façade panels with star and dot patterns in brass and bronze3D folded façade panel with a star pattern, laid flat3D folded façade panel with a floral laser-cut pattern, black3D folded façade panel with a floral pattern in black, full view3D folded façade panel with folded square tabs, protective film on3D folded façade panel with folded square tabs, packed3D folded façade panel with a star pattern, black3D folded façade panels in production with protective film3D folded façade panel with square relief, bronze finish3D folded façade panel with triangular relief, bronze finish3D folded façade panel with a dotted relief, brass finish

Façade Systems

3D Folded Façade Panels

CustomInterior and exteriorMCS-FAC-004V-grooved

Laser-cut metal façade panels with tabs and facets folded out of the sheet to form star, floral and geometric patterns in relief.

An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →

Request quote
↓ Datasheet↑ Send a drawingWhatsApp

Overview

A façade panel that is laser cut and then folded. Tabs, petals and facets stand out from the panel face, so the pattern has real depth. Star, floral, square, triangular and other geometric reliefs can be developed from the project design.

V-grooving keeps each fold sharp and the same across the whole façade. Panel size, pattern, fold depth, metal and finish are made to the project drawing. MCS makes these panels in stainless steel or aluminium.

Used for: building façades, entrances, feature walls, column cladding, lobbies.

To quote we need: the elevation drawing, panel sizes, the pattern as a drawing or reference, fold depth, quantity, metal and finish.

Materials

2 available
SS 304

Stainless Steel 304

Aluminium

Aluminium

Finish options

Applied after fabrication
Mirror finish sample in goldMirrorSS · Brass · CopperHairline finish sample in goldHairlineSS · AluminiumMatte finish sample in goldMatteAll metalsBead blast finish sample in goldBead BlastSS · AluminiumAntique brushed finish sample in bronzeAntique / BrushedBrass · Bronze · CopperIllustration: lift cladding in brass finish, second viewPVD GoldSS 304 · SS 316Lift cladding in copper finish with a lift doorRose Gold PVDSS 304 · SS 316Lift entrance clad in champagne gold PVD with black frameChampagne Gold PVDSS 304 · SS 316Office partitions with perforated panels in a loungeBlack PVDSS 304 · SS 316Illustration: lift cladding with fluted panels in bronze finishBronze PVDSS 304 · SS 316

Sign finishes off on physical metal — request samples.

How it is manufactured

V-grooved for sharp edges
01CNC Fibre Laser Cutting02CNC V-Grooving03CNC Bending04Welding & Fabrication05Surface Finishing06PVD Colours

See the edge

V-grooved, then bent

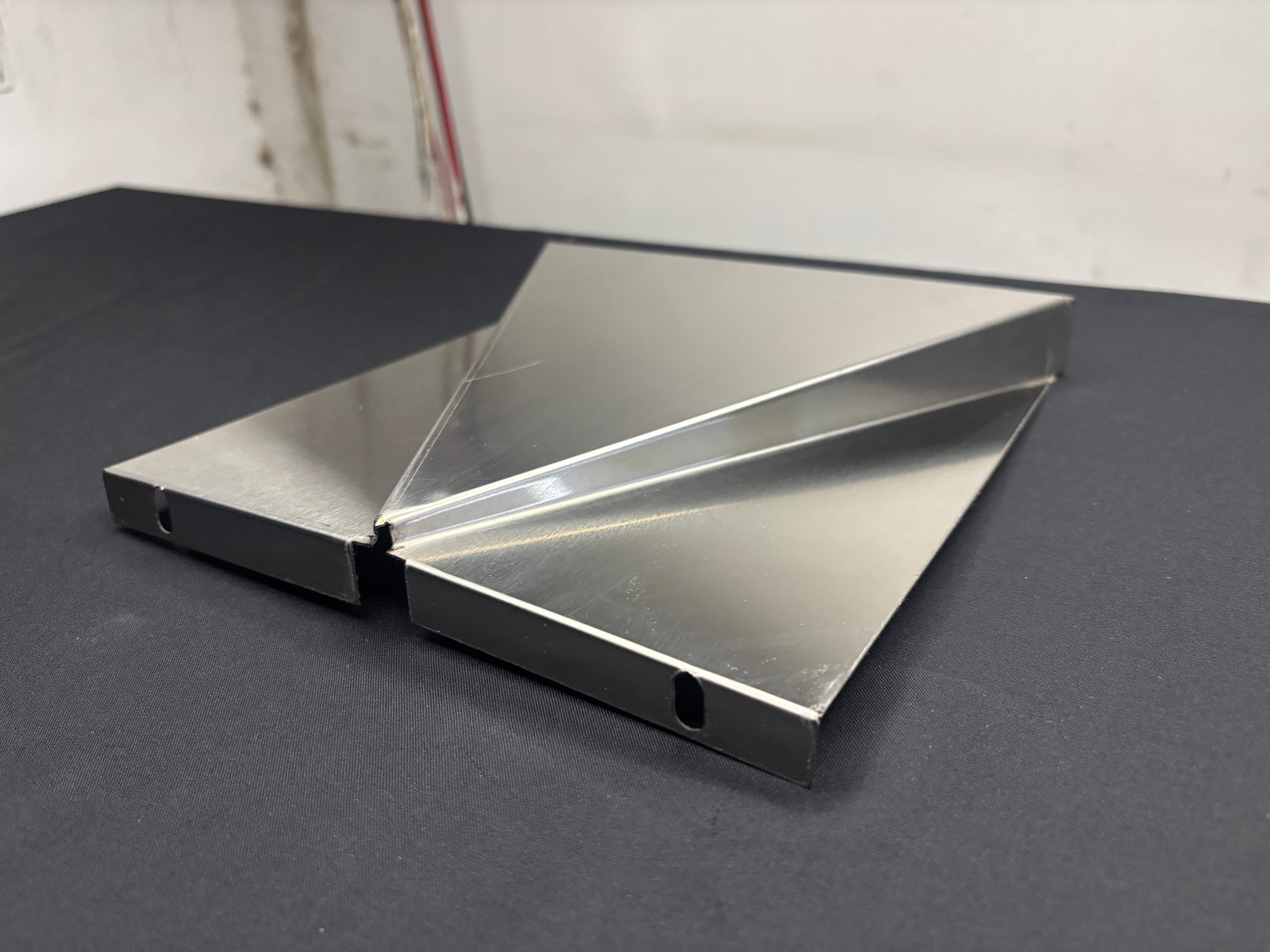

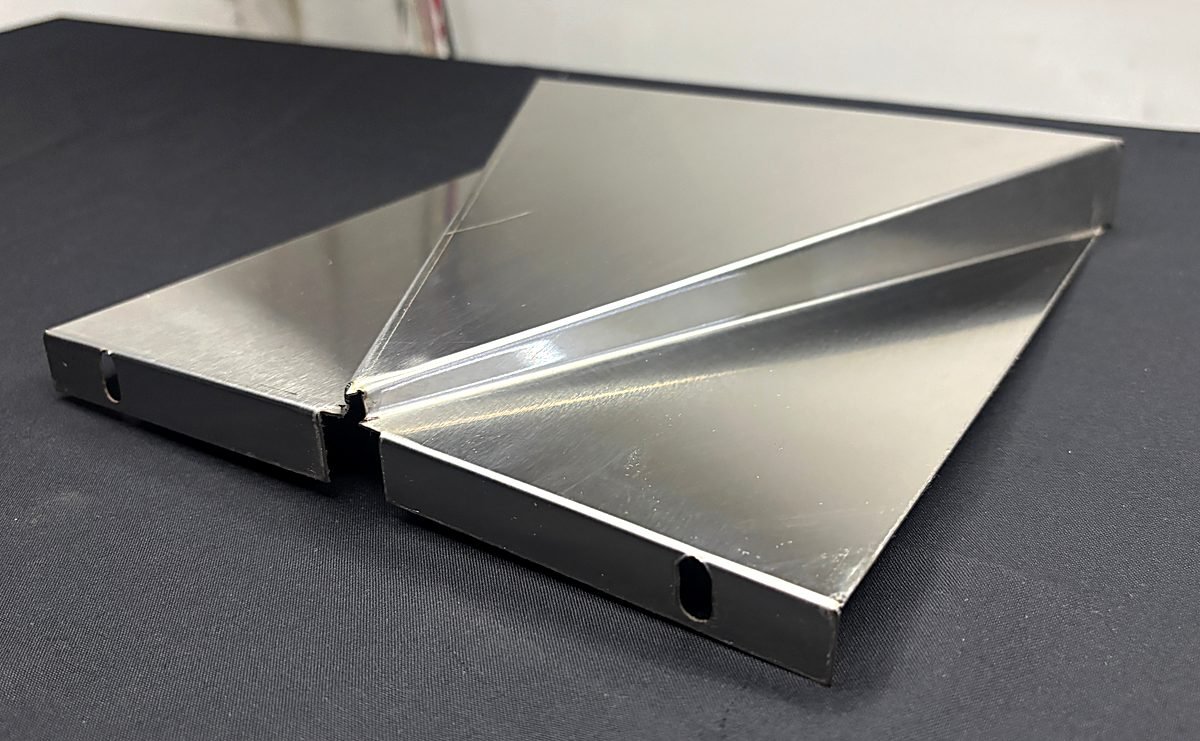

3D Folded Façade Panels: bent edge close-up 1

Enhanced close-up of our photograph: cropped, light and sharpness adjusted. The bend is not changed.

Technical information

MaterialStainless Steel 304, Aluminium, Brass
Product codeMCS-FAC-004
EnvironmentInterior and exterior
SupplyMade to project requirement
Sheet thickness0.25 - 3.8 mm (project-specific)
FinishesMirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Black PVD, Bronze PVD
ManufacturingCNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Welding & Fabrication → Surface Finishing → PVD Colours

Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →

Applications

CommercialHospitalityResidentialRetailInfrastructure

Downloads

PDFFaçade Systems — datasheet2.9 MB · Available now
