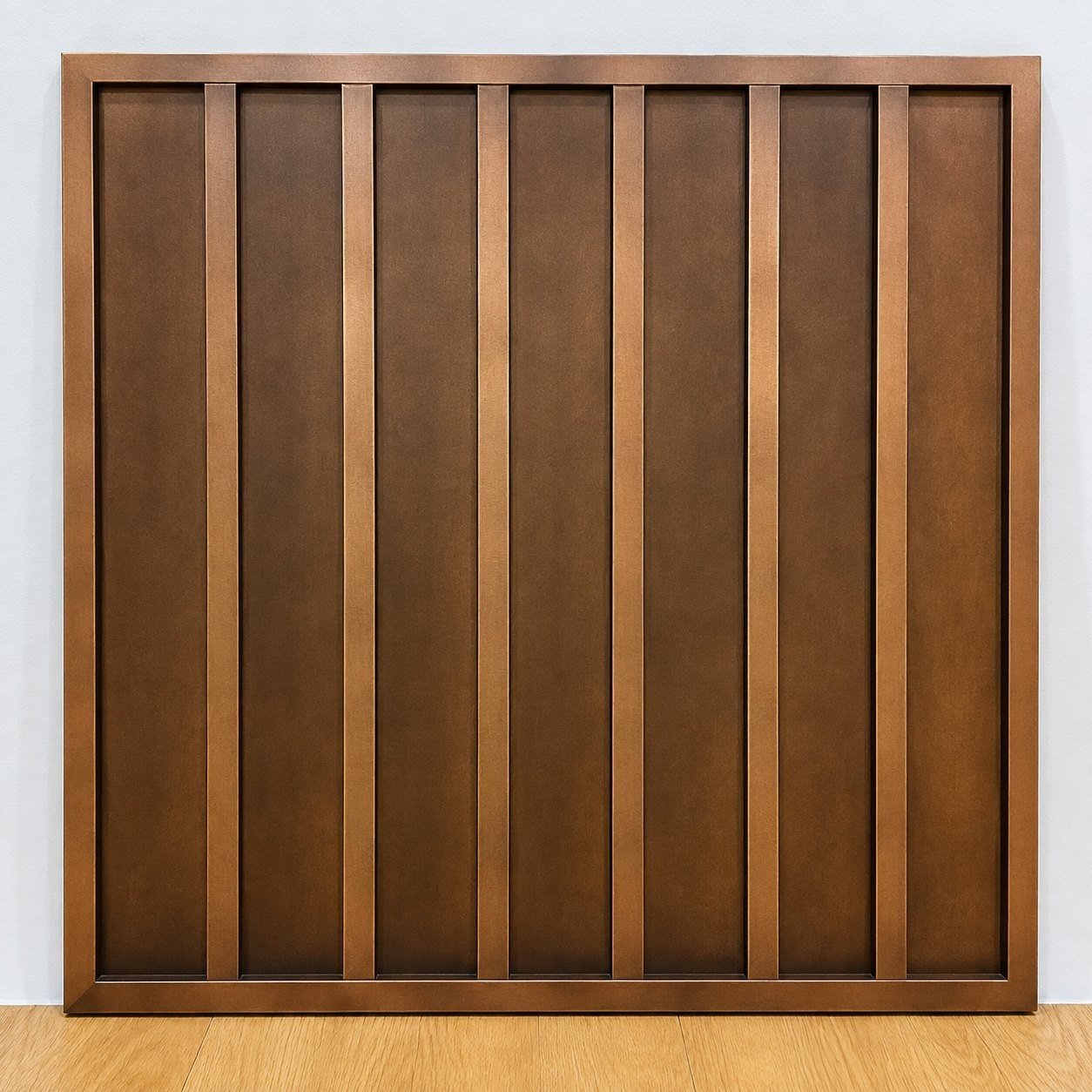

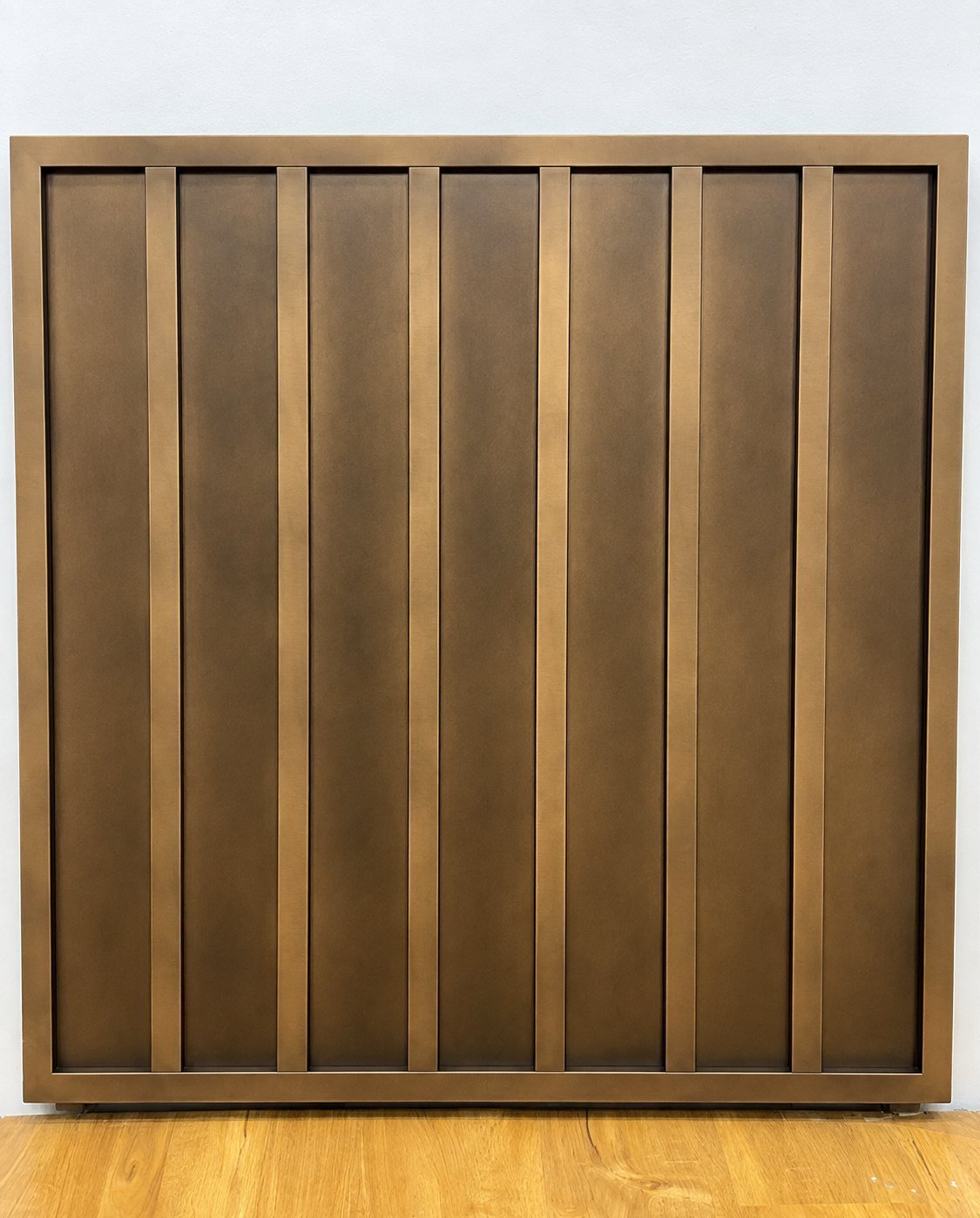

Inter-lock wall panel with vertical ribs in bronze finish

Inter-lock wall panel with vertical ribs in bronze finish

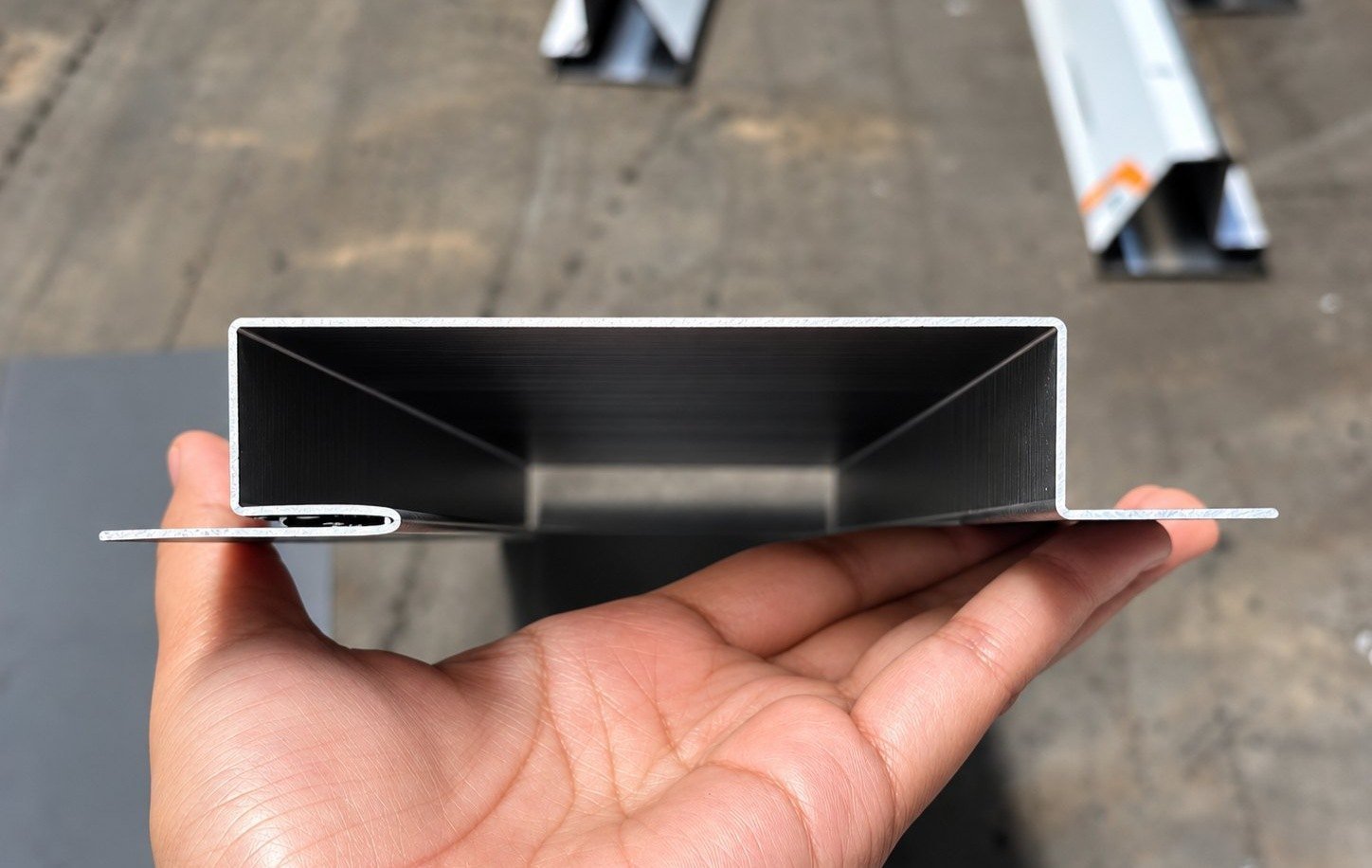

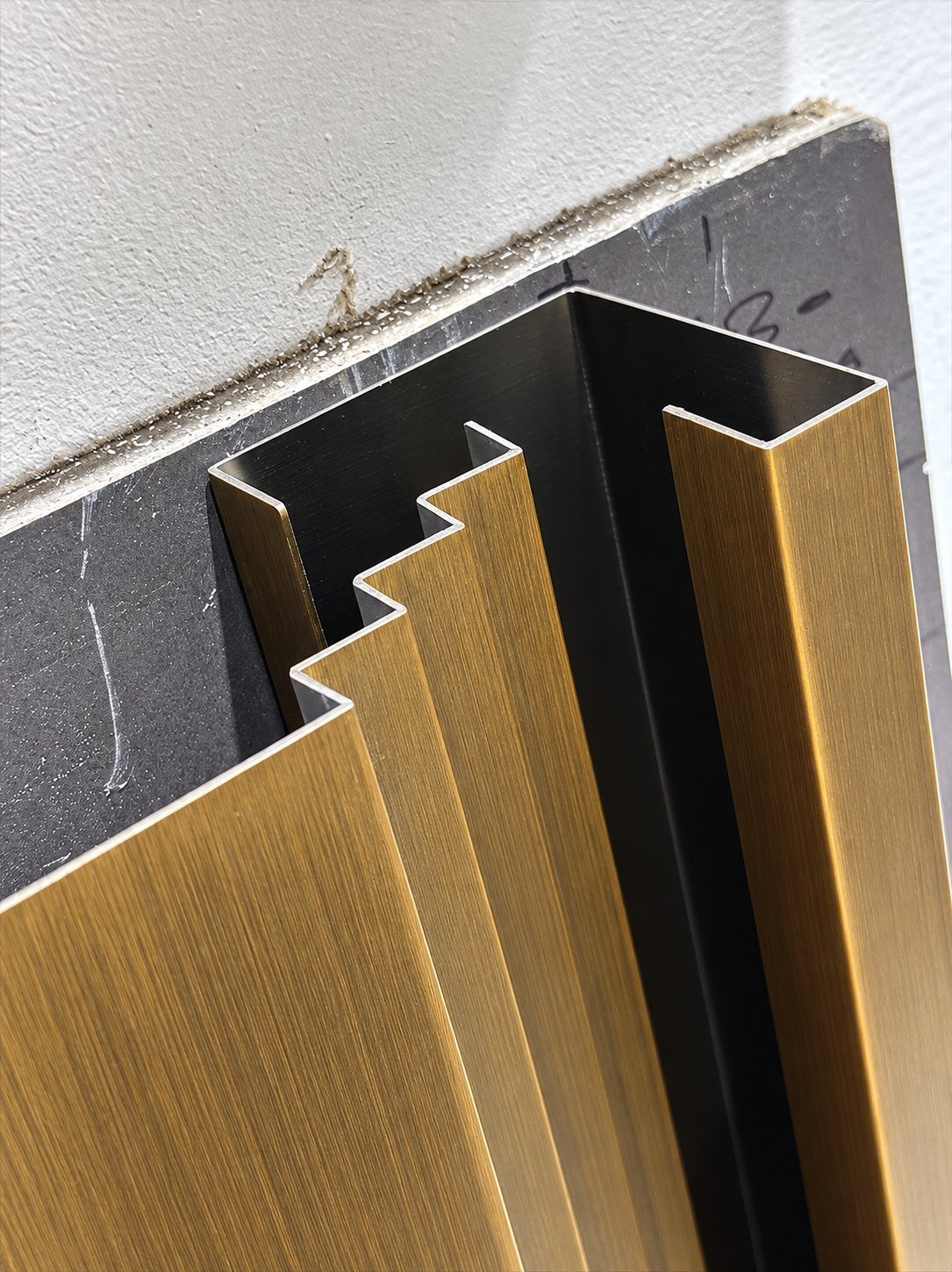

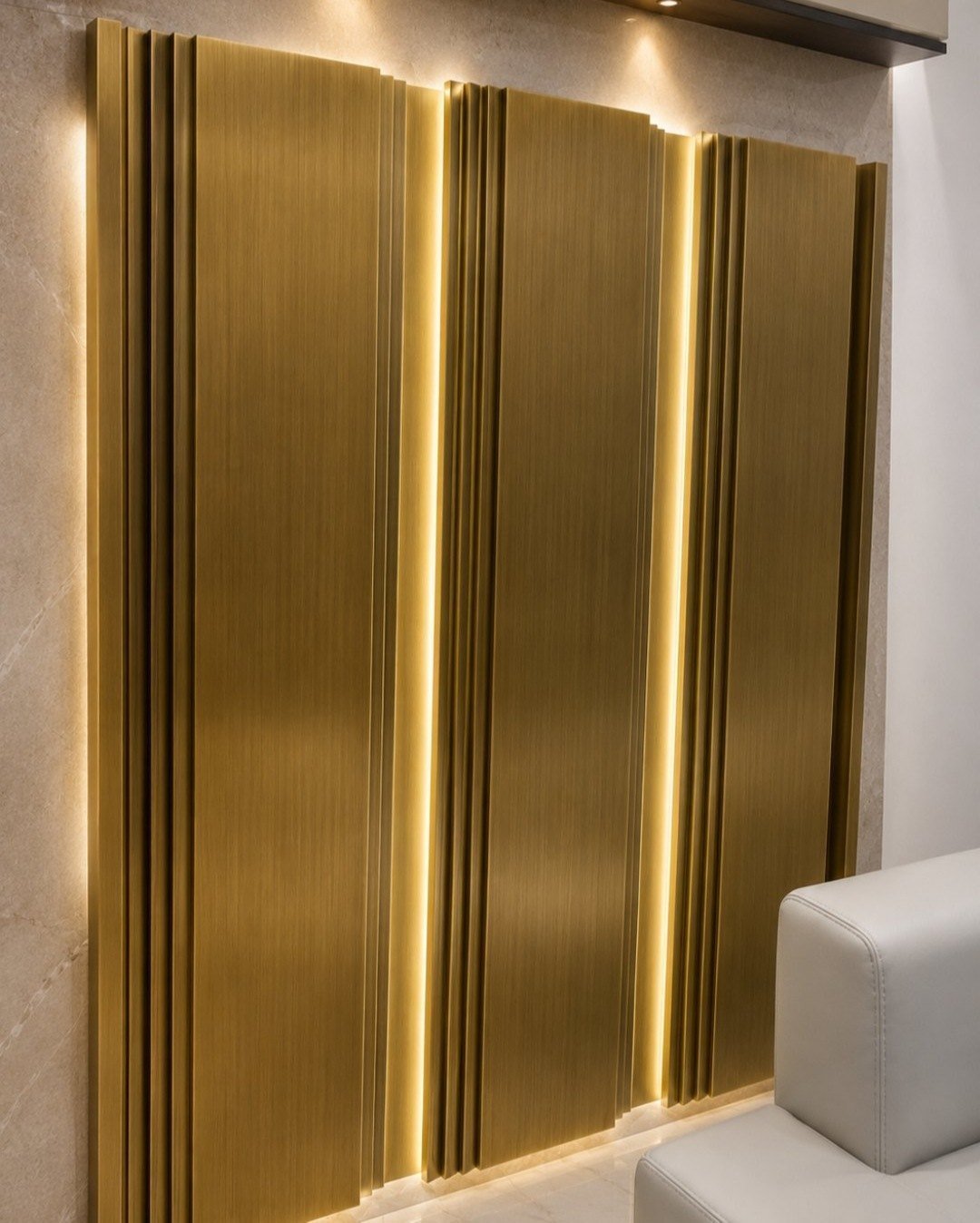

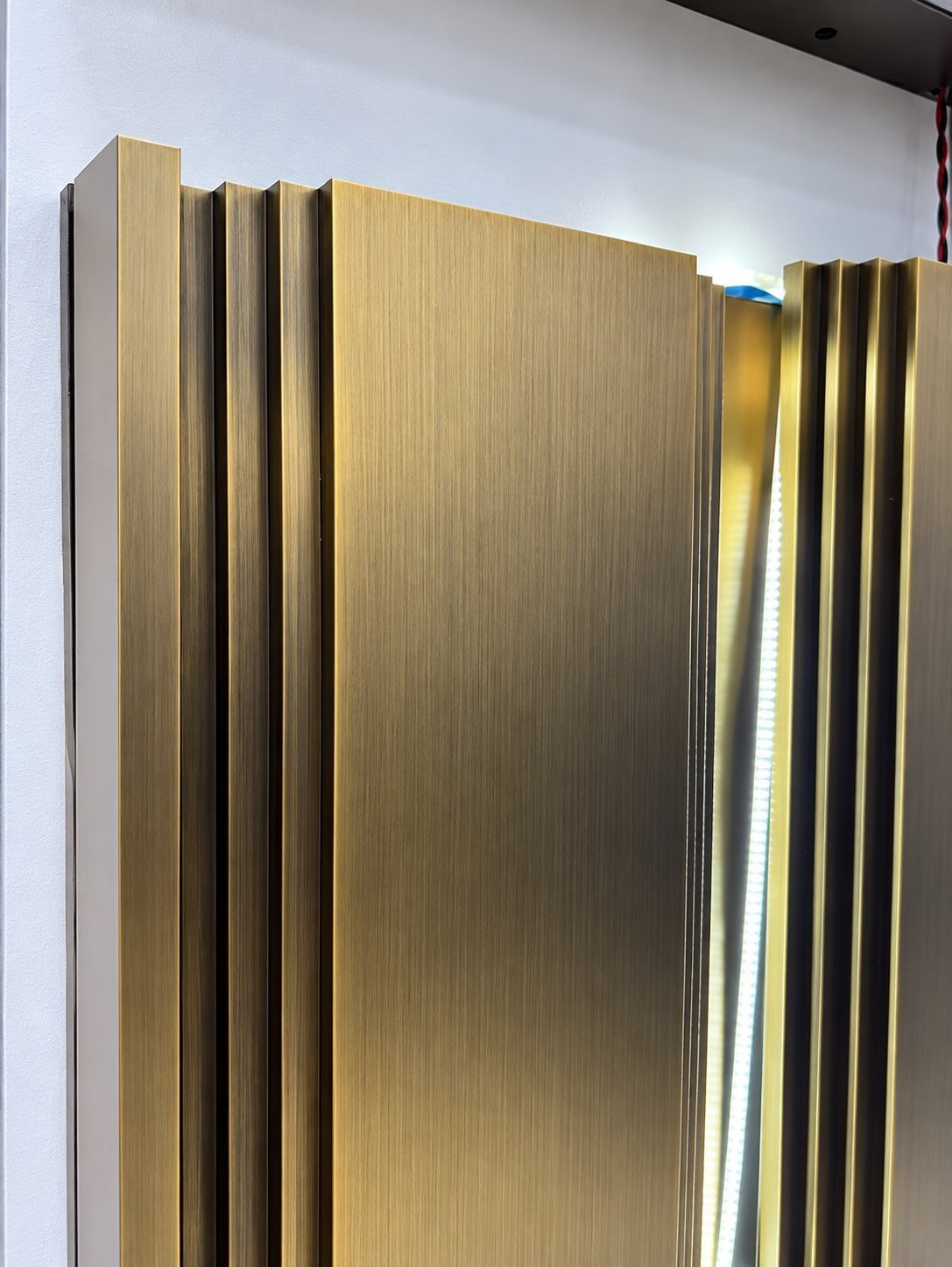

Inter-lock wall panel with vertical ribs in bronze finishInter-lock wall panel with vertical ribs in bronze, on the showroom floorInter-lock panel profiles in brushed bronze finish, end viewInter-lock wall panels in brushed bronze with vertical ribsInter-lock wall panel in brushed brass with lightingInter-lock panel clip edge, detailInter-lock panel system, panel with clip edges, end viewInter-lock panel section held in hand, end viewInter-lock panel, galvanised, on the workshop benchIllustration: interlocking panels in galvanised finish at the workshopInter-lock wall cladding in brushed stainless steel with lighting, installed

Façade Systems

Interlock Panel System

CustomInterior and exteriorMCS-FAC-007V-grooved

Metal wall and façade panels with folded edges that lock into one another, so the fixings are hidden behind clean vertical lines.

An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →

Request quote
↓ Datasheet↑ Send a drawingWhatsApp

Overview

Metal panels for walls and façades whose folded edges lock one panel into the next. The fixings stay concealed, and the wall shows only continuous vertical lines.

MCS V-grooves and folds the locking edges, so every joint is the same and the lines stay straight. Flat, ribbed and stepped panel sections can be combined on one wall. Panel width, depth, length and joint detail are made to your drawing, in stainless steel or aluminium.

Used for: façades, lobby and lift-lobby walls, column cladding, reception backdrops, feature walls.

To quote we need: the wall elevation with sizes, panel width, depth and length, the section (flat, ribbed or stepped), the joint detail, metal and finish.

Materials

2 available
SS 304

Stainless Steel 304

Aluminium

Aluminium

Finish options

Applied after fabrication
Mirror finish sample in goldMirrorSS · Brass · CopperHairline finish sample in goldHairlineSS · AluminiumMatte finish sample in goldMatteAll metalsBead blast finish sample in goldBead BlastSS · AluminiumAntique brushed finish sample in bronzeAntique / BrushedBrass · Bronze · CopperIllustration: lift cladding in brass finish, second viewPVD GoldSS 304 · SS 316Lift cladding in copper finish with a lift doorRose Gold PVDSS 304 · SS 316Lift entrance clad in champagne gold PVD with black frameChampagne Gold PVDSS 304 · SS 316Illustration: lift cladding with fluted panels in bronze finishBronze PVDSS 304 · SS 316

Sign finishes off on physical metal — request samples.

How it is manufactured

V-grooved for sharp edges
01CNC Fibre Laser Cutting02CNC V-Grooving03CNC Bending04Surface Finishing05PVD Colours

See the edge

V-grooved, then bent

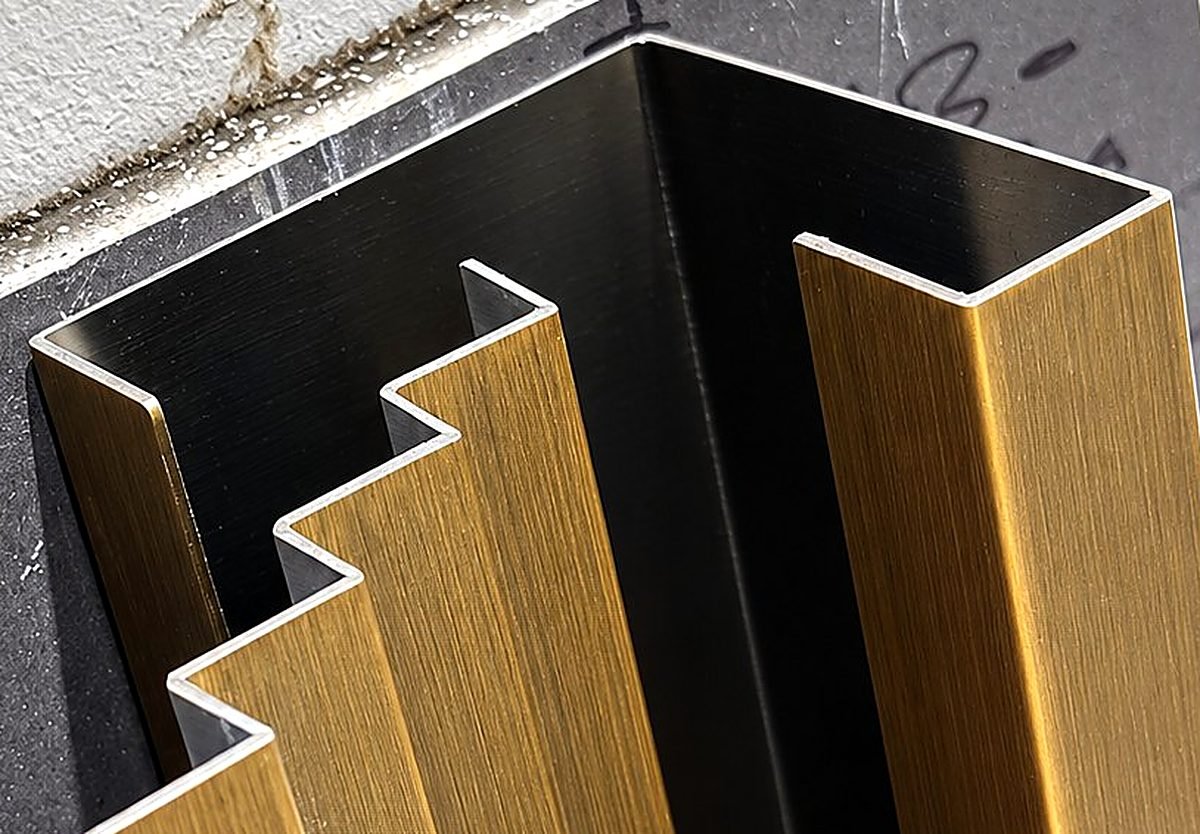

Interlock Panel System: bent edge close-up 1

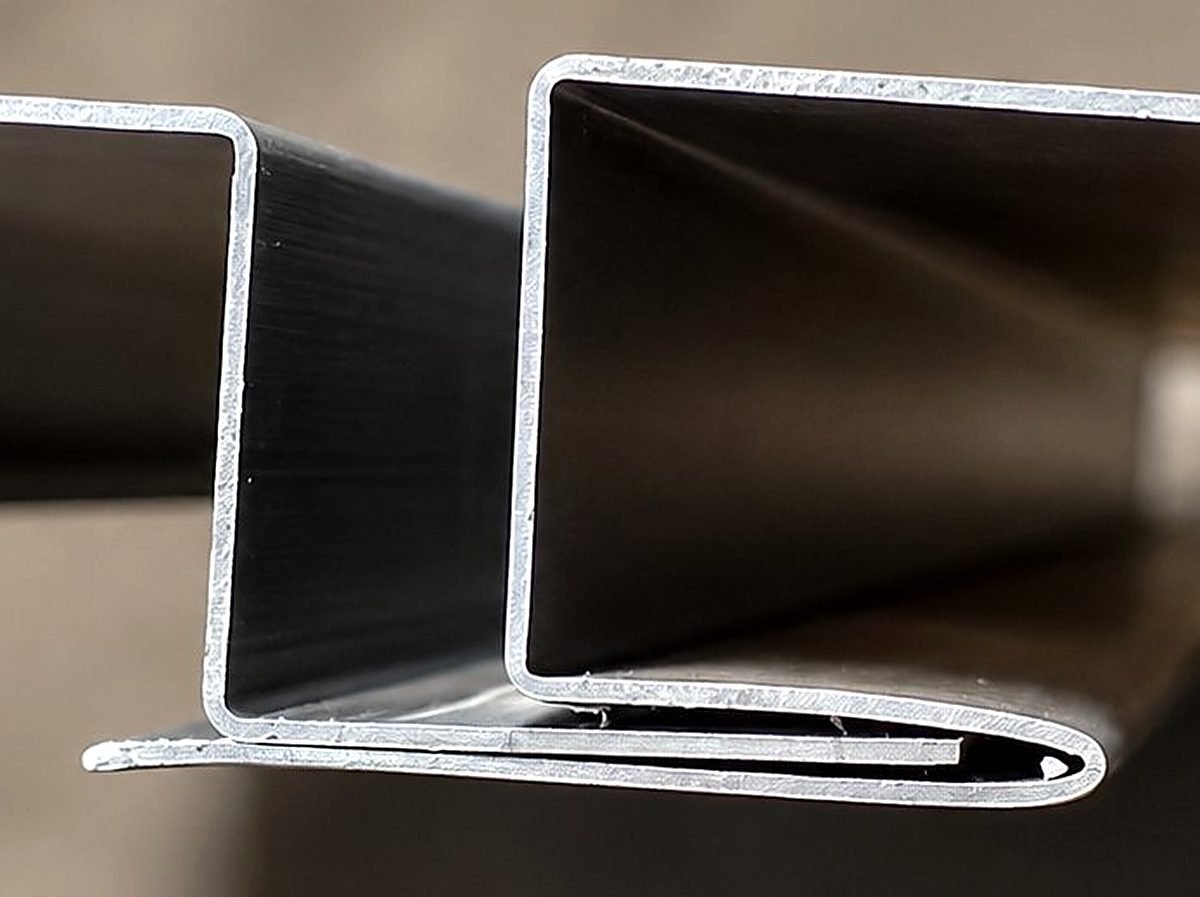

Interlock Panel System: bent edge close-up 2

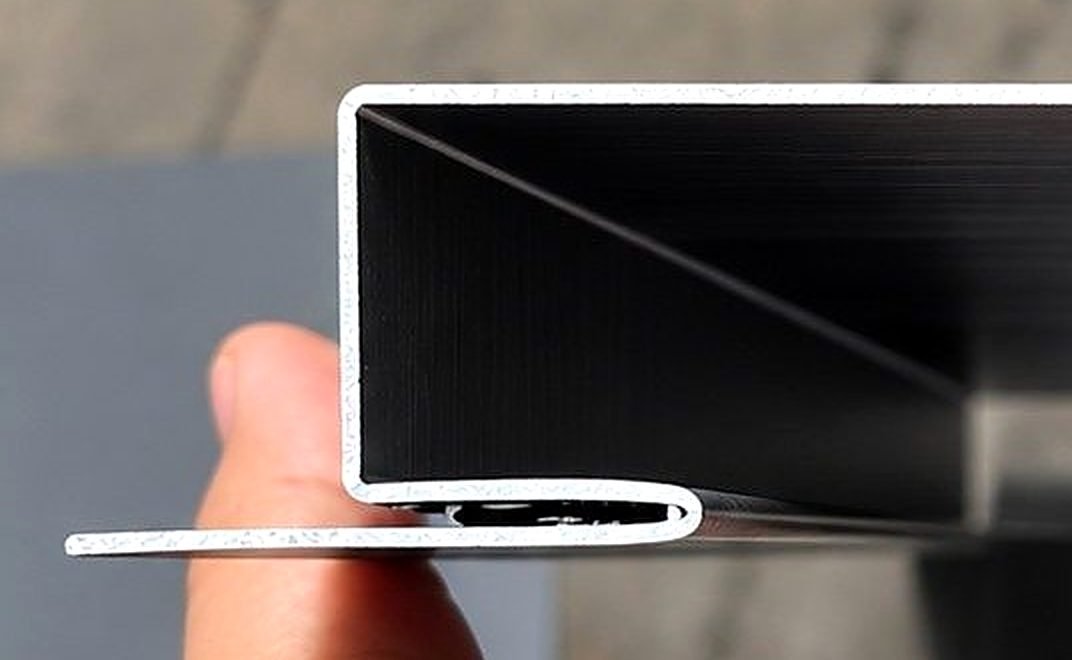

Interlock Panel System: bent edge close-up 3

Enhanced close-up of our photograph: cropped, light and sharpness adjusted. The bend is not changed.

Technical information

MaterialStainless Steel 304, Aluminium
Sheet thickness0.25 - 3.8 mm (project-specific)
Product codeMCS-FAC-007
EnvironmentInterior and exterior
SupplyMade to project requirement
FinishesMirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Bronze PVD
ManufacturingCNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing → PVD Colours

Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →

Applications

CommercialHospitalityResidential

Downloads

PDFFaçade Systems — datasheet2.9 MB · Available now

Watch the films

Related products

All Façade Systems

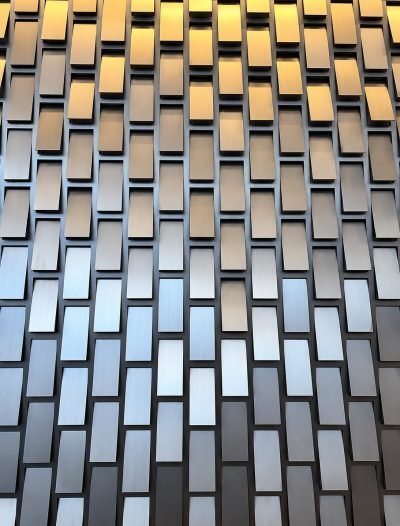

Kinetic façade panel with angled stainless steel tiles, close view
CustomV-grooved
Façade SystemsKinetic FaçadeSS 304 · AluminiumMCS-FAC-001

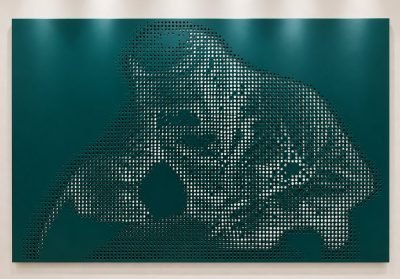

Perforated façade panel with a picture-perforated motif, teal finish
CustomV-grooved
Façade SystemsPerforated Façade PanelsSS 304 · AluminiumMCS-FAC-002

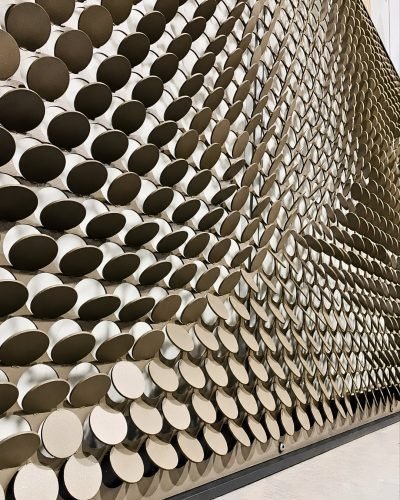

Metal coin façade panel with raised discs in stainless steel, close view
CustomV-grooved
Façade SystemsMetal Coin Façade PanelsSS 304 · AluminiumMCS-FAC-003

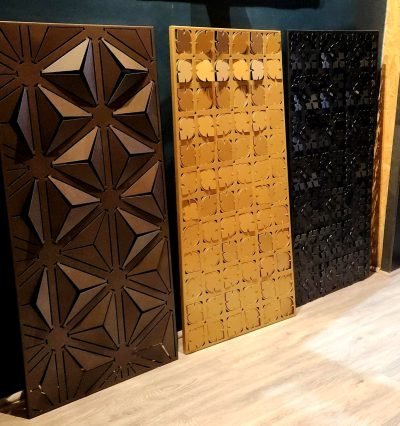

3D folded façade panels with star and dot patterns in brass and bronze
