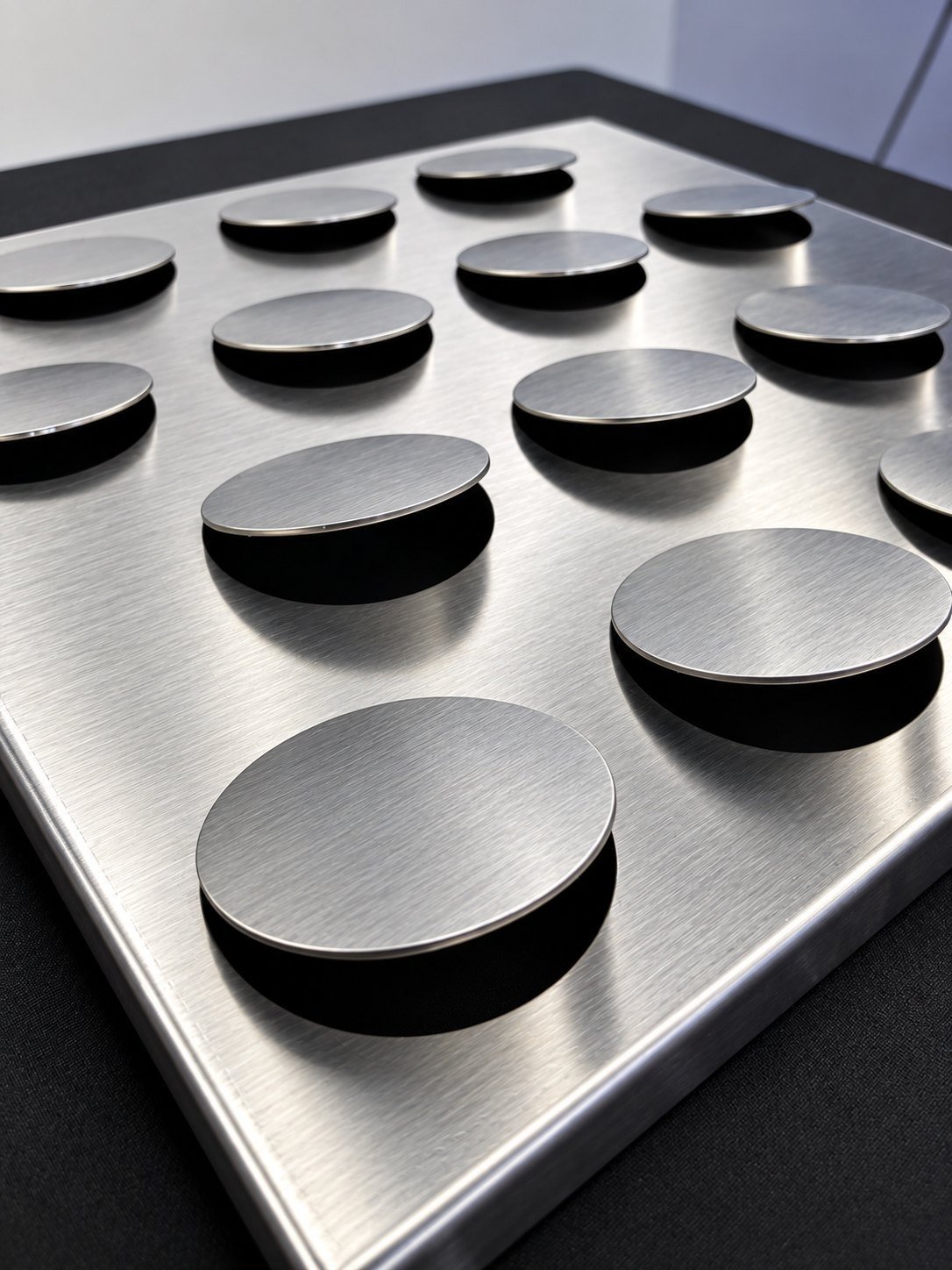

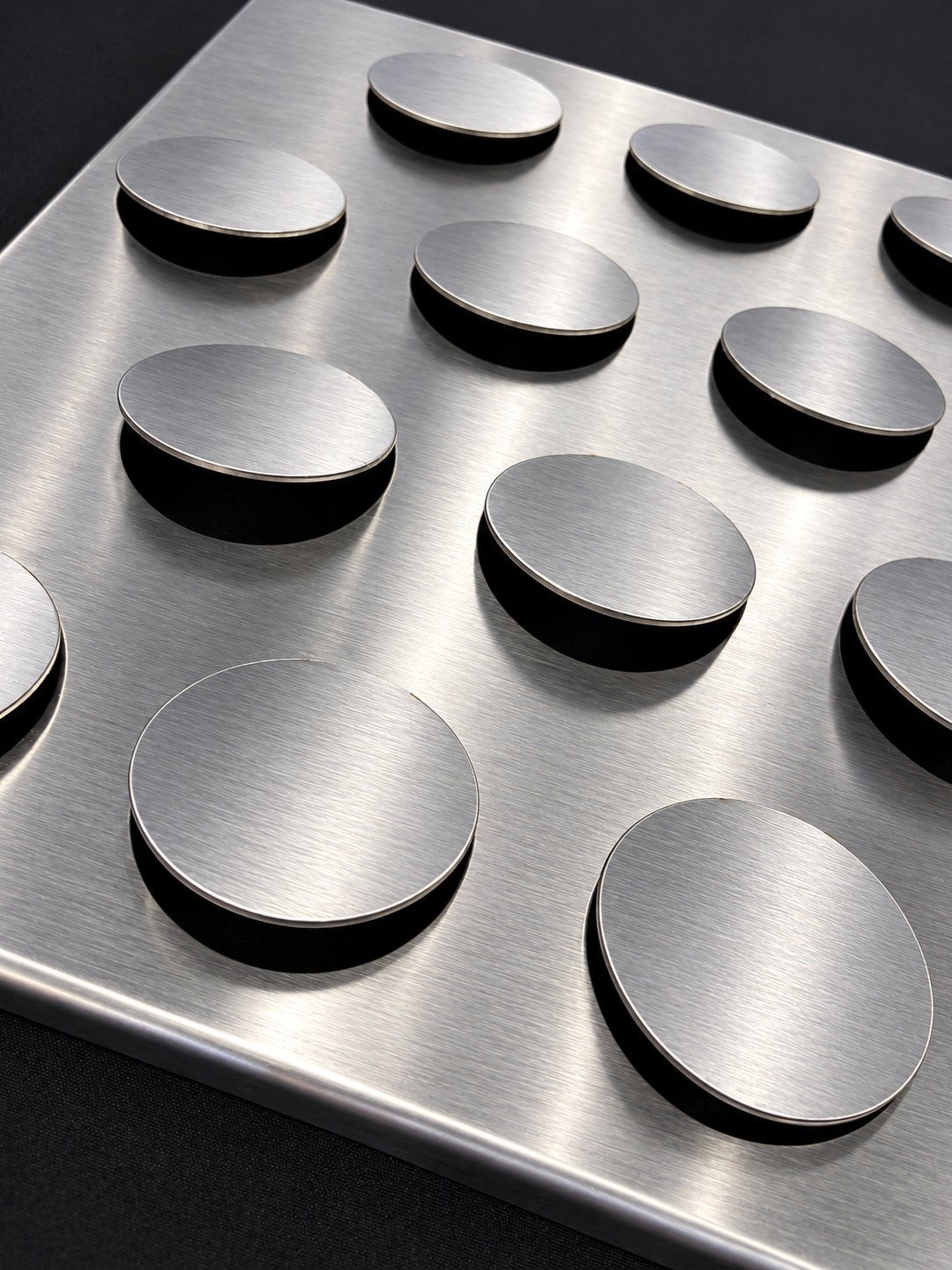

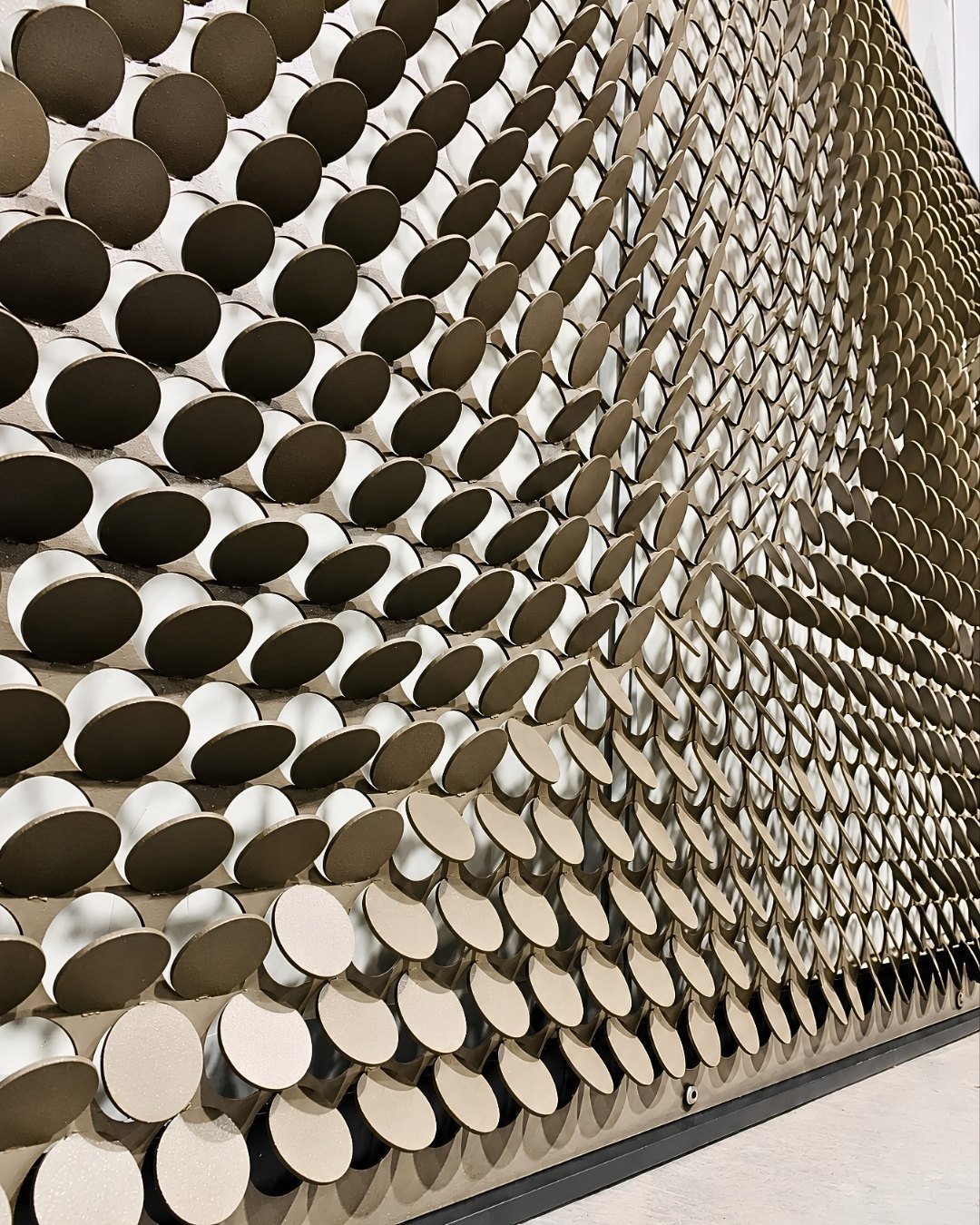

Metal coin façade panel with raised discs in stainless steel, close view
Metal Coin Façade Panels
Façade panels with rows of coin-shaped discs cut and folded out of the sheet, giving the wall depth, shadow and changing light.
An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →
Overview

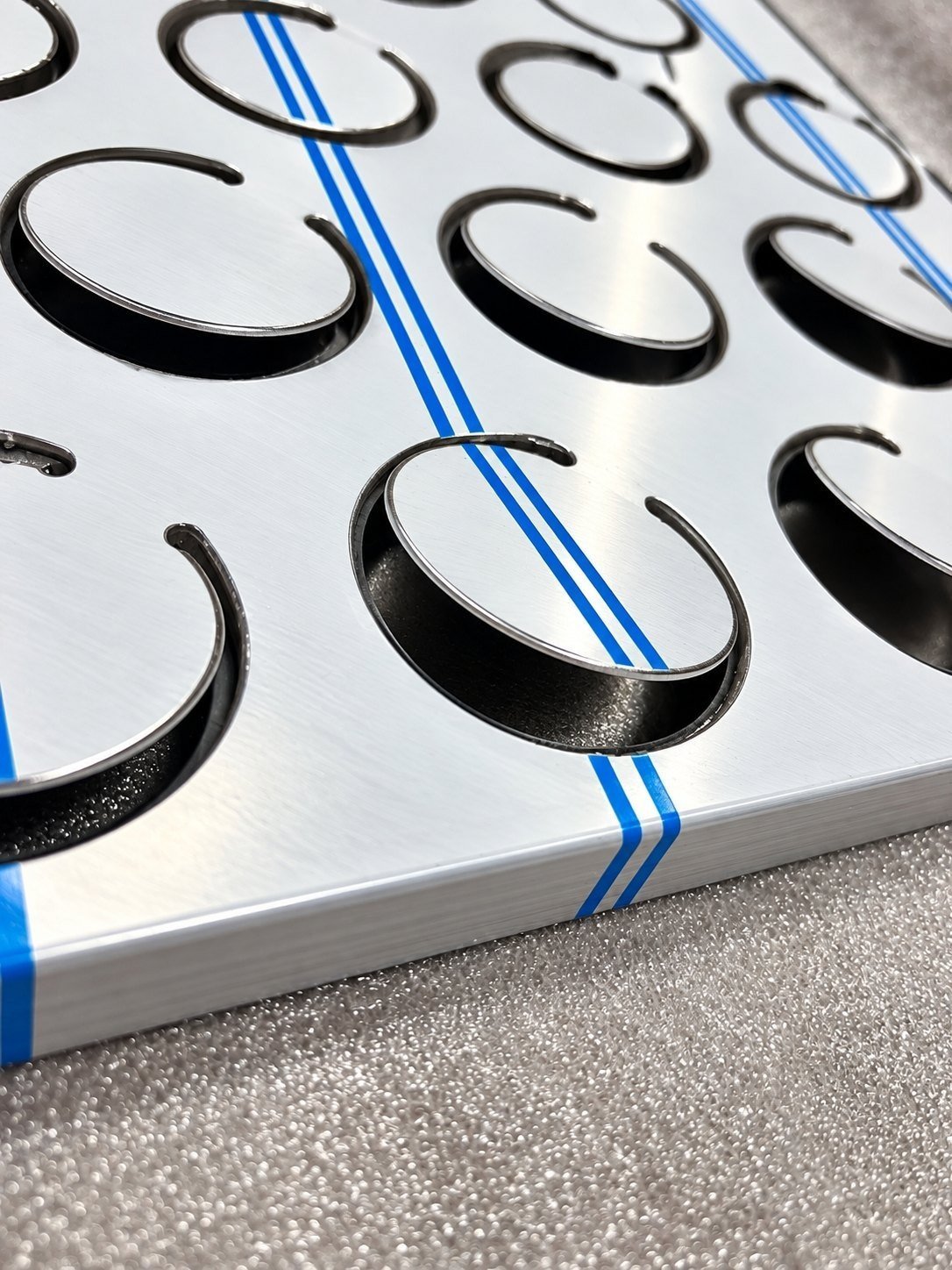

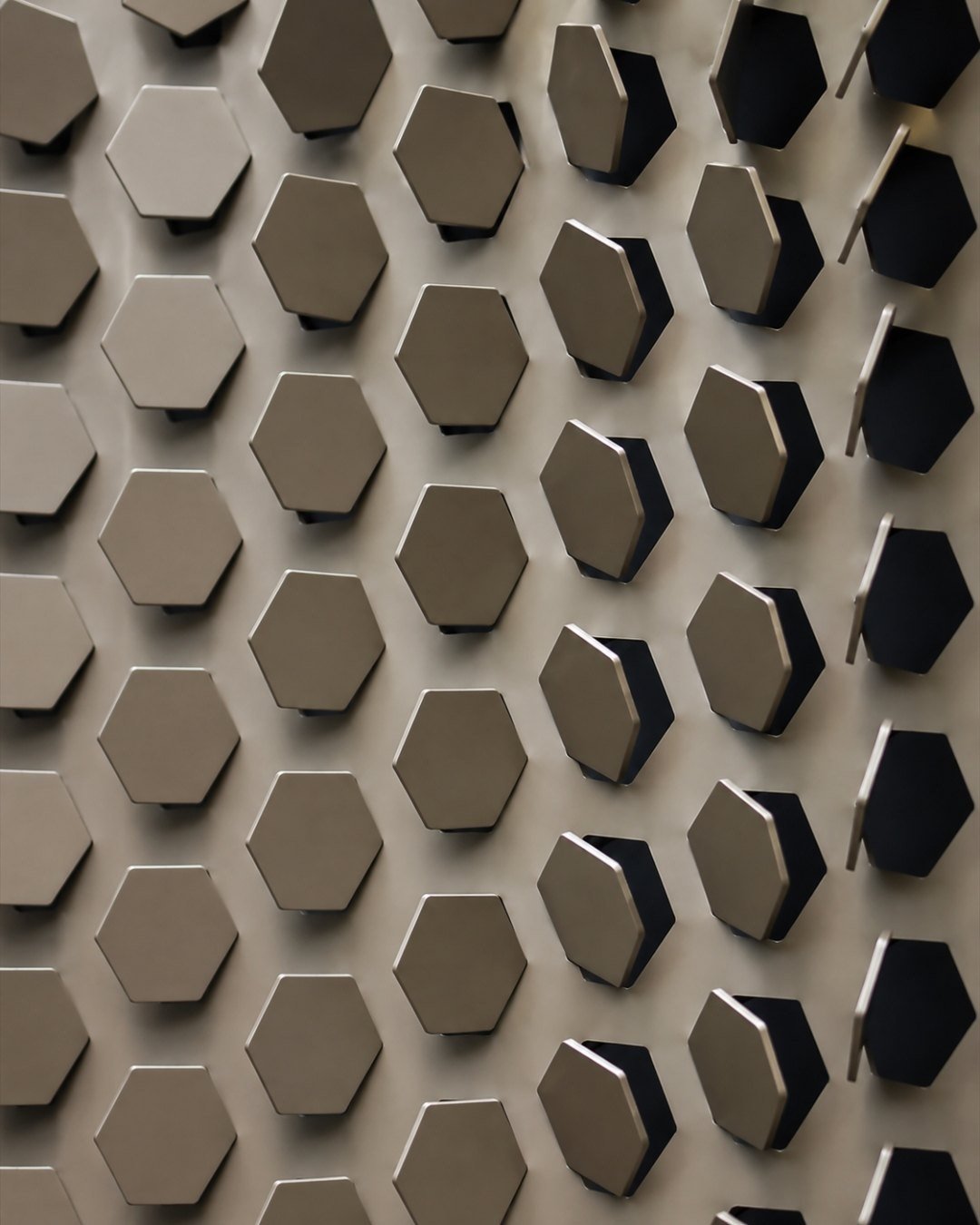

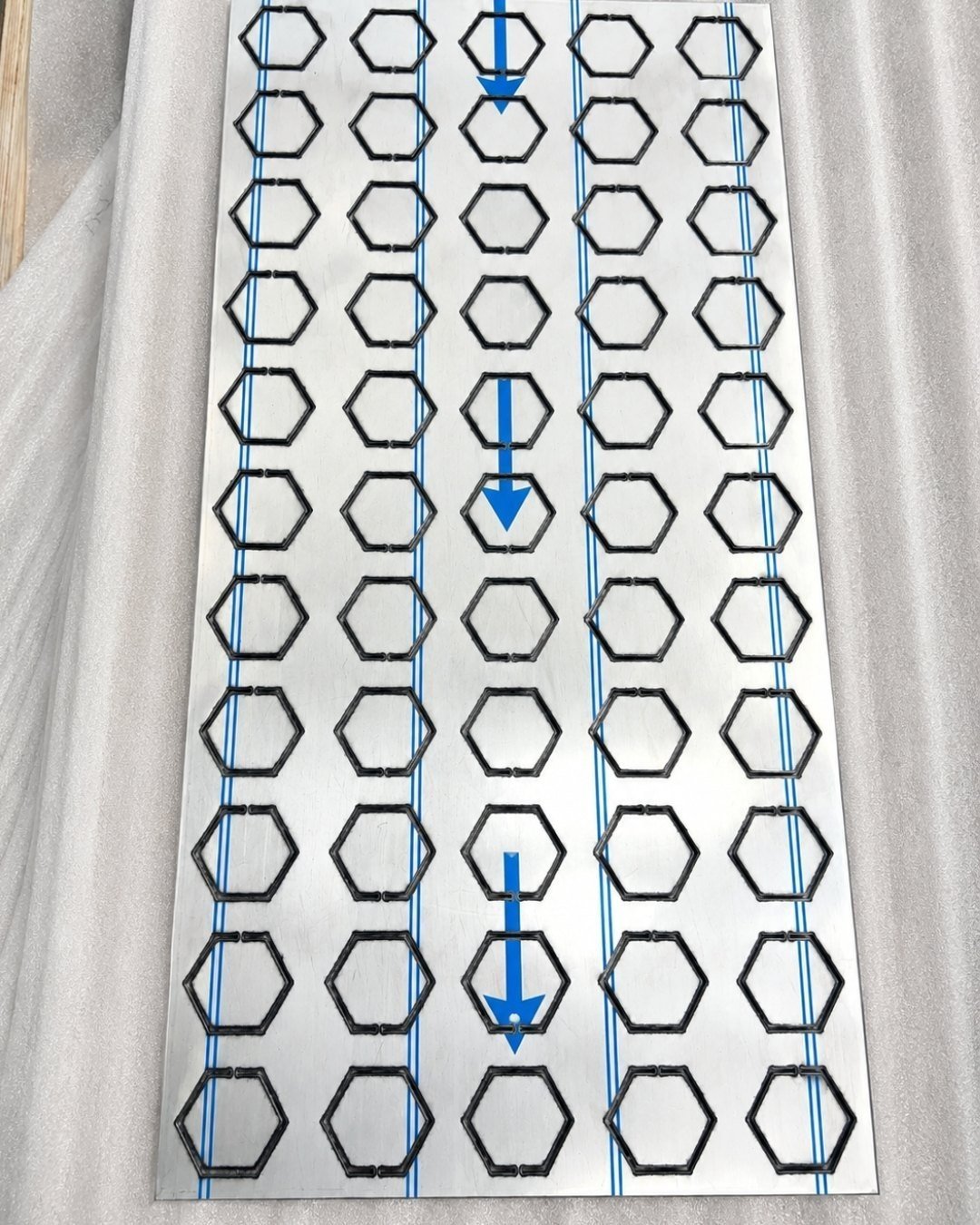

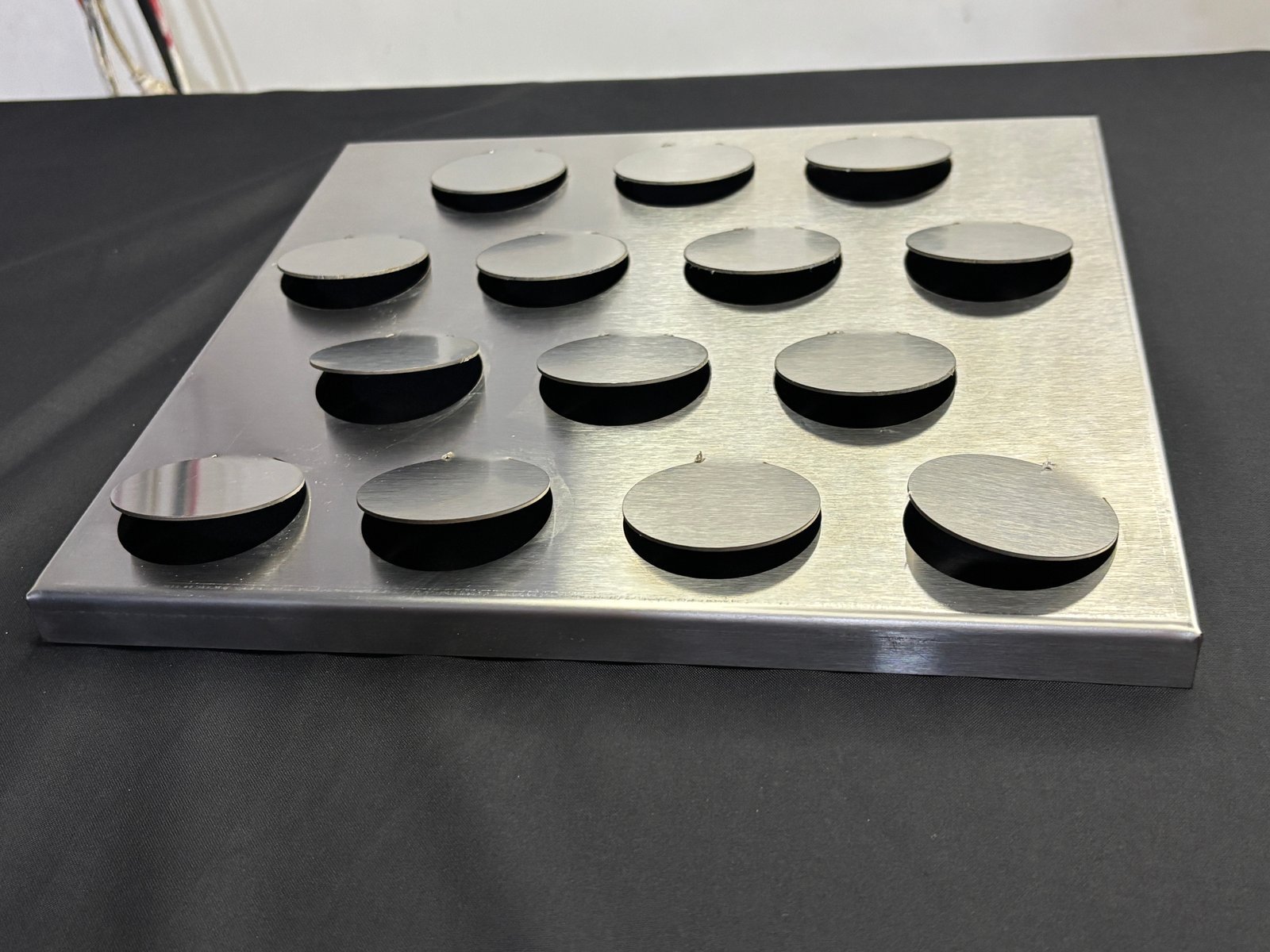

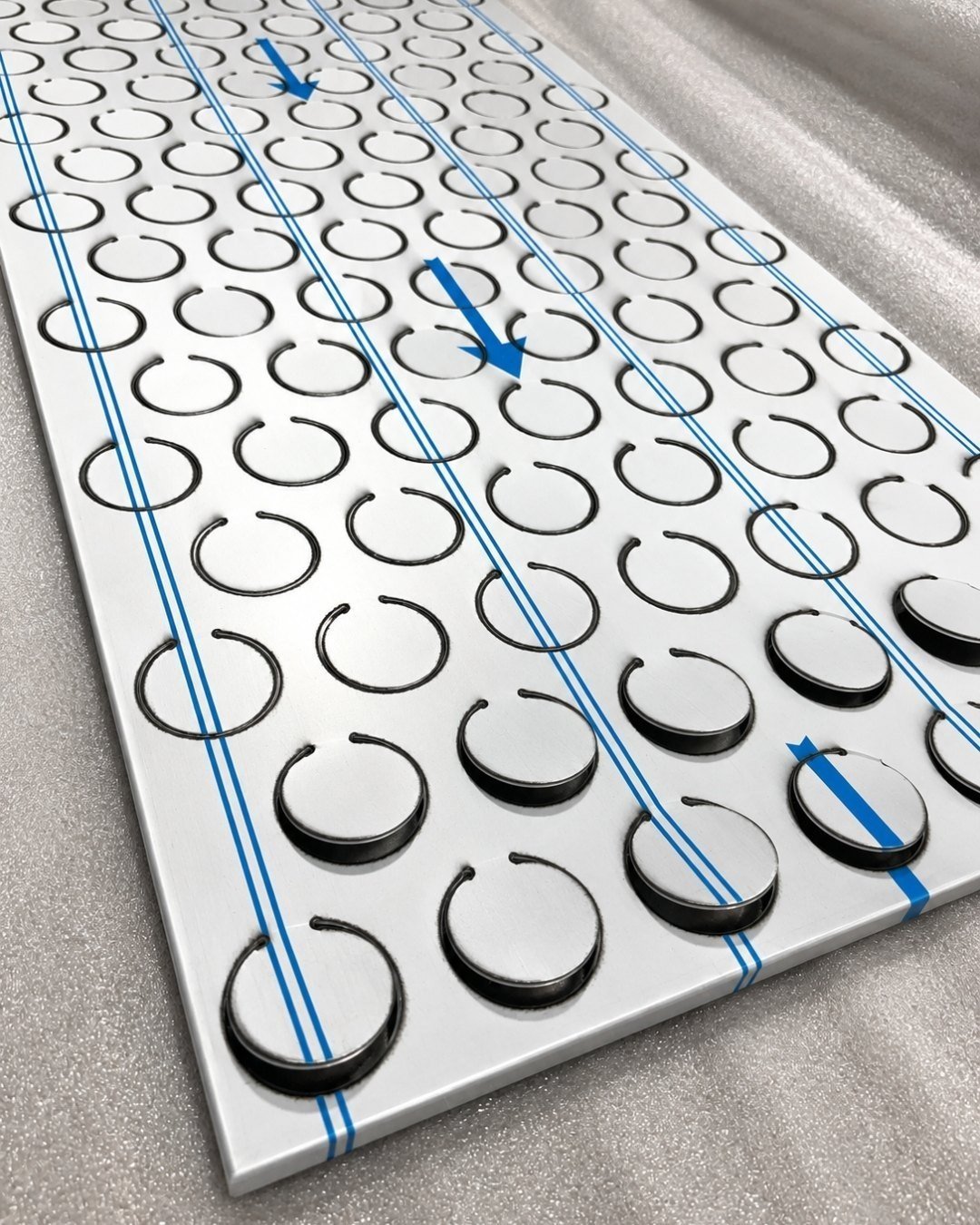

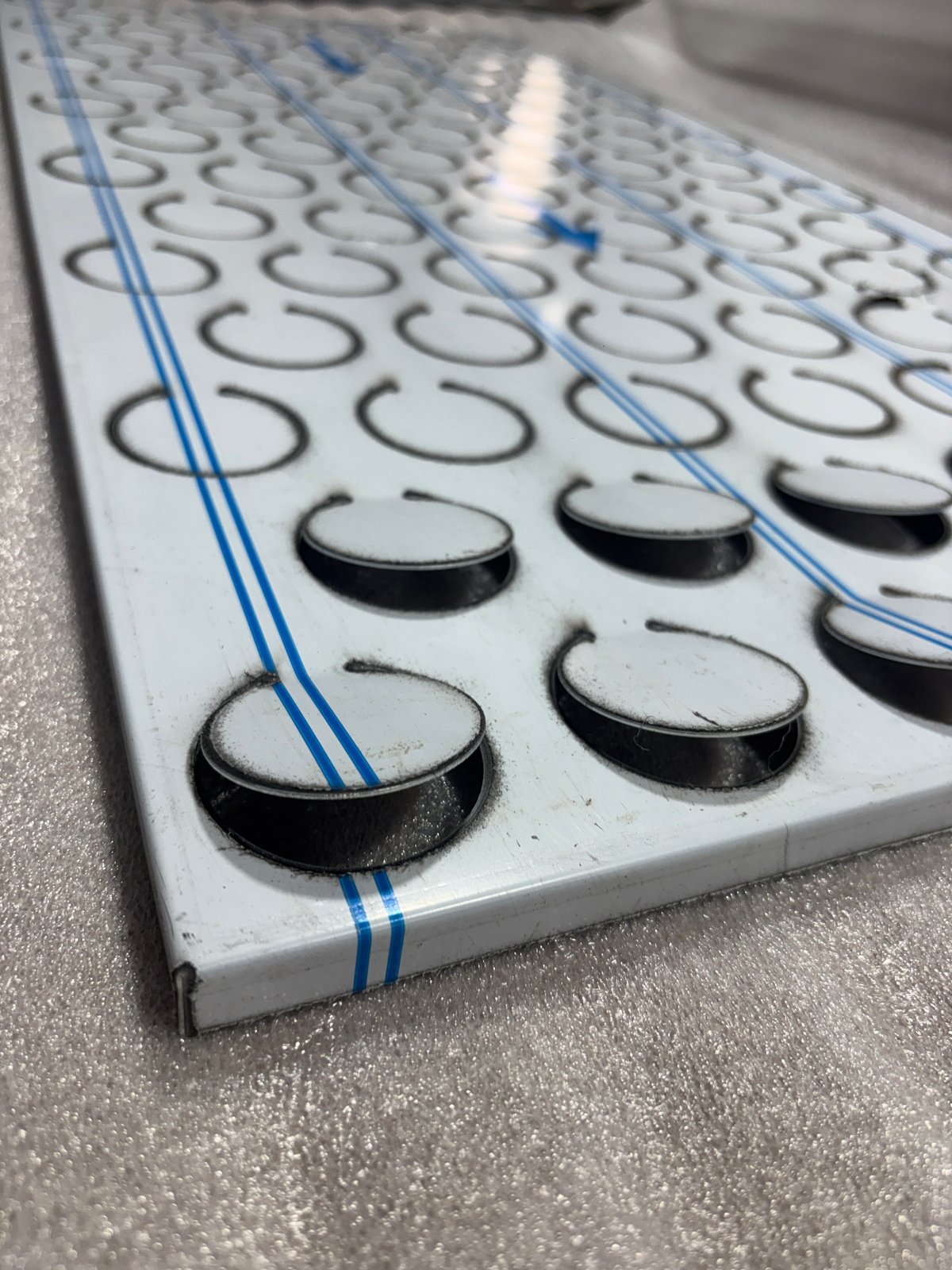

Metal façade panels in which coin-shaped discs are laser cut and folded out of the sheet. Hexagons and other shapes can be raised in the same way. The raised pieces catch light at a different angle from the panel face, so the wall has depth and shadow that change through the day.
MCS cuts the discs on the laser, lifts each one to the set angle and folds the panel with returns for fixing to the sub-frame. Disc size, spacing, lift angle and panel module are developed from the project drawing. The panels are made in stainless steel or aluminium.
Used for: commercial buildings, hotels, offices, retail developments, entrances and feature walls.
To quote we need: the elevation drawing, the panel module, disc shape and size, spacing, lift angle, metal and finish.
Materials
2 availableFinish options
Applied after fabrication
Sign finishes off on physical metal — request samples.
How it is manufactured

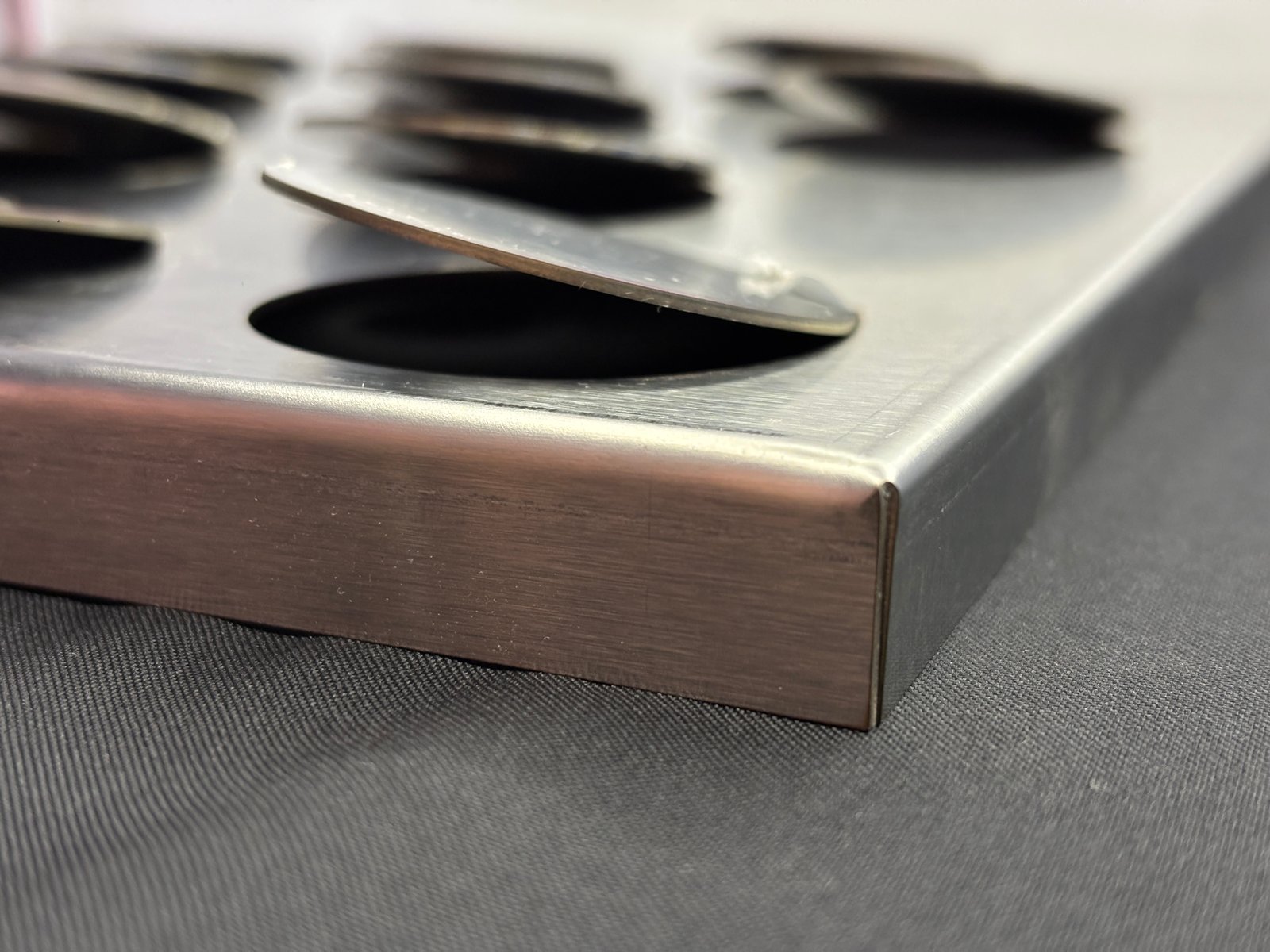

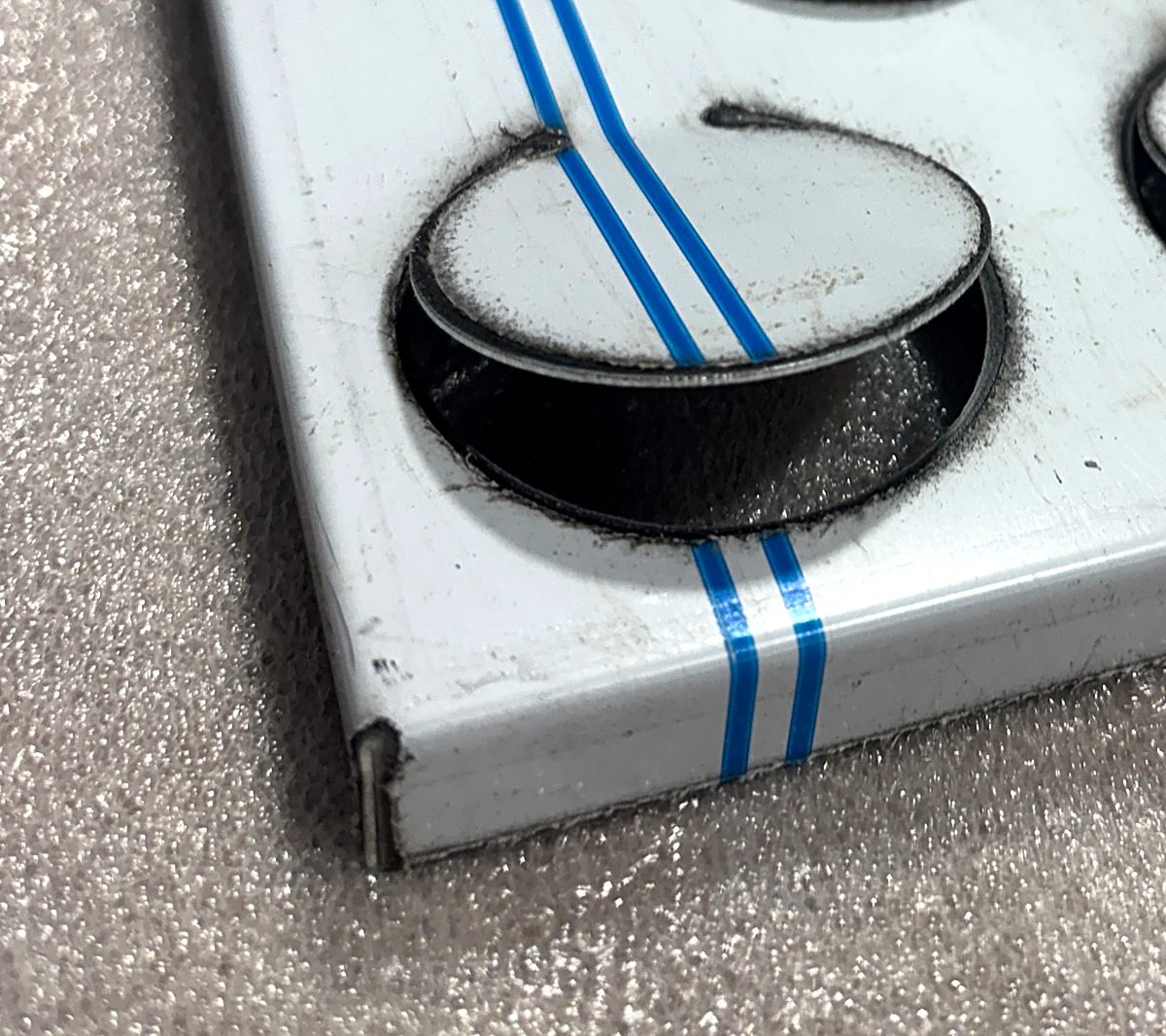

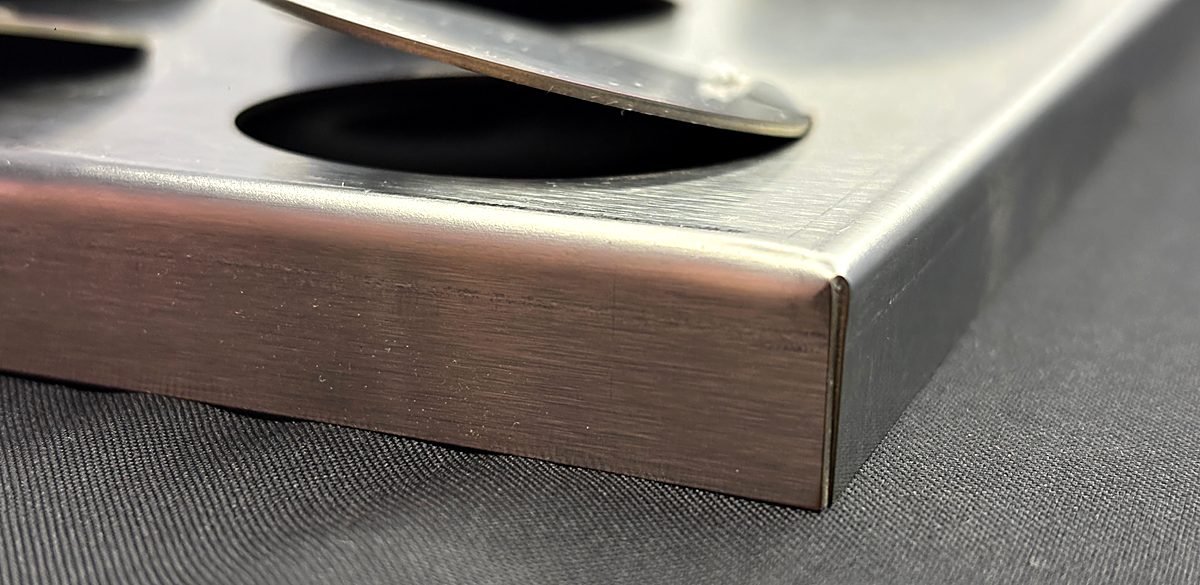

V-grooved for sharp edgesSee the edge

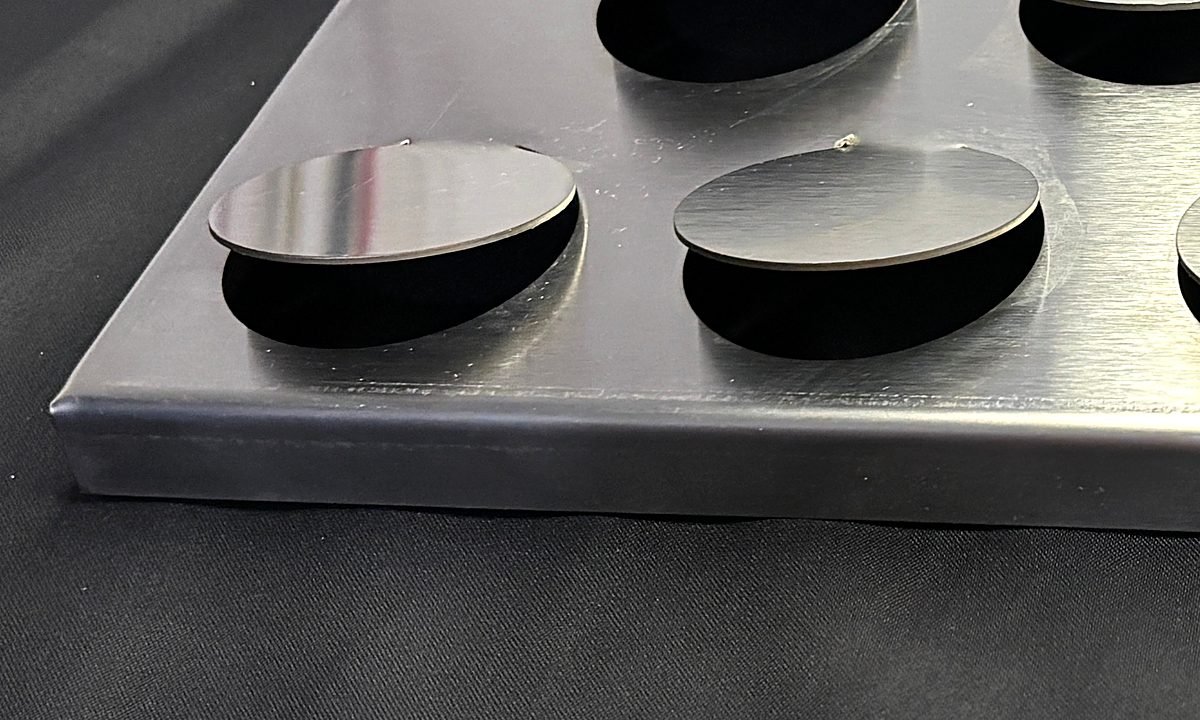

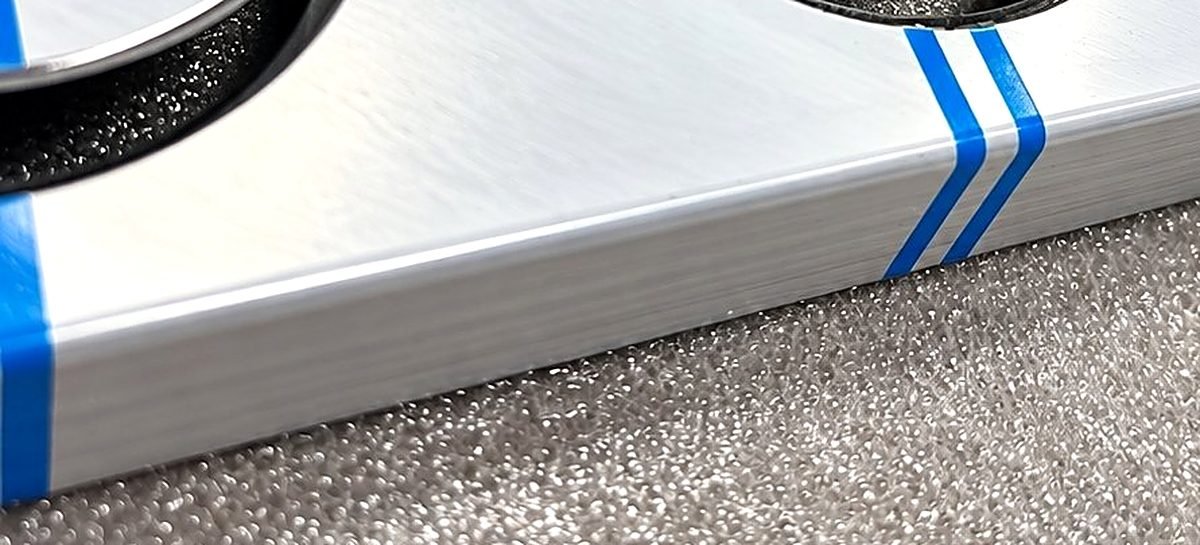

V-grooved, then bent
Enhanced close-up of our photograph: cropped, light and sharpness adjusted. The bend is not changed.
Technical information
| Material | Stainless Steel 304, Stainless Steel 316, Aluminium |
|---|---|
| Product code | MCS-FAC-003 |
| Environment | Exterior |
| Supply | Made to supplied drawing |
| Sheet thickness | 0.25 - 3.8 mm (project-specific) |
| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Bronze PVD |
| Manufacturing | CNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Welding & Fabrication → Surface Finishing → PVD Colours |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →
Applications
Downloads
Watch the films
Related products
All Façade Systems
Start a project
Need parts like
Metal Coin Façade Panels?
Send the drawing, the metal, the finish and the quantity. MCS returns a fabrication review before a price.
