U & C Profile
U and C shaped metal channels for shadow gaps, panel edges and inlay lines, made to the size on your drawing.
An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →
Overview

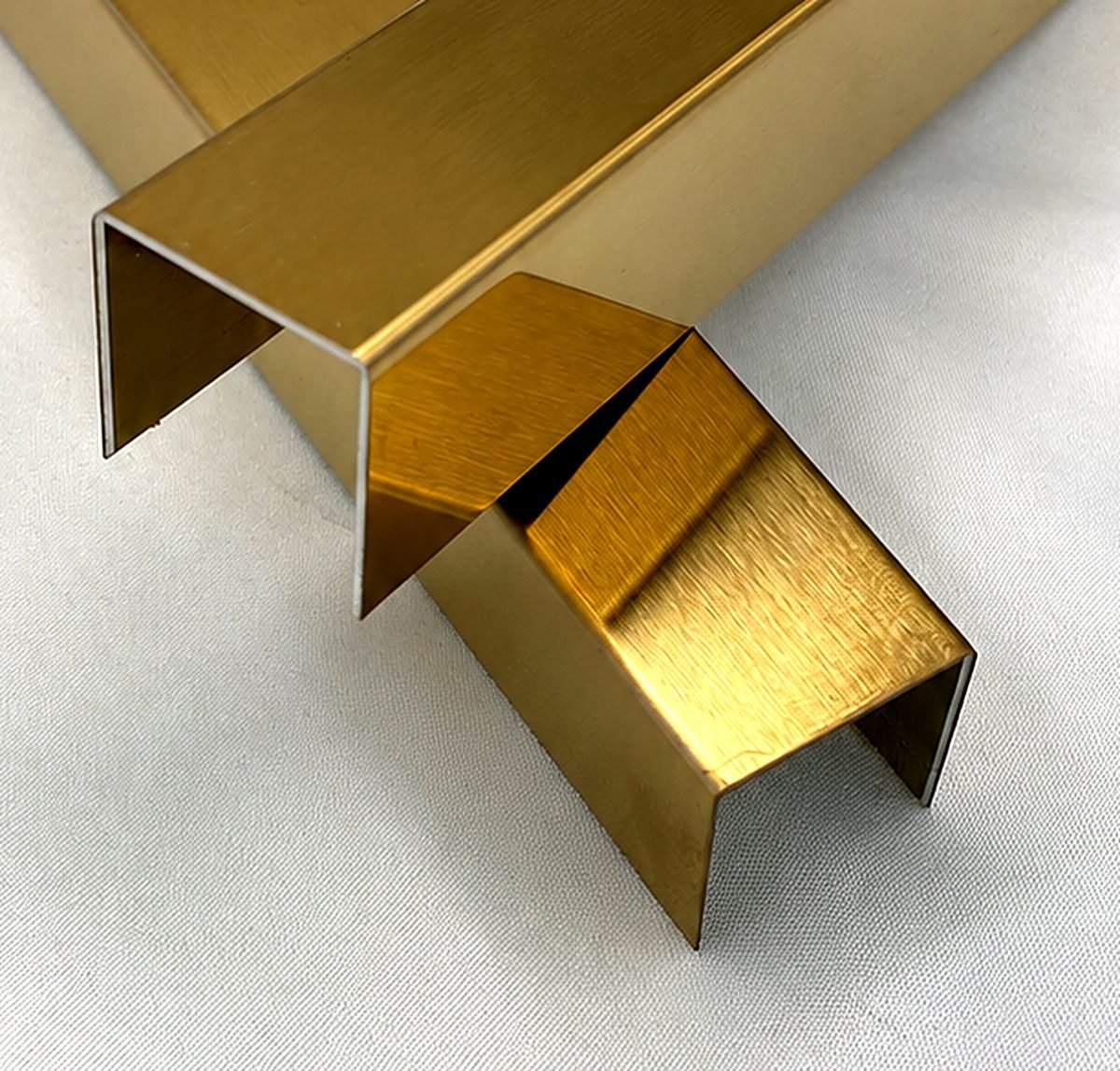

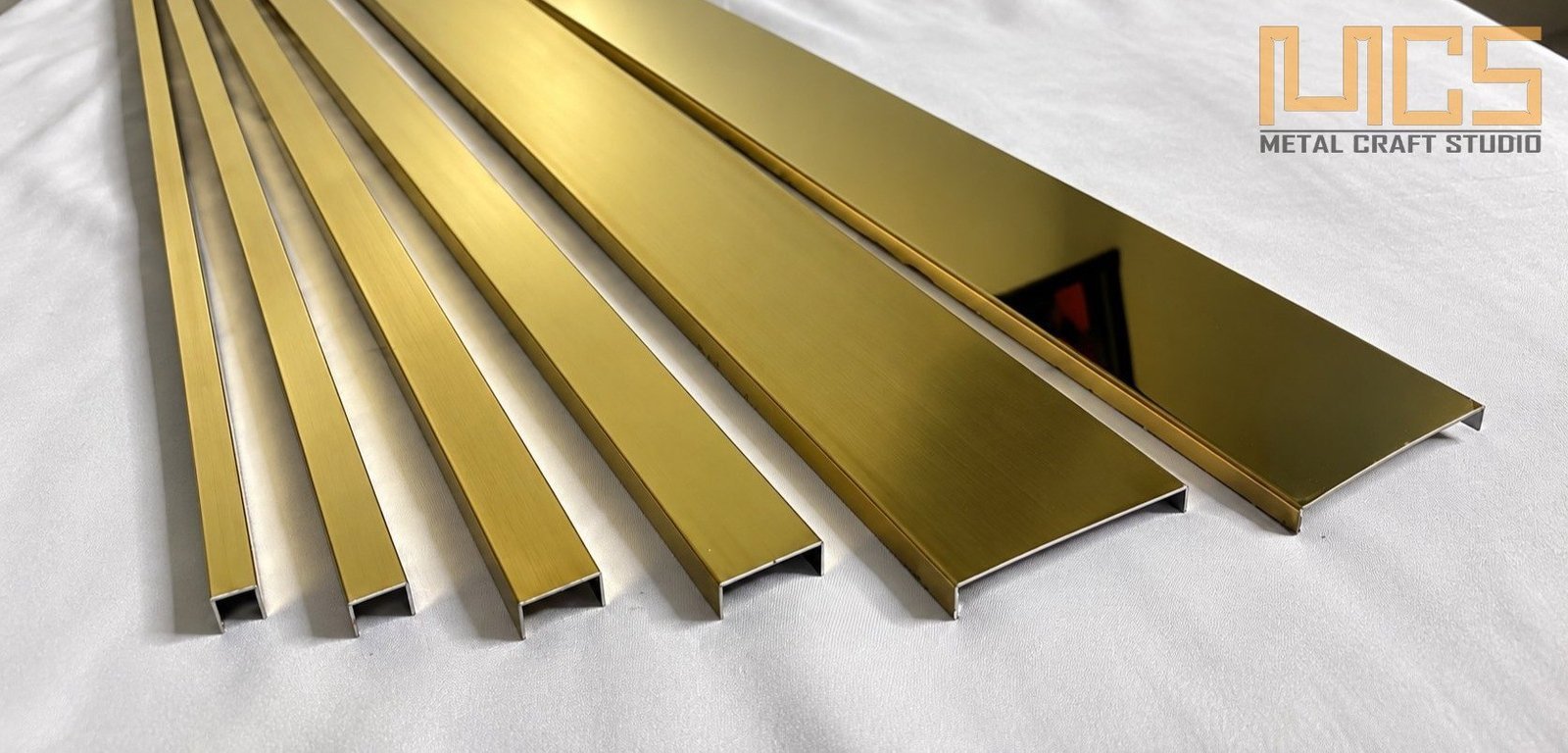

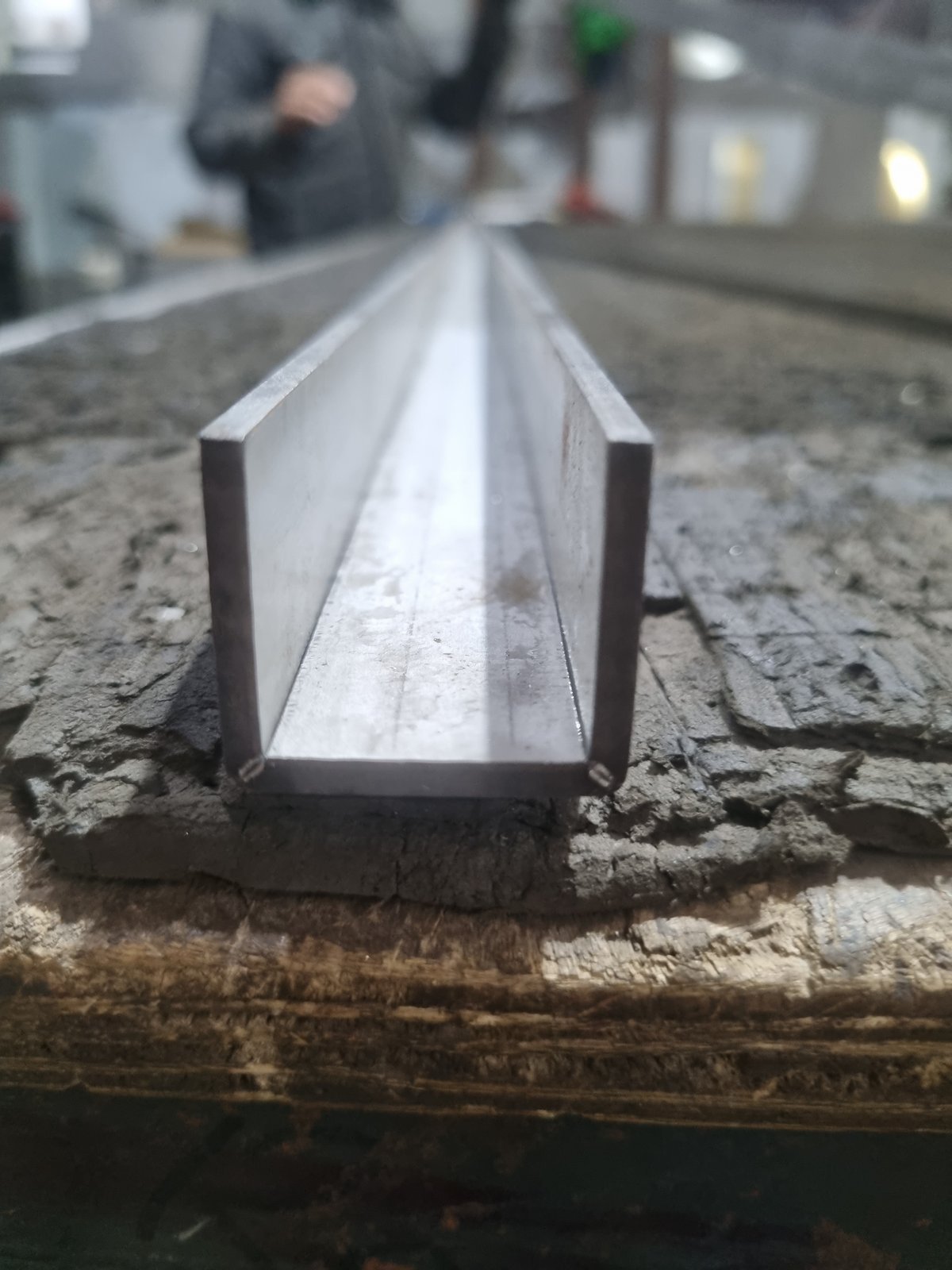

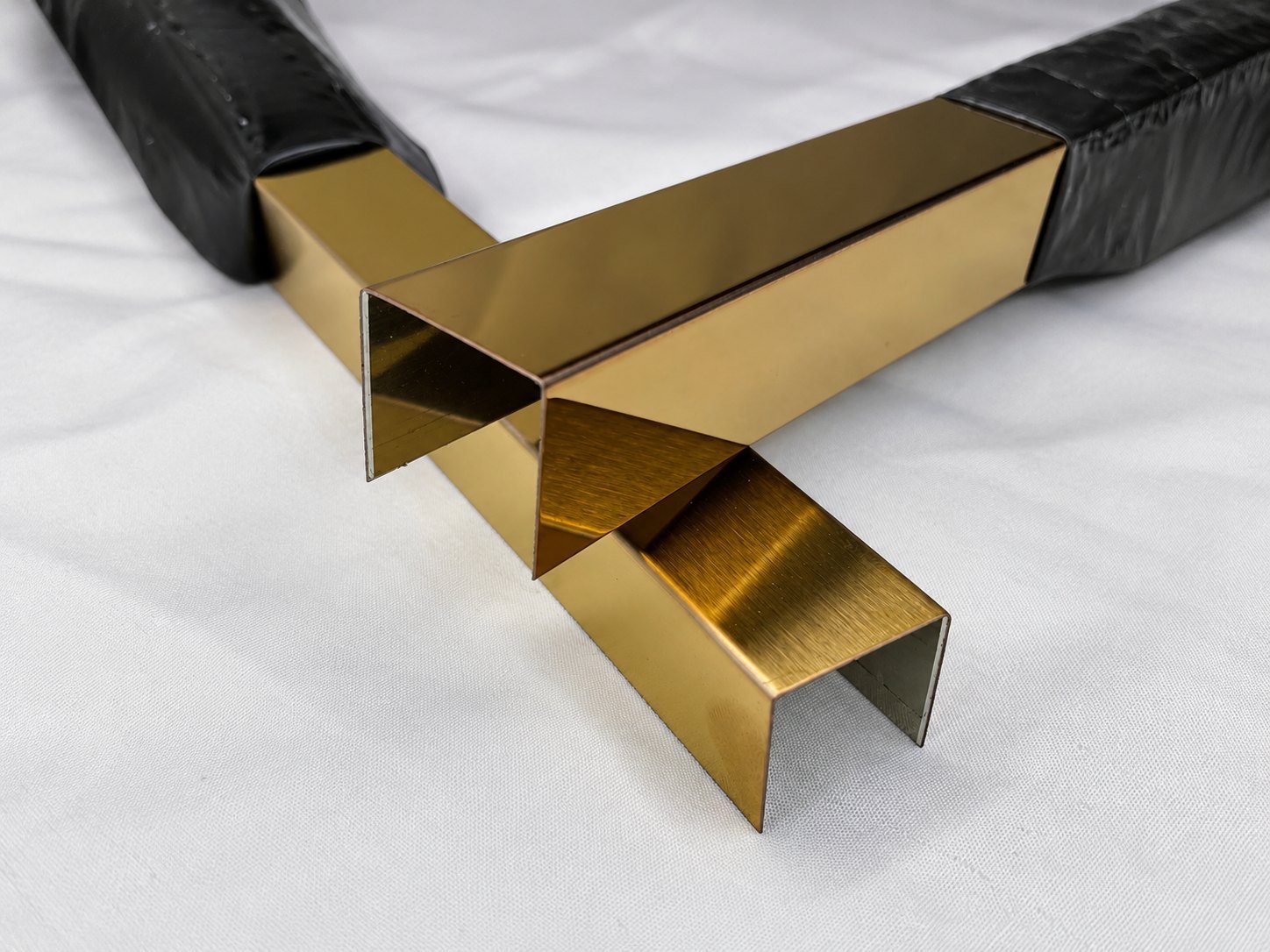

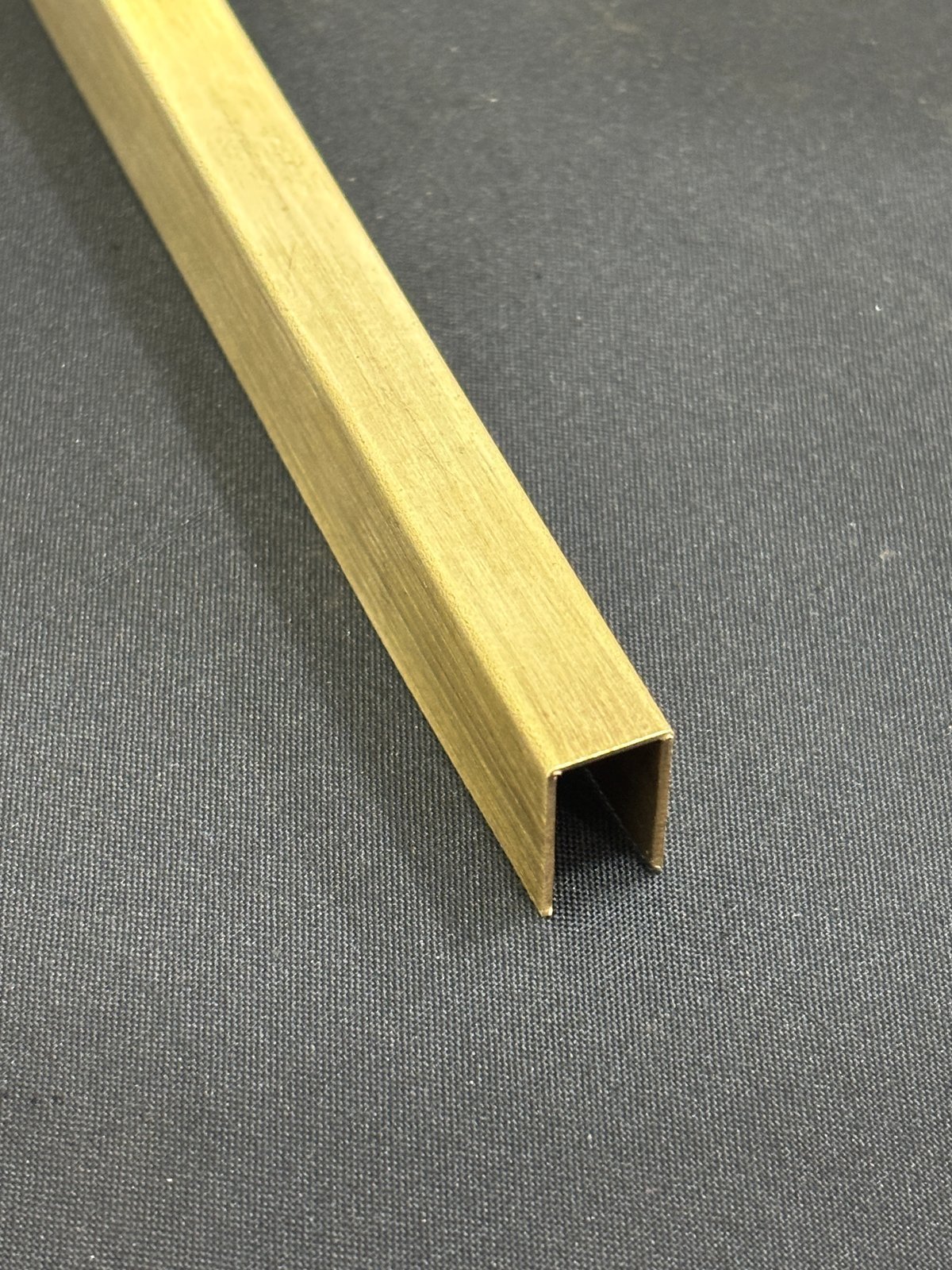

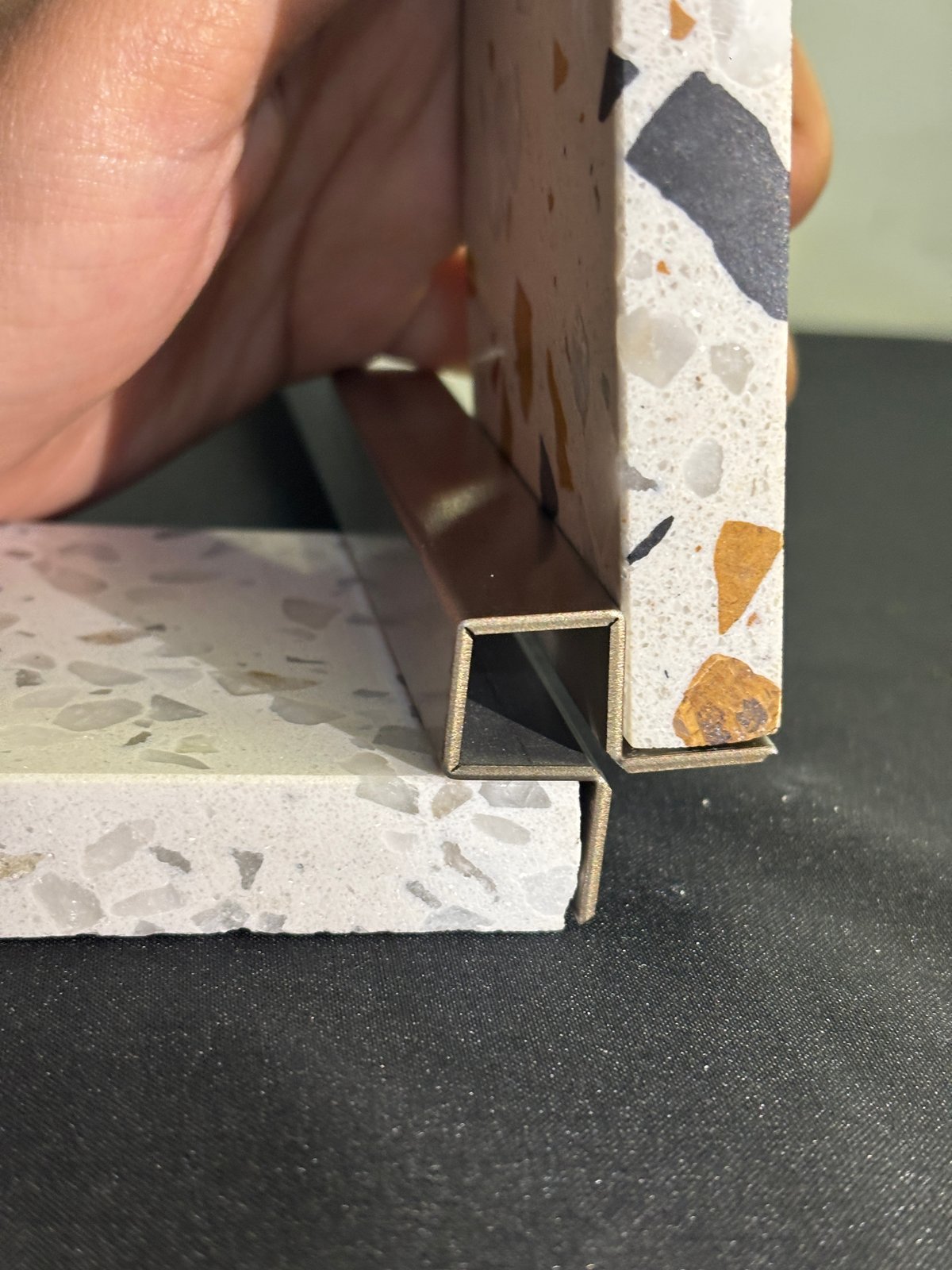

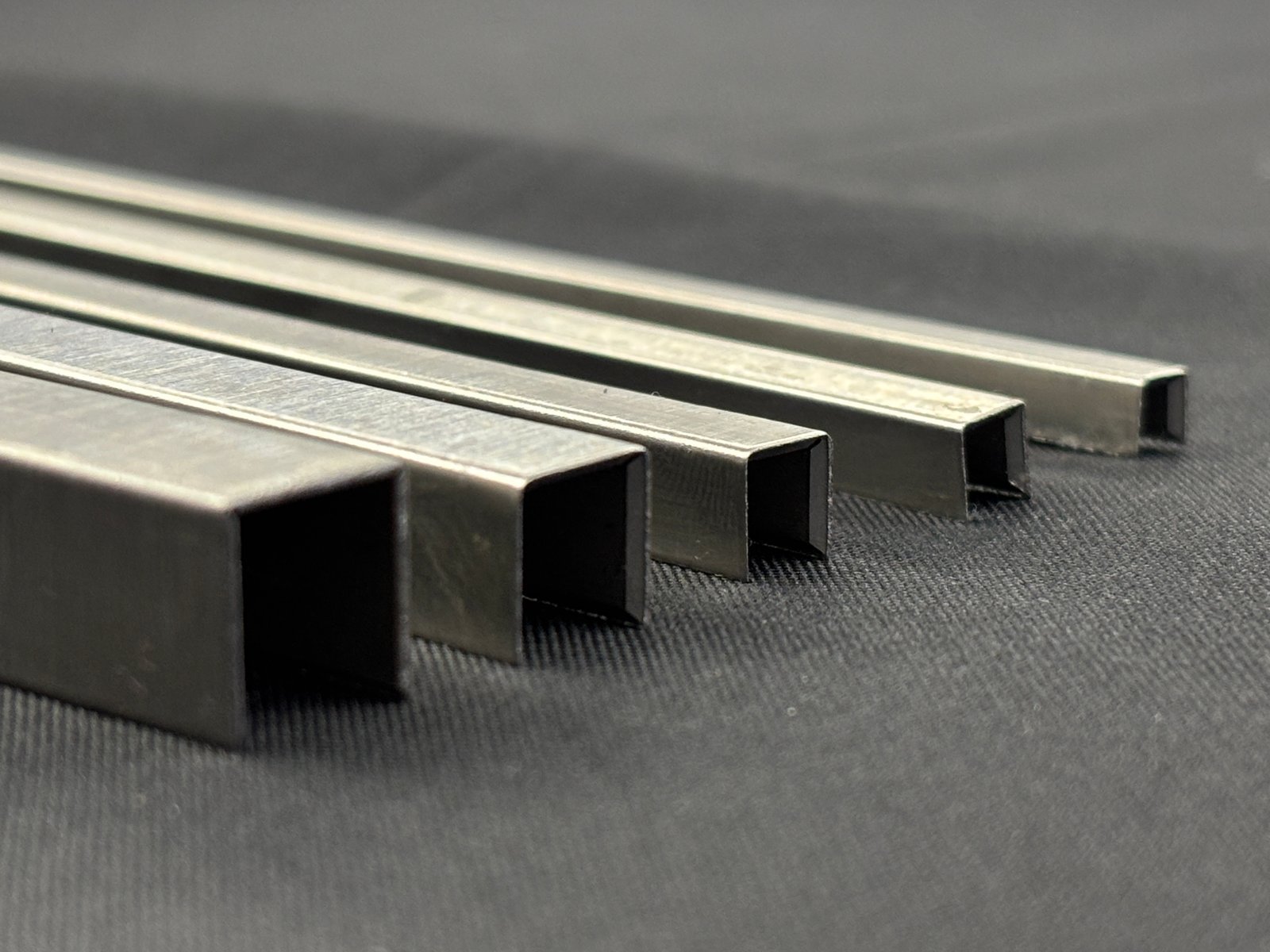

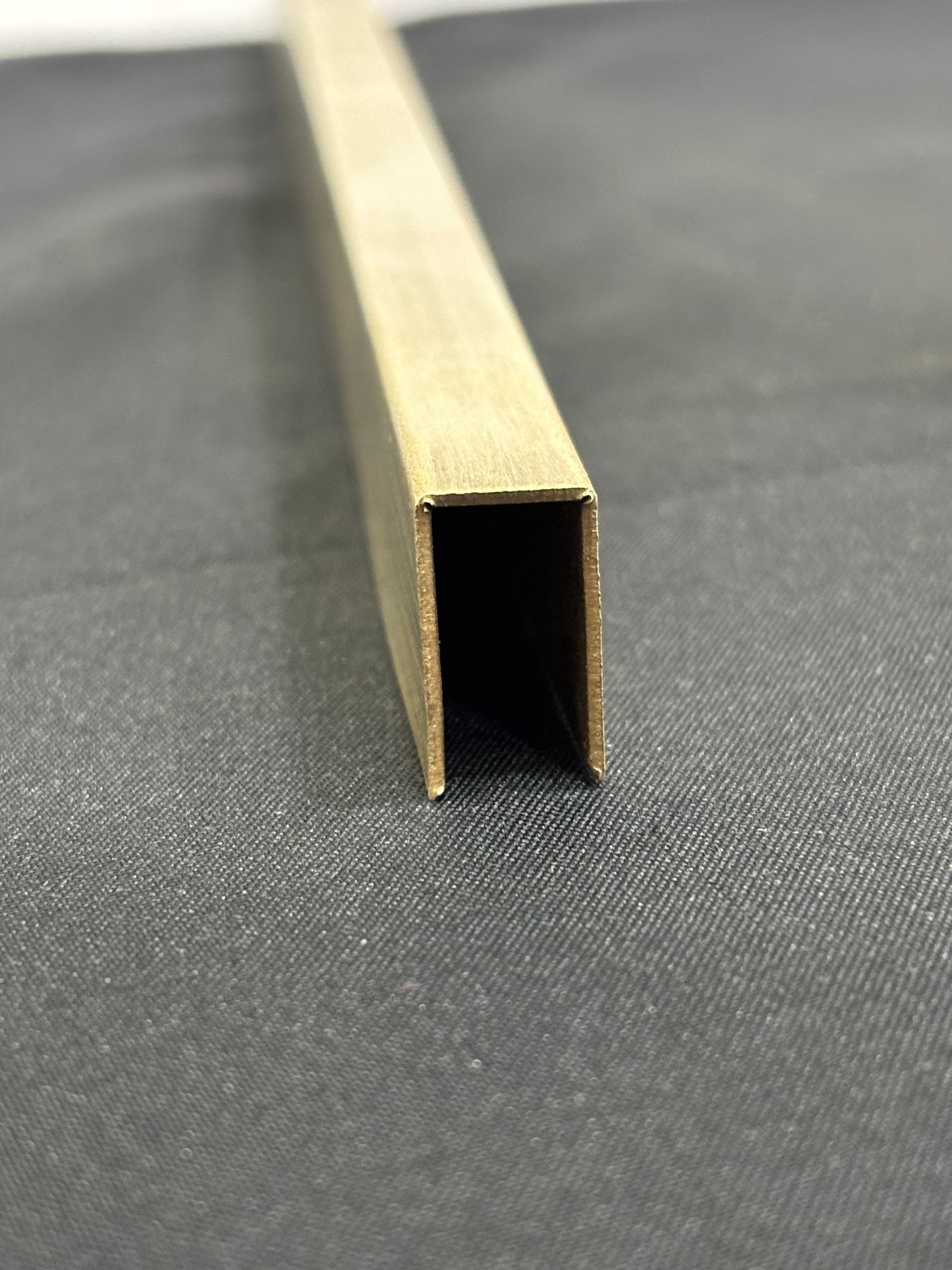

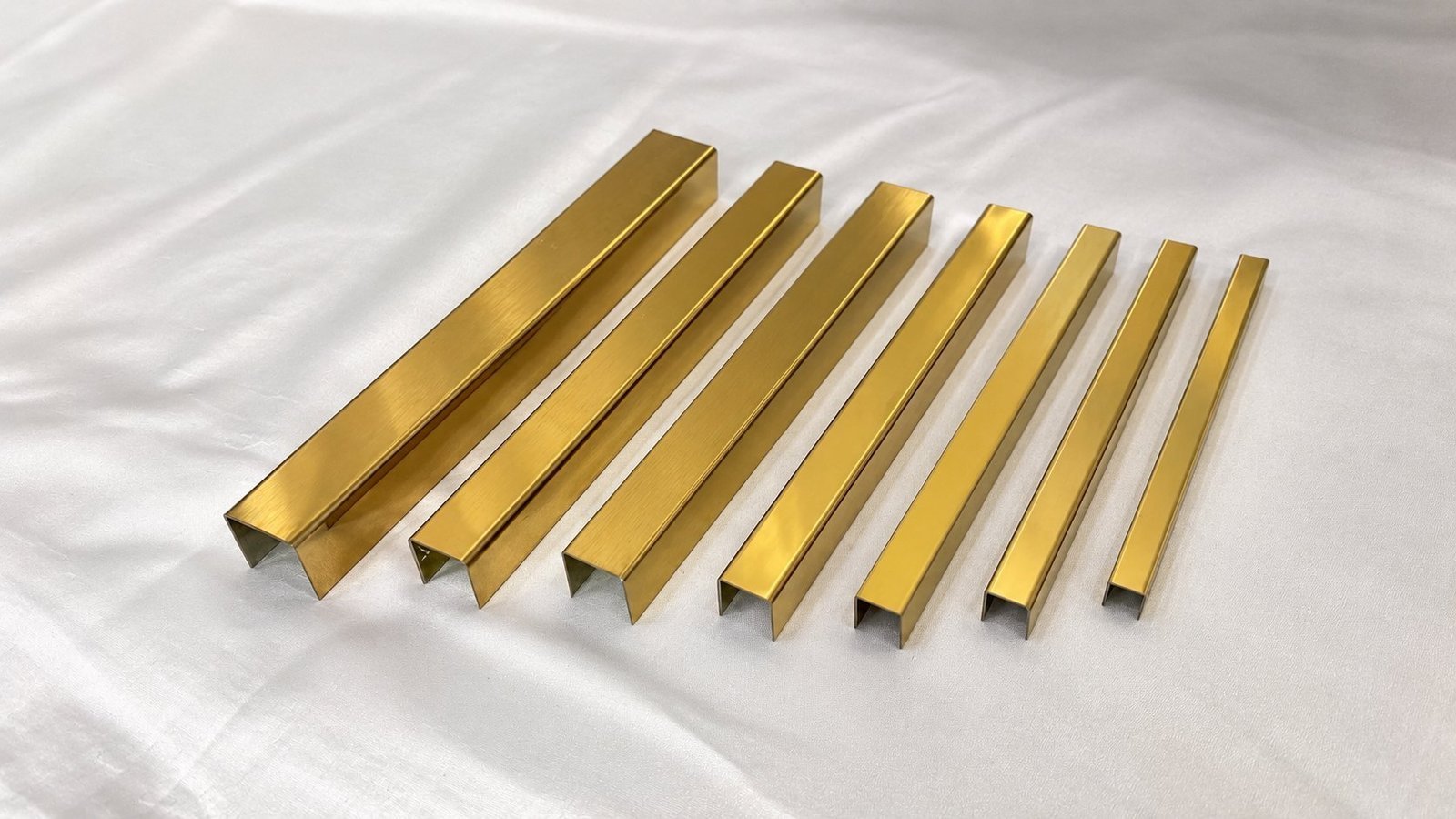

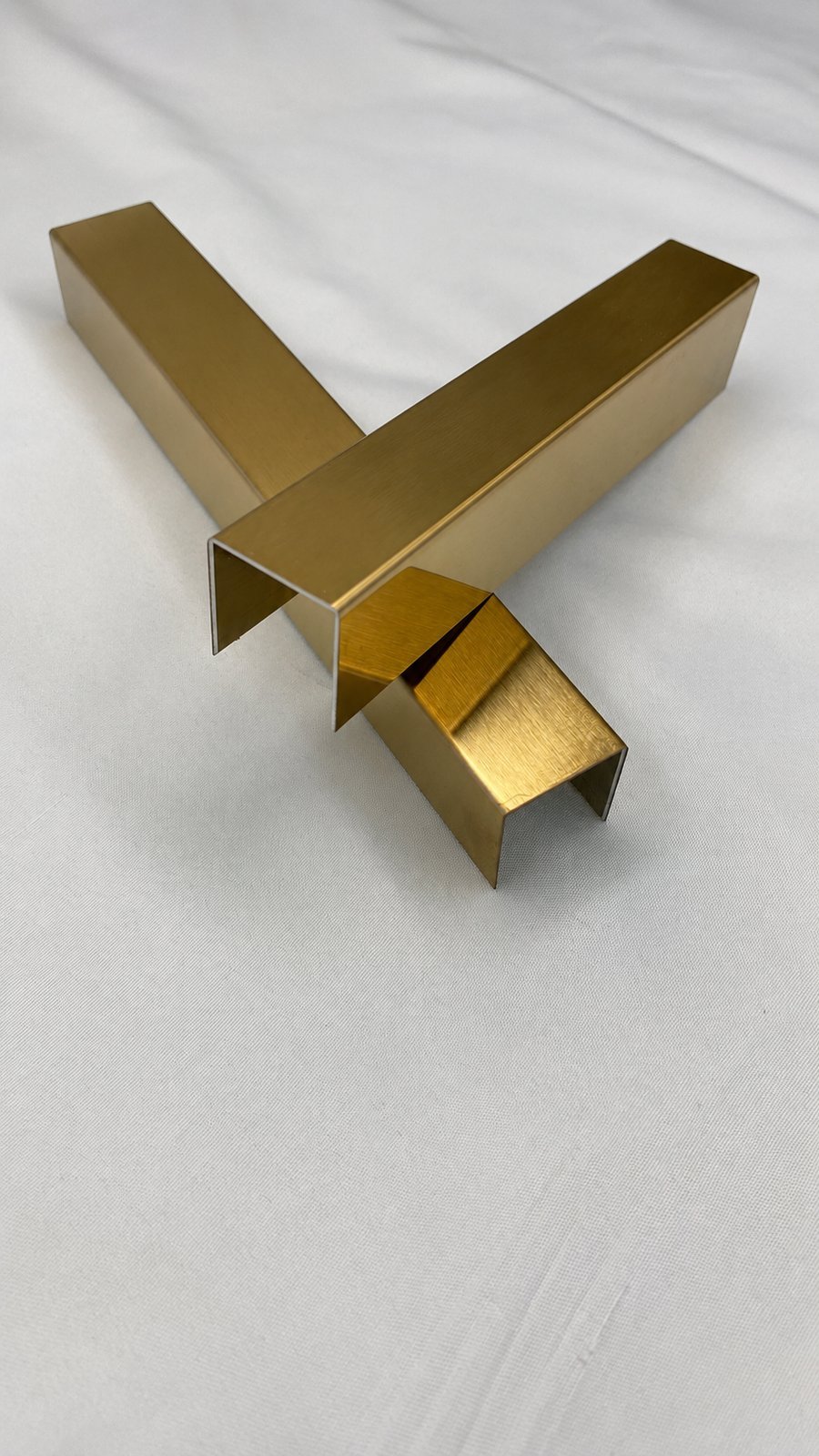

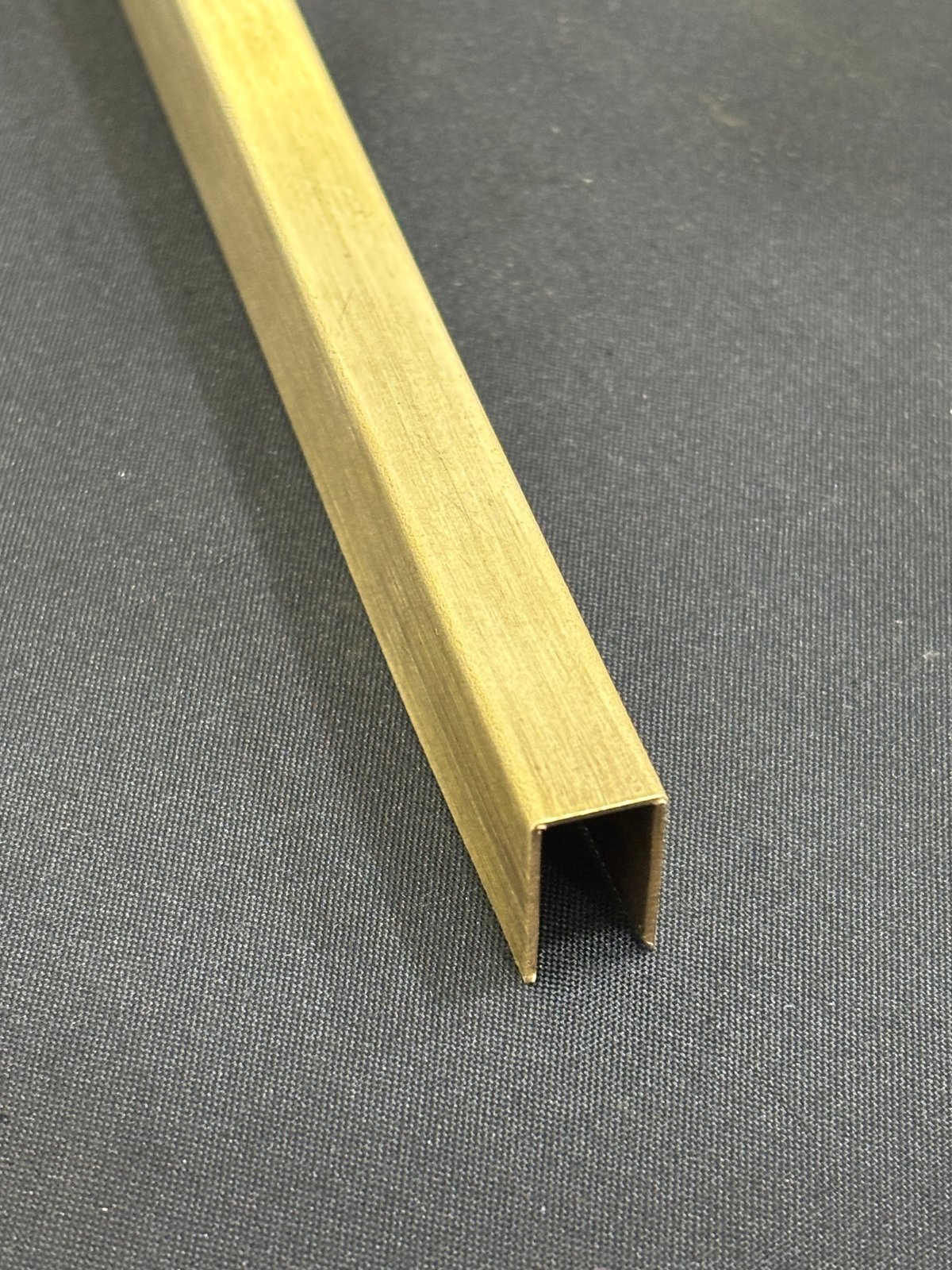

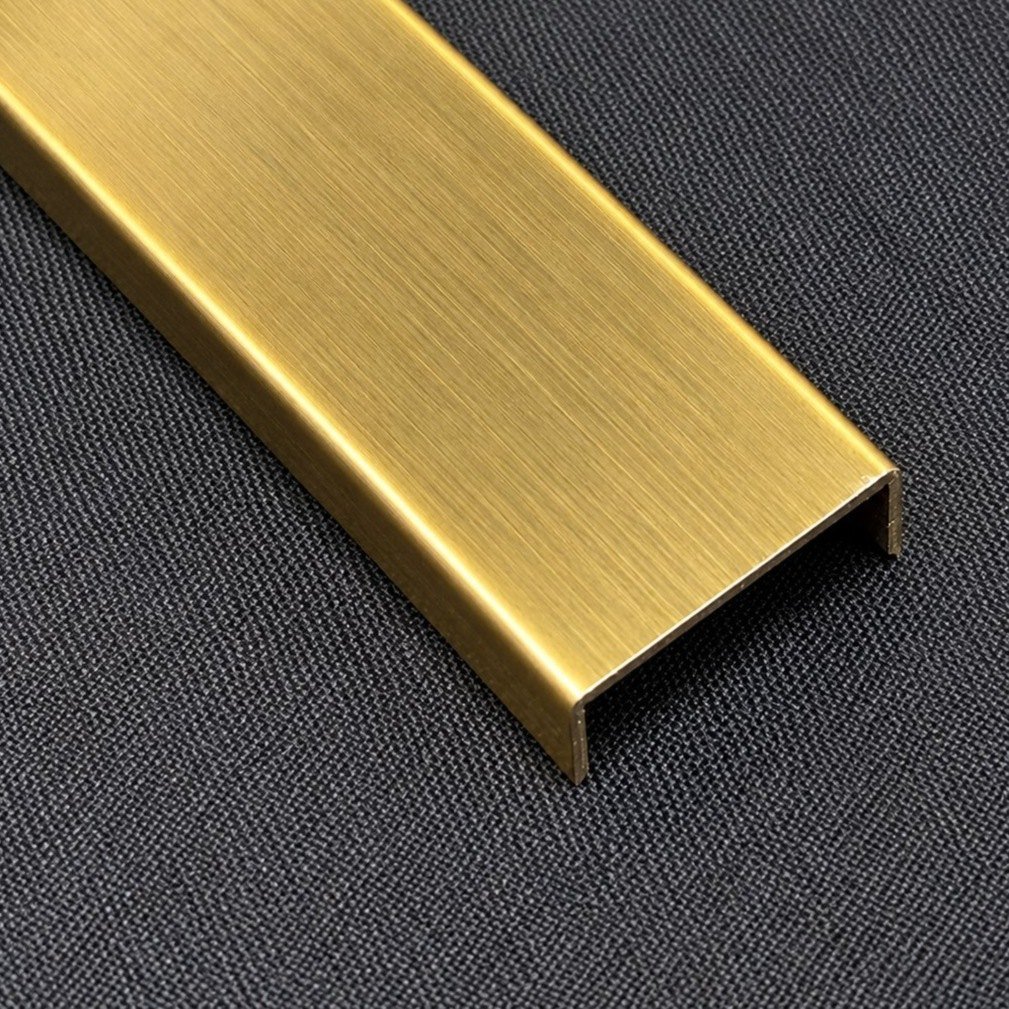

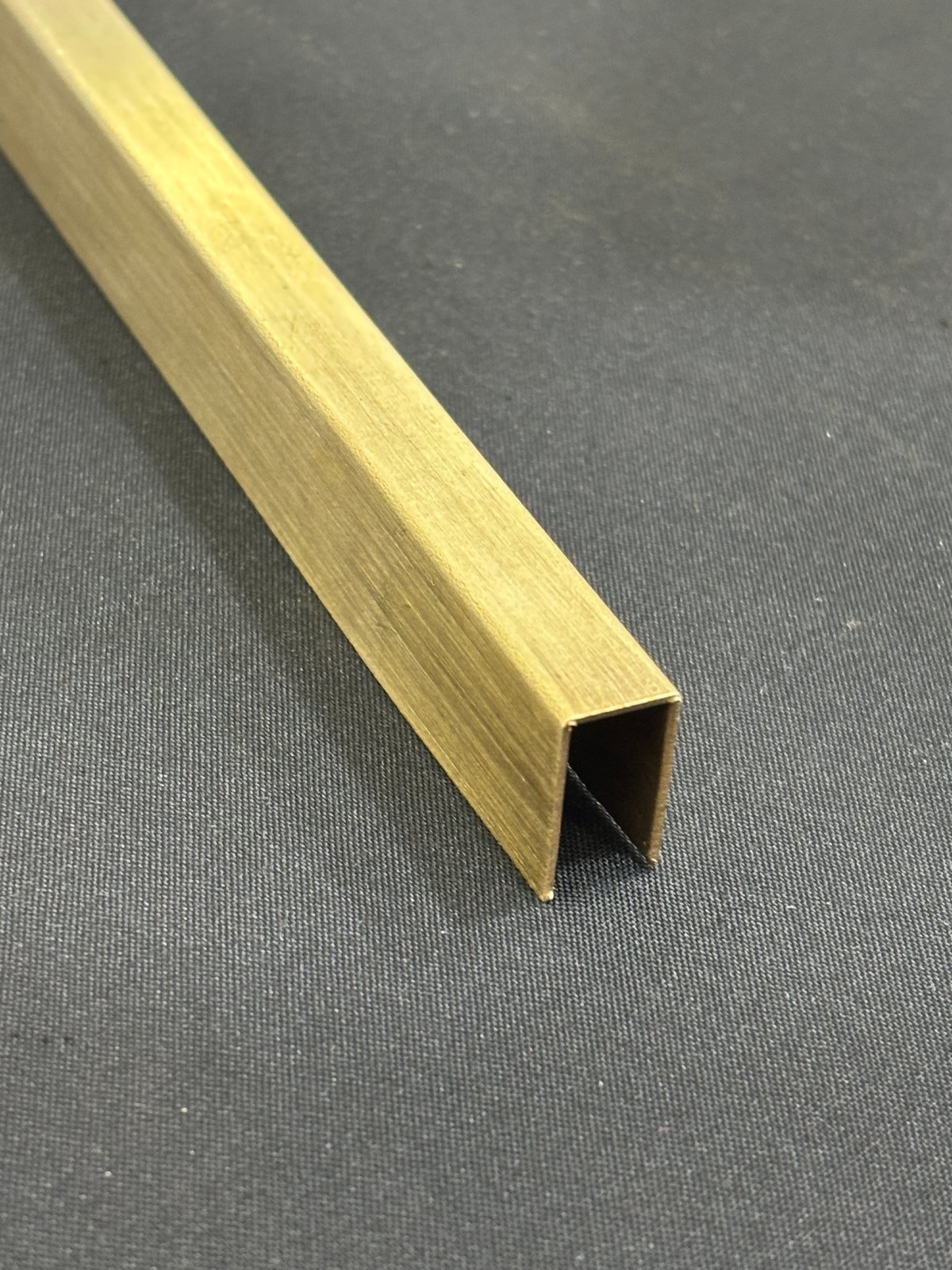

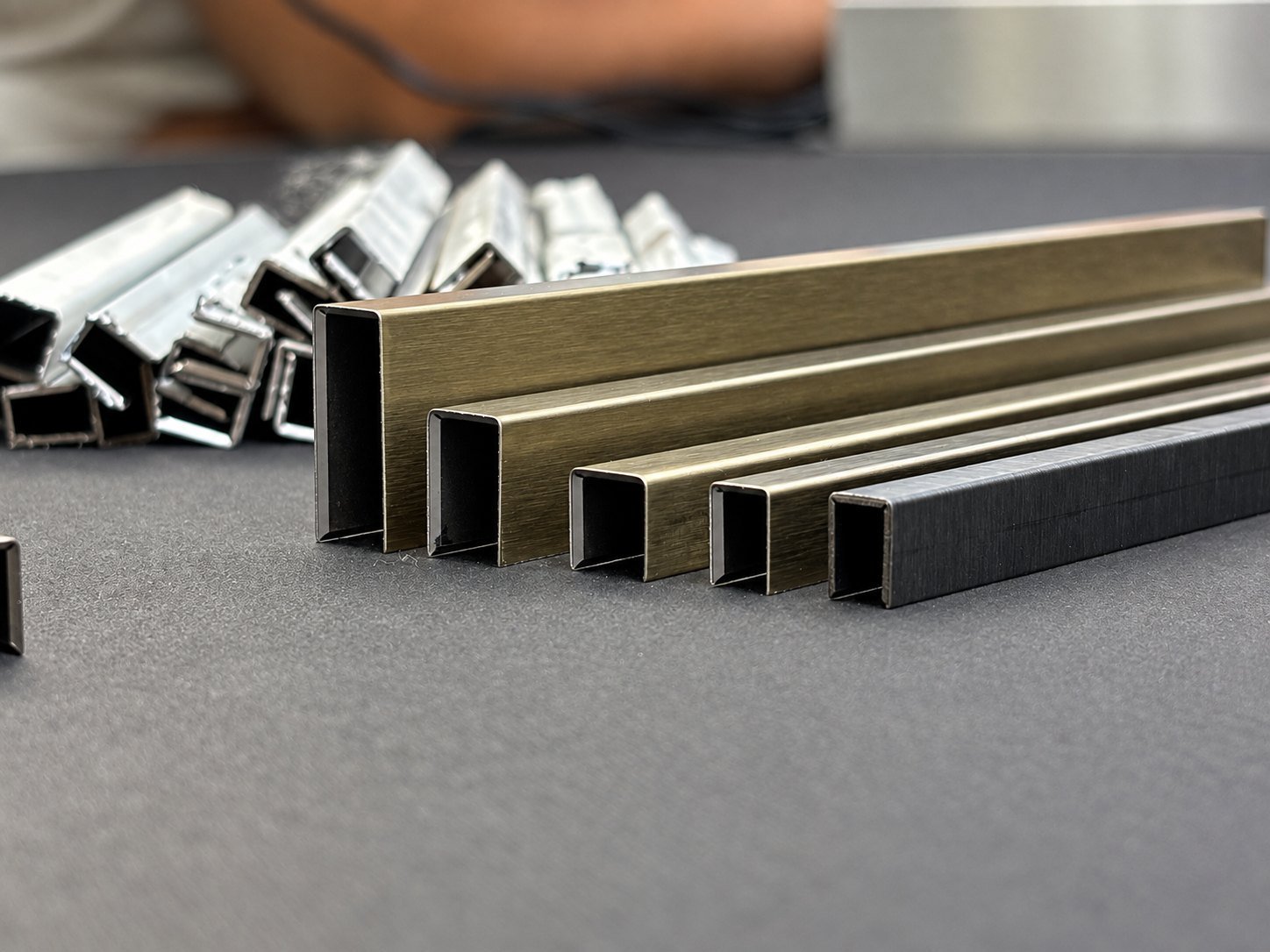

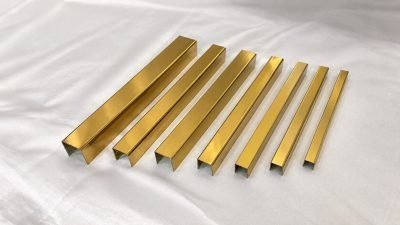

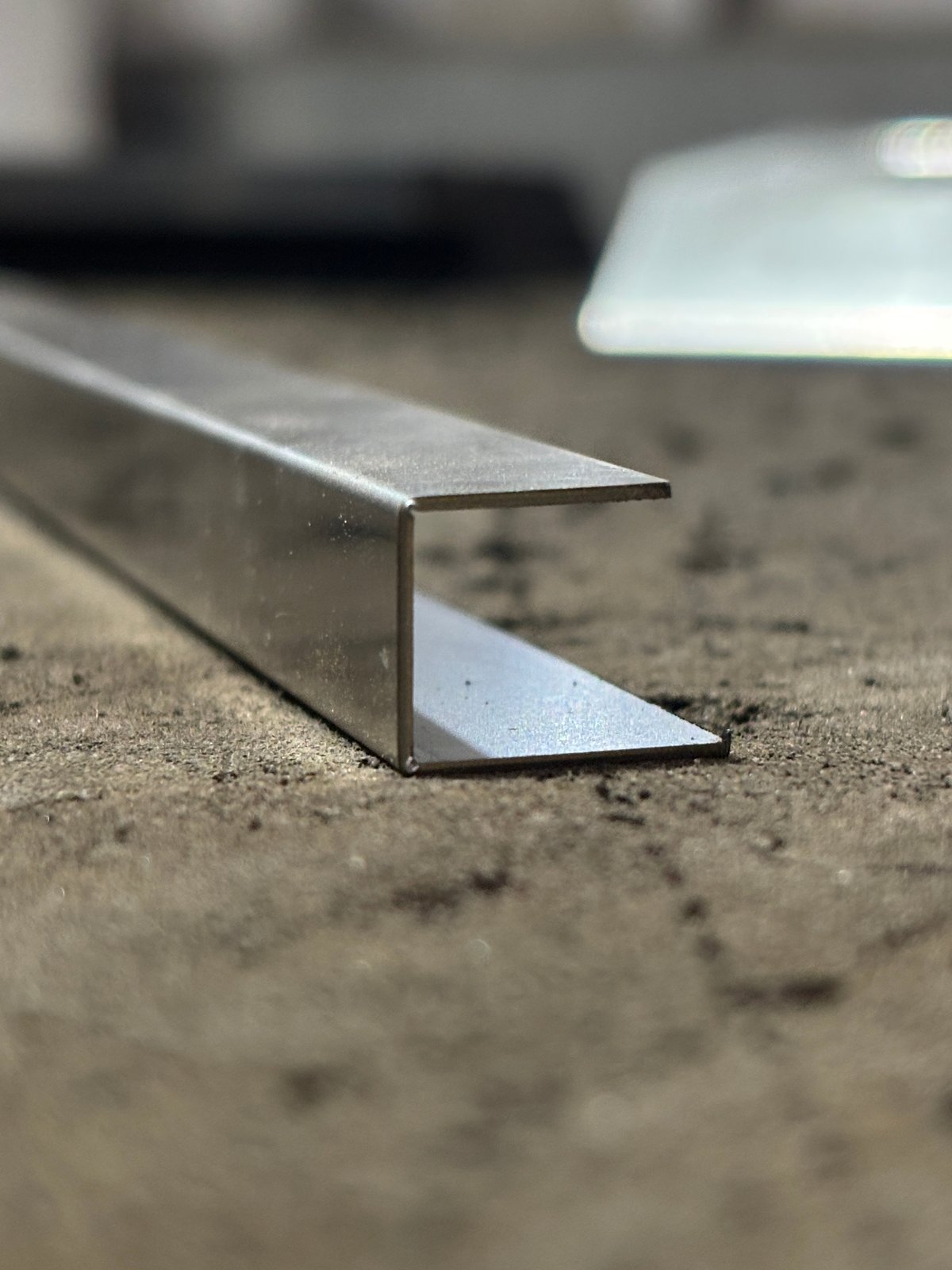

A three-sided metal channel. As a U it forms a recessed groove or caps the edge of a board. As a C, with small returns on the legs, it grips a panel or hides a cut edge.

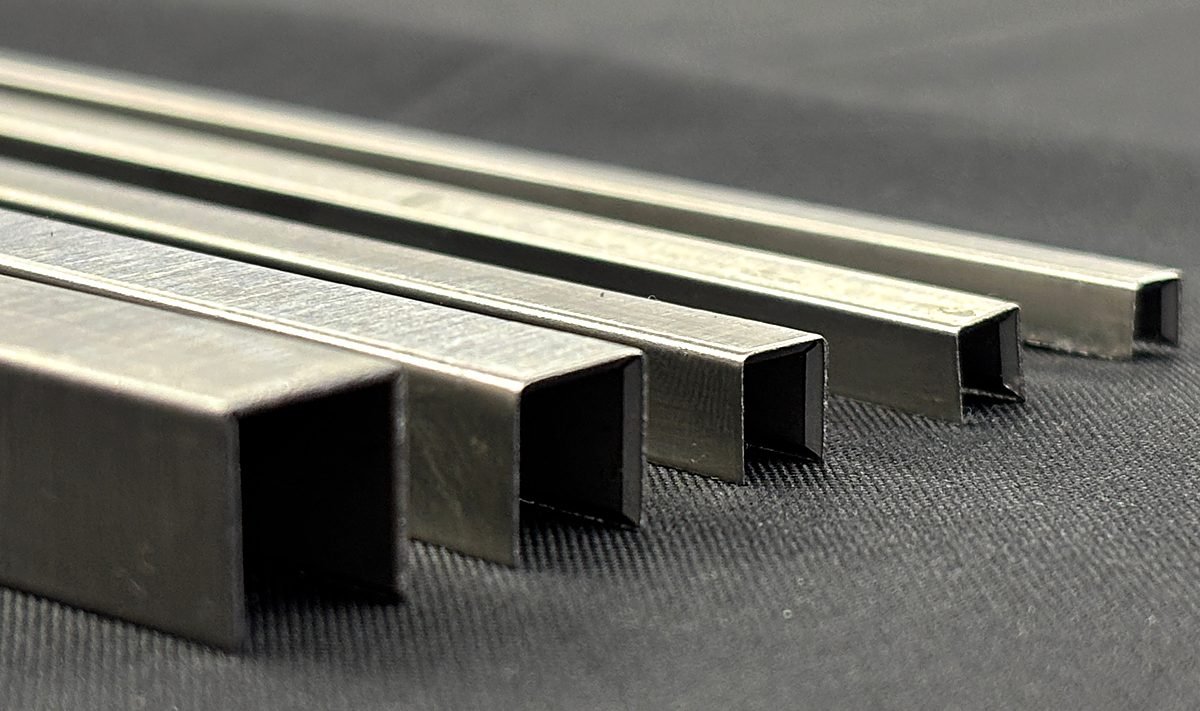

MCS V-grooves both bends, so the inside of the channel is square and the width stays the same along the whole length. Width, leg height, returns, length, metal and finish are made to your drawing, in stainless steel, brass, aluminium or mild steel.

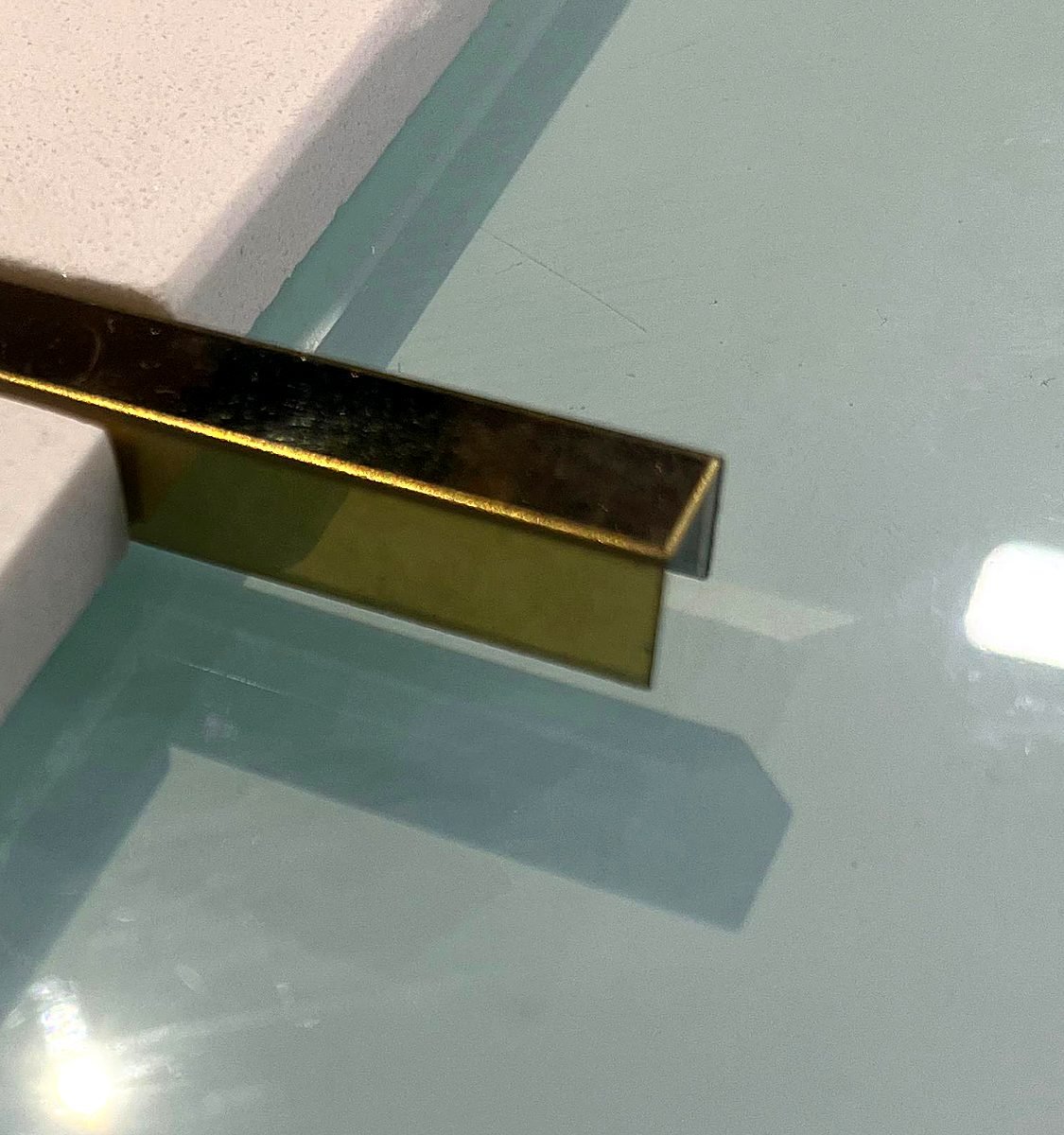

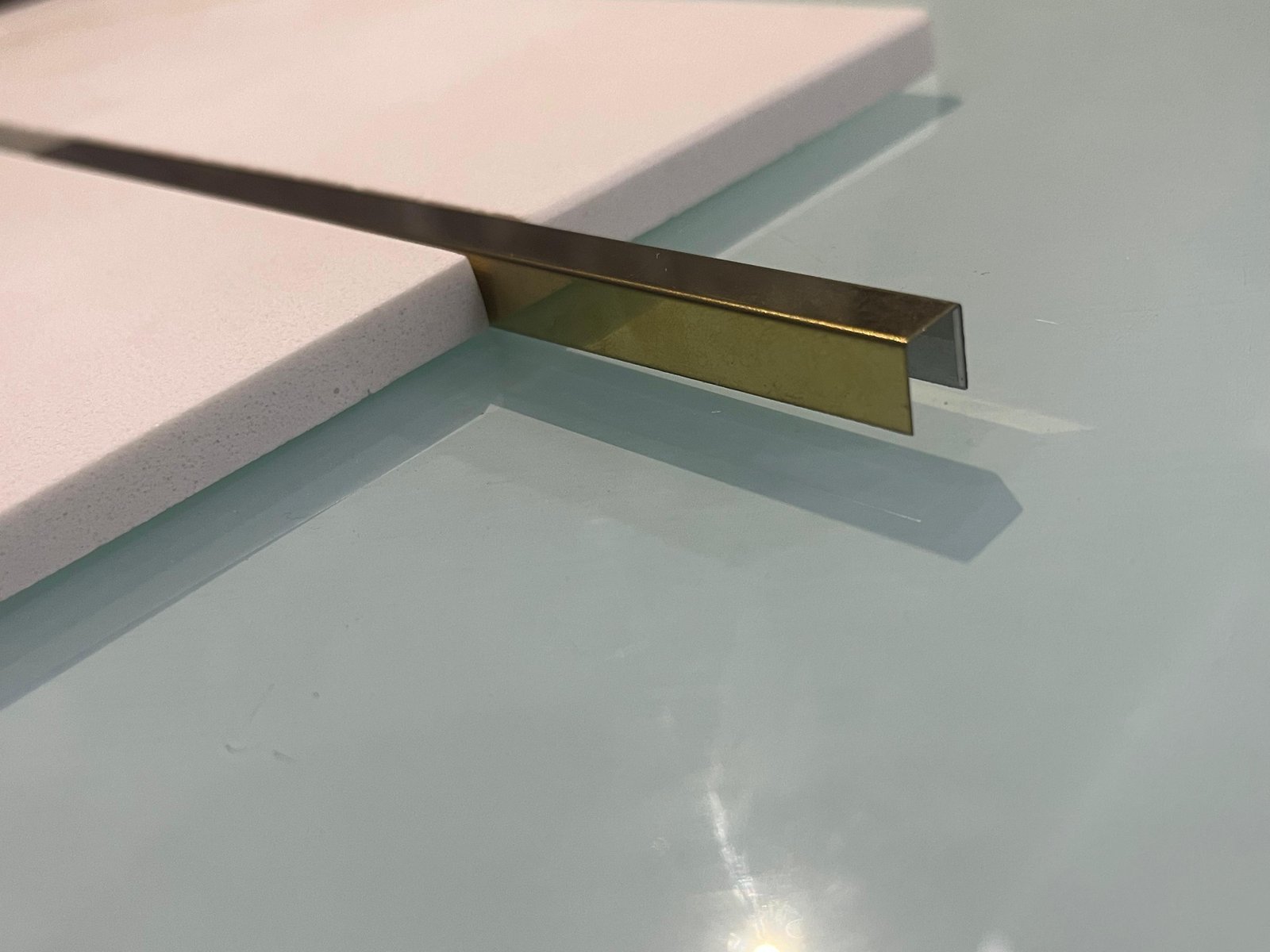

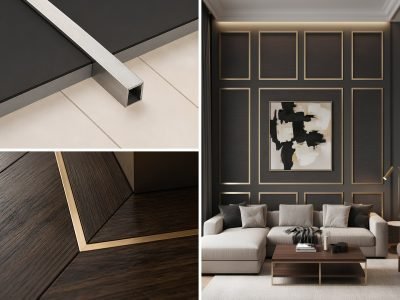

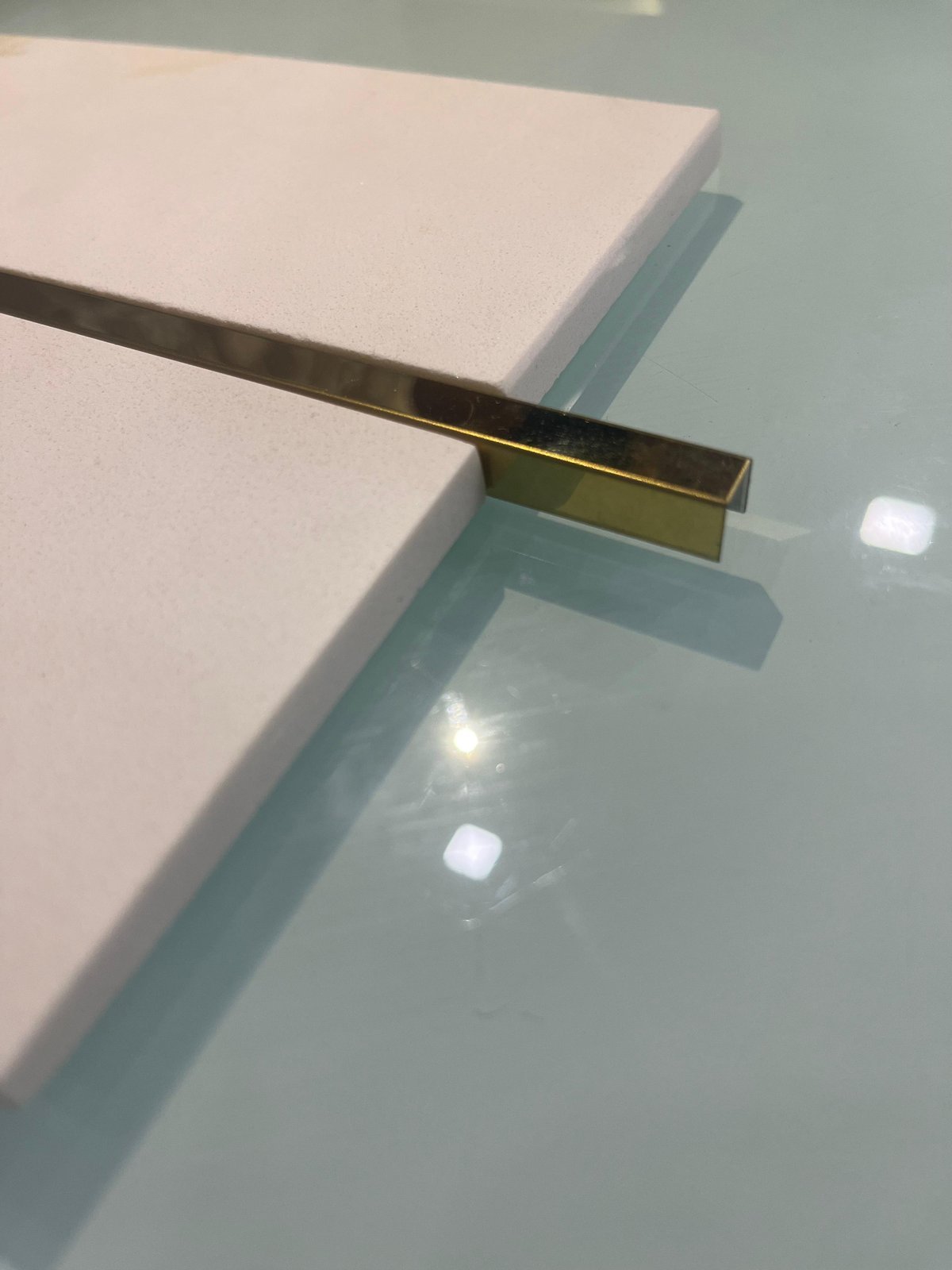

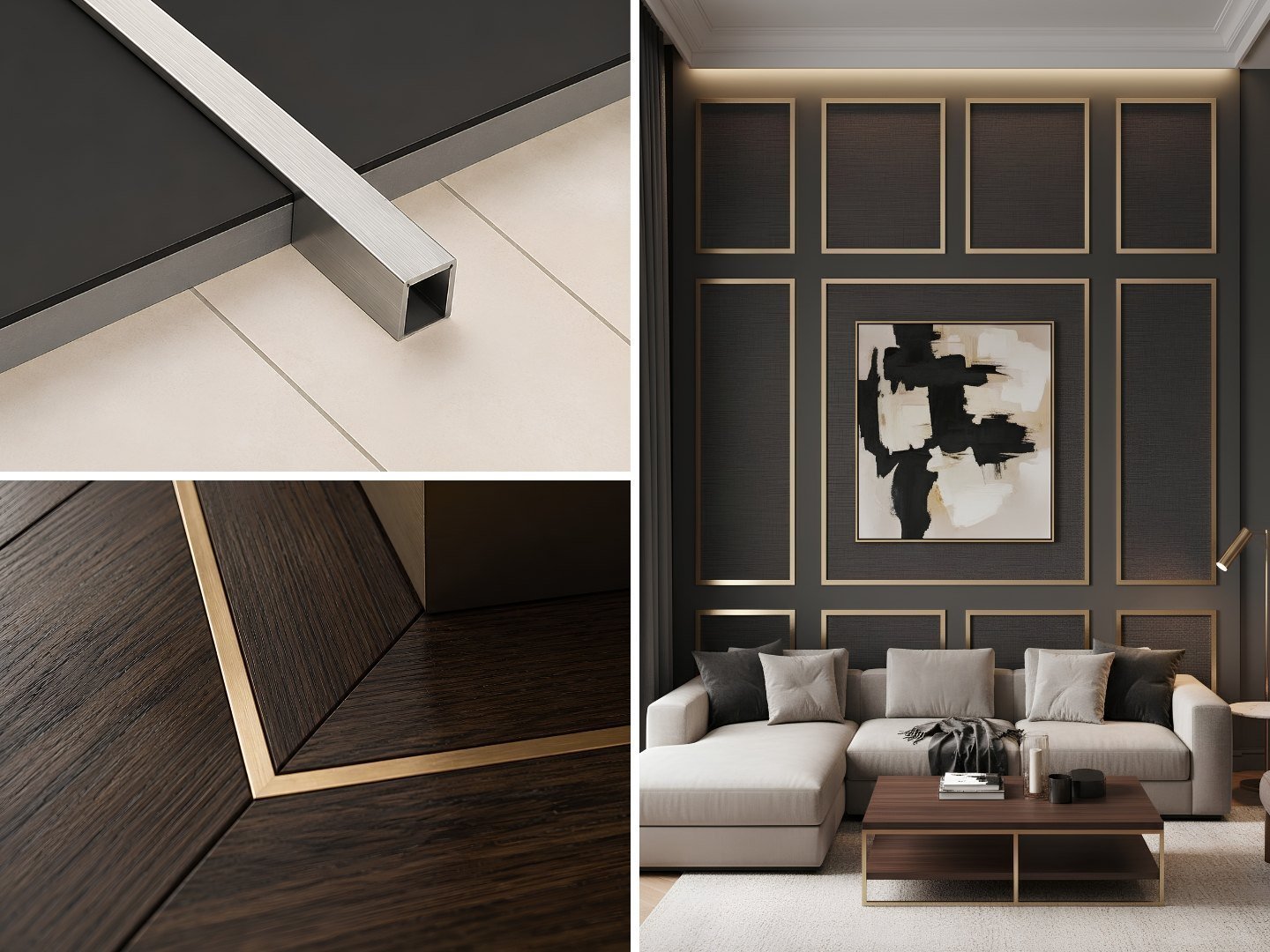

Used for: shadow gaps between wall panels, edge capping for boards and glass, inlay grooves in walls and furniture, channels for LED strip and wiring.
To quote we need: inside width, leg height, any returns, length, quantity, metal and finish.
Materials
4 availableFinish options
Applied after fabrication
Sign finishes off on physical metal — request samples.
How it is manufactured

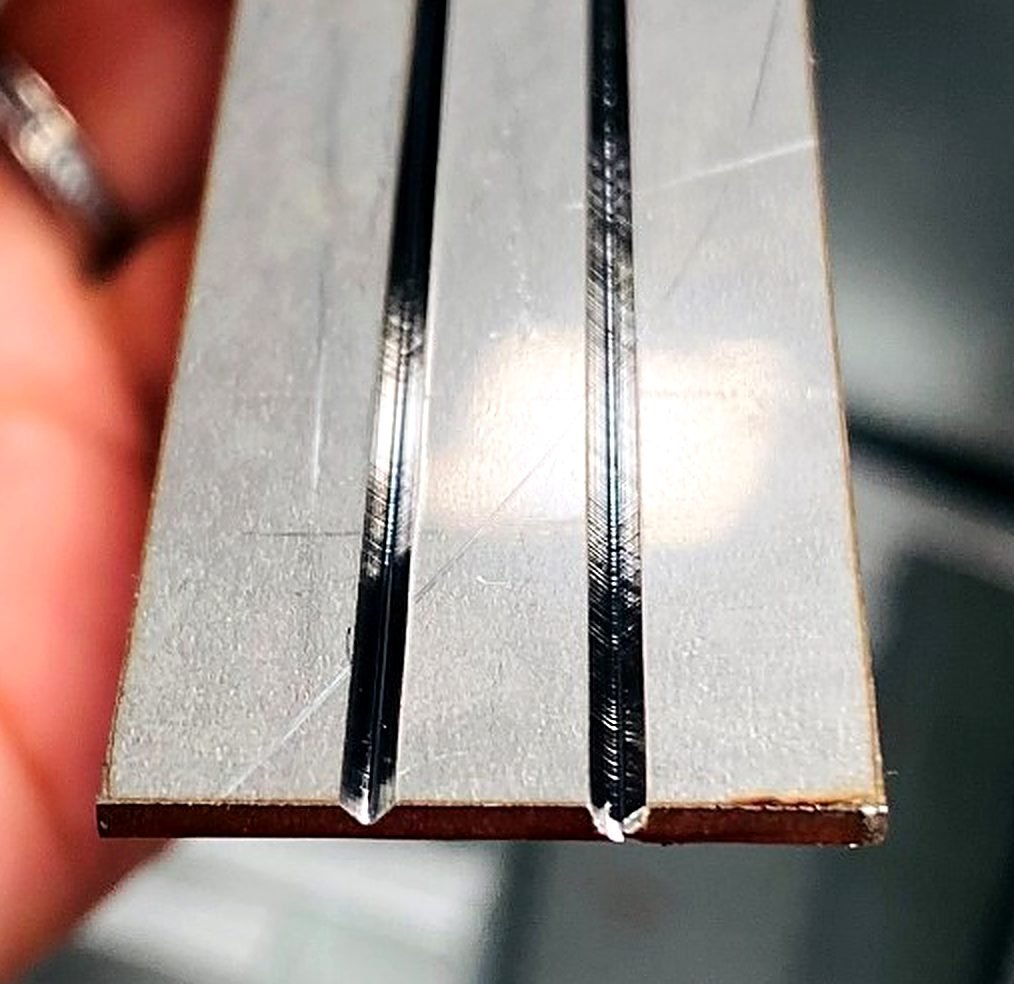

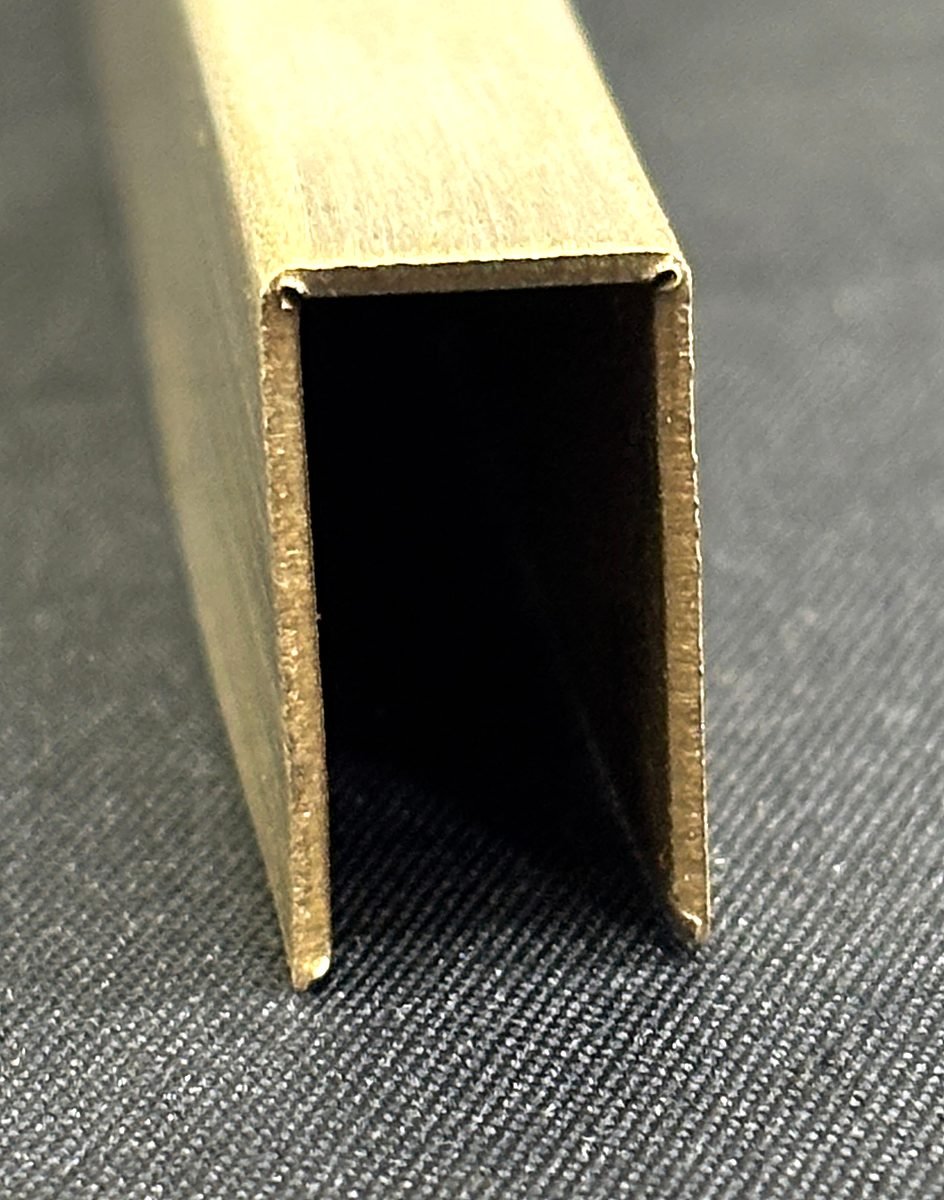

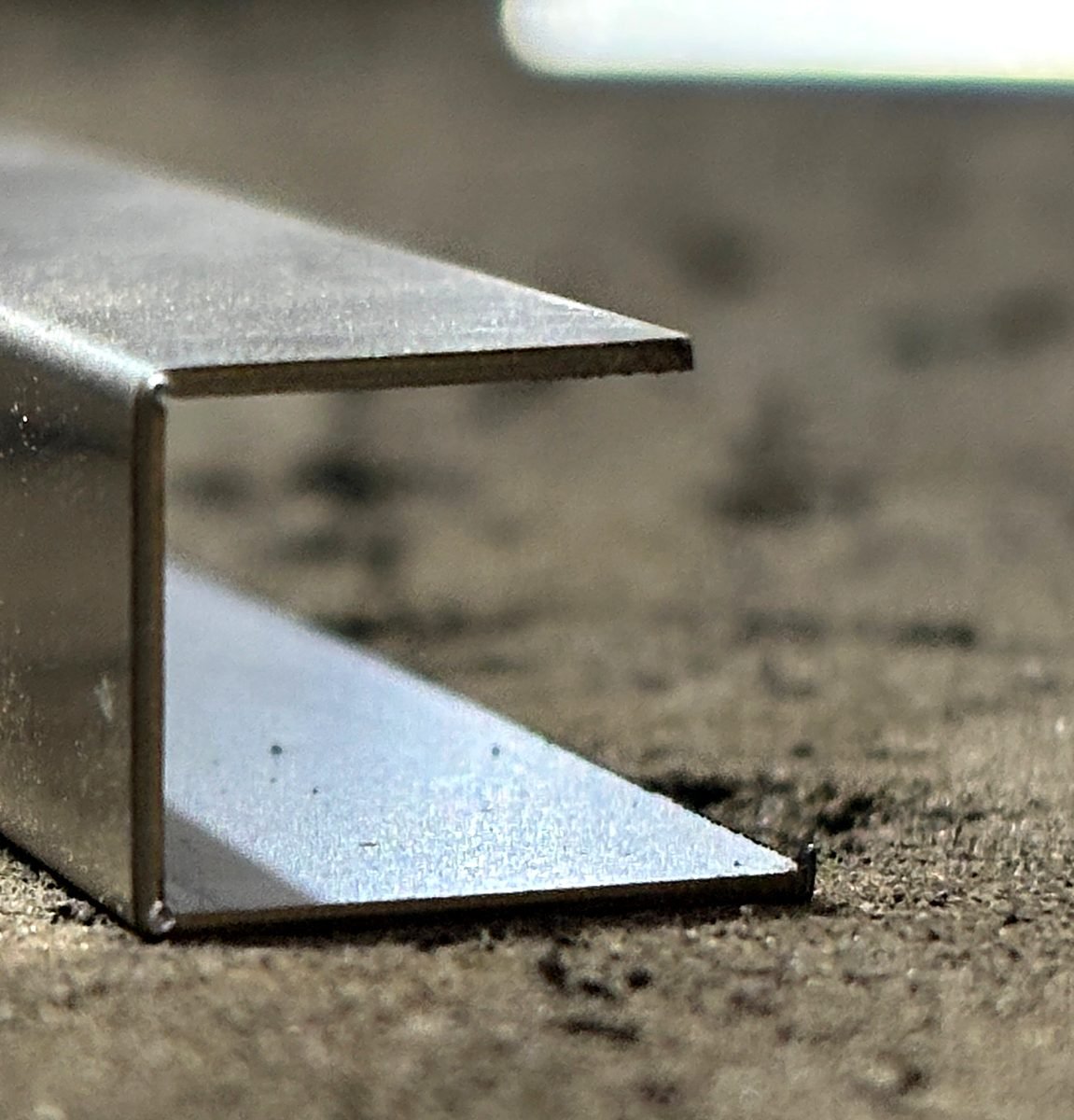

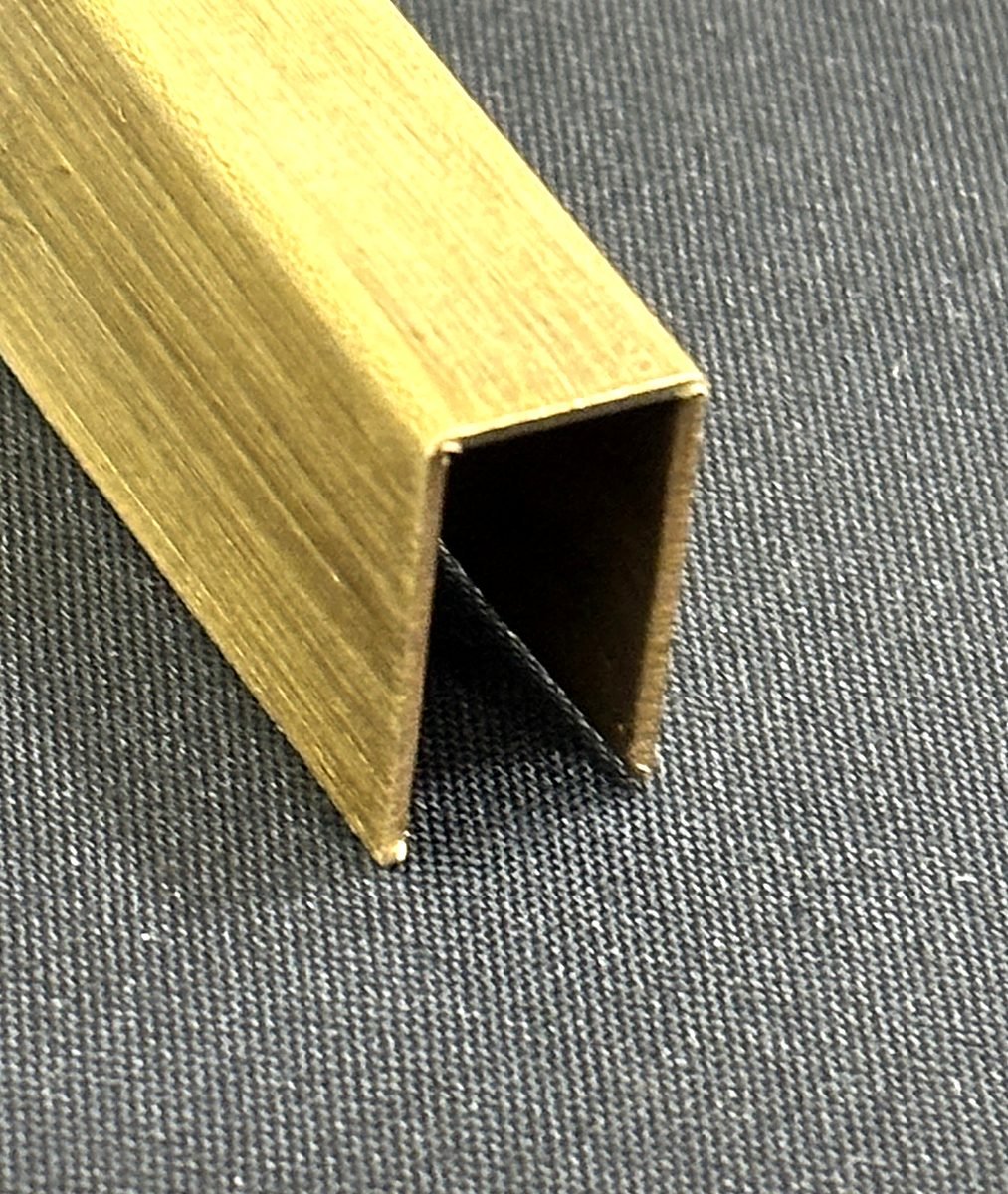

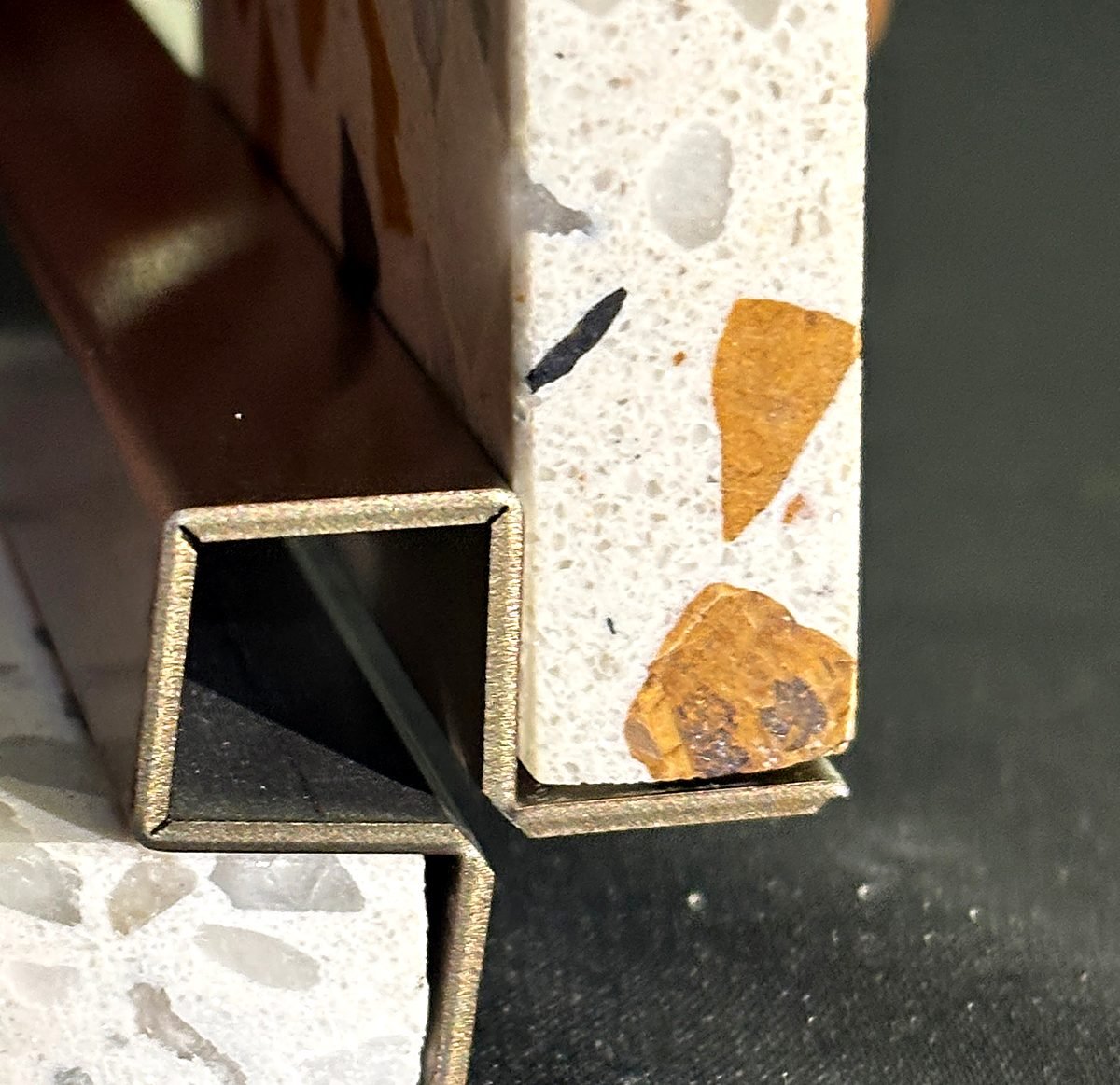

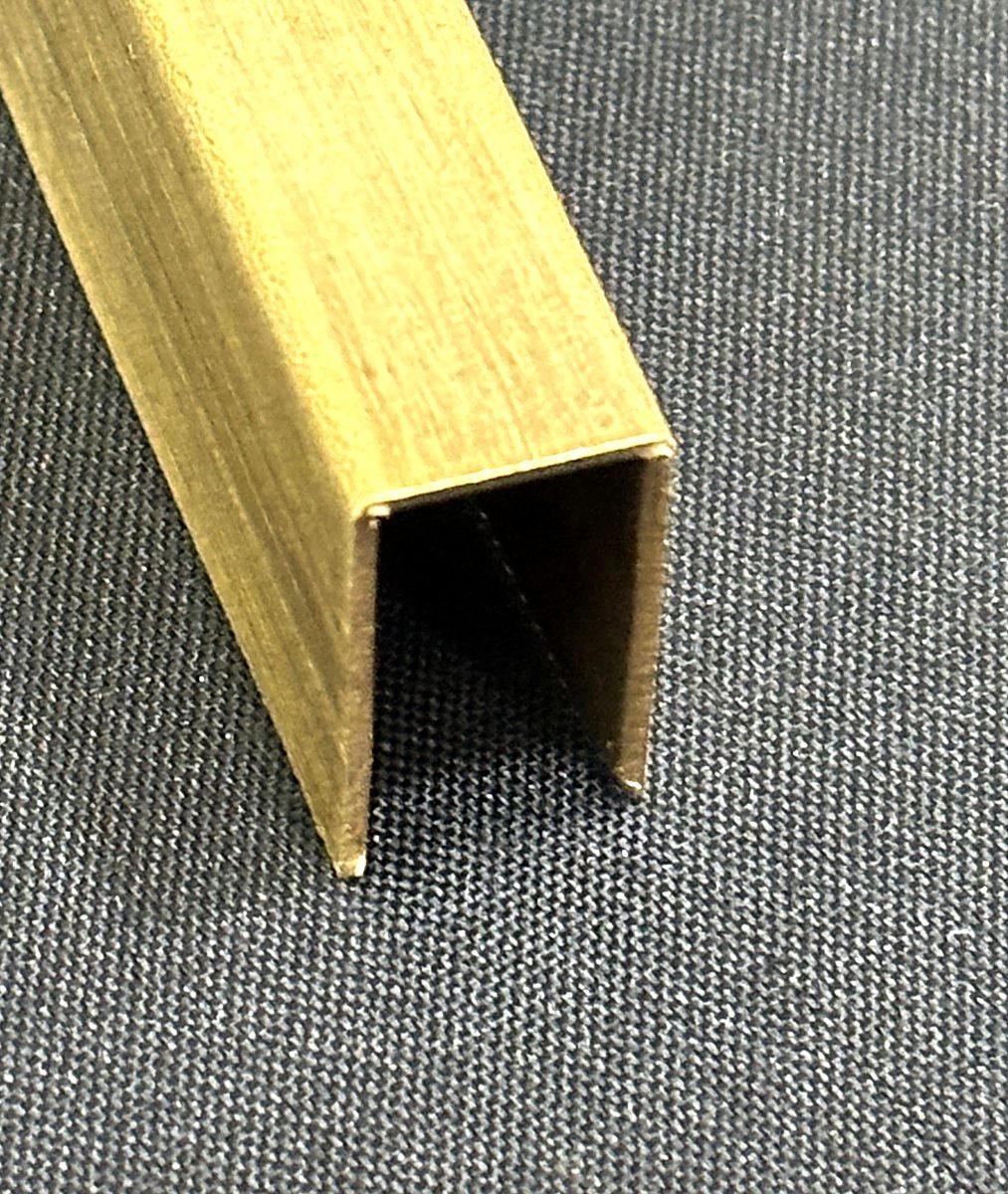

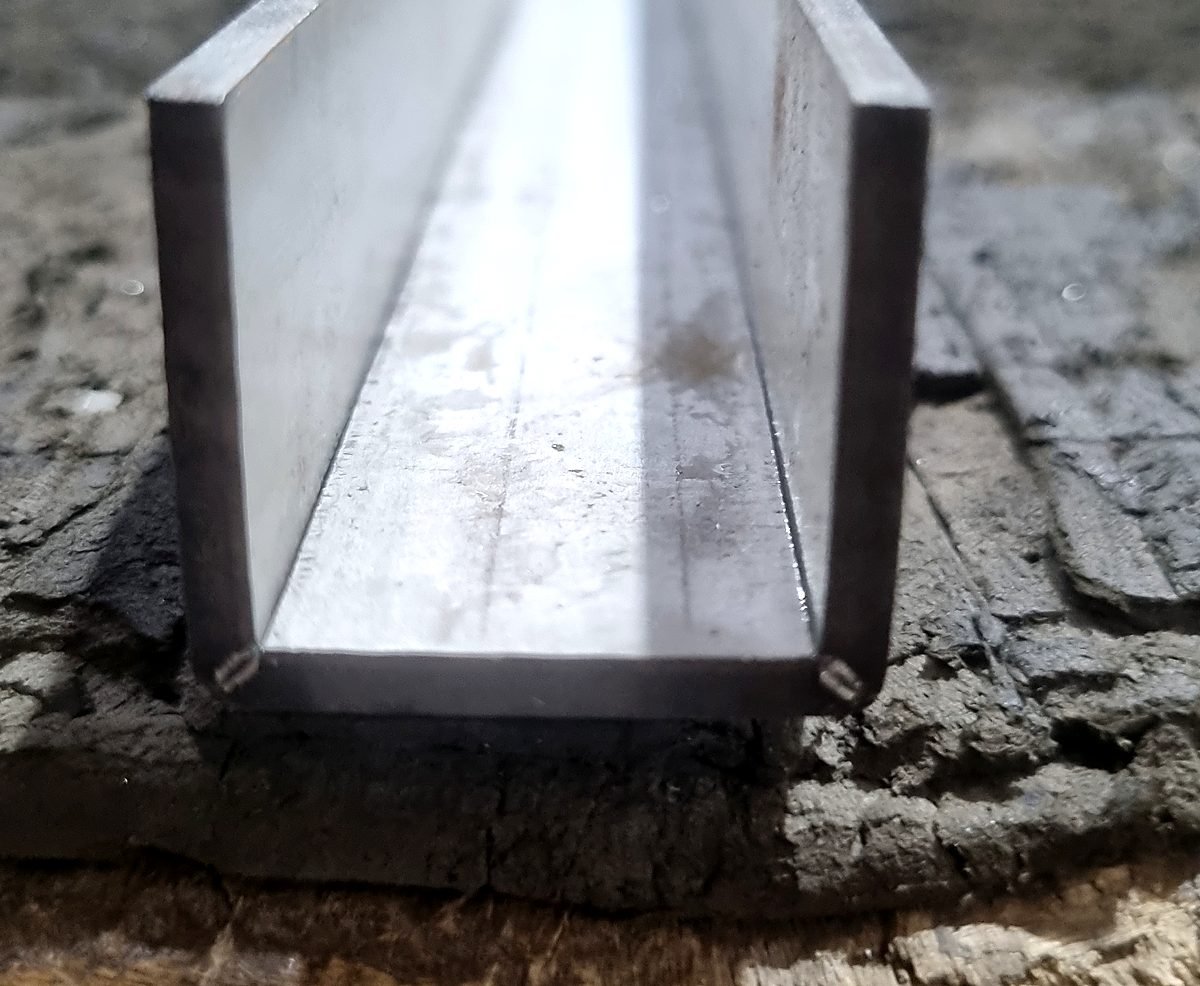

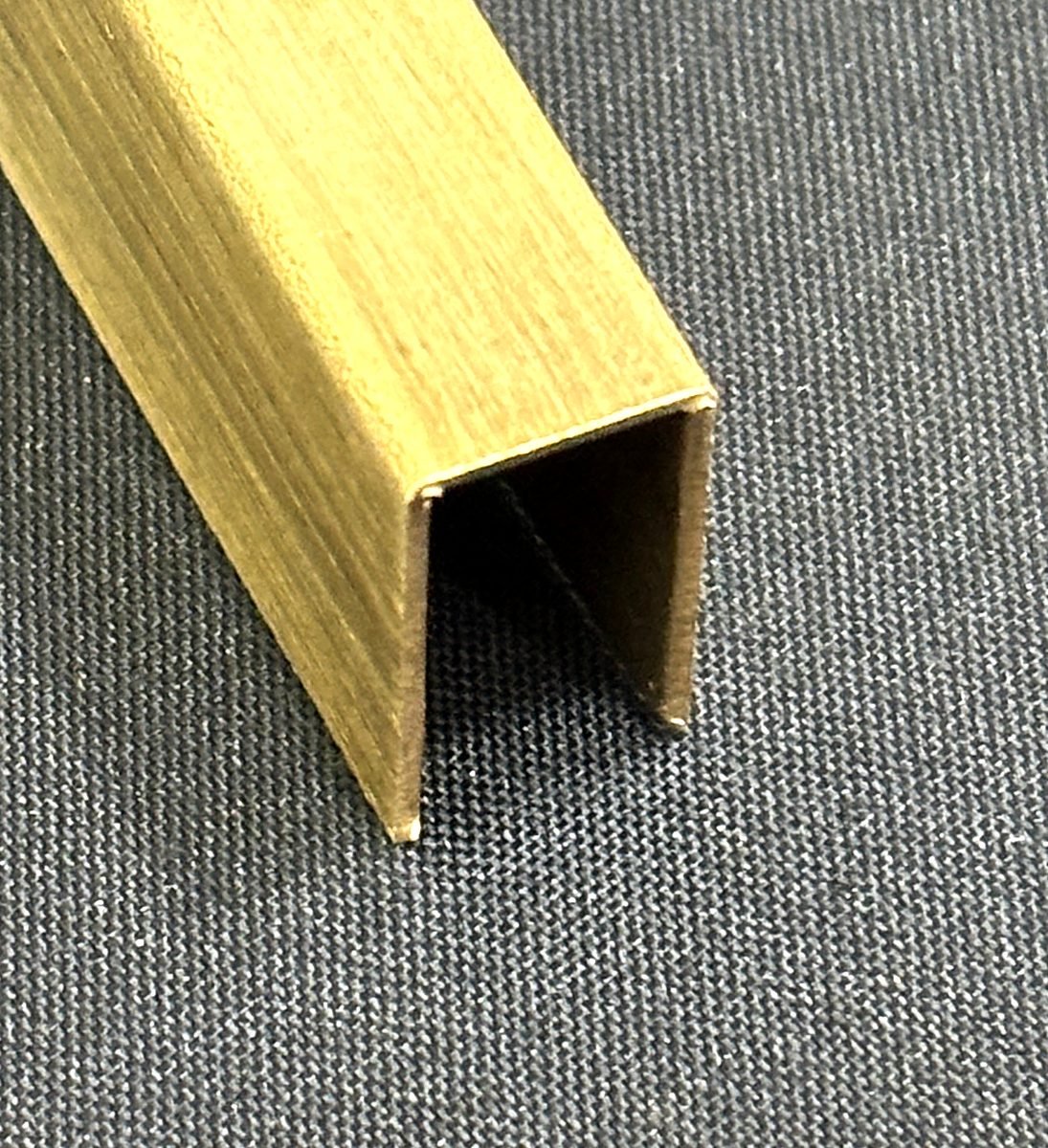

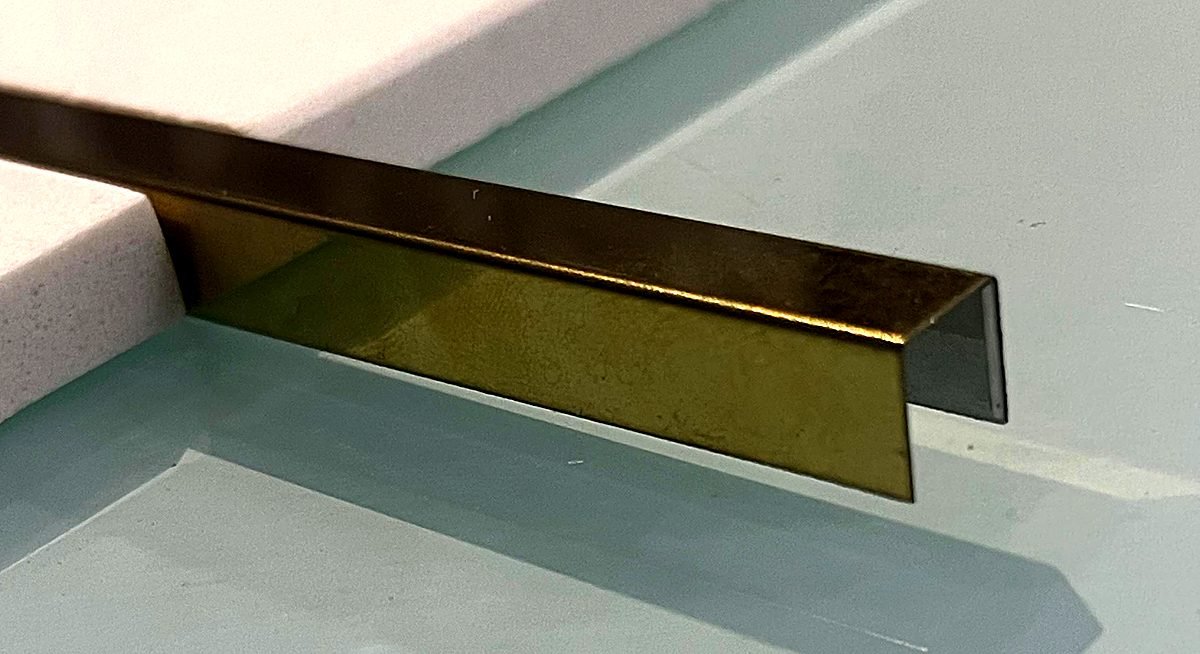

V-grooved for sharp edgesSee the edge

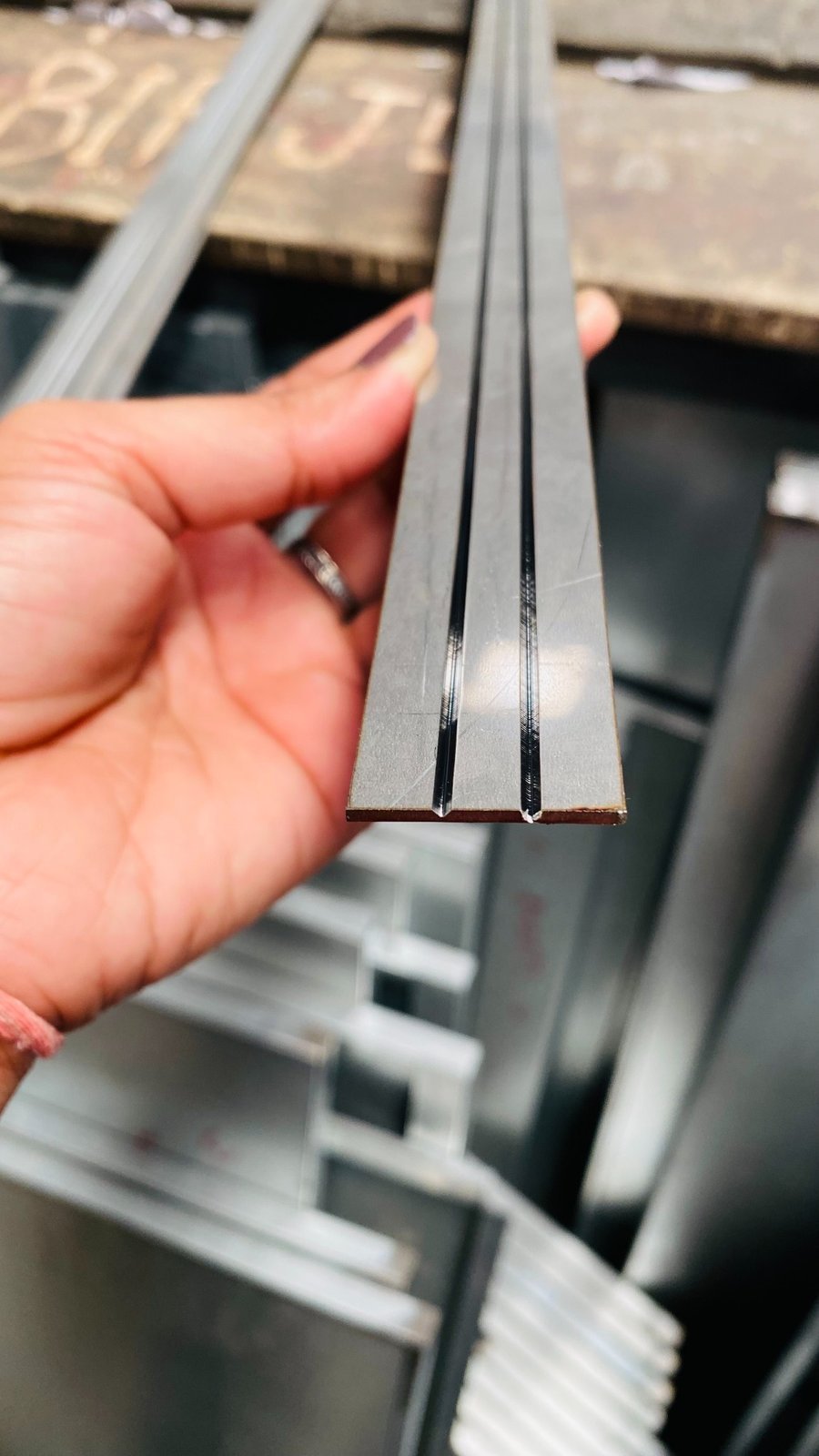

V-grooved, then bent
Enhanced close-up of our photograph: cropped, light and sharpness adjusted. The bend is not changed.
Technical information
| Material | Stainless Steel 304, Aluminium, Brass, Mild Steel |
|---|---|
| Product code | MCS-PRF-003 |
| Environment | Interior and exterior |
| Supply | Standard section, cut to length |
| Sheet thickness | 0.25 - 3.8 mm (project-specific) |

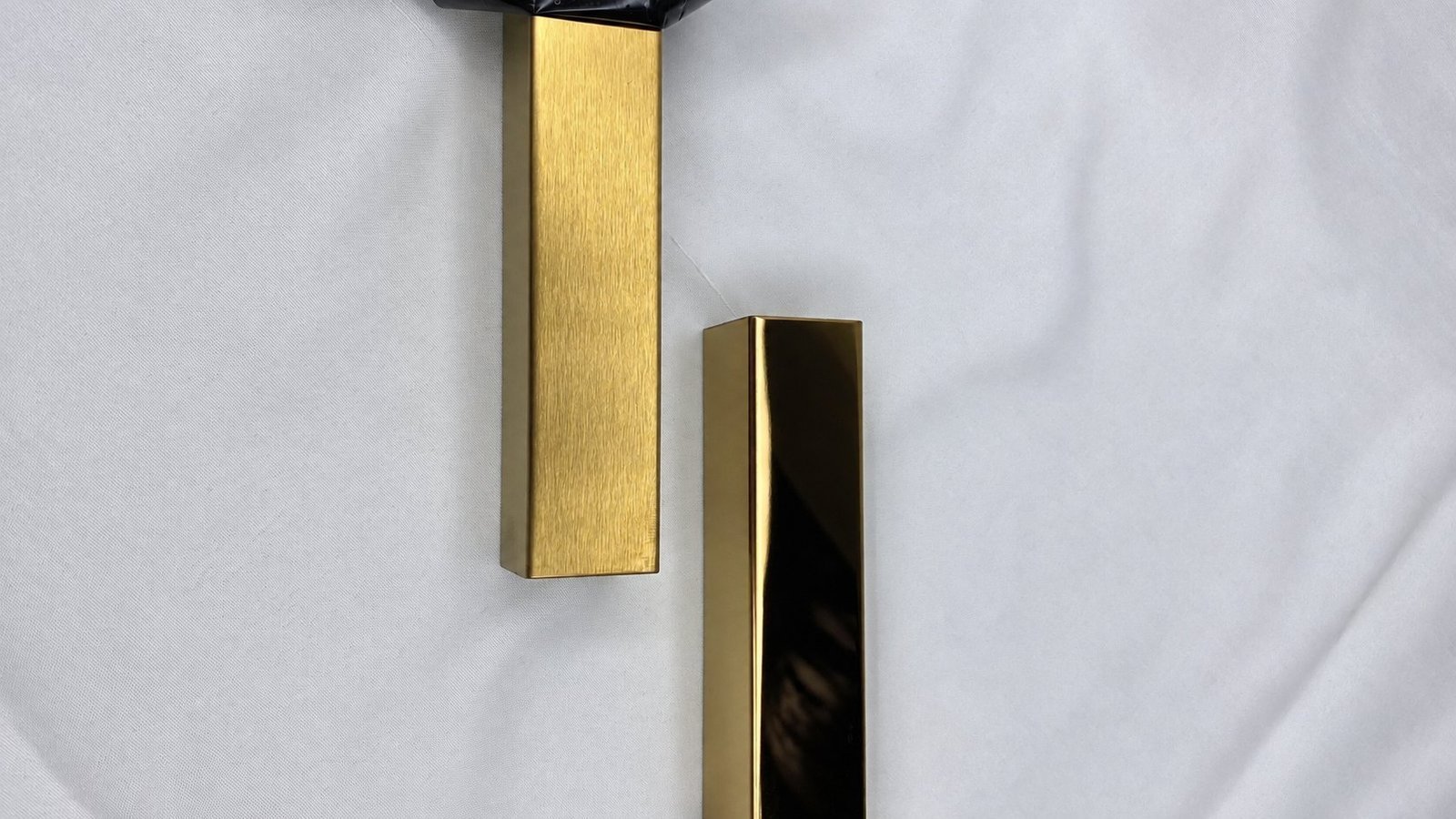

| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed |
| Manufacturing | CNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →
Applications
Downloads
Watch the films
Architectural Profiles & TrimsMetal Wall Edge Profiles for Corner ProtectionMetal wall edge profiles that cover exposed wall edges and protect the corners.
Architectural Profiles & TrimsWall Highlighter Trims | Stainless Steel Decorative Wall ProfilesStainless steel highlighter trims that draw clean accent lines between wall finishes and panels.
Architectural Profiles & TrimsQuality you can see | Sharp V-grooved cornersClose-ups from the workshop: sharp V-grooved corners, straight grid lines, square joints, clean frame corners and flat finished faces.
Related products
All Architectural Profiles & Trims
Start a project
Need parts like
U & C Profile?
Send the drawing, the metal, the finish and the quantity. MCS returns a fabrication review before a price.
