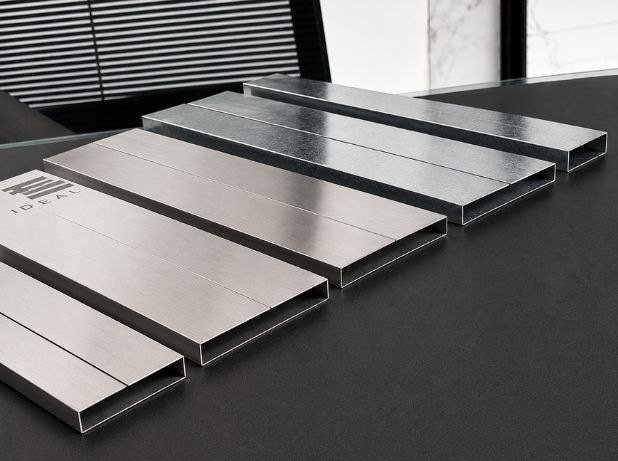

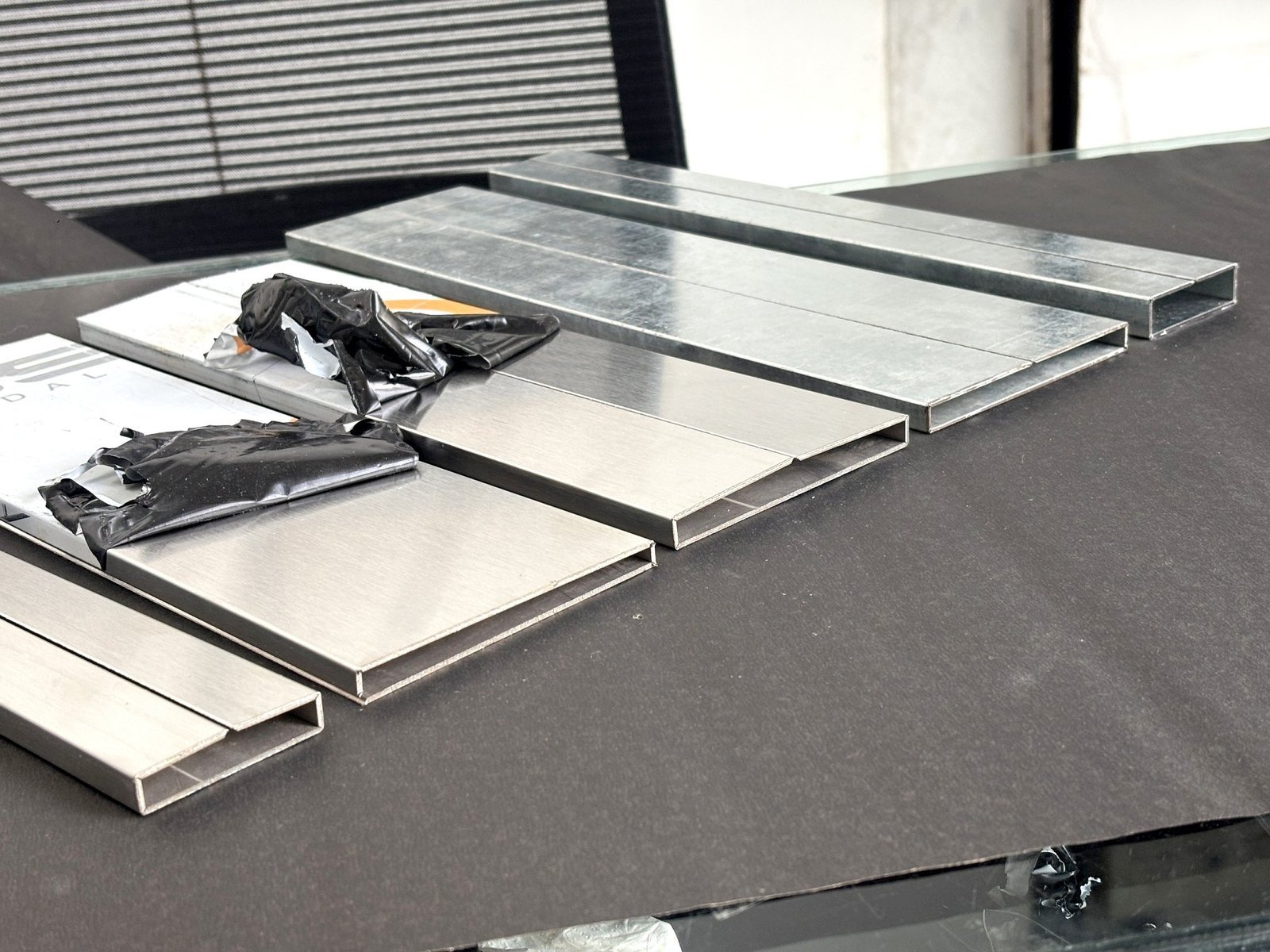

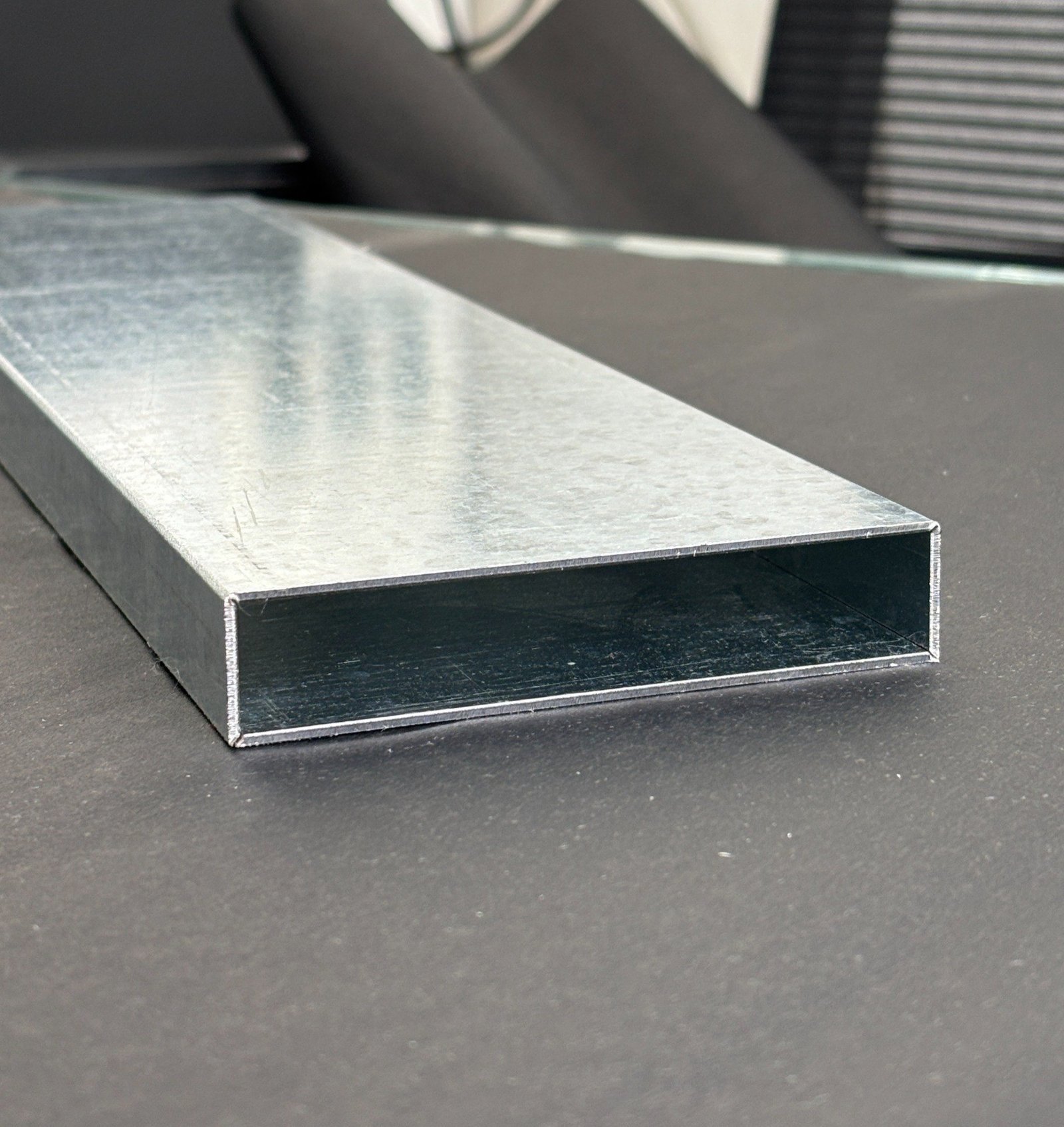

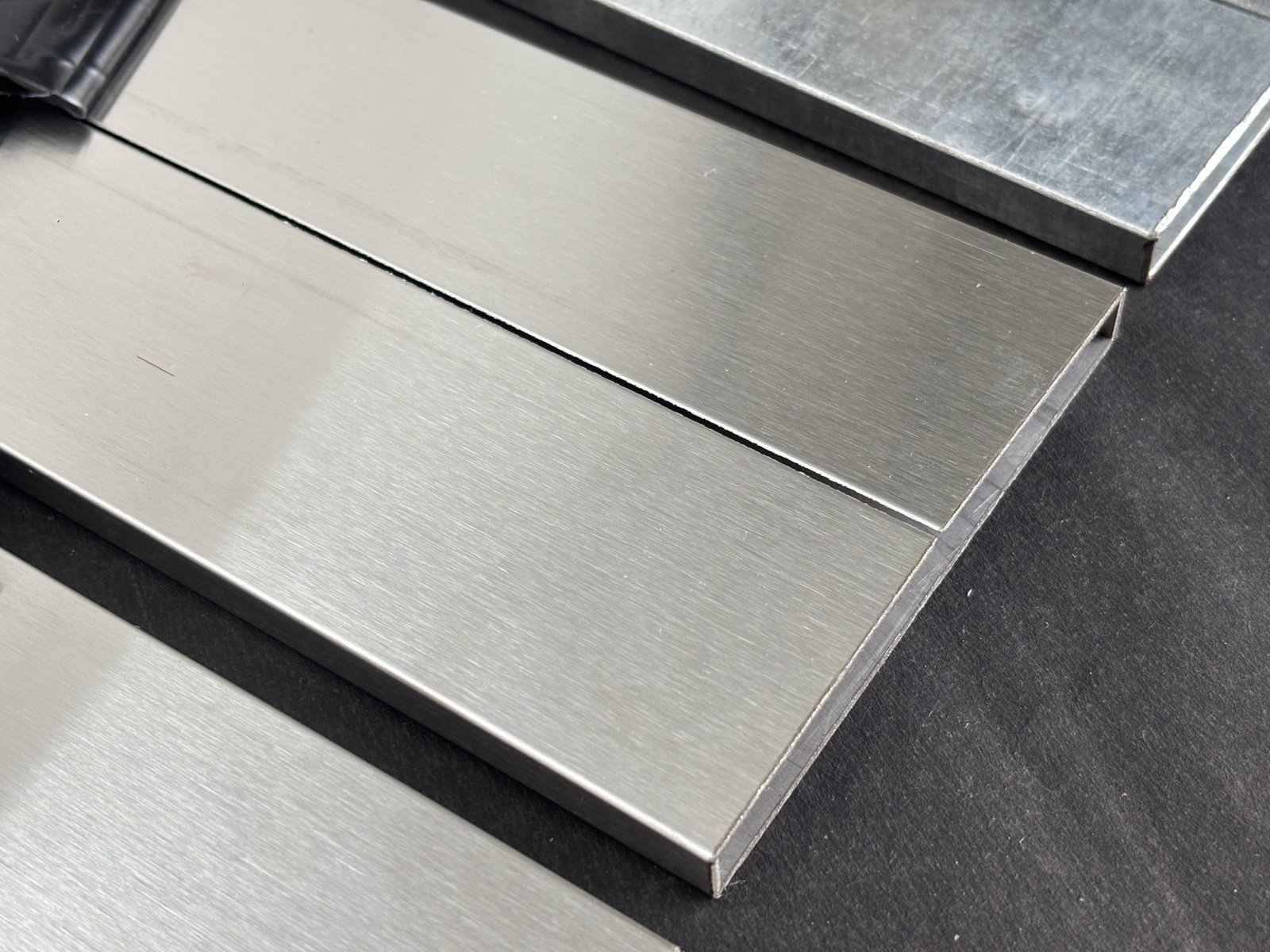

Rectangular stainless steel pipe profiles folded from sheet, laid out on a table
Architectural Profiles & Trims · Custom Profiles
Square & Rectangular Pipe Profile
Square and rectangular hollow sections folded from sheet, with sharp corners, in sizes that stock pipe does not come in.
An example of our job work. We make your version to your drawing: your metal, sizes, quantity and finish. Send your drawing →
Overview

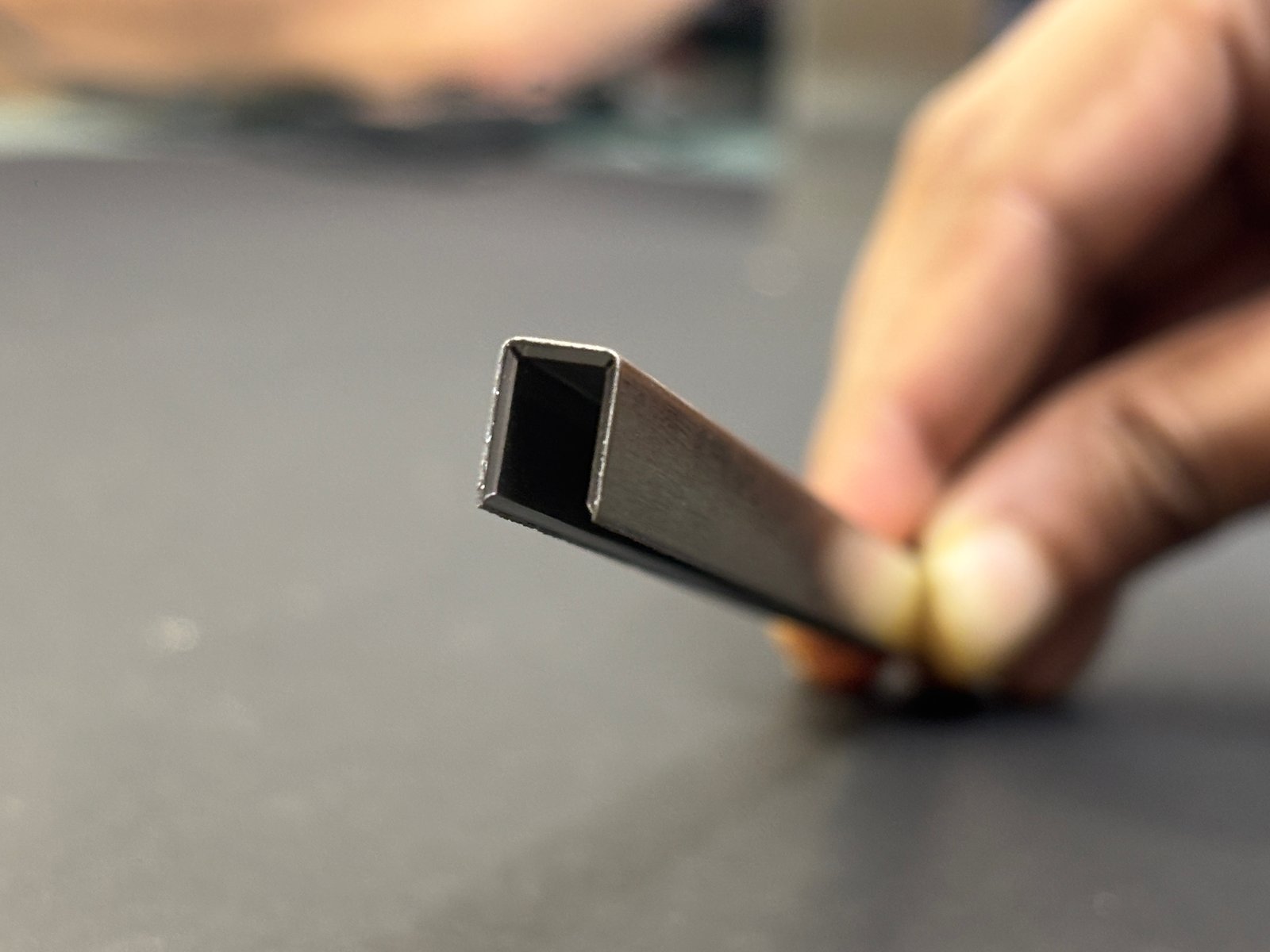

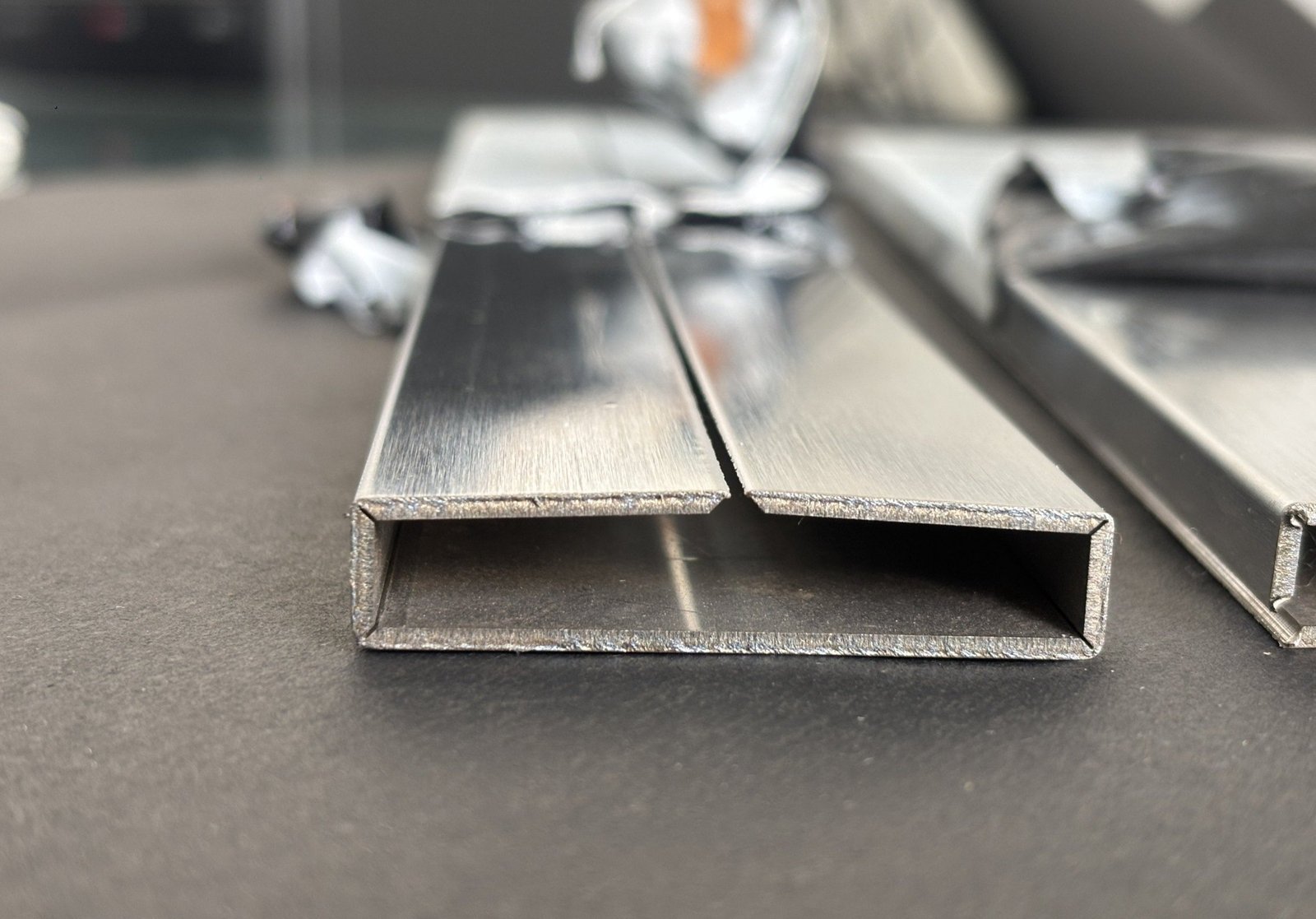

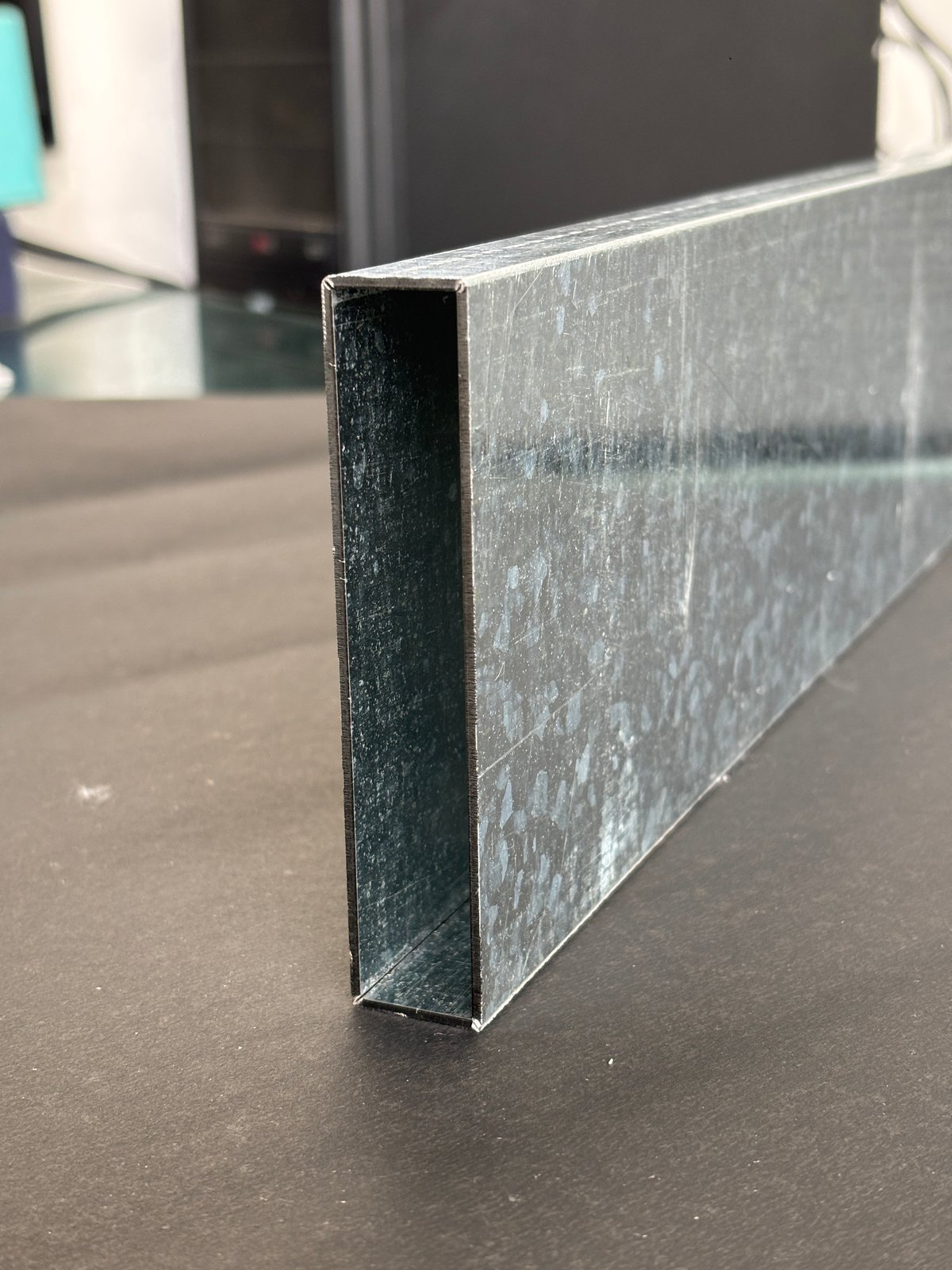

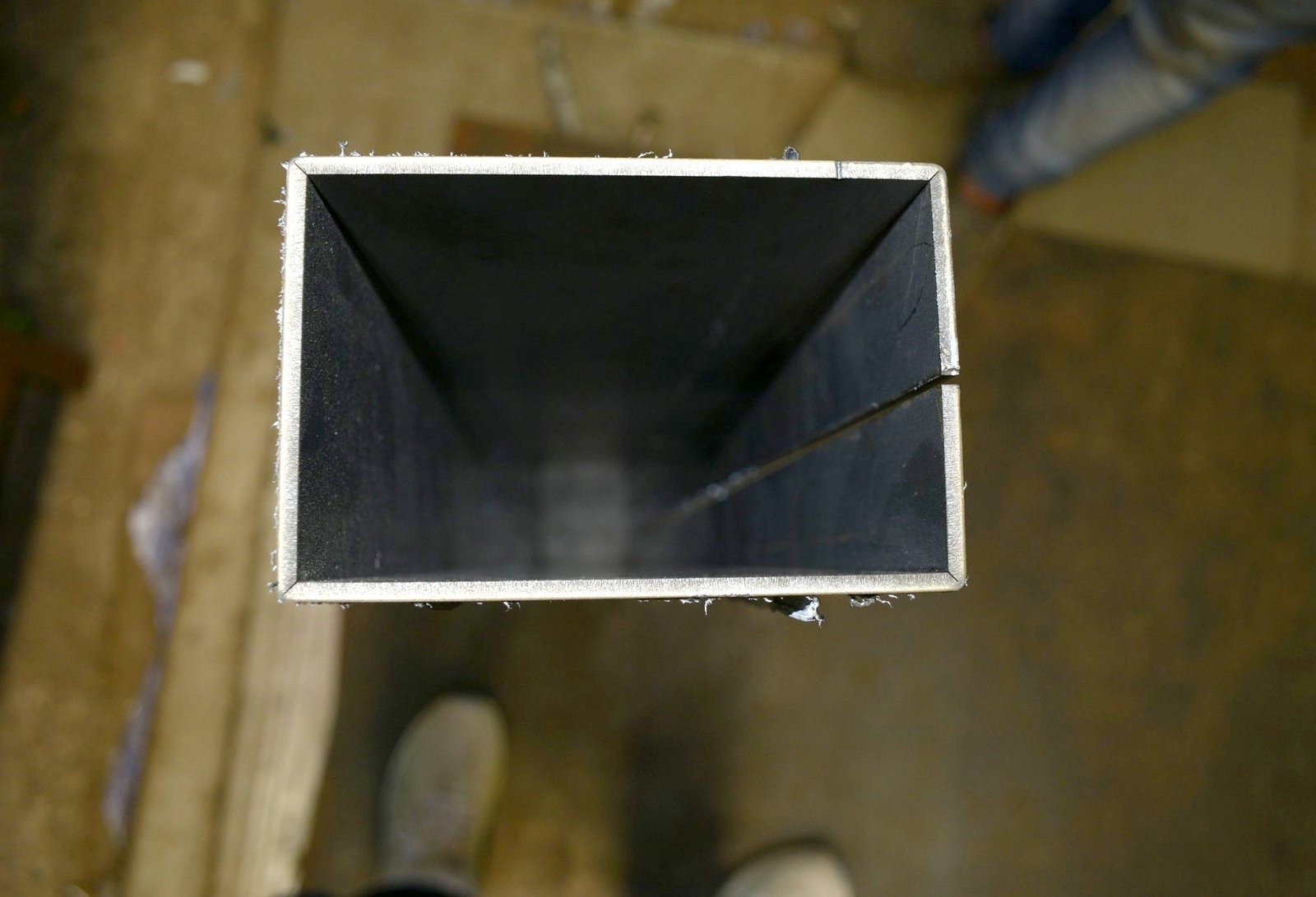

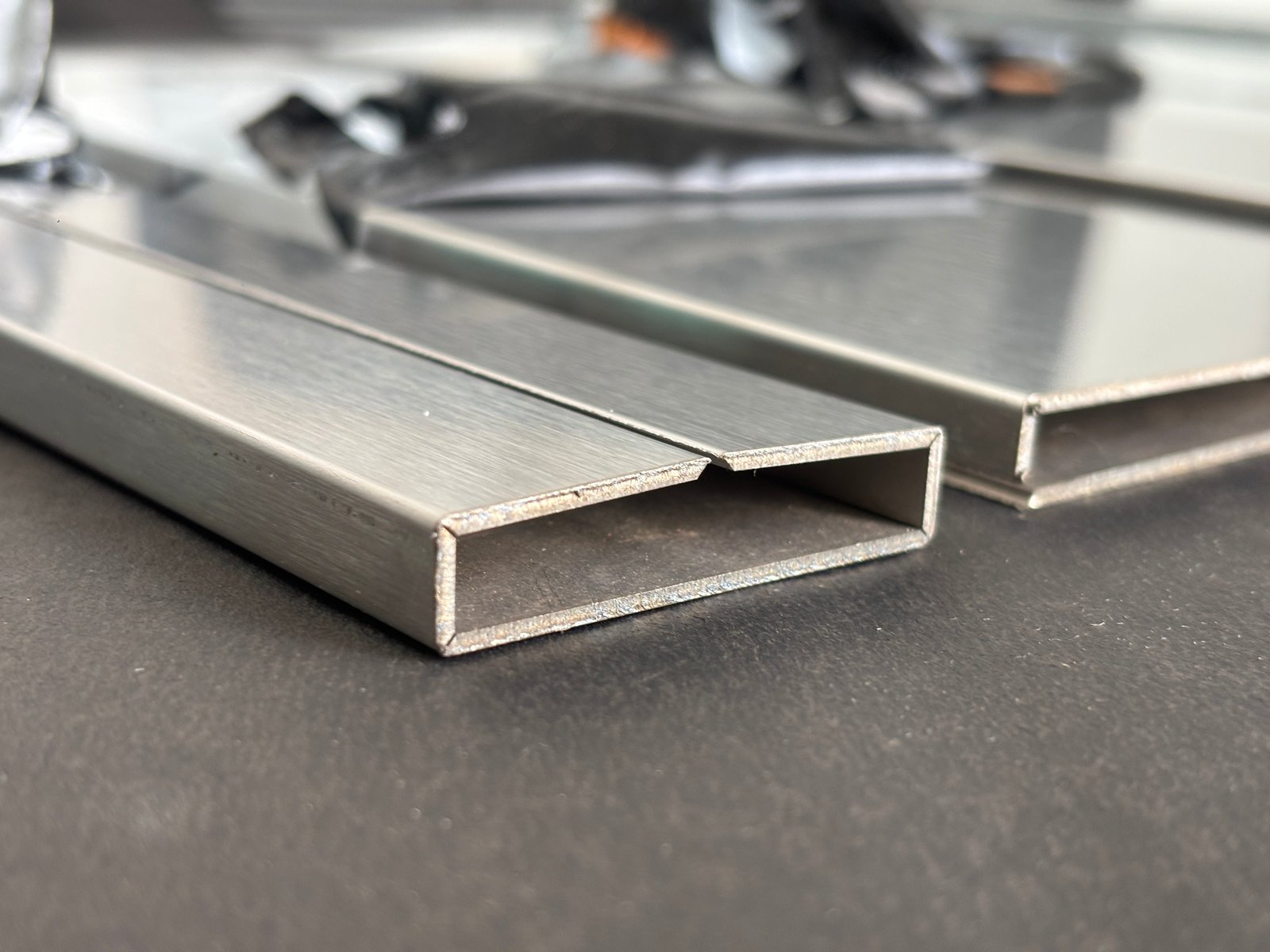

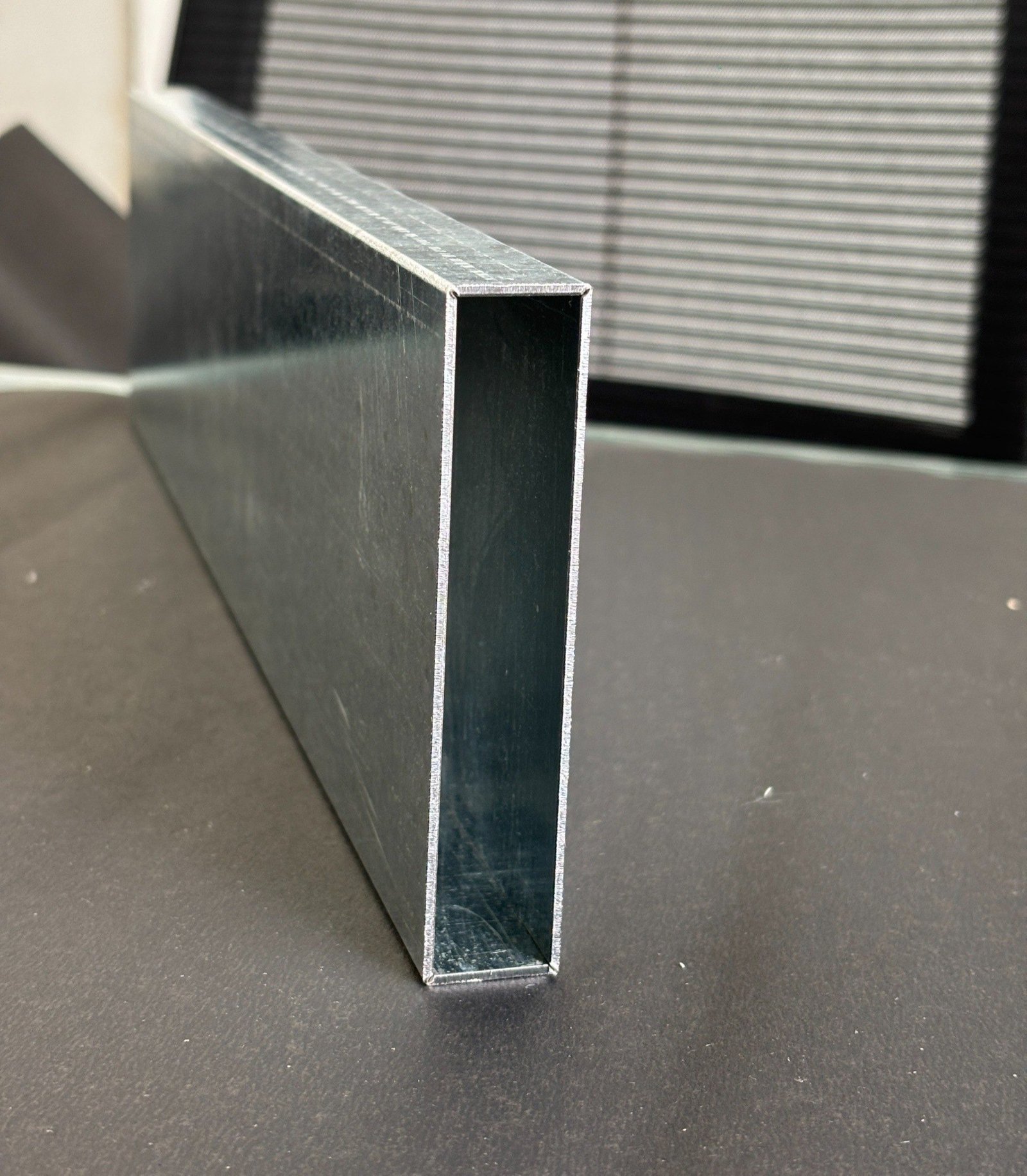

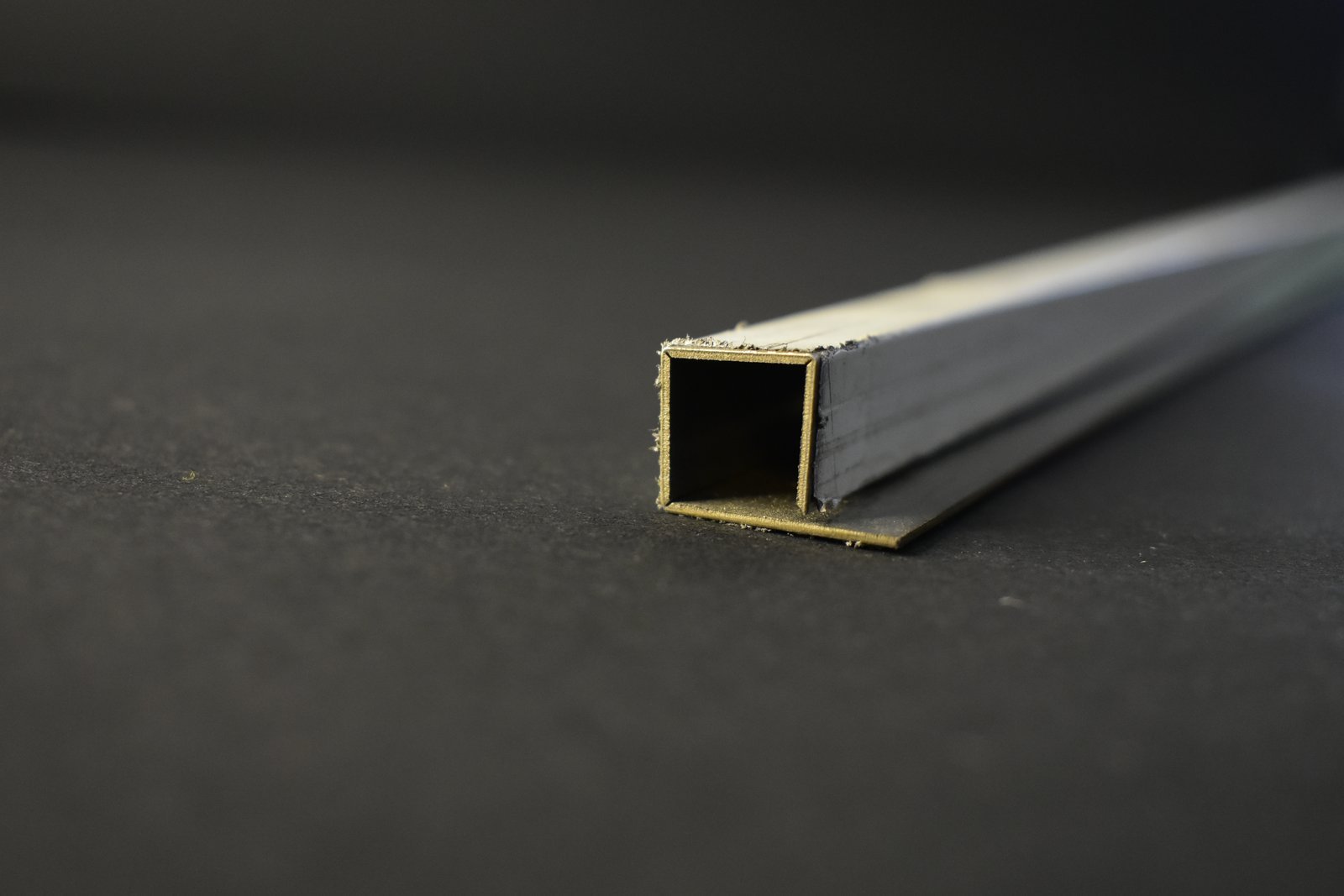

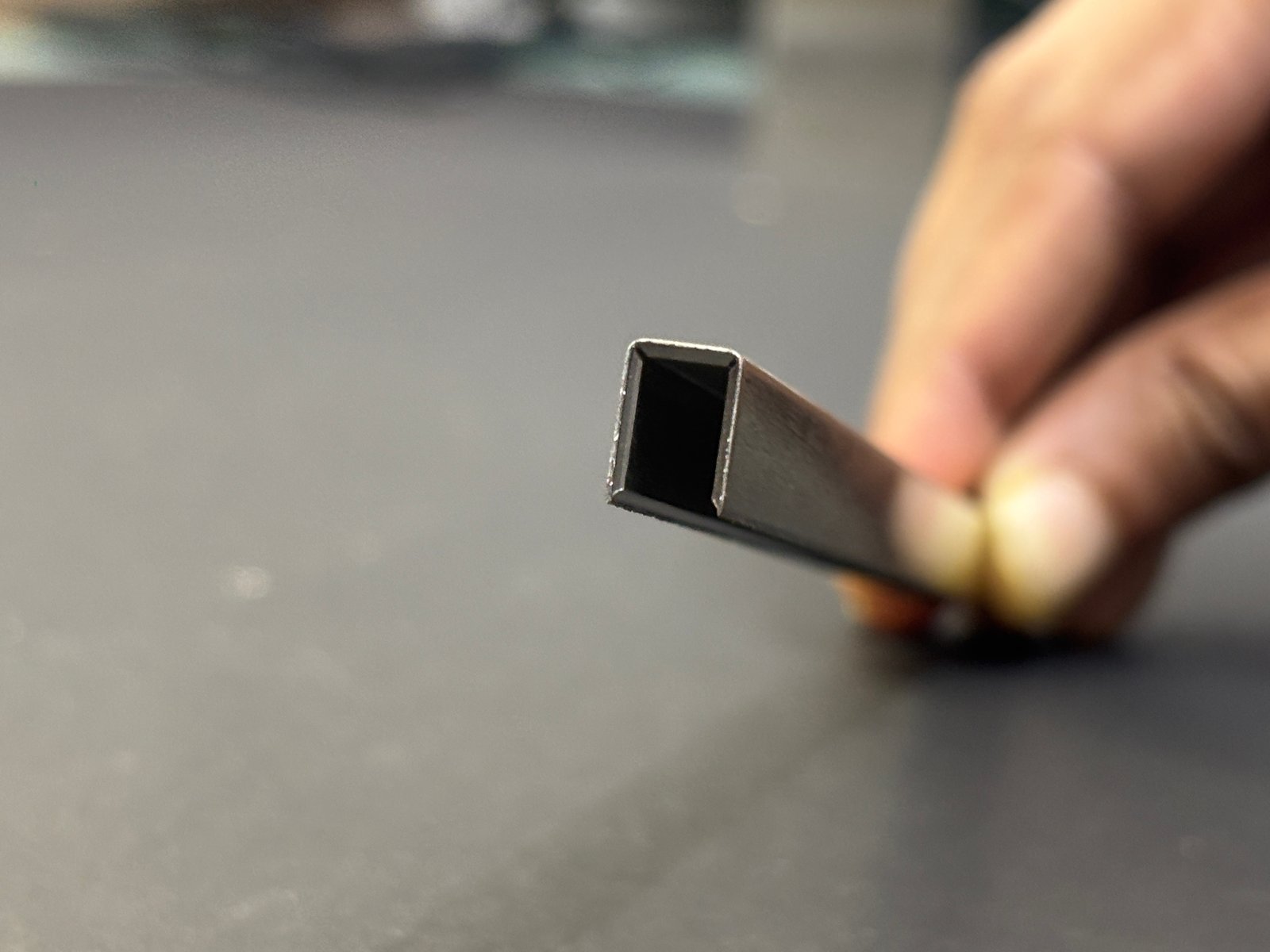

A square or rectangular hollow section folded from flat sheet and closed along one seam. Because it is folded and not bought as stock pipe, the corners are sharp and the size can be whatever the design needs.
MCS V-grooves all four bends, so the faces are flat and the section looks like a solid bar. Width, height, length, metal and finish are made to your drawing, and the seam is placed on the face that will not be seen.
Used for: slim frames for partitions, screens and shelving, furniture legs and frames, louvers and baffles, door and window surrounds.
To quote we need: width, height, length, the face that should hide the seam, quantity, metal and finish.
Materials

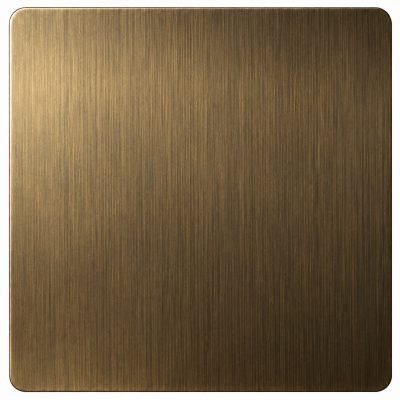

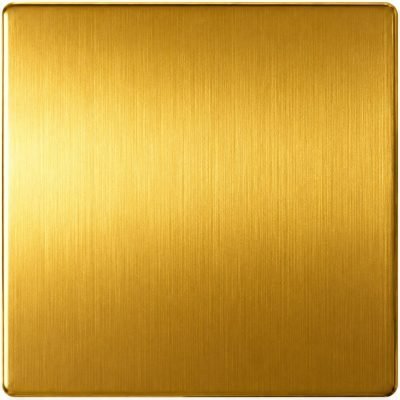

7 availableFinish options
Applied after fabrication
Sign finishes off on physical metal — request samples.
How it is manufactured

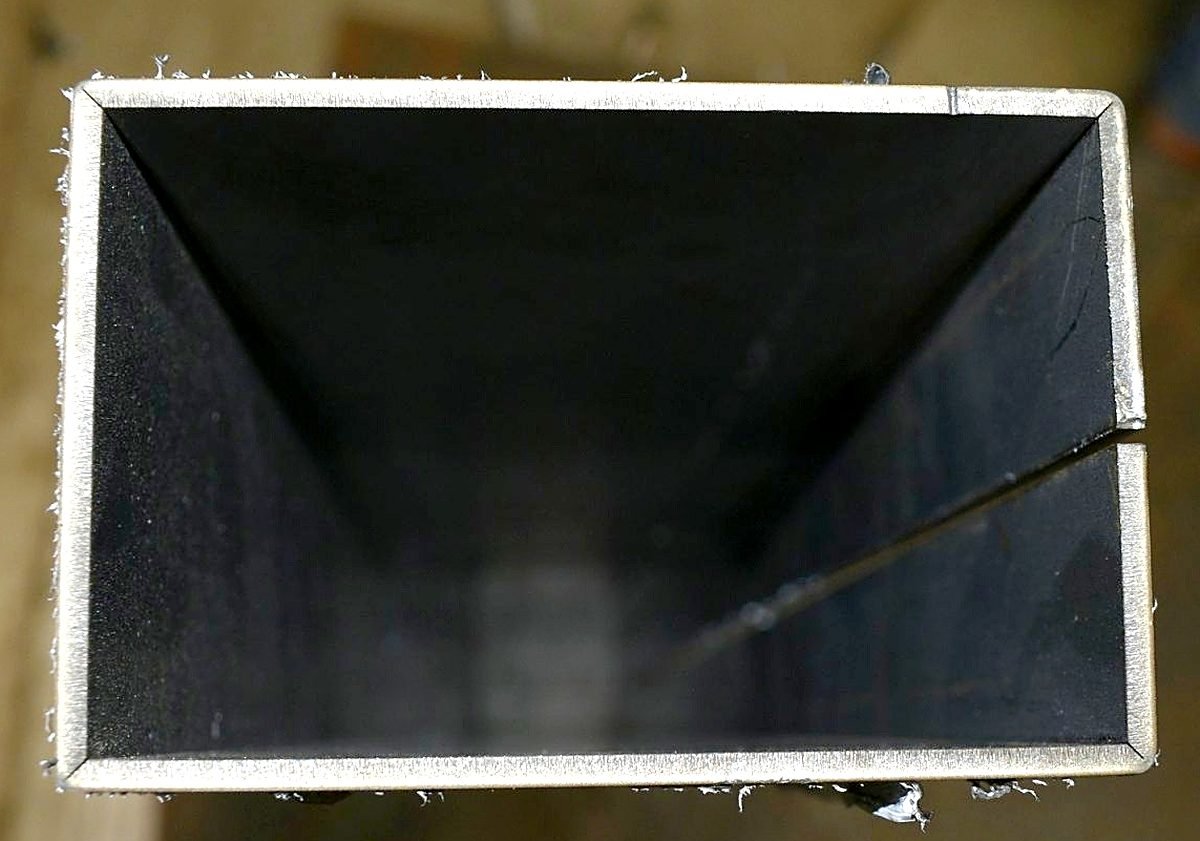

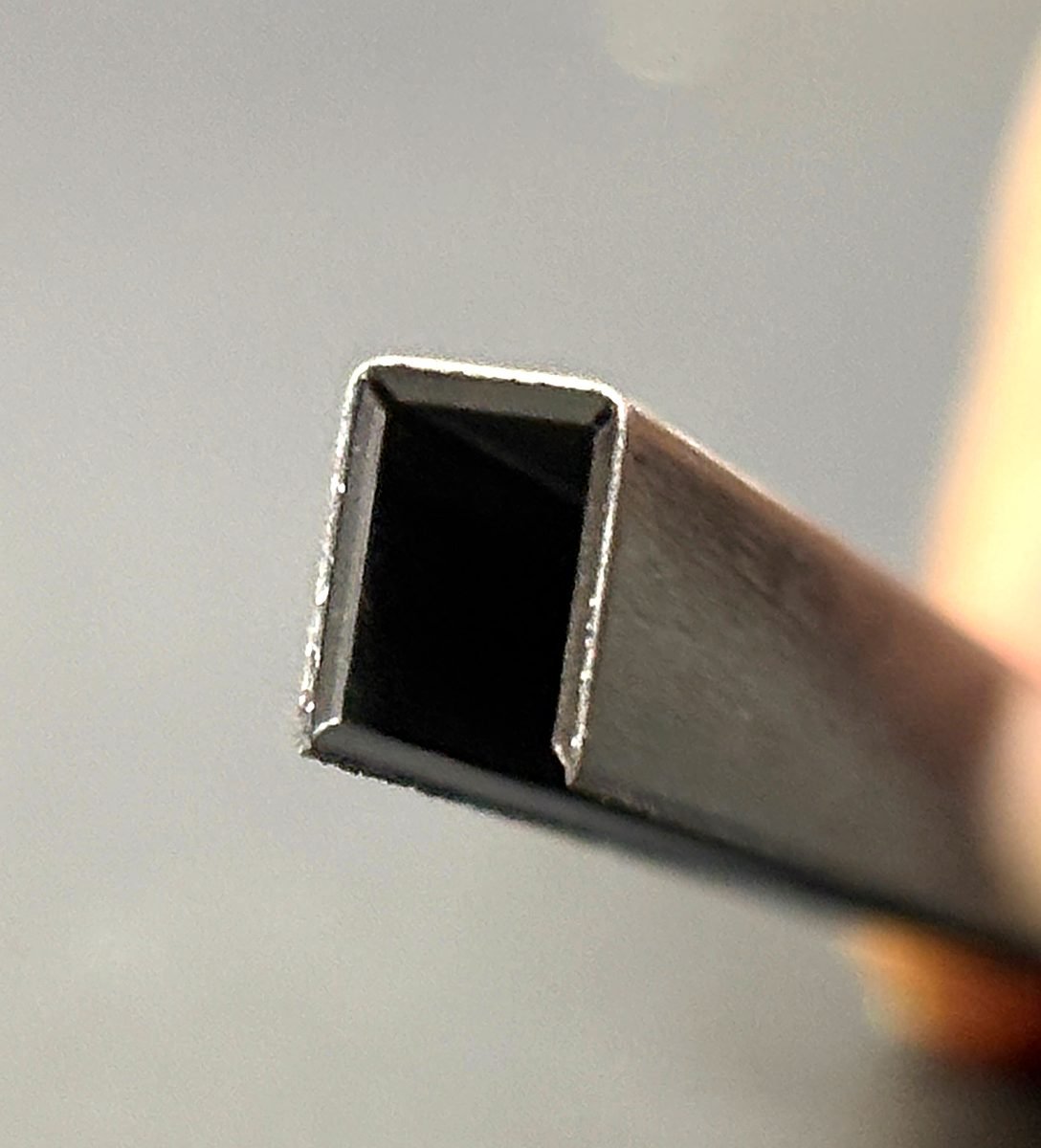

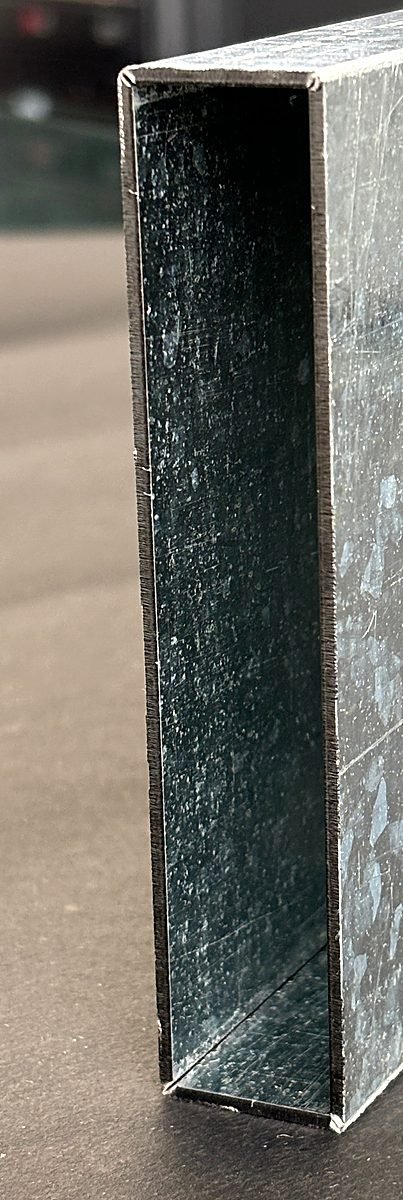

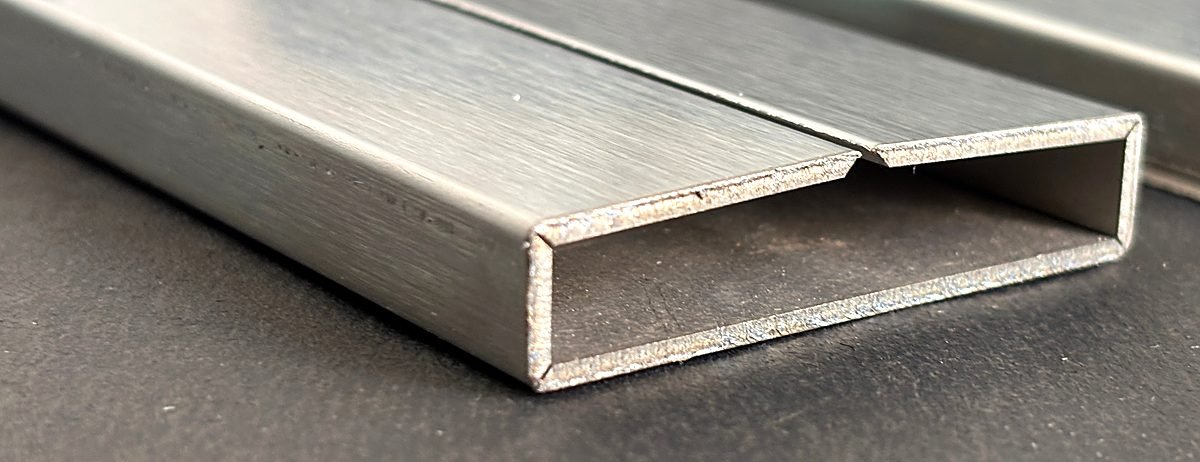

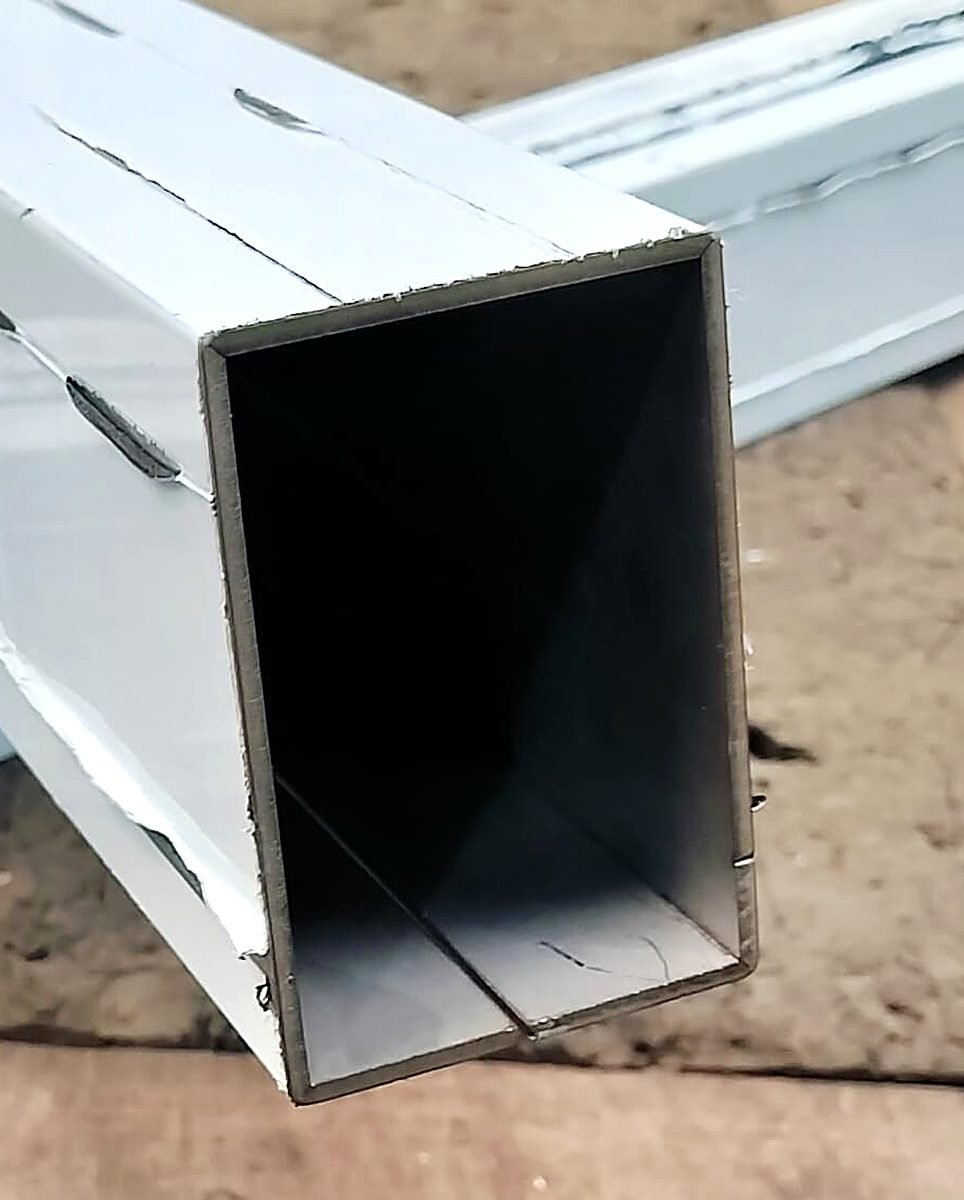

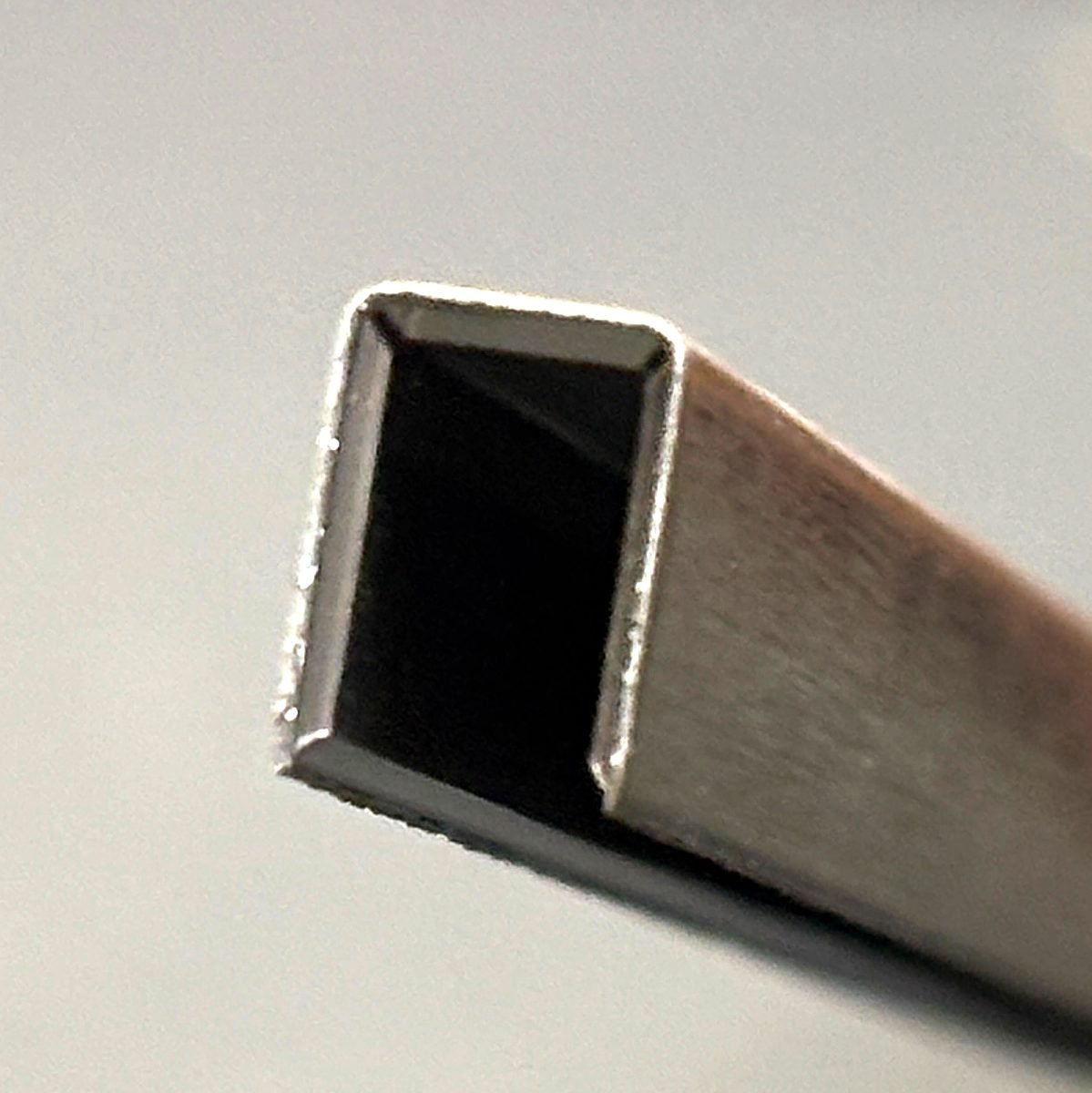

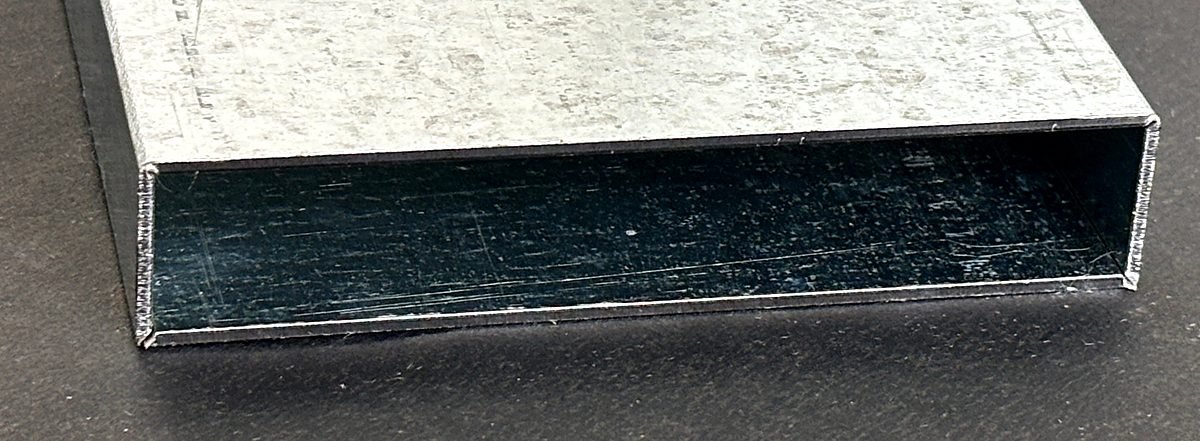

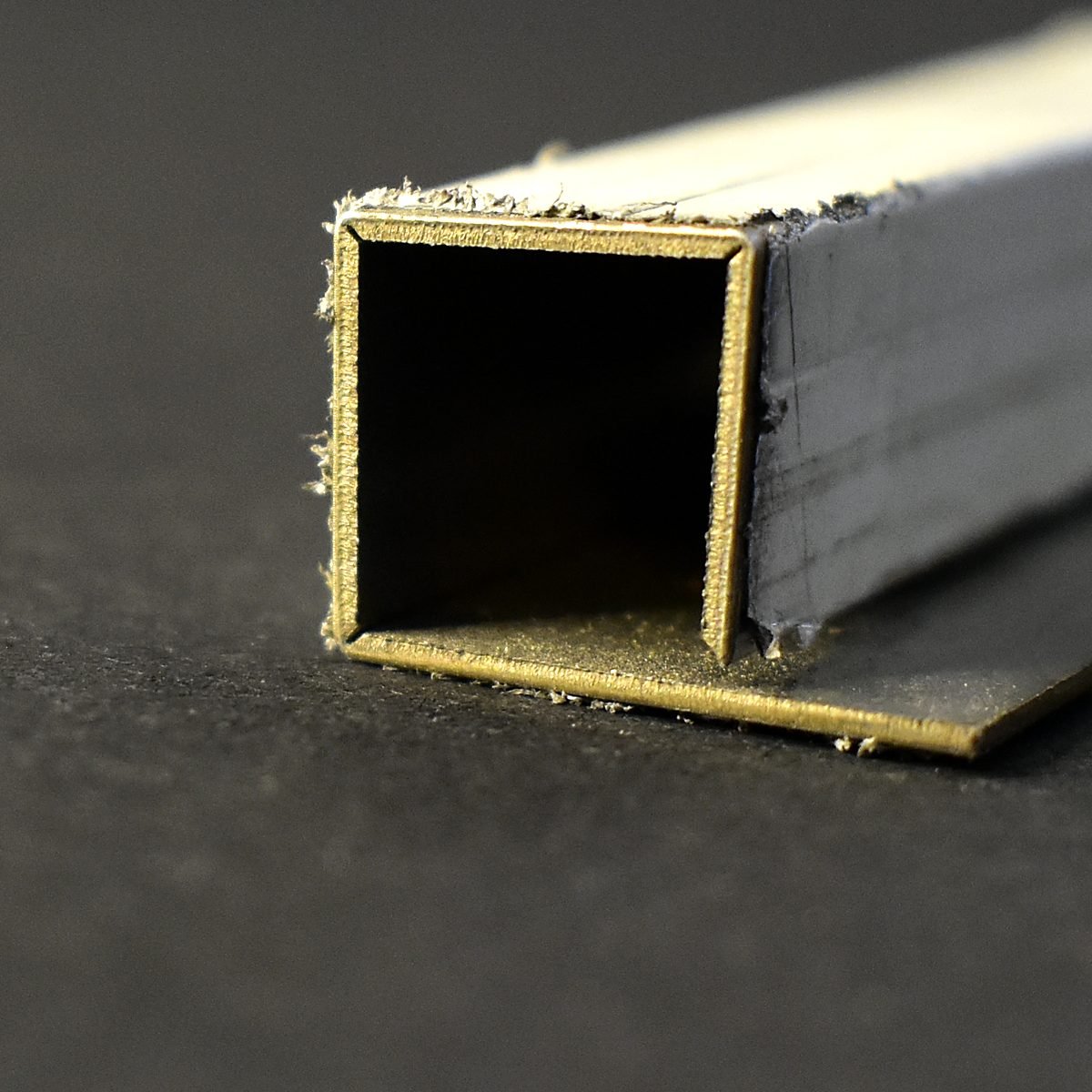

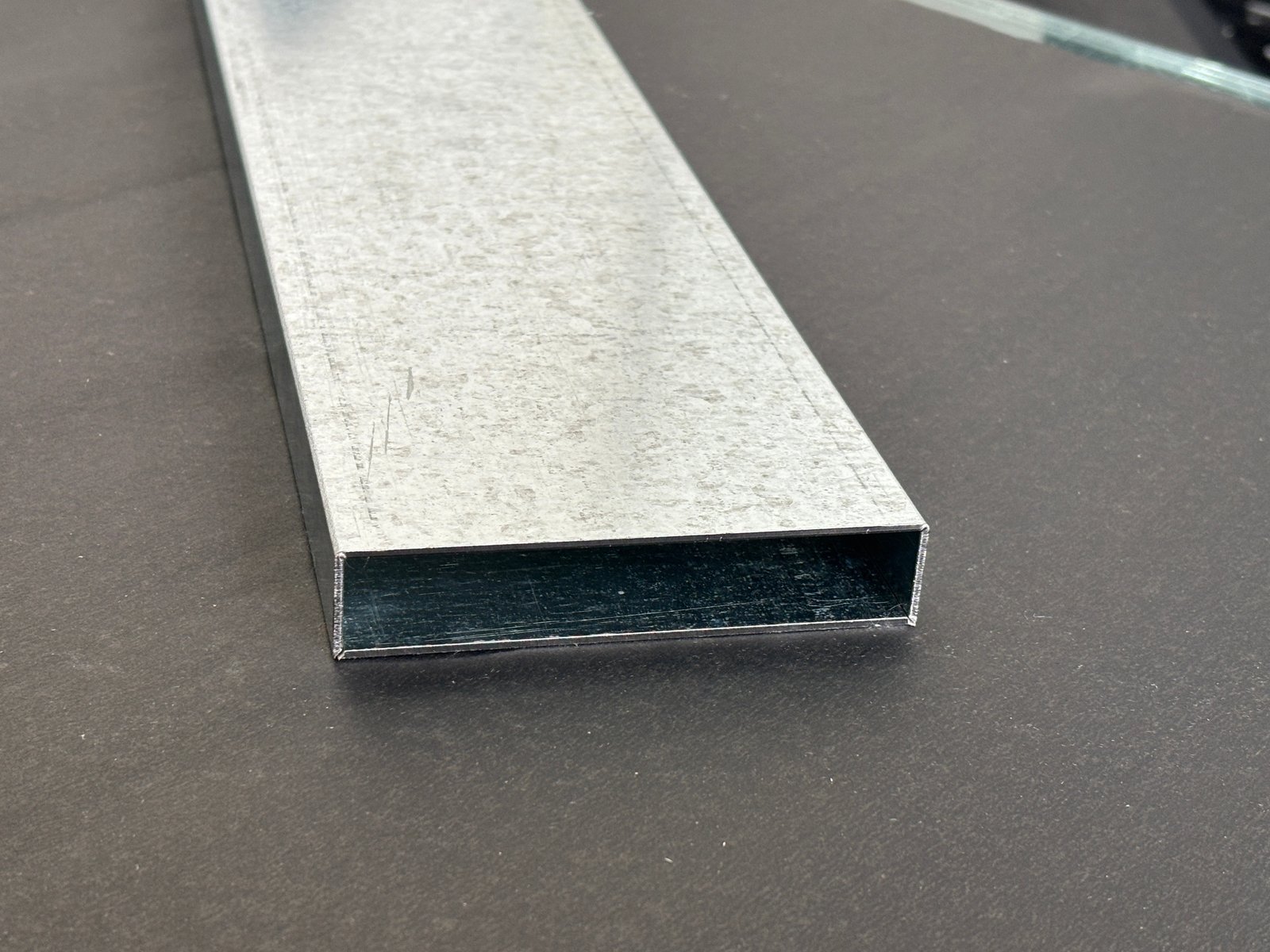

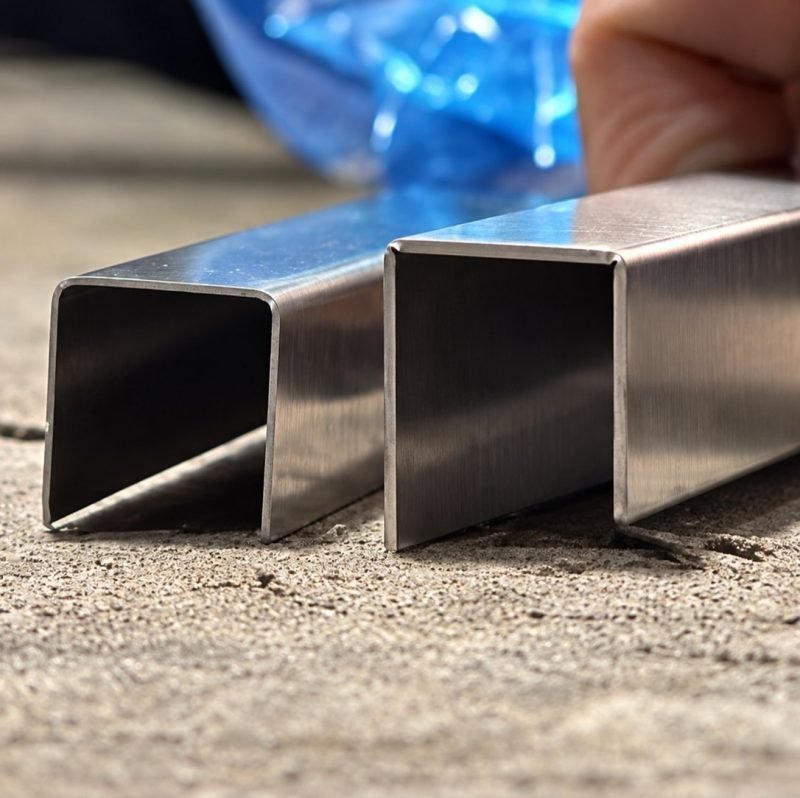

V-grooved for sharp edgesSee the edge

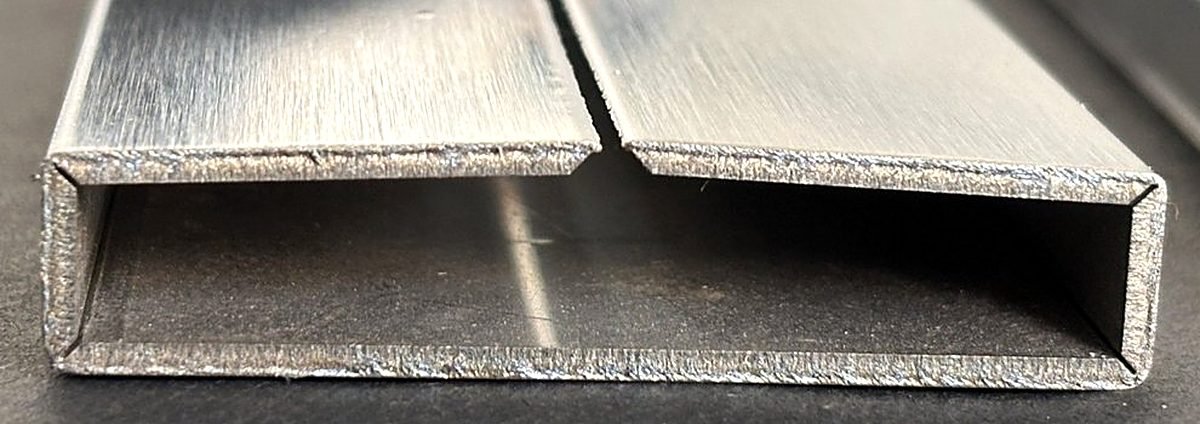

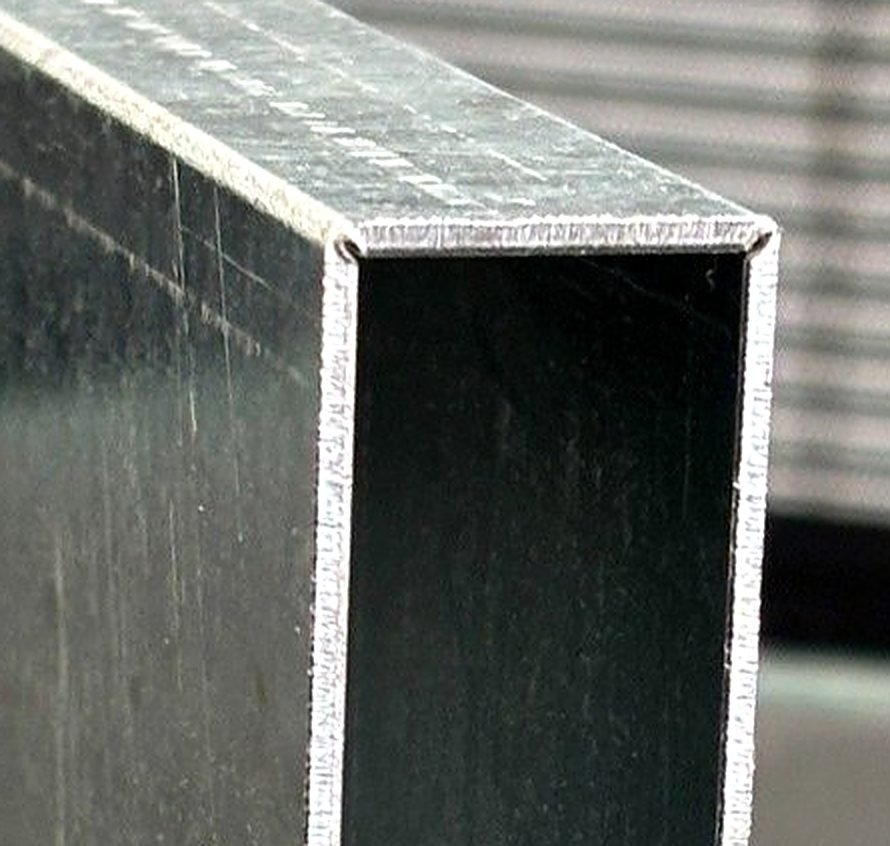

V-grooved, then bent
Enhanced close-up of our photograph: cropped, light and sharpness adjusted. The bend is not changed.
Technical information
| Material | Stainless Steel 304, Brass, Mild Steel |
|---|---|
| Product code | MCS-CPR-006 |
| Environment | Interior and exterior |
| Supply | Made to project requirement |
| Sheet thickness | 0.25 - 3.8 mm (project-specific) |
| Finishes | Mirror, Hairline, Matte, Bead Blast, Antique / Brushed, PVD Gold, Rose Gold PVD, Champagne Gold PVD, Bronze PVD |
| Manufacturing | CNC Fibre Laser Cutting → CNC V-Grooving → CNC Bending → Surface Finishing → PVD Colours |
Dimensions, tolerances and weights are project-specific. MCS does not publish fixed sizes, because each part is made to the project drawing. Contact MCS for project-specific technical data →
Applications
Downloads
Watch the films
Architectural Profiles & TrimsMetal Wall Edge Profiles for Corner ProtectionMetal wall edge profiles that cover exposed wall edges and protect the corners.

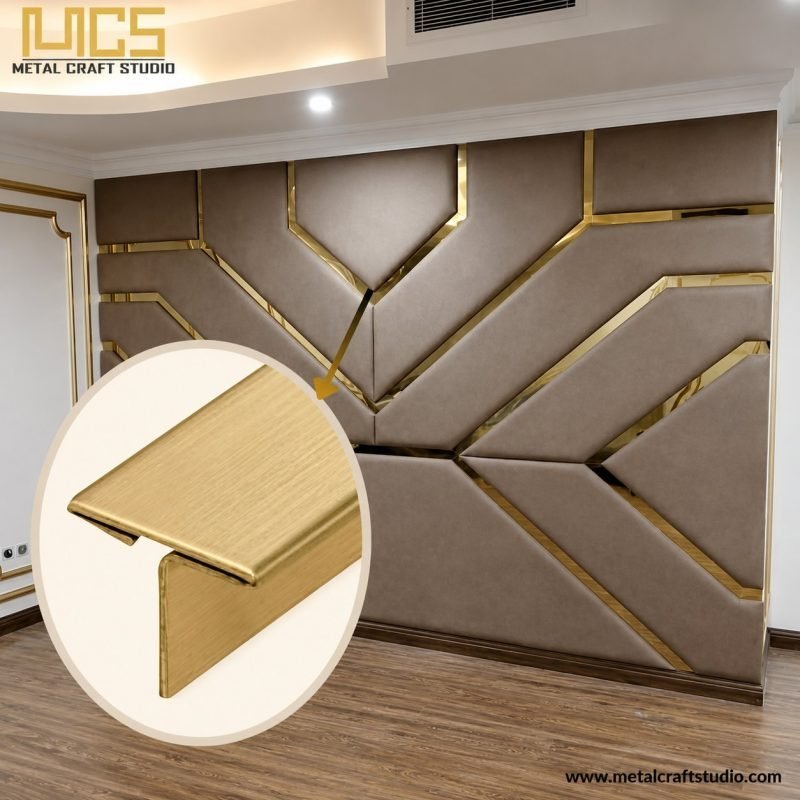

Architectural Profiles & TrimsWall Highlighter Trims | Stainless Steel Decorative Wall ProfilesStainless steel highlighter trims that draw clean accent lines between wall finishes and panels.
